Chrome Full LED Reflector Headlights Pair for Ram 2500 / 3500 (2019-2024)
$587.95
Skip to product information

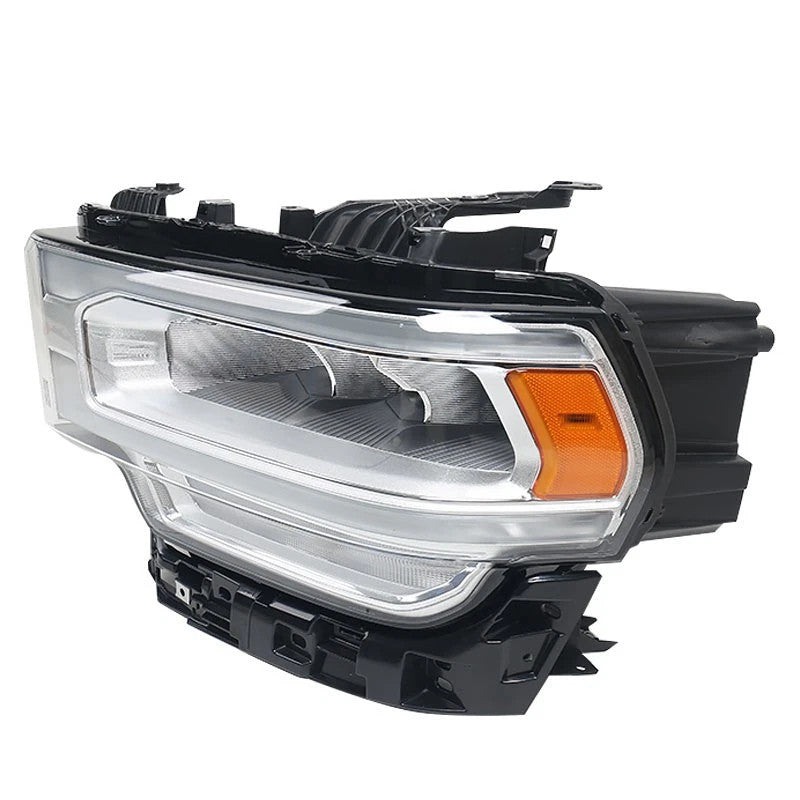

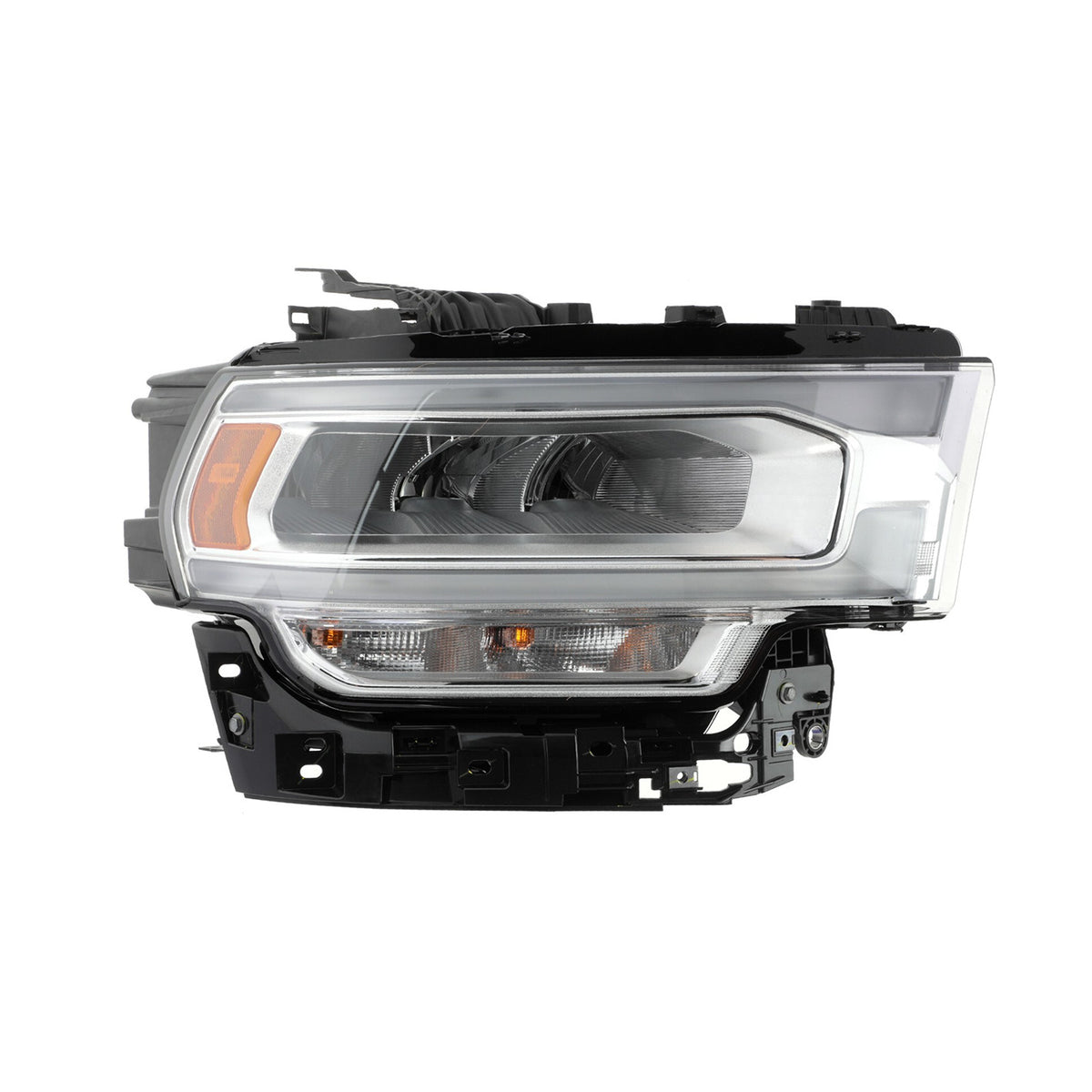

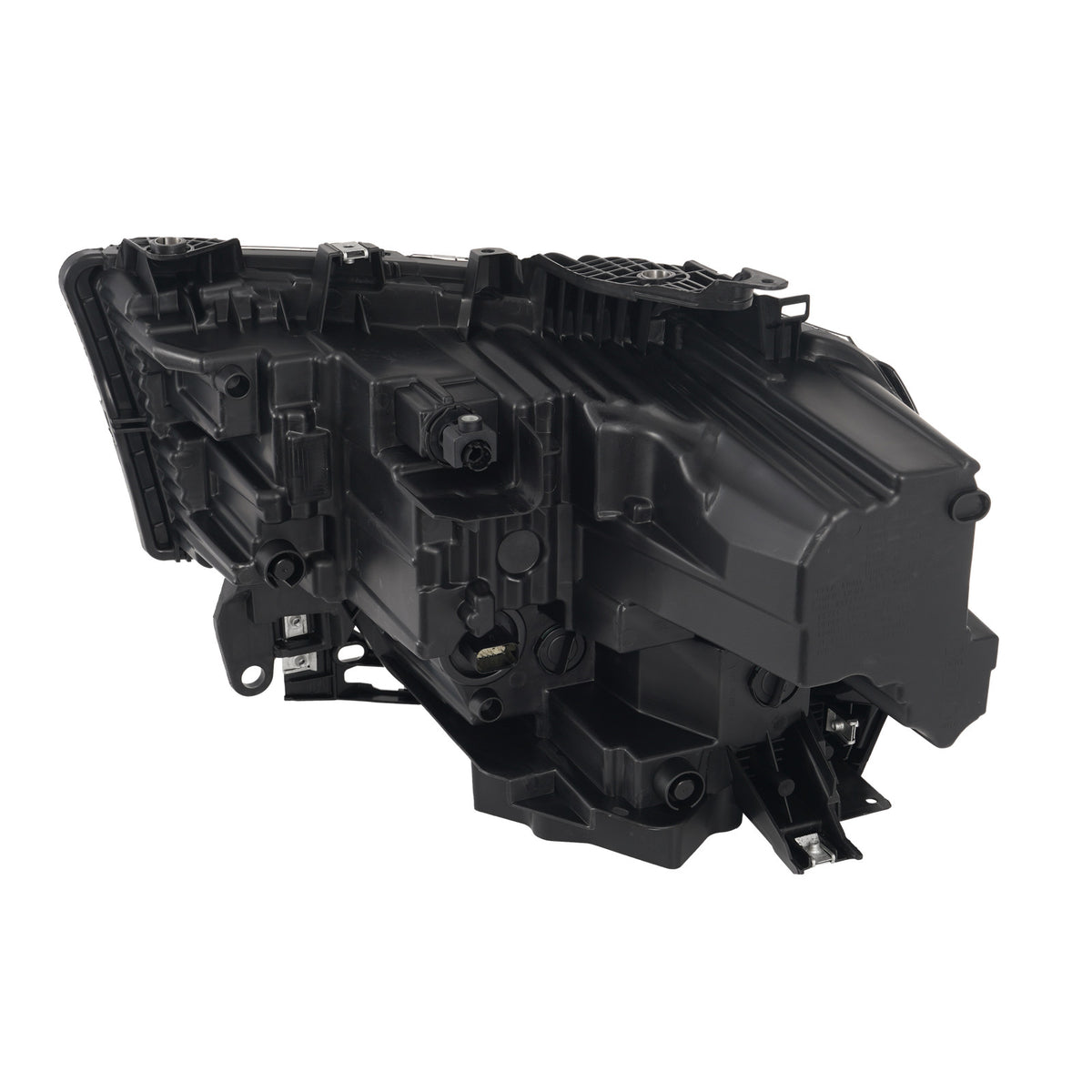

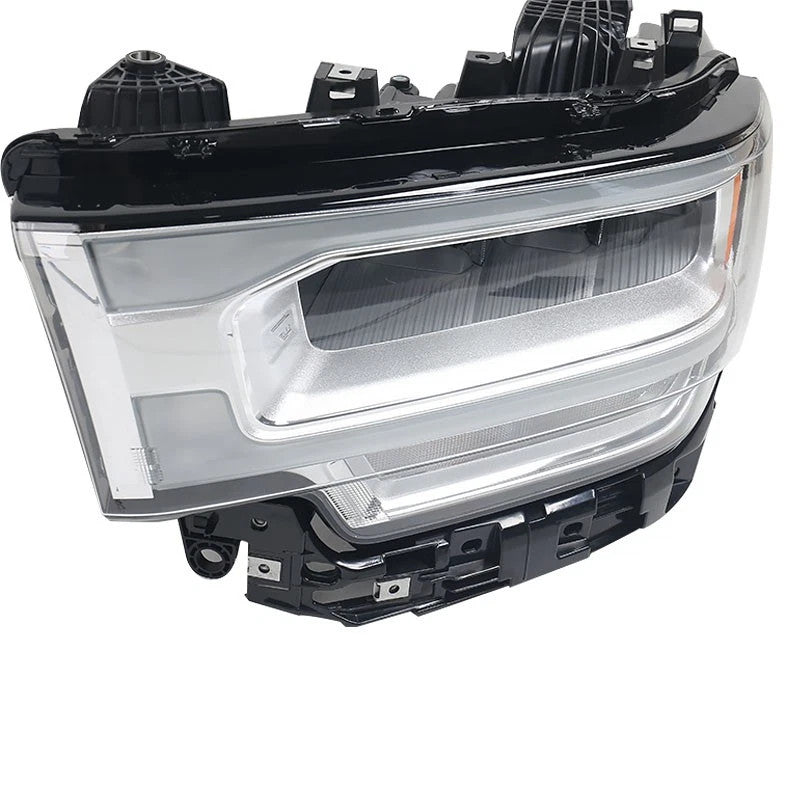

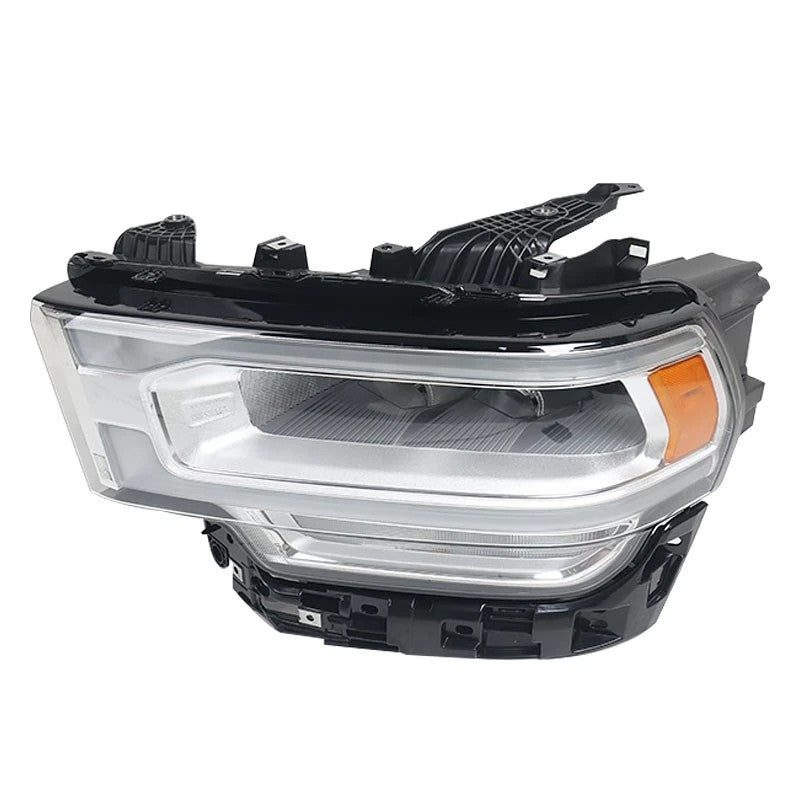

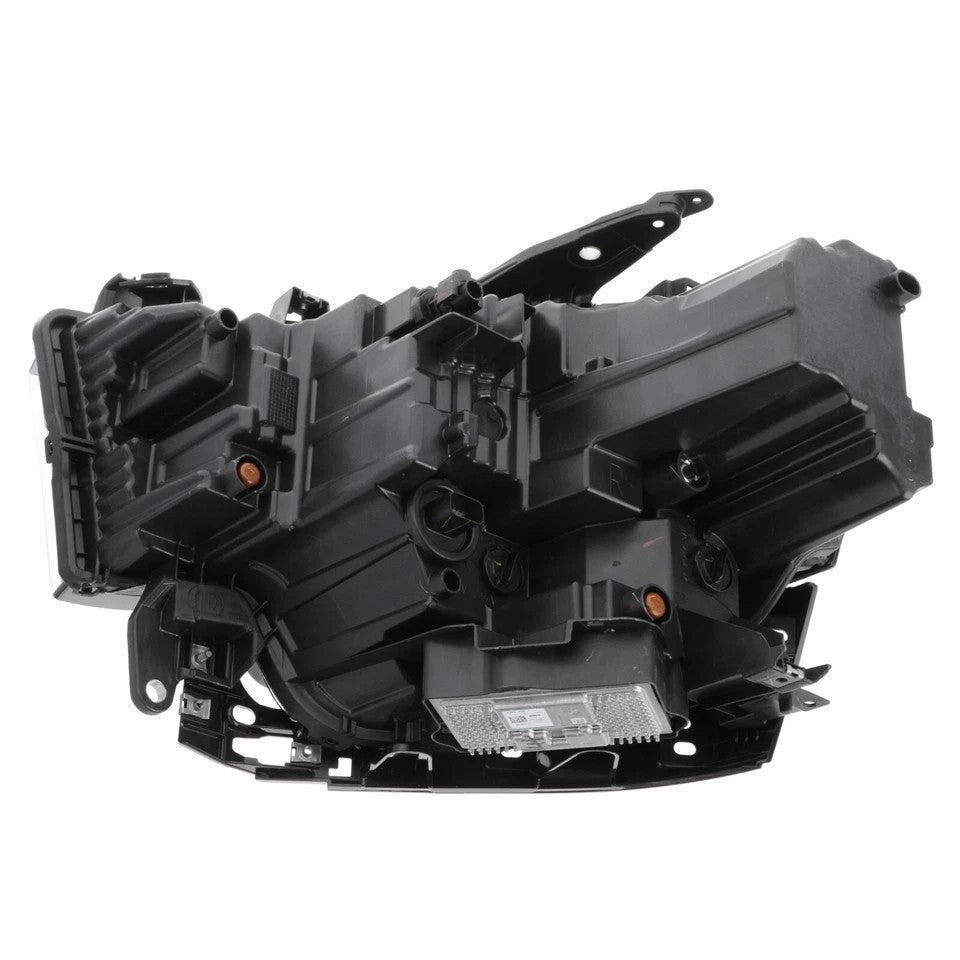

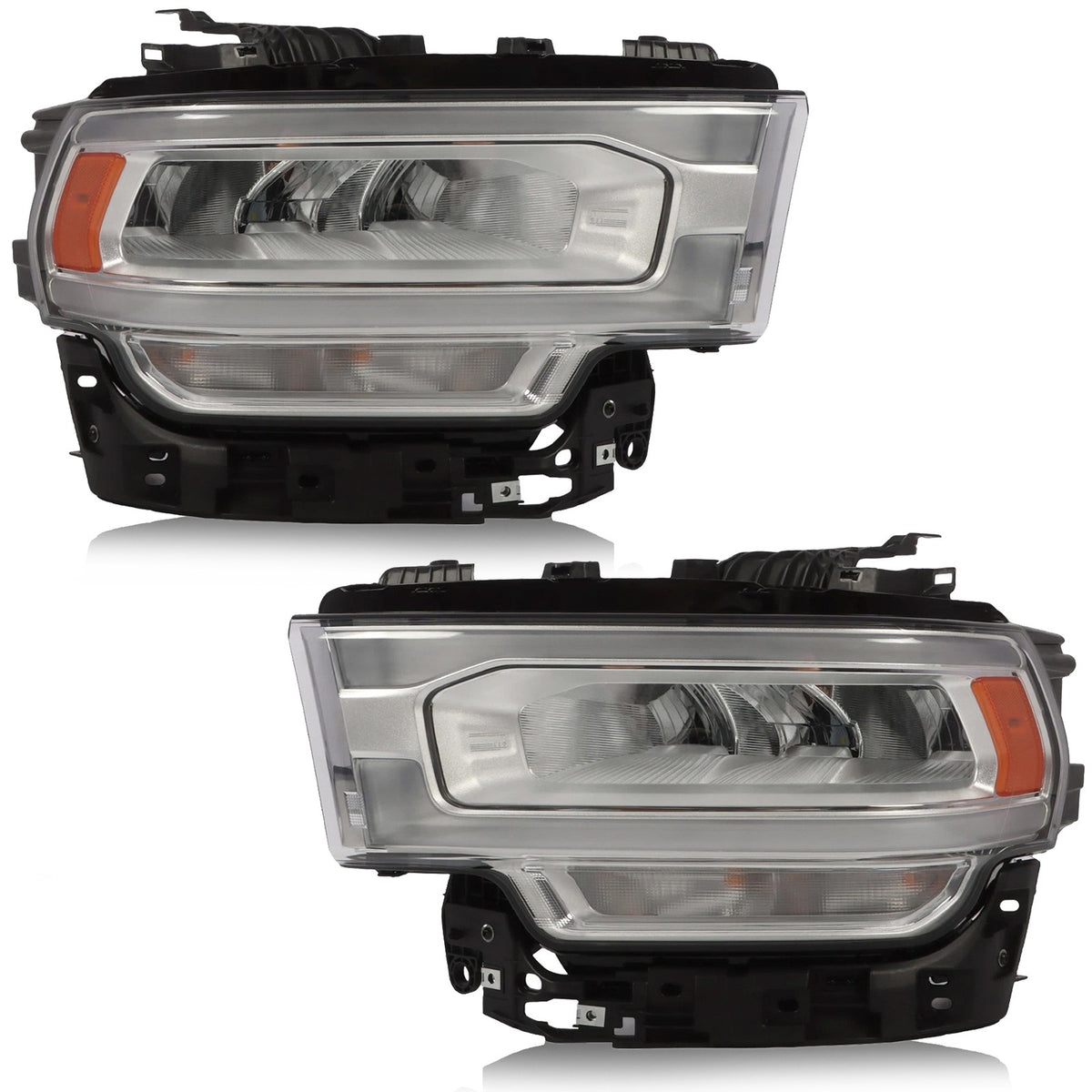

Chrome Full LED Reflector Headlights Pair for Ram 2500 / 3500 (2019-2024)
$587.95
DS-68360180AD
Free shipping to the lower 48 · Returns & refunds · Questions? Contact us
Replace cracked or hazy headlights on your 2019-2024 Ram 2500 or 3500 with this brand-new chrome full LED reflector pair.
Fitment
| Year | Make / Model | Fits |
|---|---|---|

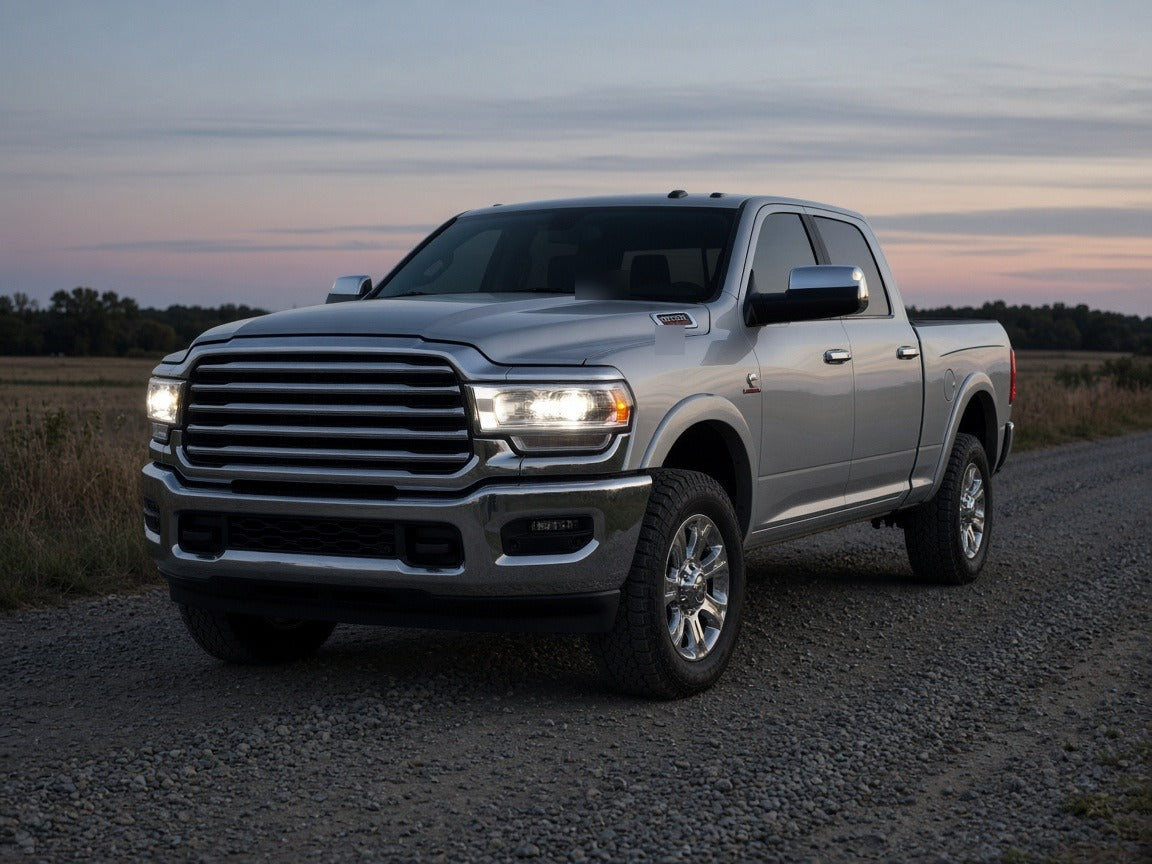

| 2019-2024 | Ram 2500 / 3500 with factory LED reflector headlights | Factory LED reflector headlights |
Will NOT fit: Halogen and LED projector models; Ram 1500; 2025+ Ram HD.
Common Reasons to Replace
- Yellowed, hazy, or oxidized lenses reducing light output
- Cracked lens or broken mounting tabs
- Moisture or condensation inside the housing
- Collision damage
Specs
- Low/high beam, DRL, turn: built-in LED
- Style: reflector
- Housing: Chrome
- DOT compliant
- Quantity: Pair (Left + Right)
- Condition: New
Interchange Part Numbers
OEM: 68360180AD. Partslink: CH2503336, CH2502336.
What's Included
- 1 x Driver side headlight assembly
- 1 x Passenger side headlight assembly
- Left and right headlights
Installation
- Remove the fourteen plastic fasteners and the radiator upper support cover, then the ten 10 mm bolts and the upper grille trim.
- Pull the body trim off, remove the two side 10 mm bolts and the seven 10 mm nuts underneath, and remove the lower grille trim.
- Remove the eight lower and six upper 10 mm grille bolts, unseat the grille legs, unplug the front camera if equipped and remove the grille.
- Remove the plastic fastener and 10 mm bolt at the bottom of the headlight (between fender and bumper) and the 10 mm bolt and fastener on top, unseat the lamp and unplug it.
- Connect and test the new lamp, reinstall in reverse and aim the headlights.
Steps compiled from SPEC-D Tuning 2019-up Ram 2500/3500 headlight installation guide (manualspro.net) and CumminsForum "How to remove 2019 headlight & grill assembly". Professional installation and headlight aiming are recommended.
FAQs
Will these fit a Ram 1500?
No. Heavy-duty 2500/3500 only.
Will these fit a projector-headlight Ram HD?
No. Reflector LED lamps only.
Do I need to remove the front bumper to replace these headlights?
No. Only the grille comes off; each lamp is then held by 10 mm bolts and fasteners.
Can I install HID or LED kits?
Not applicable. The low and high beams are built-in factory LED; there is no replaceable headlight bulb for an LED or HID kit.
