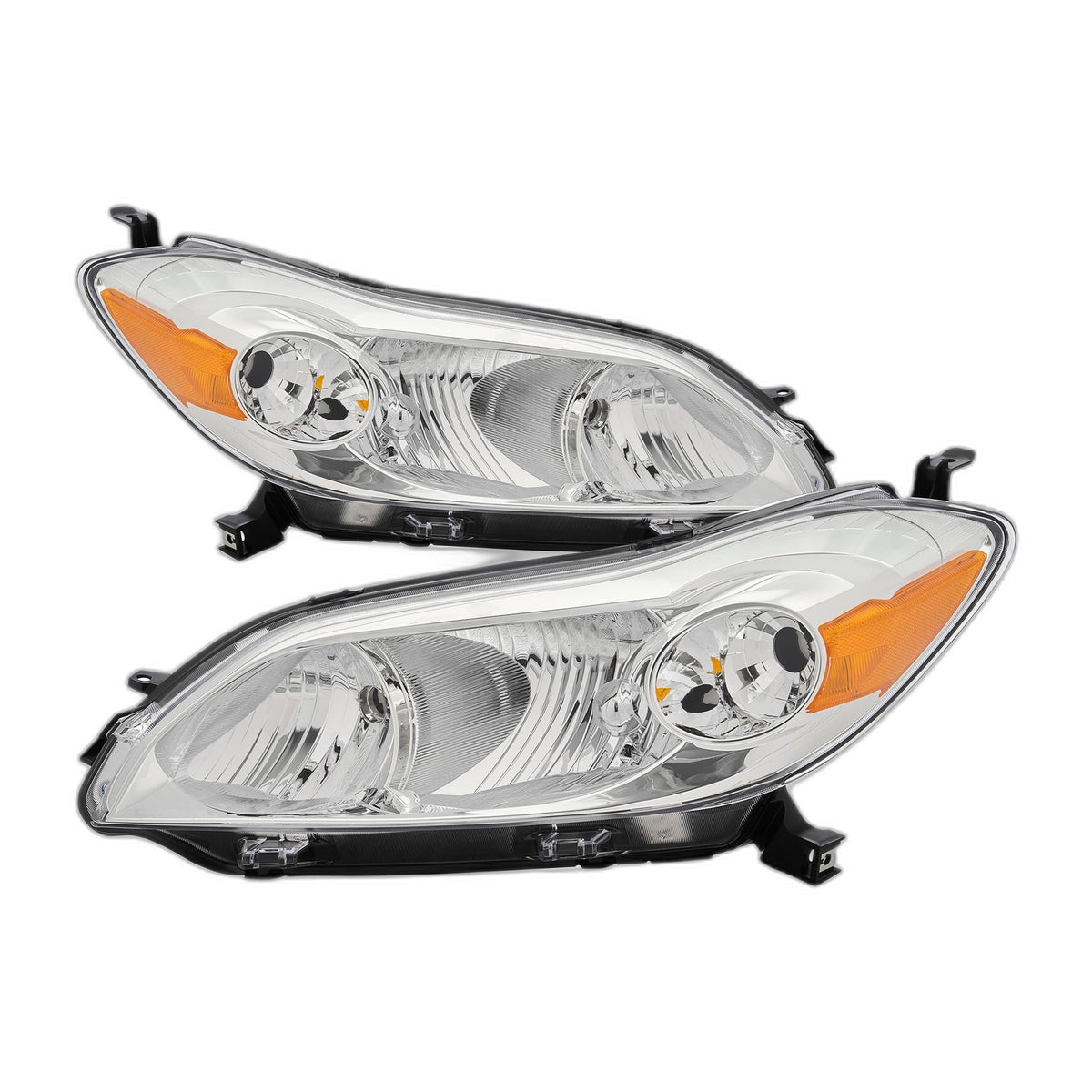

Chrome Halogen Headlights Pair for Toyota Matrix (2009-2014)
$210.95
DS-8115002650-CH
Free shipping to the lower 48 · Returns & refunds · Questions? Contact us
New chrome-housing halogen headlight pair with amber side section for the 2009-2014 Toyota Matrix hatchback. 9006 low, 9005 high, 3157 turn signal. Bulbs are not included.
Fitment
| Year | Make / Model | Fits |
|---|---|---|
| 2009-2014 | Toyota / Matrix (2nd gen, E140) | All trims (base, S, XRS) |
Will NOT fit: Pontiac Vibe, 2003-2008 Matrix, or Corolla.
Common Reasons to Replace
- Yellowed, hazy, or cracked factory lenses cutting light output
- Moisture or condensation inside the housing
- Broken mounting tabs or collision damage
- Refreshing the front end with a new chrome look
Specs
- Light type: Halogen reflector (separate low + high beam)

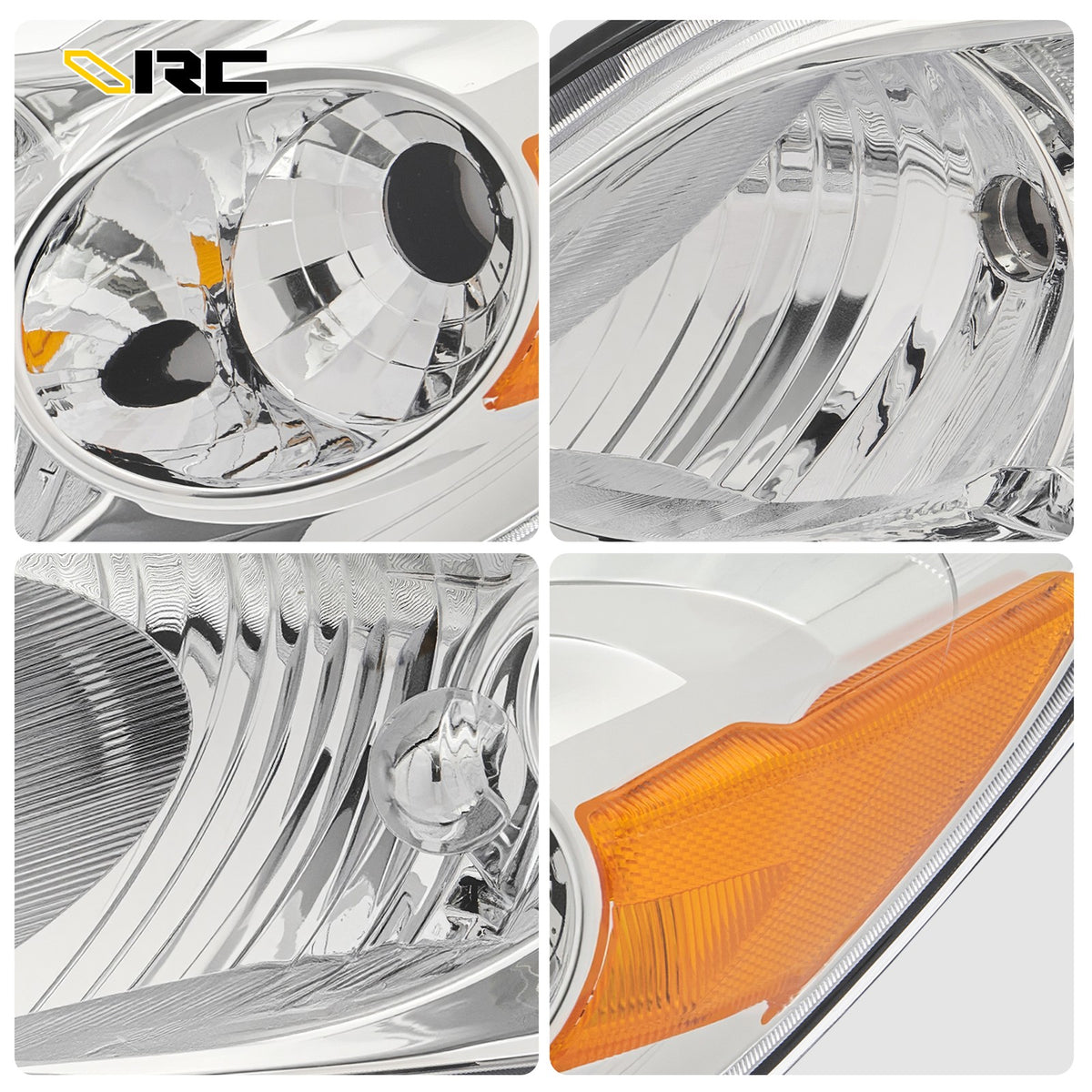

- Housing: Chrome, clear lens, amber side

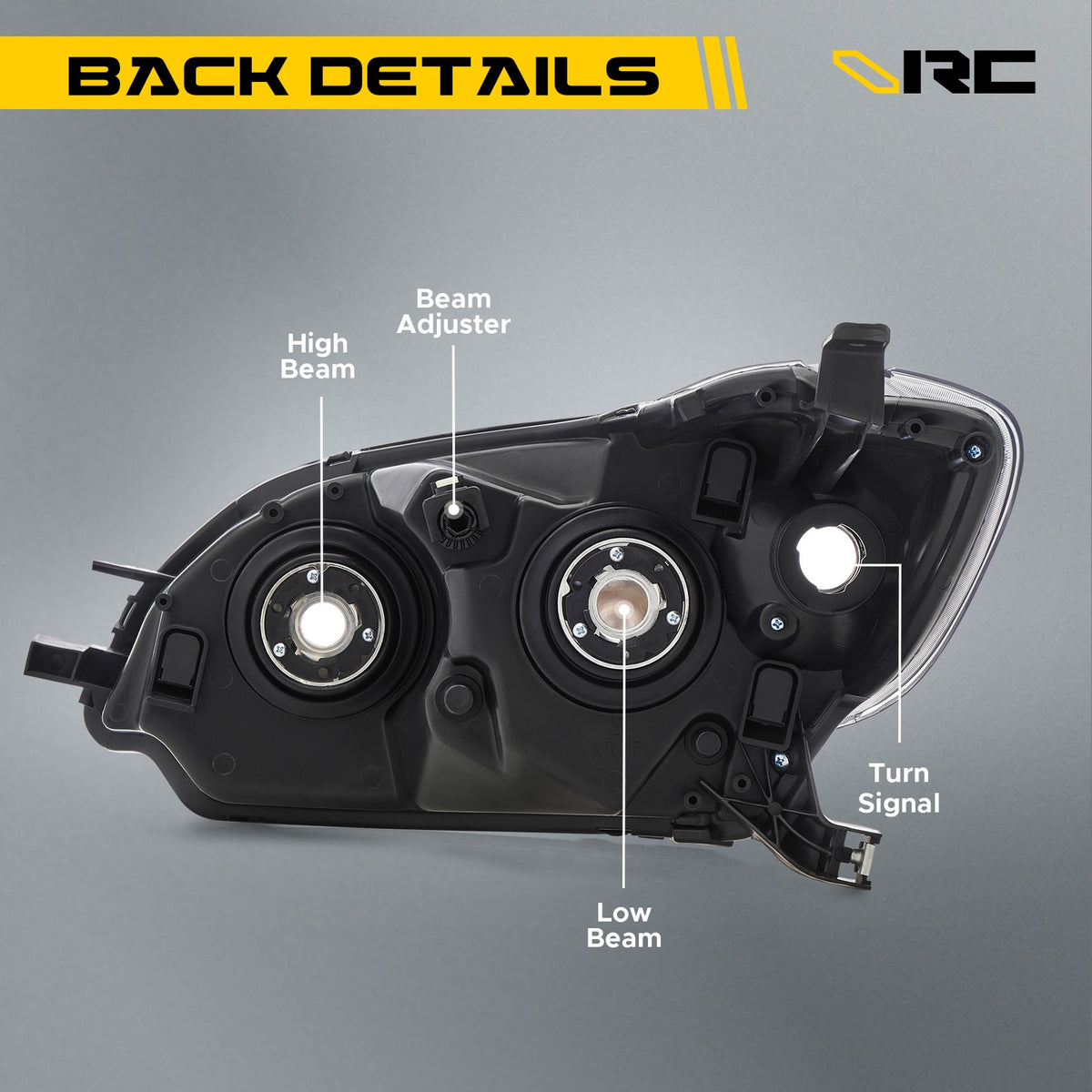

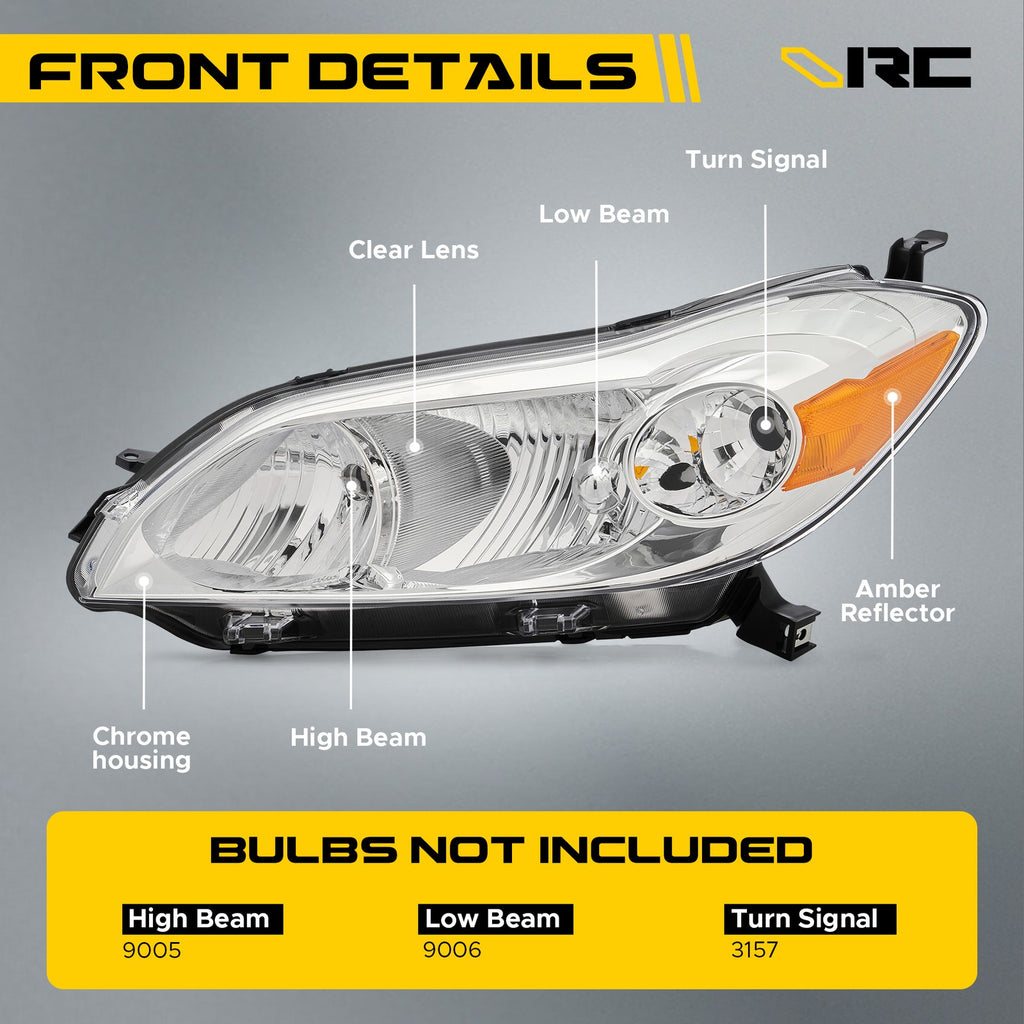

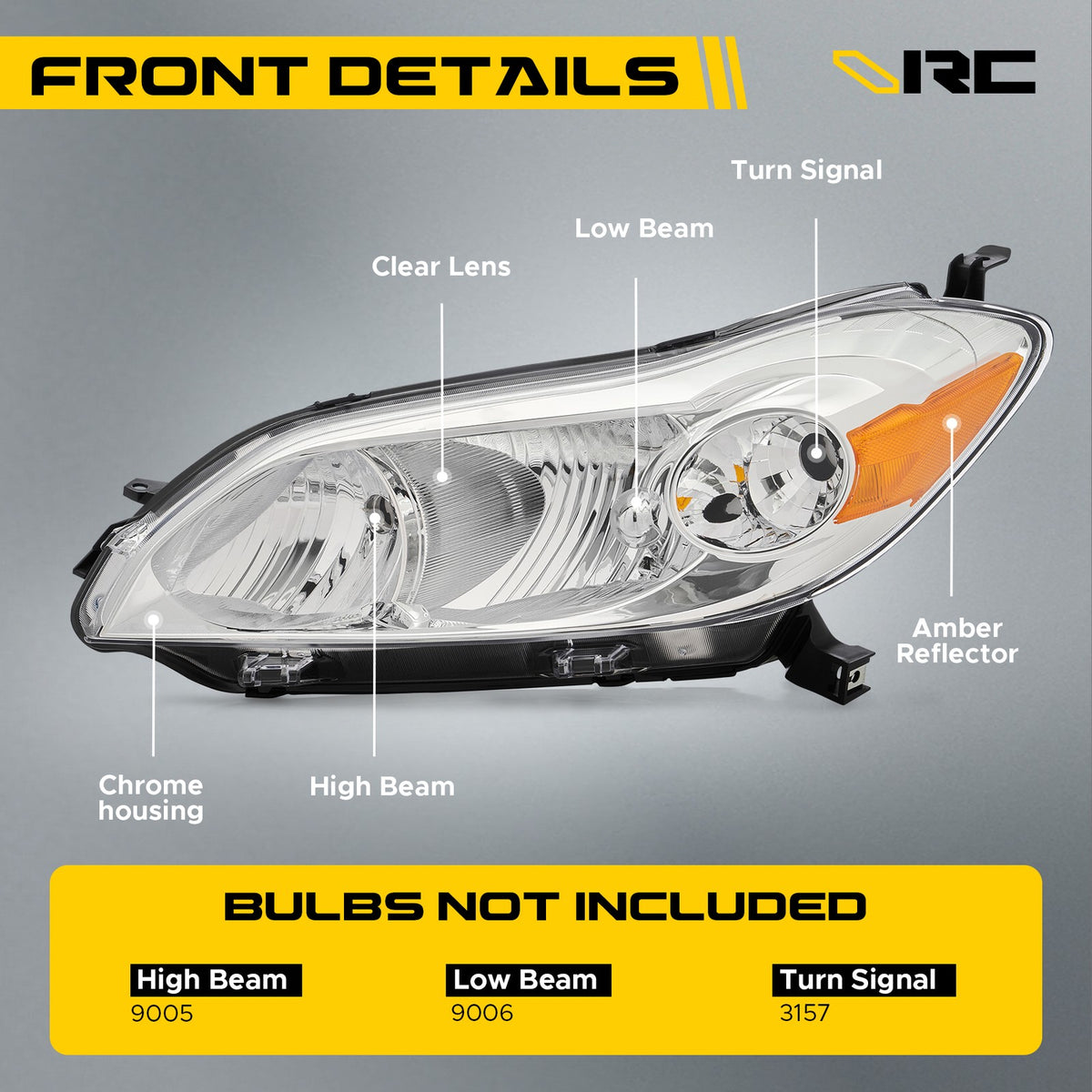

- Bulbs: High beam 9005, low beam 9006, turn signal 3157 (bulbs NOT included)
- Lens: Polycarbonate; housing: polypropylene
- DOT & SAE compliant
- Fitment type: Direct replacement, plug-and-play connectors
- Quantity: Pair (Left + Right)
- Condition: New
Interchange Part Numbers
OEM: 81150-02650, 81110-02650 · Partslink: TO2502184, TO2503184
What's Included
- 1 x Driver-side headlight assembly
- 1 x Passenger-side headlight assembly
- Bulbs not included — fits High beam 9005, low beam 9006, turn signal 3157
Installation (2009-2014 Toyota Matrix)
Tools: 10 mm socket and ratchet, Phillips screwdriver, clip tool, masking tape.
- Disconnect the negative battery cable.
- Remove the clips on the radiator support cover and the screws along the top of the bumper cover.
- Remove the screws in each front wheel-well liner and the fasteners along the underside of the bumper.
- Tape the fender edges, pull the bumper cover forward, unplug the fog lights (if equipped) and set it aside.
- Remove the headlight bolts and pull the lamp forward.

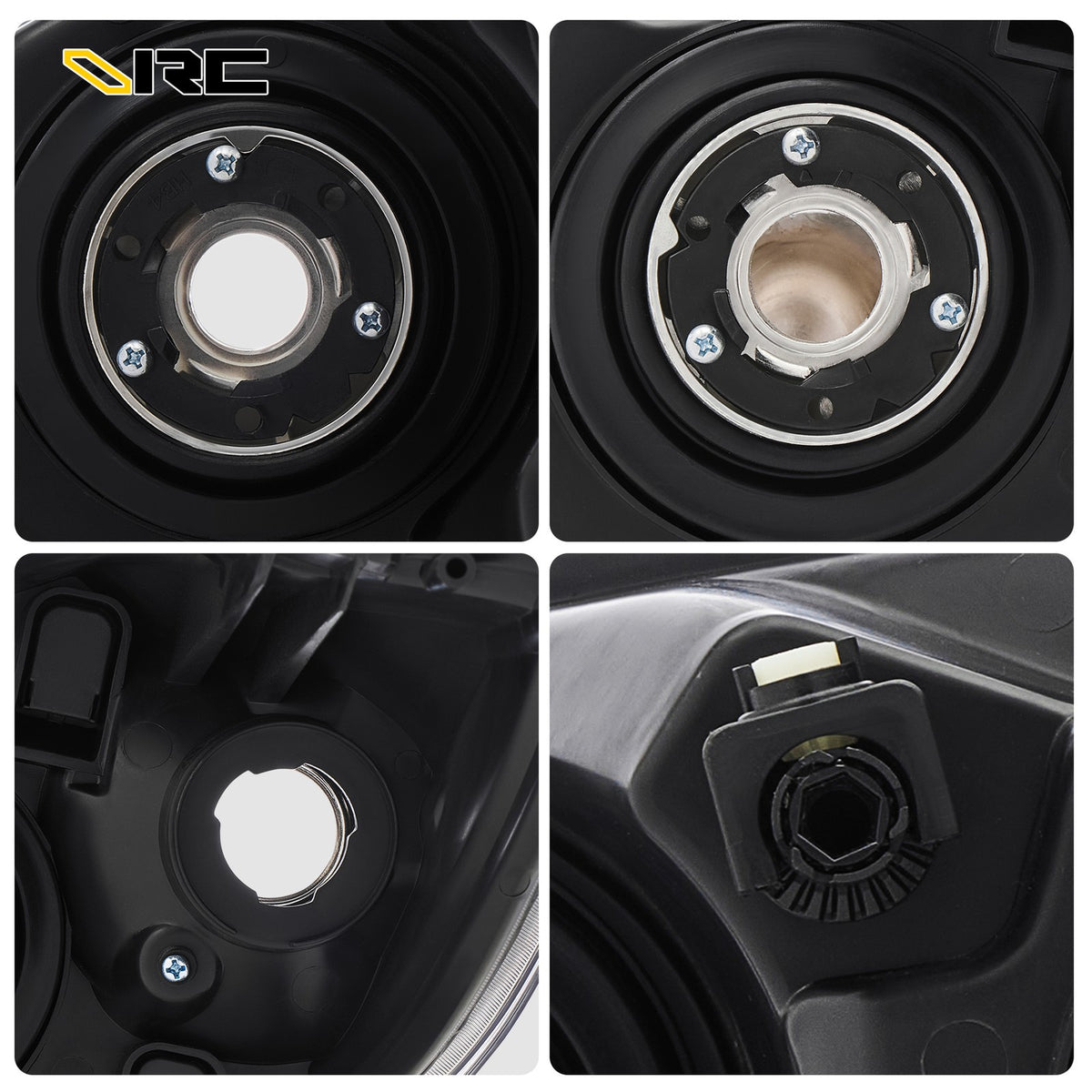

- Unplug the connectors and move the 9005, 9006 and 3157 bulbs to the new lamp.
- Install, reconnect and test, then refit the bumper cover and aim the beams.
Steps based on the Toyota Matrix/Corolla 2009-2013 repair manual headlight procedure.
FAQ
Will these fit a Pontiac Vibe?
No. The Vibe shares the platform but uses its own headlight shape. This pair is for the Toyota Matrix.
Does the bumper cover need to come off?
Yes. The lower headlight bolt is behind the bumper cover on the 2009-2014 Matrix.
What bulb sizes do these use?
High beam 9005, low beam 9006, turn signal 3157 (bulbs NOT included).
Can I put LED bulbs in these?
Yes. These are halogen housings, so 9005/9006 LED conversion kits fit. Use a quality kit with a CANbus decoder if you see flicker or a bulb-out warning, and re-aim the beams after install.
