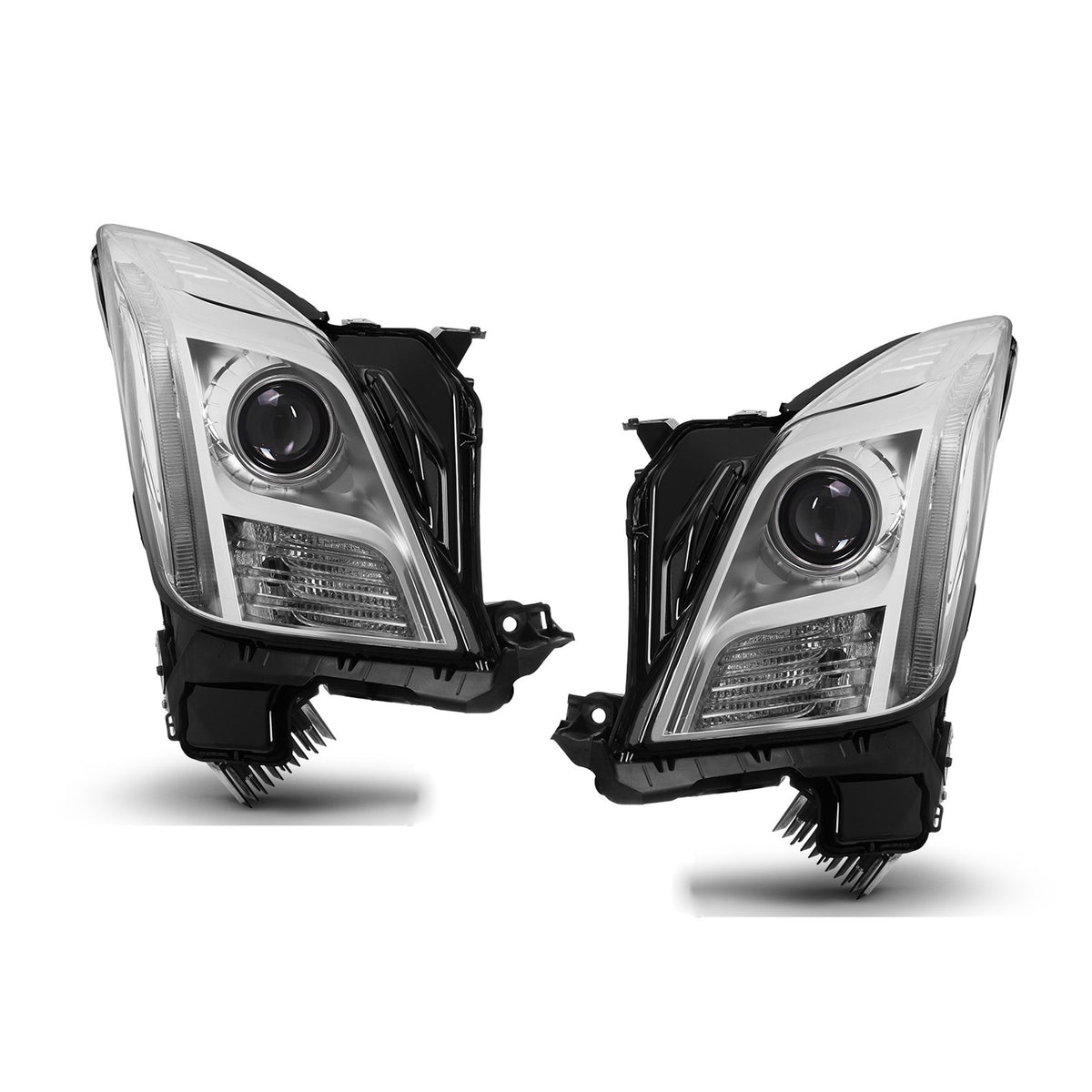

Chrome HID Headlights Pair w/ LED DRL for Cadillac XTS w/o AFS (2013-2017)
$475.95
DS-23397811
Free shipping to the lower 48 · Returns & refunds · Questions? Contact us
Replace foggy headlights on your 2013-2017 Cadillac XTS Base, Luxury or Livery with factory HID (no AFS) with this new chrome pair. Half assembly: reuse your bulbs and ballasts.
Fitment
| Year | Make / Model | Fits |
|---|---|---|
| 2013-2017 | Cadillac XTS Base / Luxury / Livery with factory HID, WITHOUT AFS | Factory HID headlights without AFS |
Will NOT fit: AFS cars; halogen cars.
Common Reasons to Replace
- Yellowed, hazy, or oxidized lenses reducing light output
- Cracked lens or broken mounting tabs
- Moisture or condensation inside the housing
- Collision damage
Specs
- Low beam: HID, match your factory bulbs (reuse them)
- AFS: No
- DRL: LED
- Housing: Chrome
- DOT compliant
- Quantity: Pair (Left + Right)
- Condition: New
Interchange Part Numbers
OEM: 23397811, 20874065, 22967409, 23114511, 23178097, 23251949, 23310991, 84450399, 87824817, 87864312, 20874066, 22967410, 23114512, 23178096, 23251950, 23310992, 23397810, 84450398. Partslink: GM2502374, GM2503374.
What's Included
- 1 x Driver side headlight assembly
- 1 x Passenger side headlight assembly
- Left and right headlights
- HID bulbs and ballasts are NOT included; reuse your factory ones
Installation
- Disconnect the negative battery cable (HID high voltage). Open the hood and remove the front compartment side and front sight shields.
- Remove the wheelhouse-liner screws to the fascia, the four lower push-in retainers, the two lower bolts and the nine upper fascia screws; loosen the lower impact-bar bolt.
- Release the fascia snaps from the fascia guides one at a time with a nylon wedge and a small flat tool, pull the fascia off and unplug its connectors.

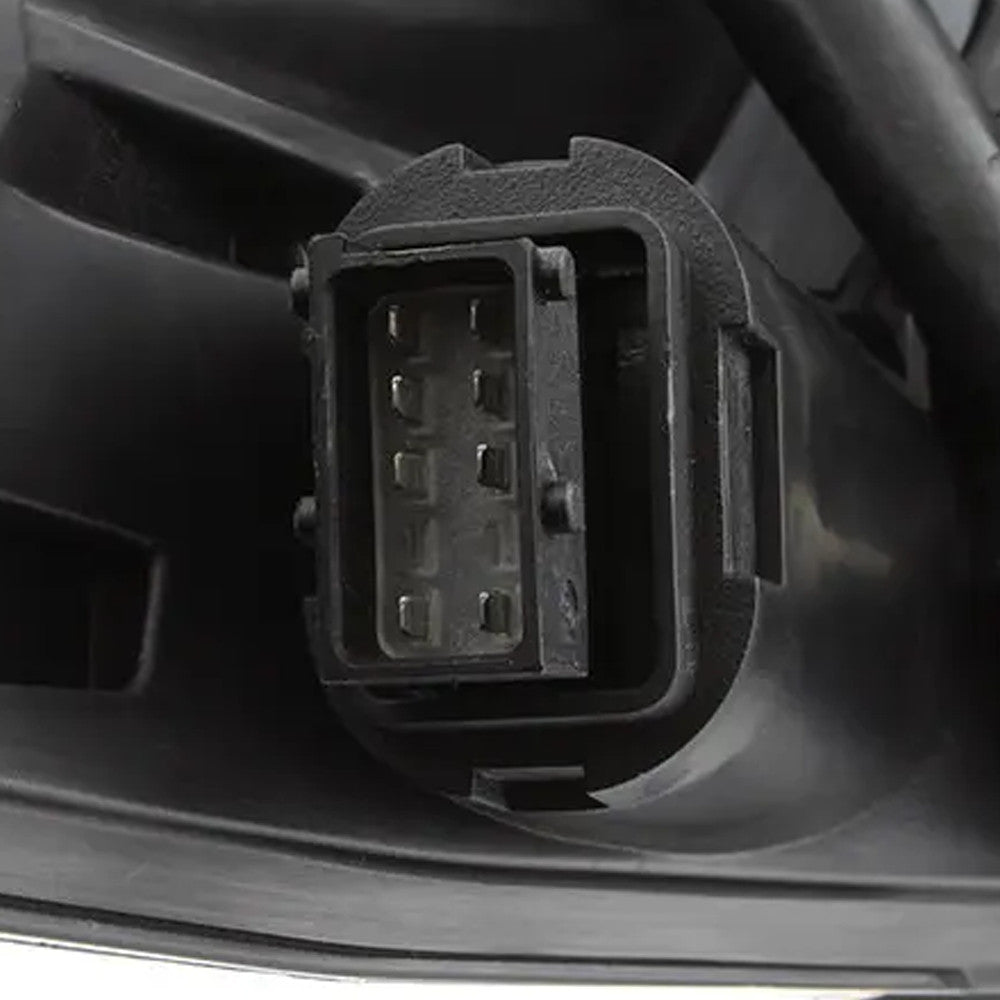

- Unplug the connector at the top of the headlamp, remove the four headlamp bolts and lift the lamp up and out without hitting the fender.
- Move your HID bulbs and ballast (and AFS parts if equipped) over, install in reverse (headlamp bolts 2.5 Nm / 22 lb-in, fascia 3 Nm) and aim the headlamps.
Steps compiled from GM service manual "Headlamp Replacement" and "Front Bumper Fascia Replacement", 2013-2017 Cadillac XTS (lemon-manuals); Cadillac Owners Forum 2013 XTS headlight thread. Professional installation and headlight aiming are recommended.
FAQs
Will these fit an XTS with AFS?
No. See our AFS version.
Does the bumper have to come off?
Yes. GM's procedure removes the front fascia to reach the four headlamp bolts.
Are bulbs and ballasts included?
No. Reuse your factory ones.
Can I install HID or LED kits?
Not applicable. These are factory-style HID/Xenon housings; reuse your factory HID bulbs and ballasts.
