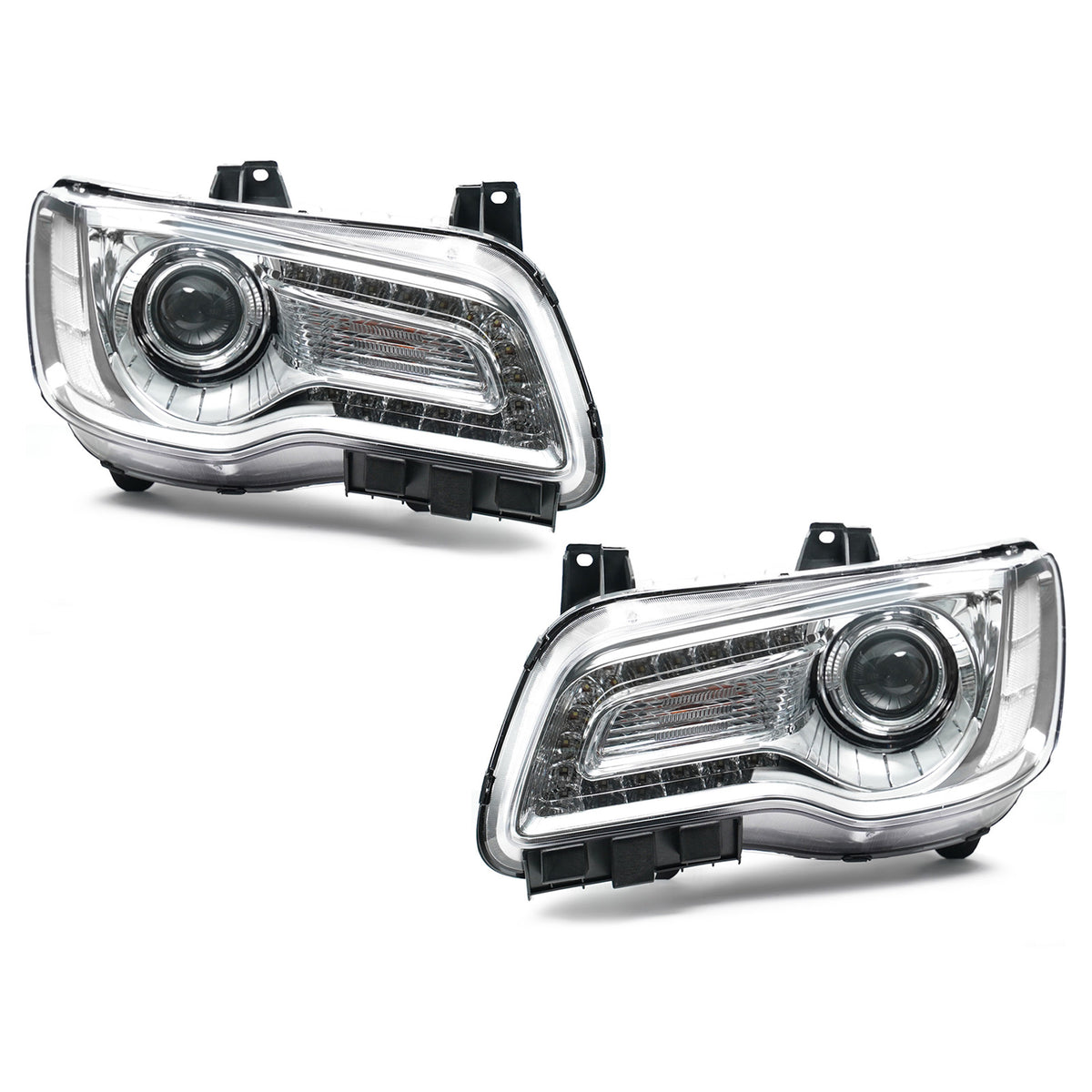

Chrome HID Projector Headlights Pair w/ AFS & LED DRL for Chrysler 300 (2017-2022)

Replace foggy or cracked headlights on your 2017-2022 Chrysler 300 with this new chrome-bezel HID pair with AFS and LED DRL. Reuse your D3S bulbs; turn and LED lights are included.

Fitment

Will NOT fit: Halogen cars (9-pin connector); non-AFS cars.

Common Reasons to Replace

• Yellowed, hazy, or oxidized lenses reducing light output
• Cracked lens or broken mounting tabs
• Moisture or condensation inside the housing
• Collision damage

Specs

• Low beam: D3S HID (not included, per listing)
• Turn: PSY24W (included)
• DRL/position: LED (included)
• AFS: Yes
• Housing: Chrome bezel
• DOT compliant
• Quantity: Pair (Left + Right)
• Condition: New

Interchange Part Numbers

OEM: 68402952AB, 68214386AB, 68214386AC, 68214386AD, 68214386AE, 68214386AF. Partslink: CH2502316, CH2503316.

What's Included

• 1 x Driver side headlight assembly
• 1 x Passenger side headlight assembly
• Left and right headlights

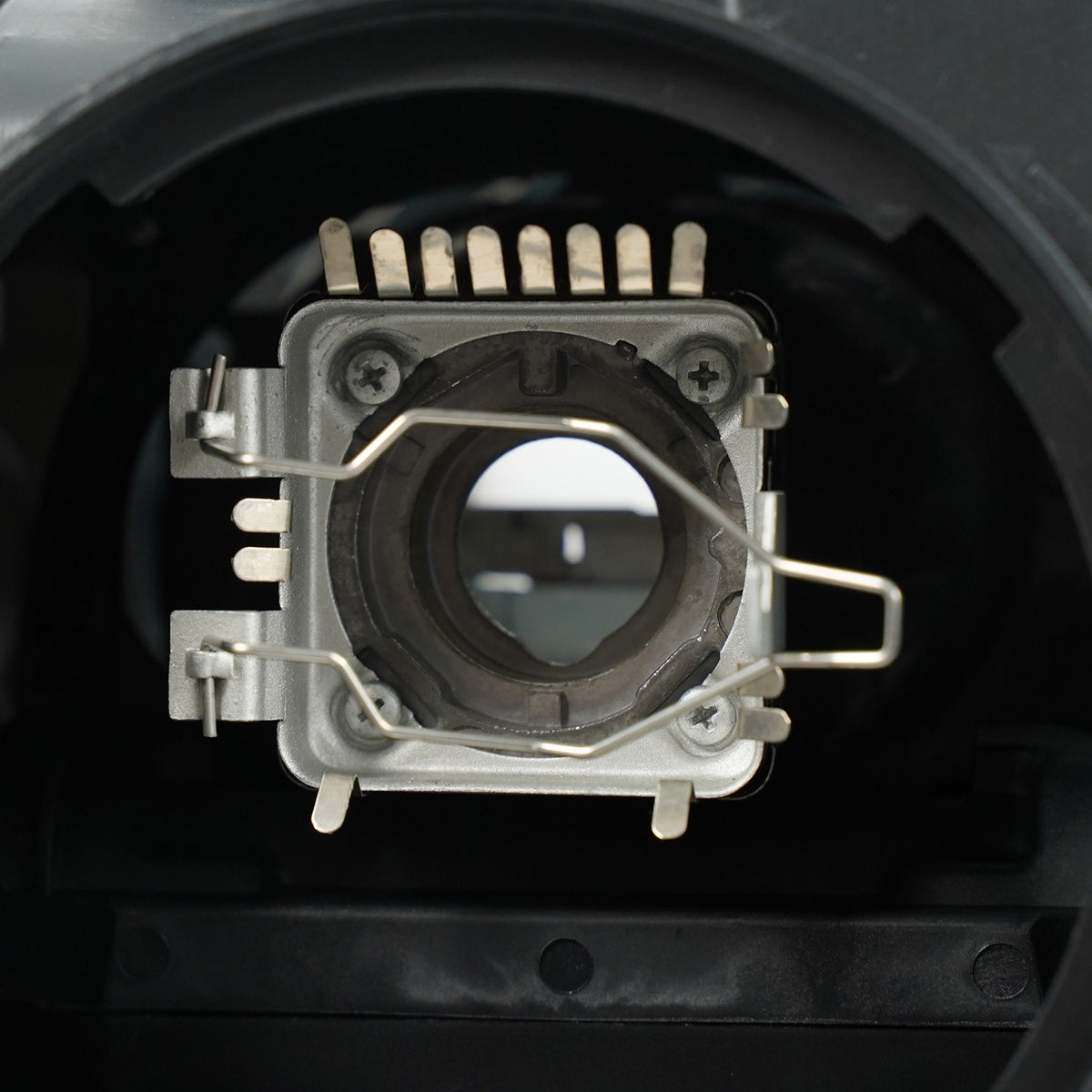

• HID bulbs and ballasts are NOT included; reuse your factory ones

Installation

1. Disconnect the negative battery cable. Raise and support the car, remove the fascia-to-fender fasteners and the three splash-shield fasteners per side.
2. Remove the belly pans and unplug the fog-lamp/side-marker connectors; lower the car and remove the upper radiator deflectors.
3. Release the fascia from the upper fender and wheel-house retaining brackets, remove the eight fascia-to-radiator-support fasteners and lift the fascia off with a helper.
4. Remove the four screws holding the two upper and two lower lamp brackets, pull the lamp forward and disconnect the harness (slide the red lock tab back).
5. Transfer any extra brackets, install the new lamp and fascia in reverse, then aim with the adjuster on top of the lamp.

Steps compiled from Chrysler LX front fascia and front lamp unit removal procedure as quoted on 300CForums.com; CarClubsUSA 2015 Chrysler 300 headlight assembly guide; Go-Parts 2011-2023 Chrysler 300 headlight guide. Professional installation and headlight aiming are recommended.

FAQs

Will these fit a halogen 300?

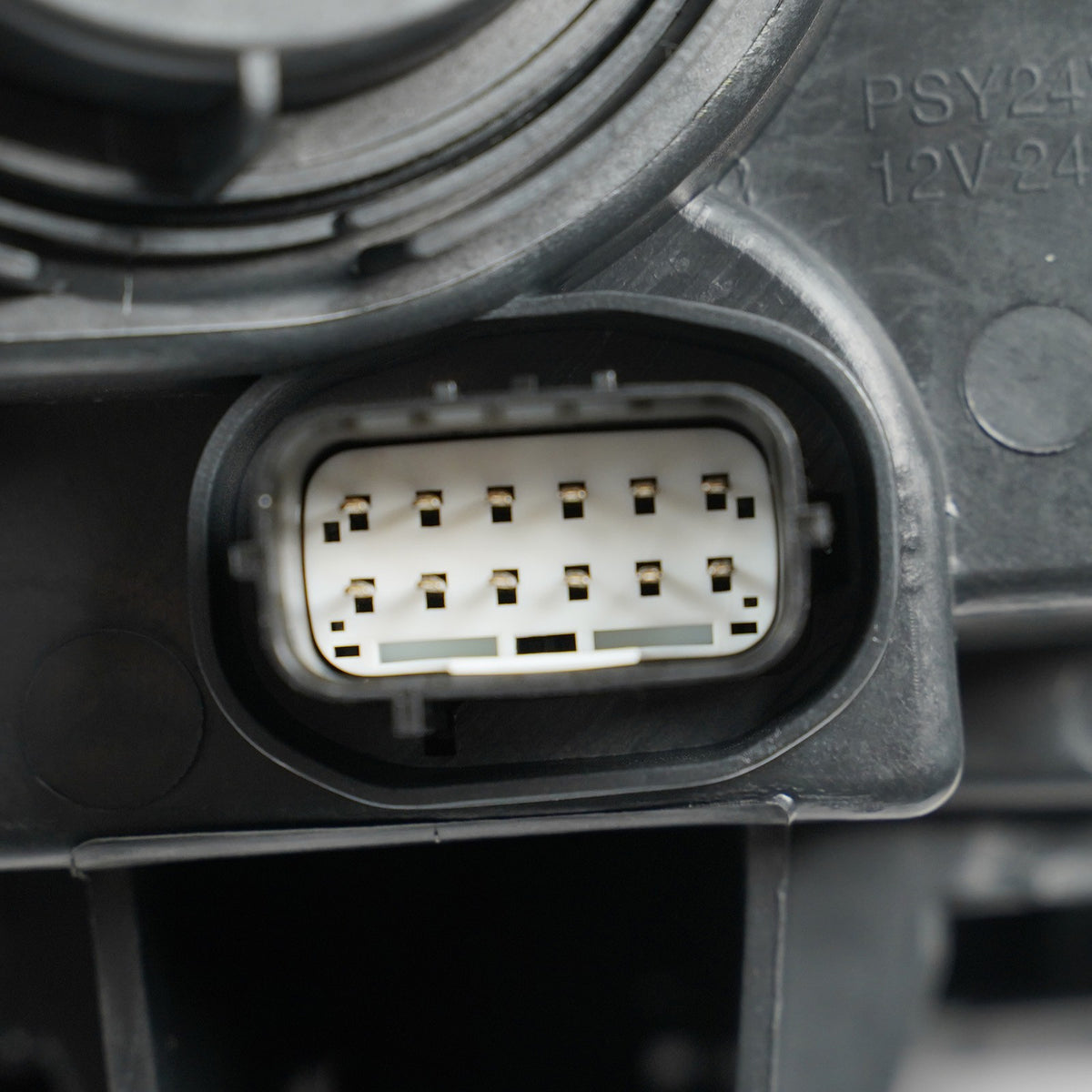

No. Halogen cars use a 9-pin connector; these need the 12-pin HID harness.

Is the turn bulb included?
Yes, the PSY24W turn bulb and LEDs are included per the listing.

Do I need to remove the front bumper to replace these headlights?
Yes. The front bumper cover comes off to reach the headlamp bolts.

Can I install HID or LED kits?
Not applicable. These are factory-style HID/Xenon housings; reuse your factory HID bulbs and ballasts.
