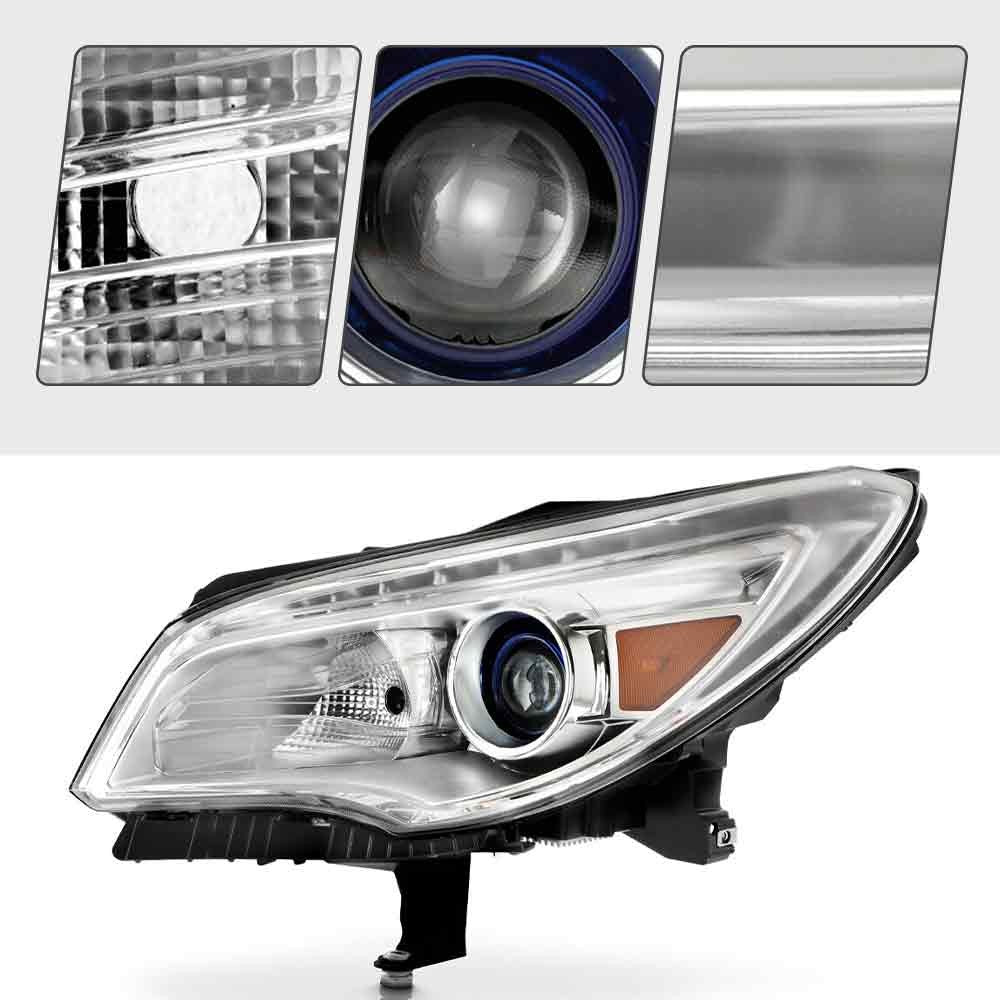

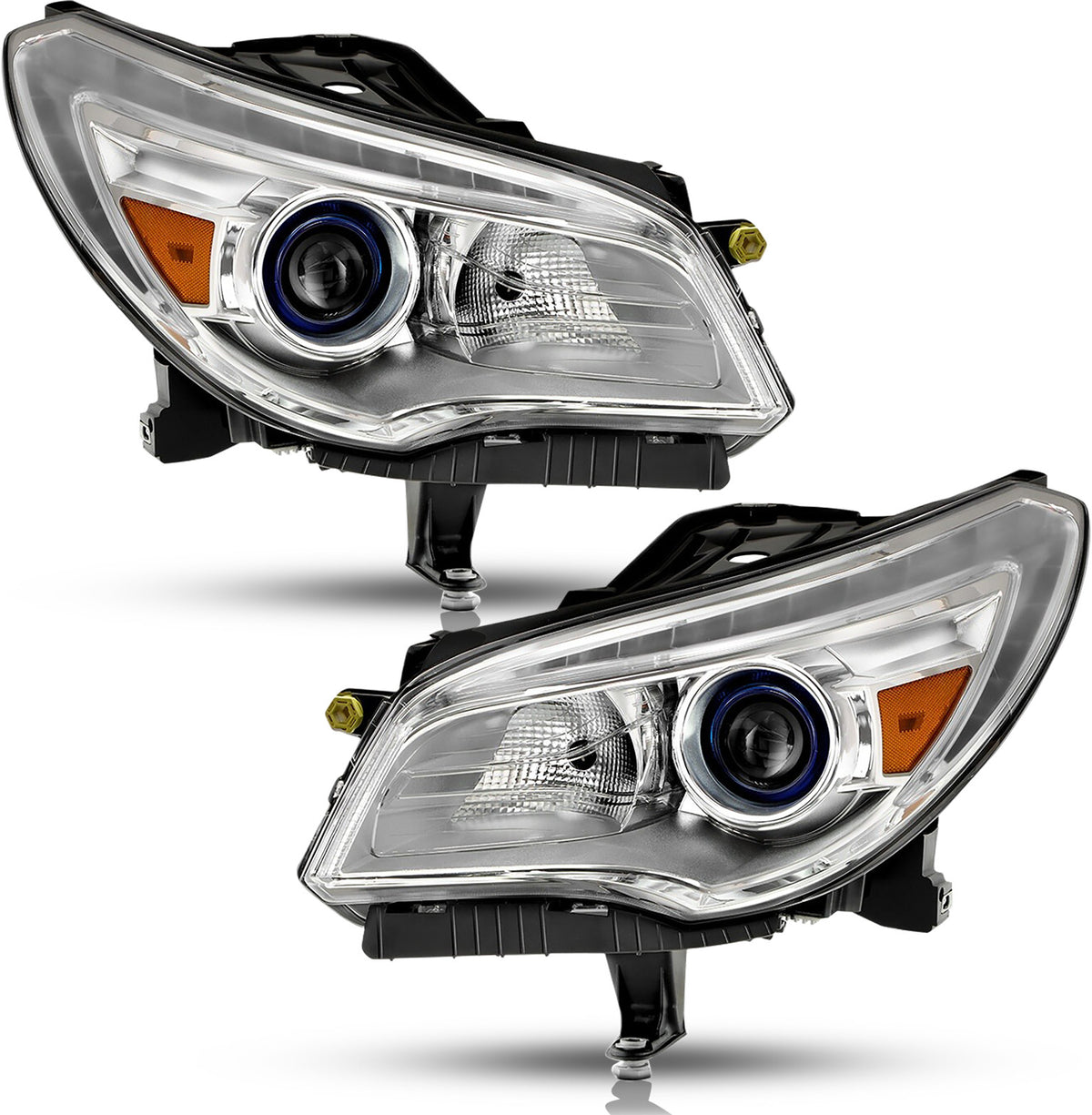

Chrome HID Projector Headlights Pair w/o AFS for Buick Enclave (2013-2017)

Replace yellowed or damaged headlights on your 2013-2017 Buick Enclave with factory HID (without AFS) with this brand-new pair of chrome HID/Xenon projector headlights. Half assembly: reuse your HID bulbs, ballasts and high-voltage wires.

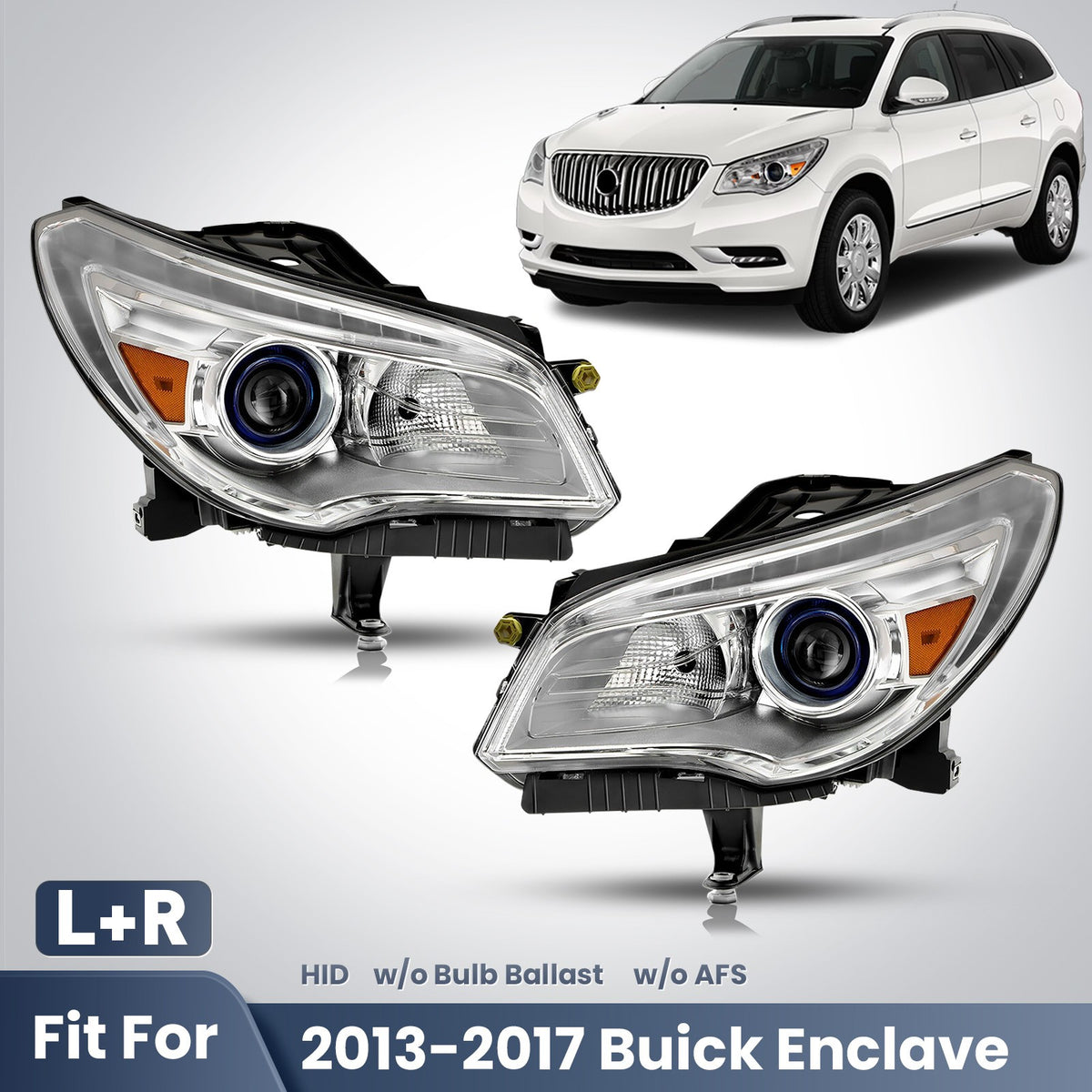

Fitment

Will NOT fit: Enclave with AFS (9/13-pin connectors); halogen Enclave; 2008-2012 Enclave; 2018+ Enclave.

Common Reasons to Replace

• Yellowed, hazy, or oxidized lenses reducing light output
• Cracked lens or broken mounting tabs
• Moisture or condensation inside the housing
• Collision damage

Specs

• Housing: Chrome

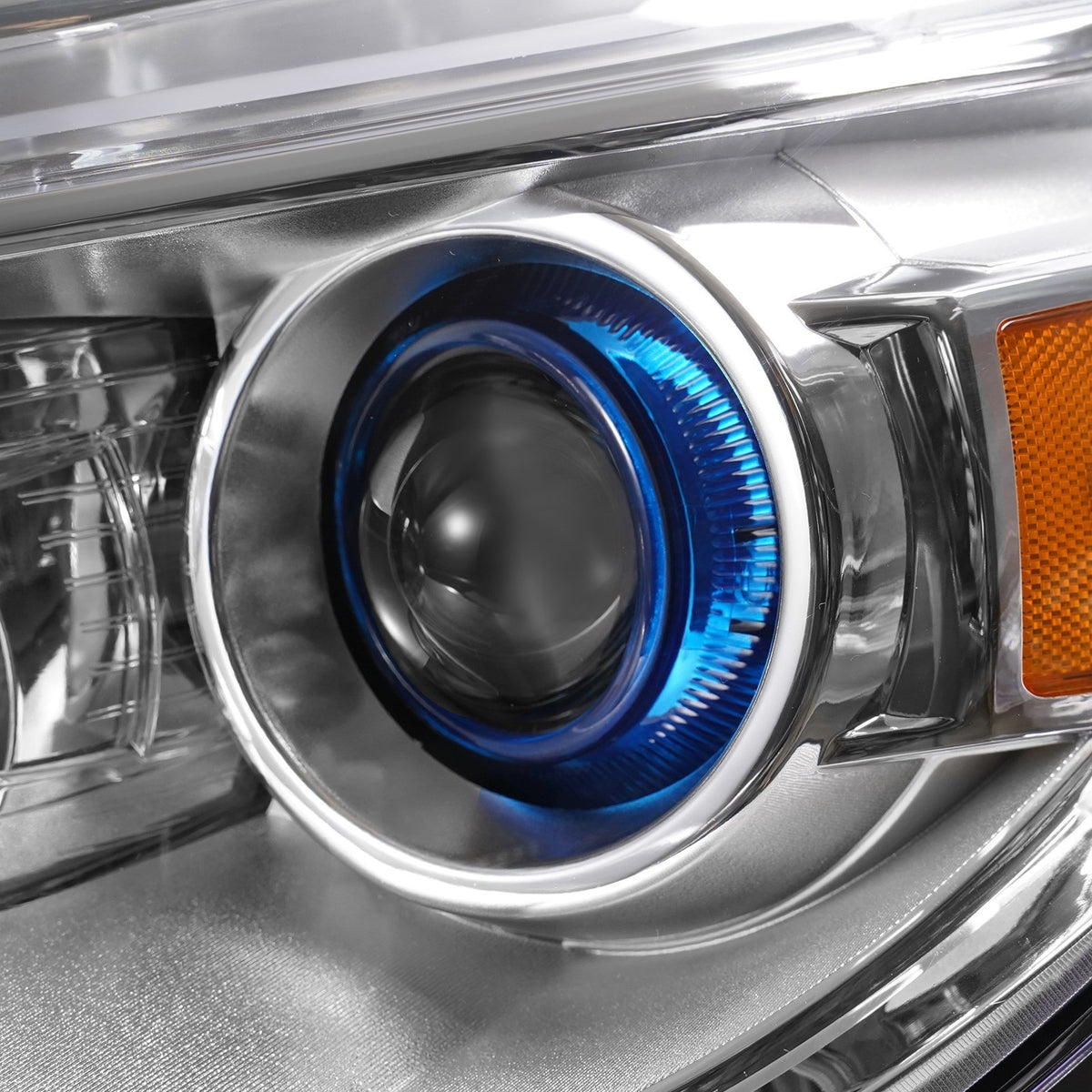

• Low beam: HID projector (bulb not included)

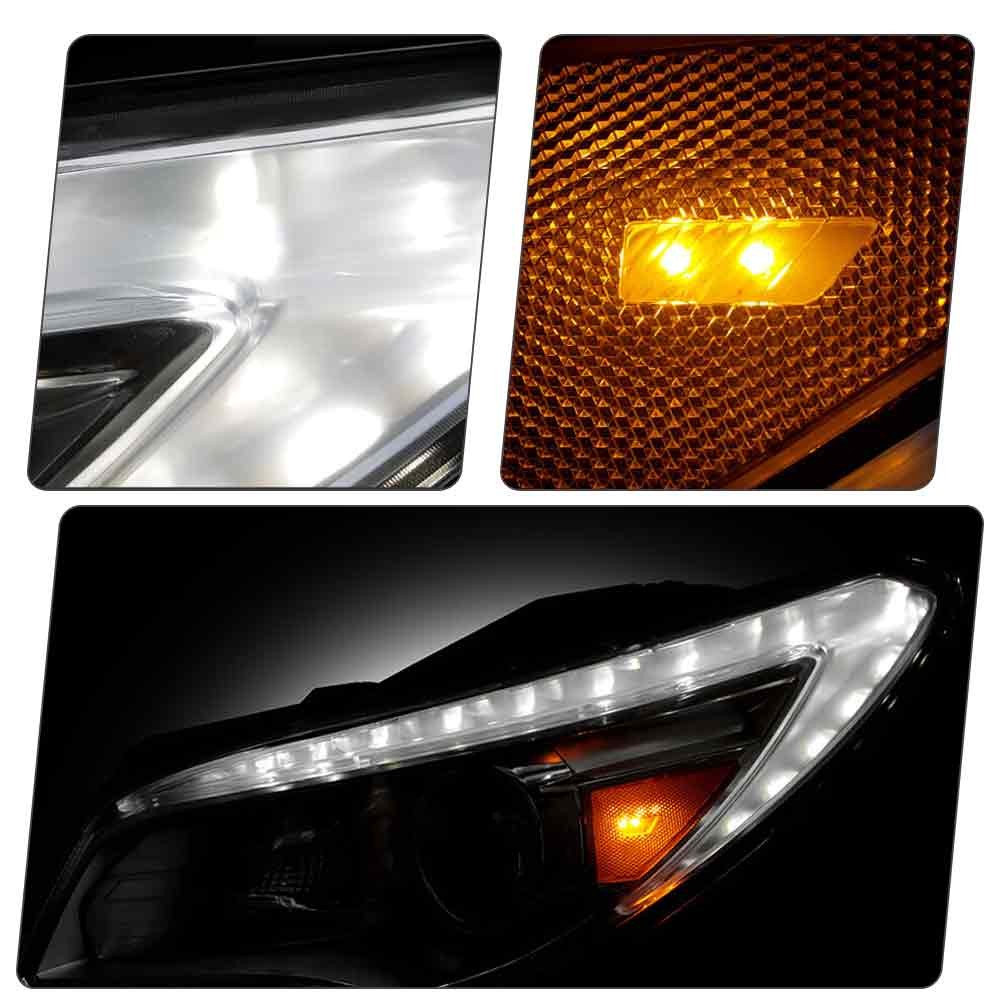

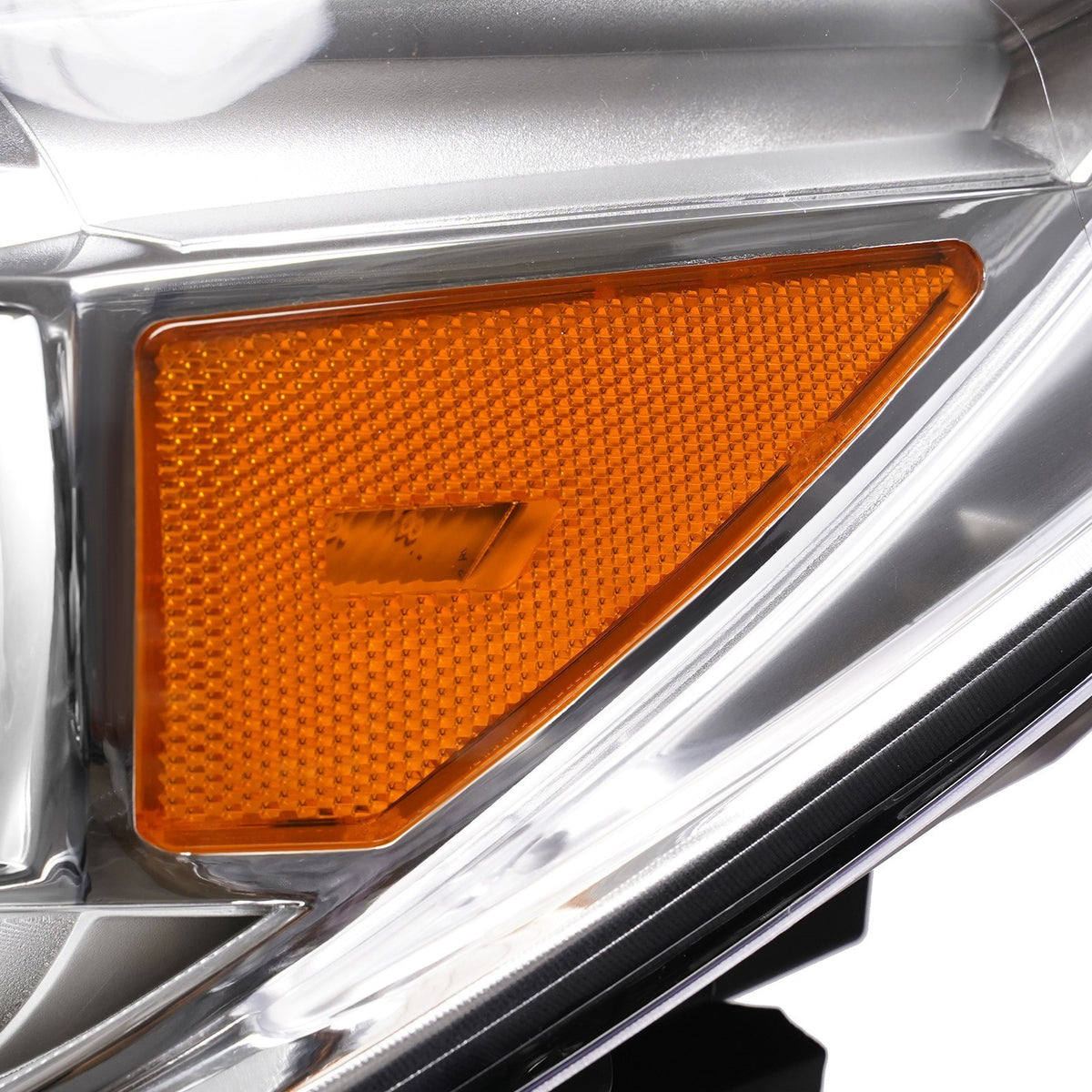

• Turn/marker: amber
• DOT compliant
• Quantity: Pair (Left + Right)
• Condition: New

Interchange Part Numbers

OEM: 84026394, 20956885, 23155613, 23184093, 23197411, 23391887, 23444923, 19433923, 20956884, 23155614, 23184094, 23197410, 23391888, 23444924. Partslink: GM2502382, GM2503382.

What's Included

• 1 x Driver side headlight assembly
• 1 x Passenger side headlight assembly
• Half assembly: HID bulbs, ballasts, and high-voltage wires are NOT included; reuse yours

Installation

1. Disconnect the battery. Open the hood, pry up the weatherstrip retainers and remove the push clips holding the upper radiator cover.
2. Remove the T20 screws along the top of the bumper, the 10 mm bolts and T20 screws underneath, and the wheel-liner screws and push pin at each corner (removing the wheels gives more room).
3. Release the wheel-arch trim clip, remove the 7 mm bolt at each corner, unplug the fog lights and slide the fascia off.
4. Remove the 10 mm bolts holding the headlight (the side bracket bolt, two on top and one at the front), lift the lamp and unplug it.
5. Transfer your HID bulbs, ballasts and wires, plug in, bolt in, refit the fascia and aim.

Steps compiled from 1A Auto 2008-2017 Buick Enclave headlight video and the Go-Parts Enclave headlight guide. Professional installation and headlight aiming are recommended.

FAQs

What bulbs do these headlights use?
The listing does not state bulb sizes. Half assembly: reuse your HID bulbs, ballasts and high-voltage wires.

How do I check if my Enclave has AFS?

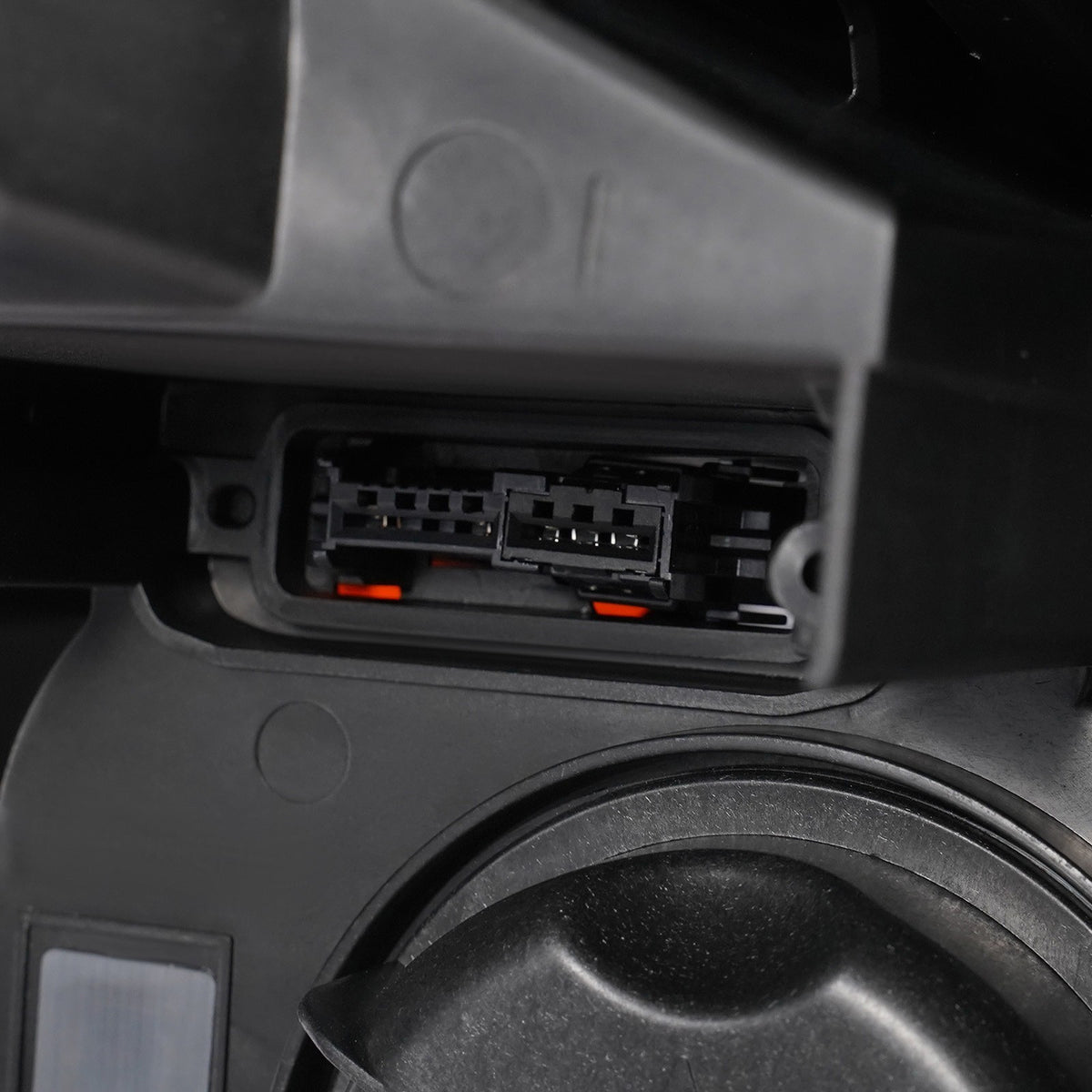

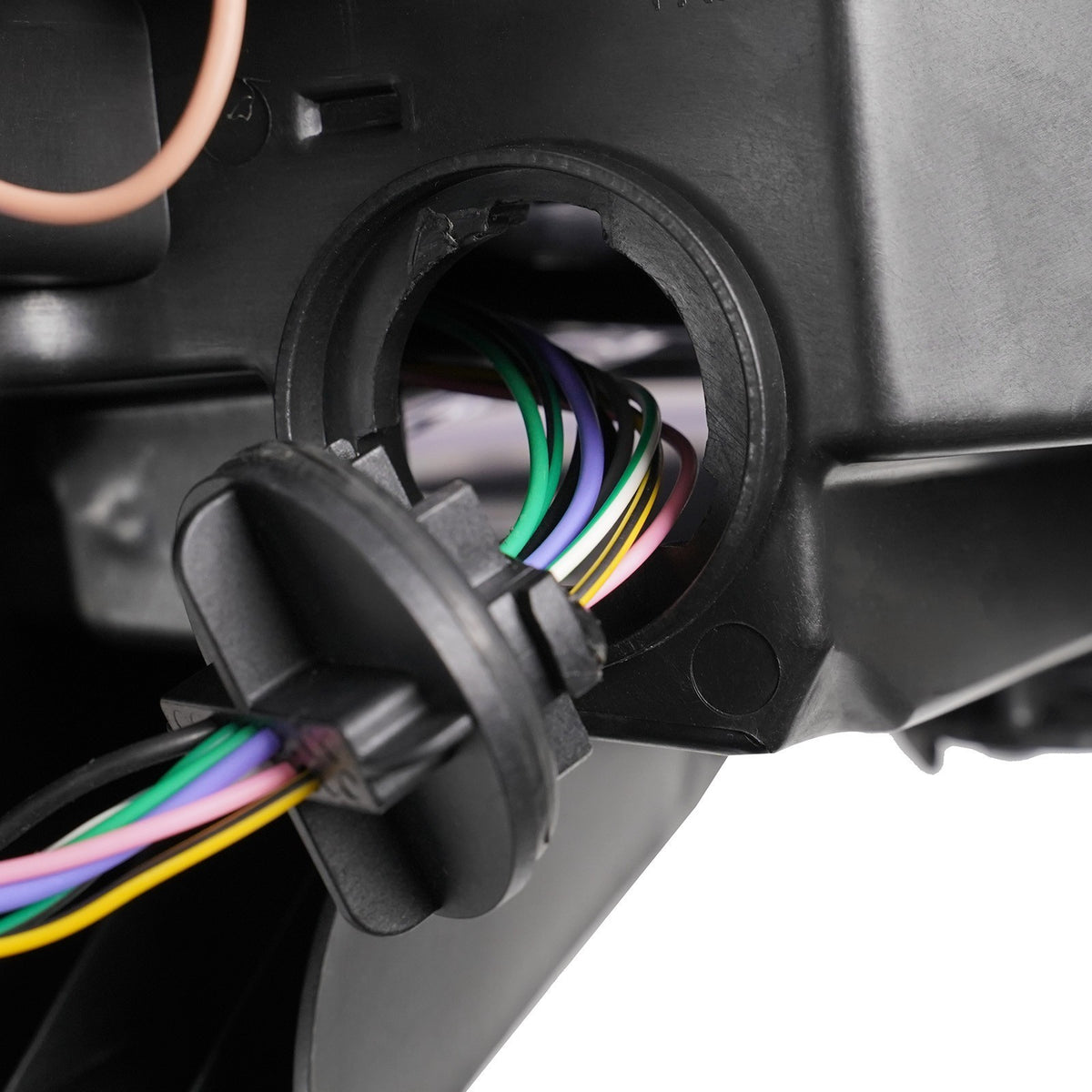

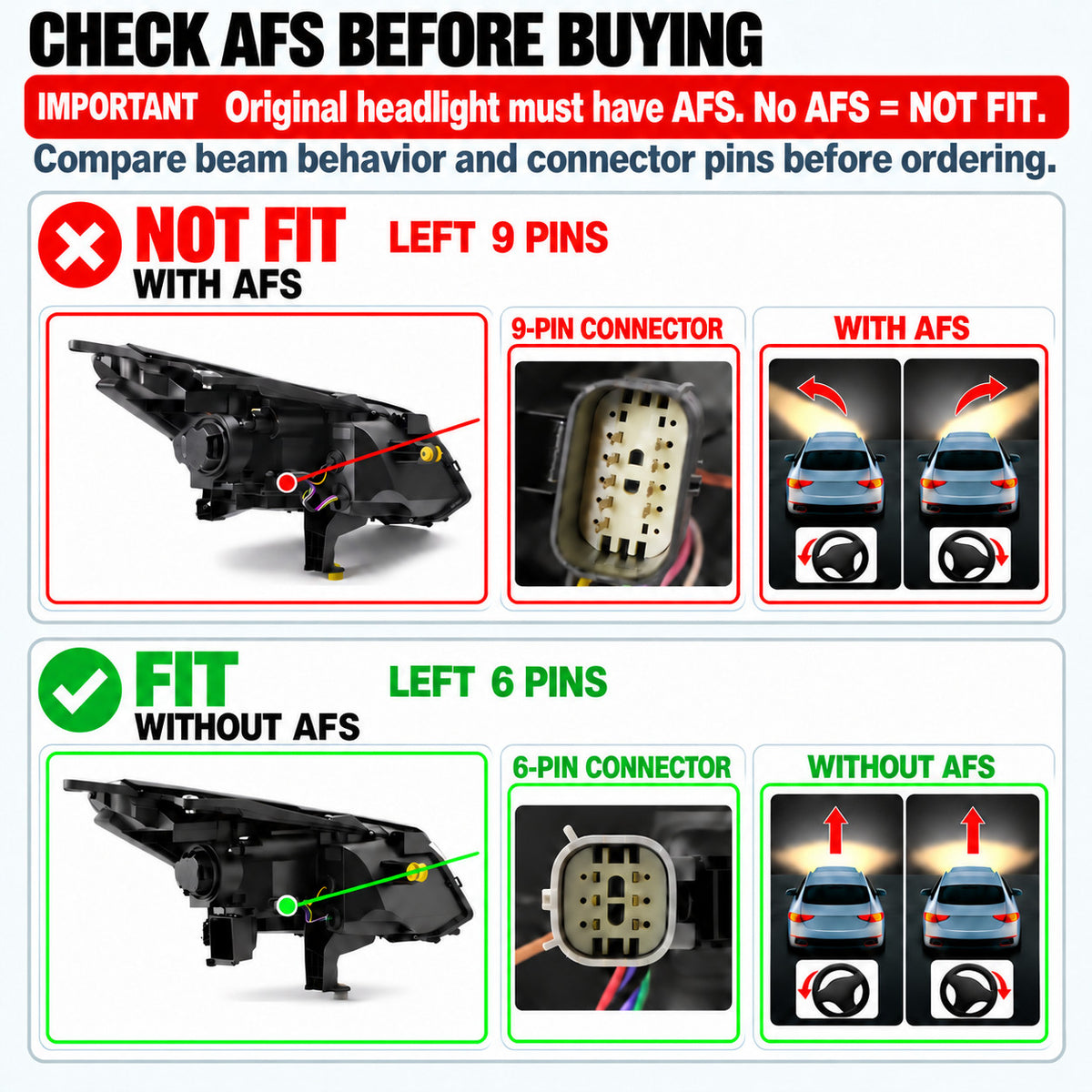

Look at the connector behind the headlight. Per the listing, non-AFS lamps (these) have 6-pin connectors on both sides; AFS lamps have 9 pins on the left and 13 on the right.

Do I need to remove the front bumper to replace these headlights?
Yes. The 2013-2017 Enclave fascia comes off first, then four 10 mm bolts hold each headlight.

Can I install HID or LED kits?
Not applicable. These are factory-style HID housings; reuse your HID bulbs and ballasts.
