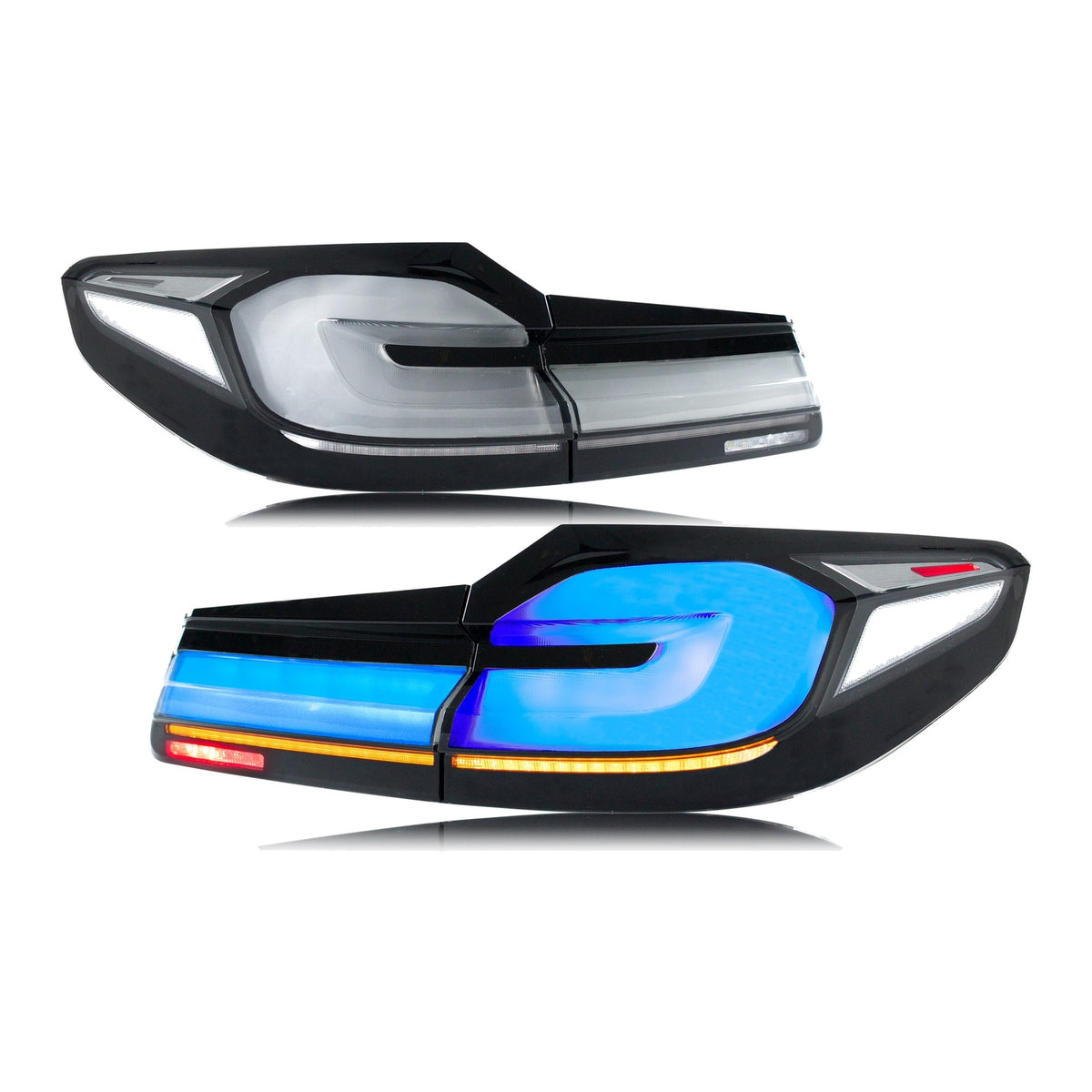

Clear Sequential LED Tail Lights Pair for BMW 5 Series G30 / M5 F90 (2017-2020)

Upgrade your 2017-2020 BMW 5 Series G30 / M5 F90 with this black-housing, clear-lens LED tail light pair. A light-guide running lamp with start-up animation, bright LED brake section, dynamic sequential turn signal and LED reverse light replace the factory lamps and bolt into the original mounting points.

Fitment

2017-2020 BMW 5 Series sedan (G30 pre-LCI: 530i, 540i, 530e, M550i) and 2018-2020 M5 (F90). Per supplier: does not fit 2021+ (LCI) models.

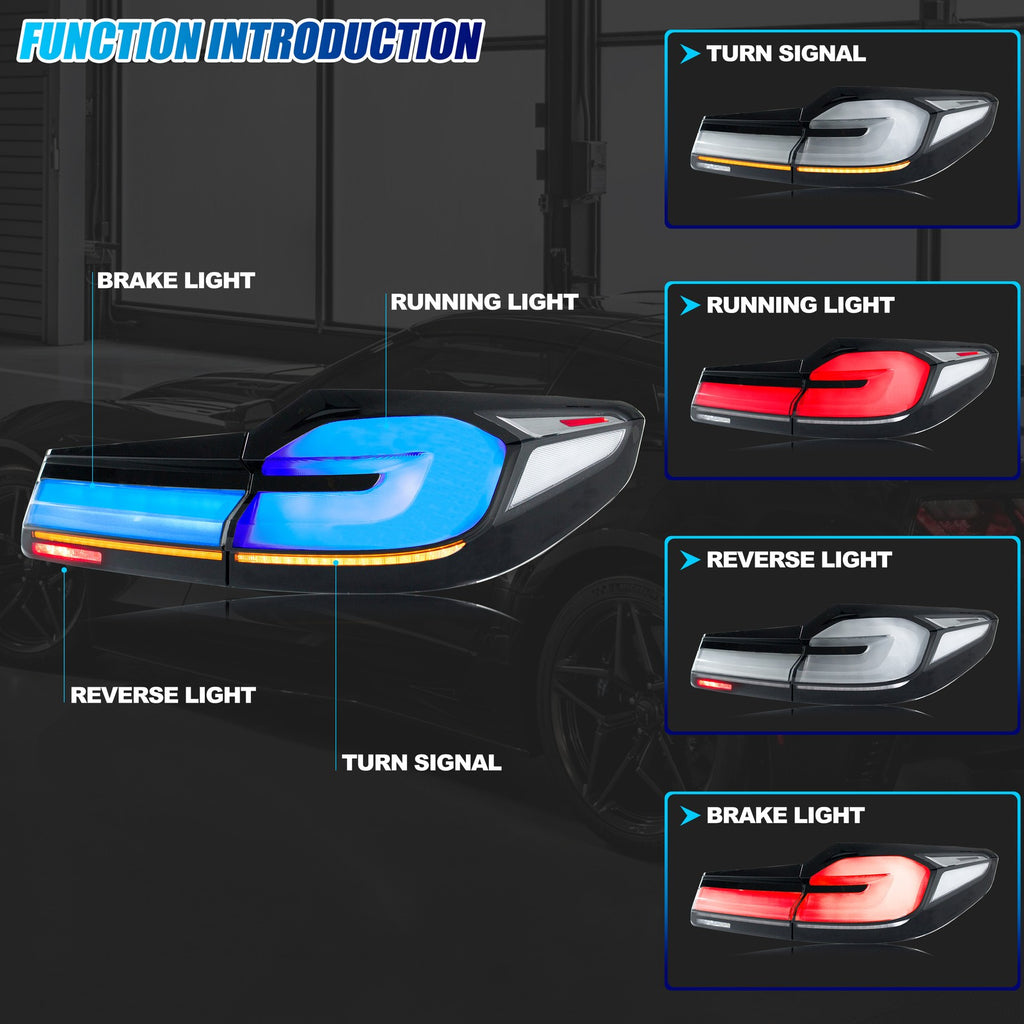

Features

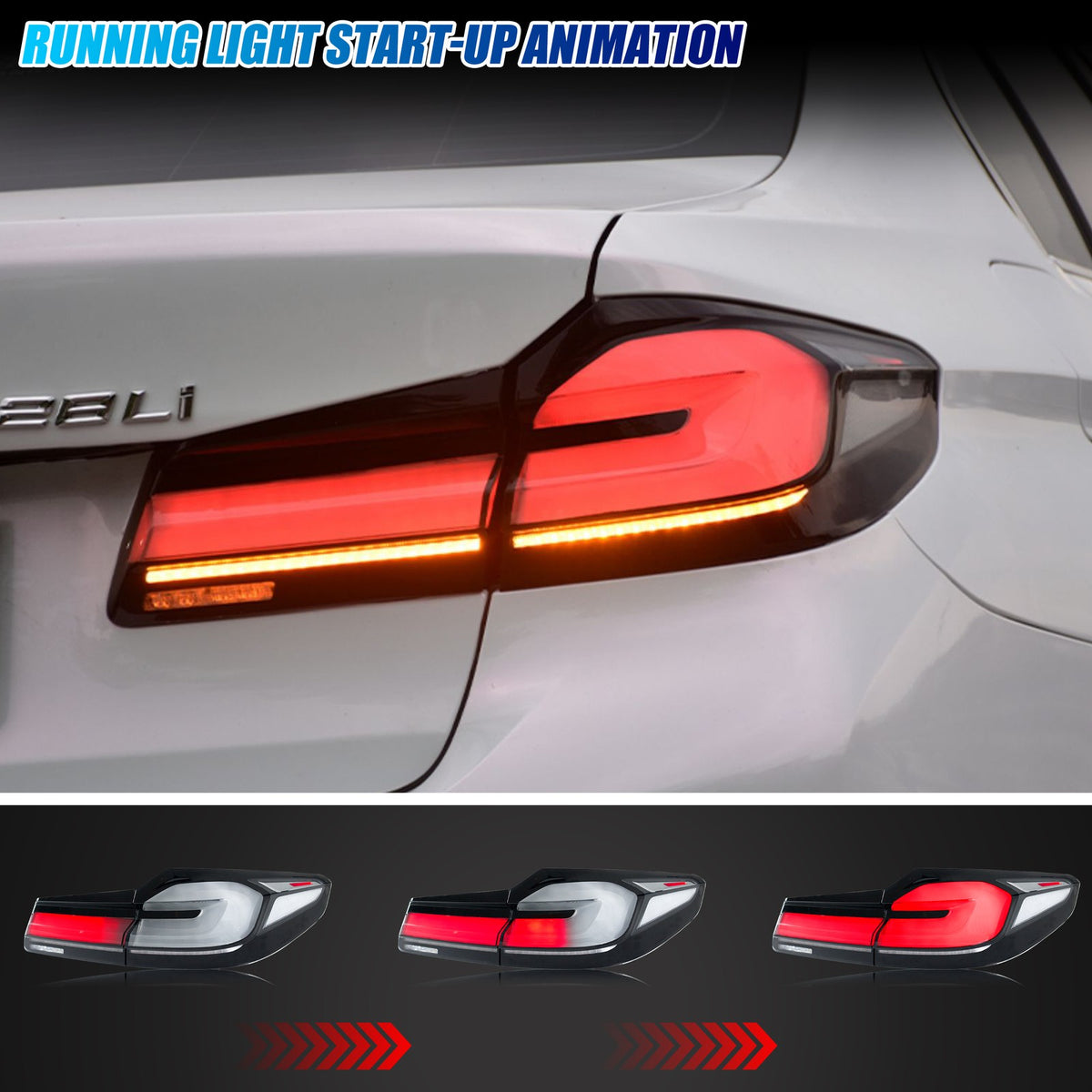

• Light-guide LED running light with start-up animation
• LED brake light

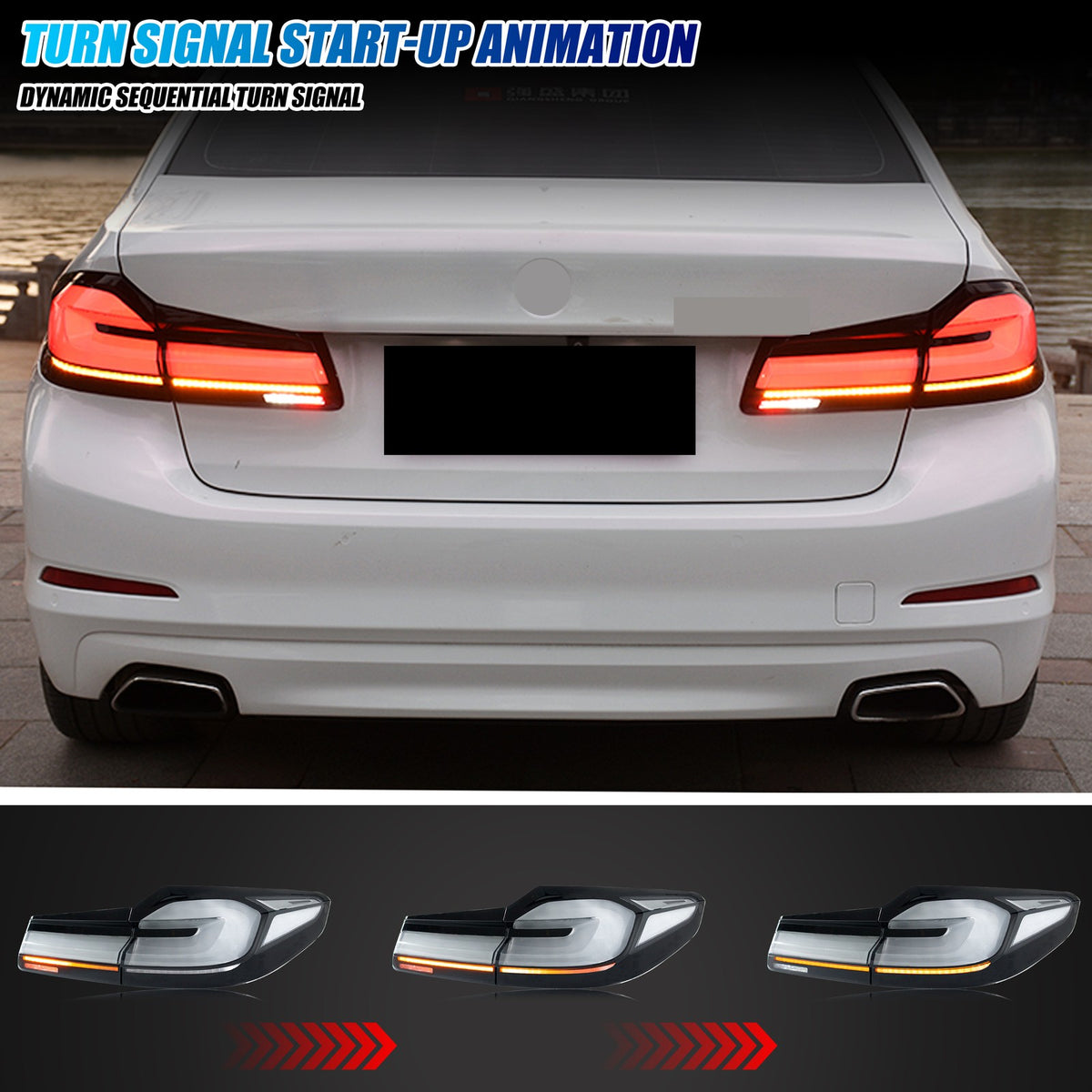

• Dynamic sequential LED turn signal
• LED reverse light
• Black ABS housing, {v['c'].lower()} polycarbonate lens

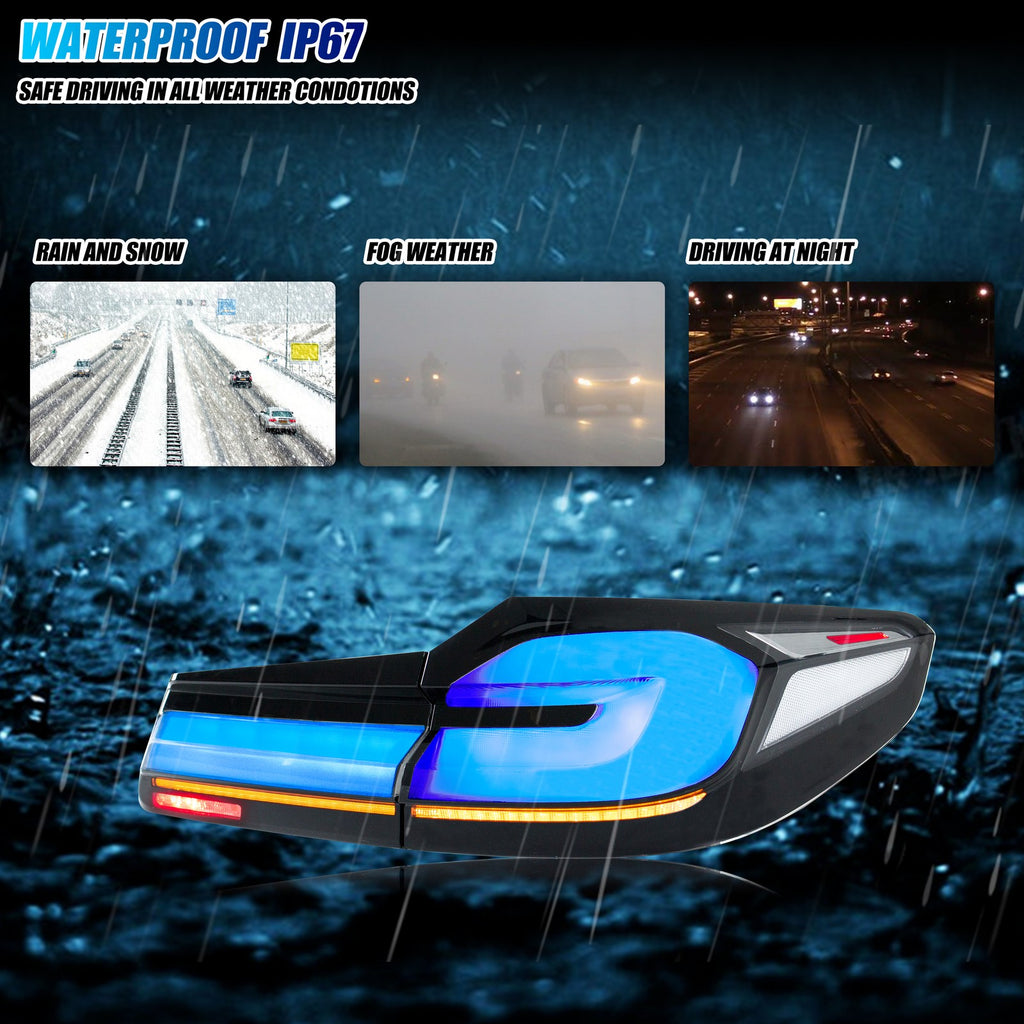

• IP67 sealed, DOT / SAE compliant (per supplier)

Signs you need new tail lights

• Cracked, faded or hazy lens
• Water or condensation inside
• Dead LED sections or broken sockets

What's included

• 1 x driver side (left) tail light set (outer + inner)
• 1 x passenger side (right) tail light set (outer + inner)

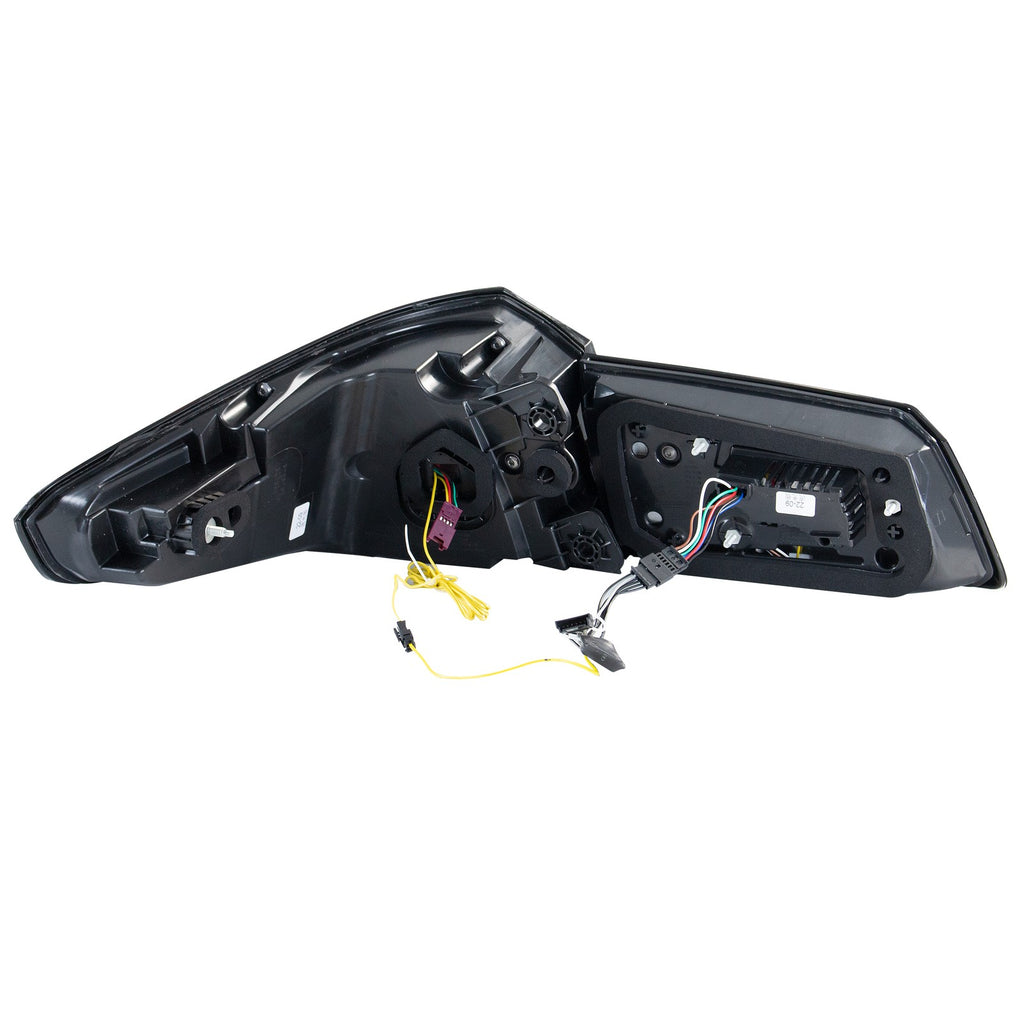

• Connection harness
• All LEDs built in. No extra bulbs needed

Installation: 2017-2020 BMW 5 Series G30 / M5 F90 (G30 pre-LCI)

Tools: 10 mm socket, Phillips screwdriver, plastic trim tool. About 30-40 minutes per side.

1. Open the trunk. Peel back or remove the side trim liner behind the outer (body-side) lamp.
2. Unplug the outer lamp connector and remove its retaining nuts, then pull the lamp straight back.
3. Remove the trunk-lid inner trim panel (plastic trim tool) to reach the inner lamp.
4. Unplug the inner lamp and remove its retaining nuts, then lift it out.
5. Fit the new outer and inner sections, refit the nuts and connect the new lamps (route wiring so the hinge cannot pinch it).
6. Refit the trim and test running, brake, sequential turn and reverse on both sides.
7. If the turn signal flashes fast, add a load resistor or LED flasher.

FAQ

What does this fit?

2017-2020 BMW 5 Series sedan (G30 pre-LCI: 530i, 540i, 530e, M550i) and 2018-2020 M5 (F90). Per supplier: does not fit 2021+ (LCI) models.

Are bulbs included?

Yes. The lamps are fully LED with every light source built in, so no extra bulbs are needed.

Does it have a sequential turn signal?

Yes. The turn section lights in a dynamic sequential sweep, and the running light plays a start-up animation.

Is this sold as a pair?

Yes: driver side (left) and passenger side (right) outer and inner sections.

How long does installation take?

About 30-40 minutes per side with basic hand tools.
