Facelift Style Full LED Tail Lights Pair for Mercedes-Benz CLA W117 Halogen Models (2014-2019)

Facelift-style full LED tail lights for the Mercedes-Benz W117 CLA sedan with factory halogen tail lights. They come with red and clear lenses and LED tail, brake and turn functions. Resistor harnesses are included, so you won't get bulb-out warnings.

Fitment

• 2014-2019 Mercedes-Benz CLA250 (W117 sedan)
• 2014-2019 Mercedes-Benz CLA250 4MATIC (W117 sedan)

Fits 2014-2019 CLA sedans that came with factory halogen (bulb-type) tail lights. Cars that came with factory LED tail lights are not compatible. The included resistor harness must be plugged in.

Common Reasons to Replace

• Faded or damaged factory tail lights
• Upgrade halogen tails to the facelift full LED look

Specs

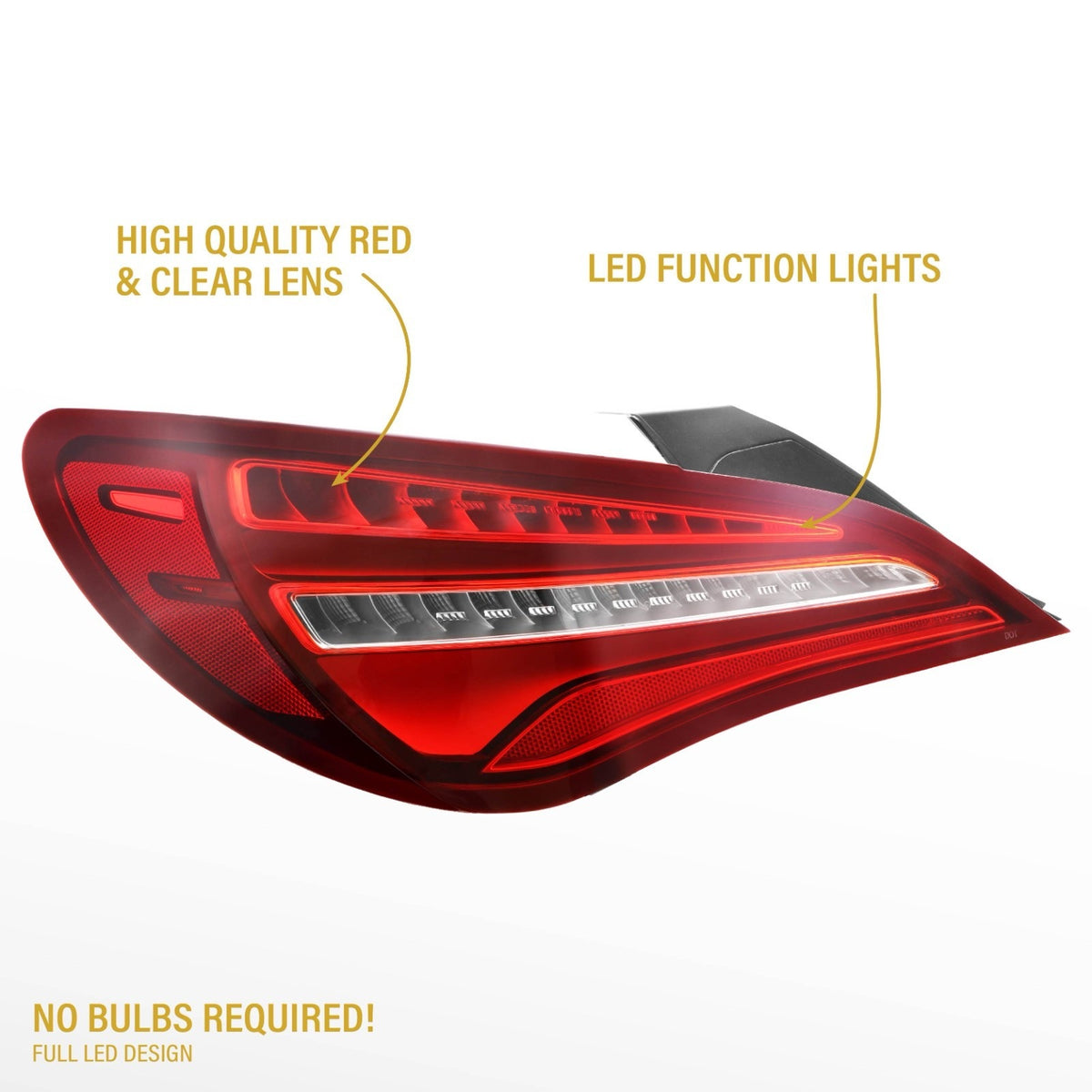

• Lens: red/clear

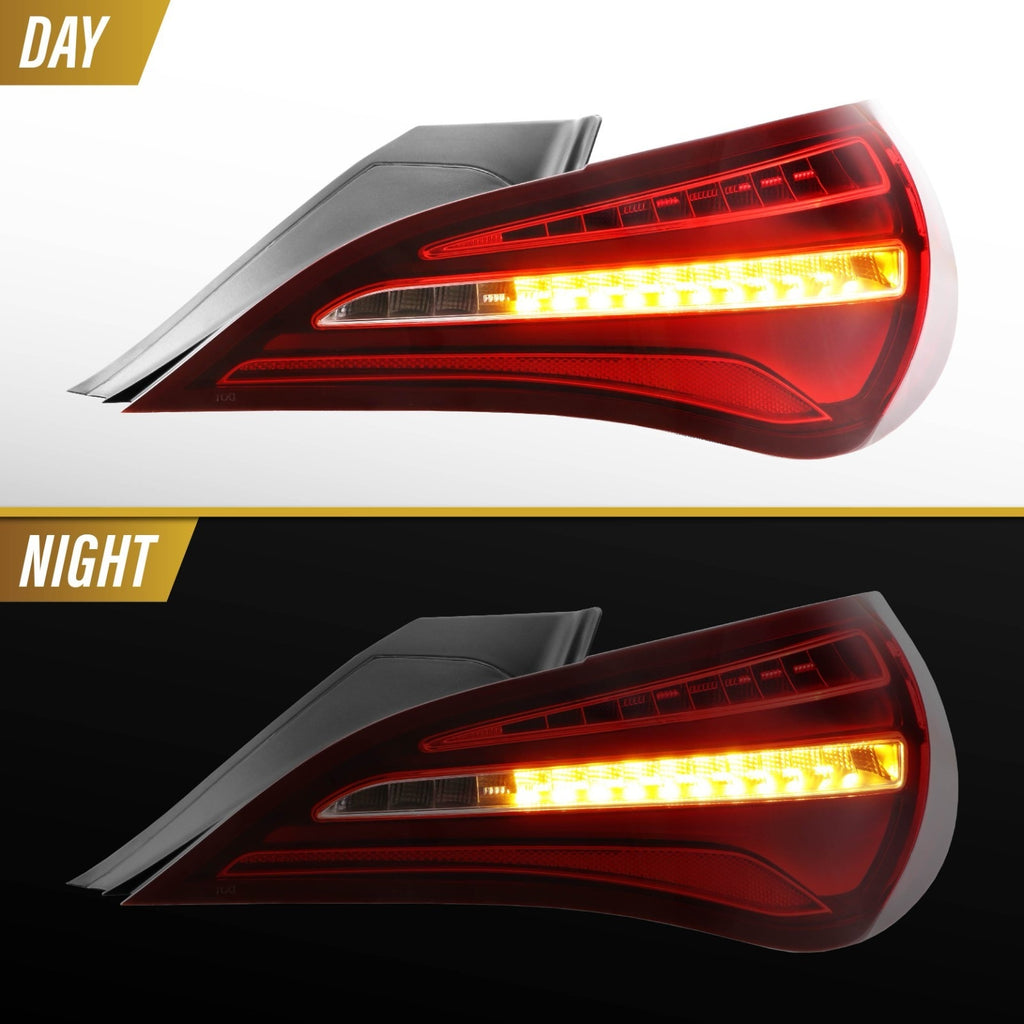

• Full LED: tail, brake, turn and reverse
• No bulbs needed
• Resistor harness included

Interchange

Replaces OEM 117-906-01-01 (left) / 117-906-02-01 (right).

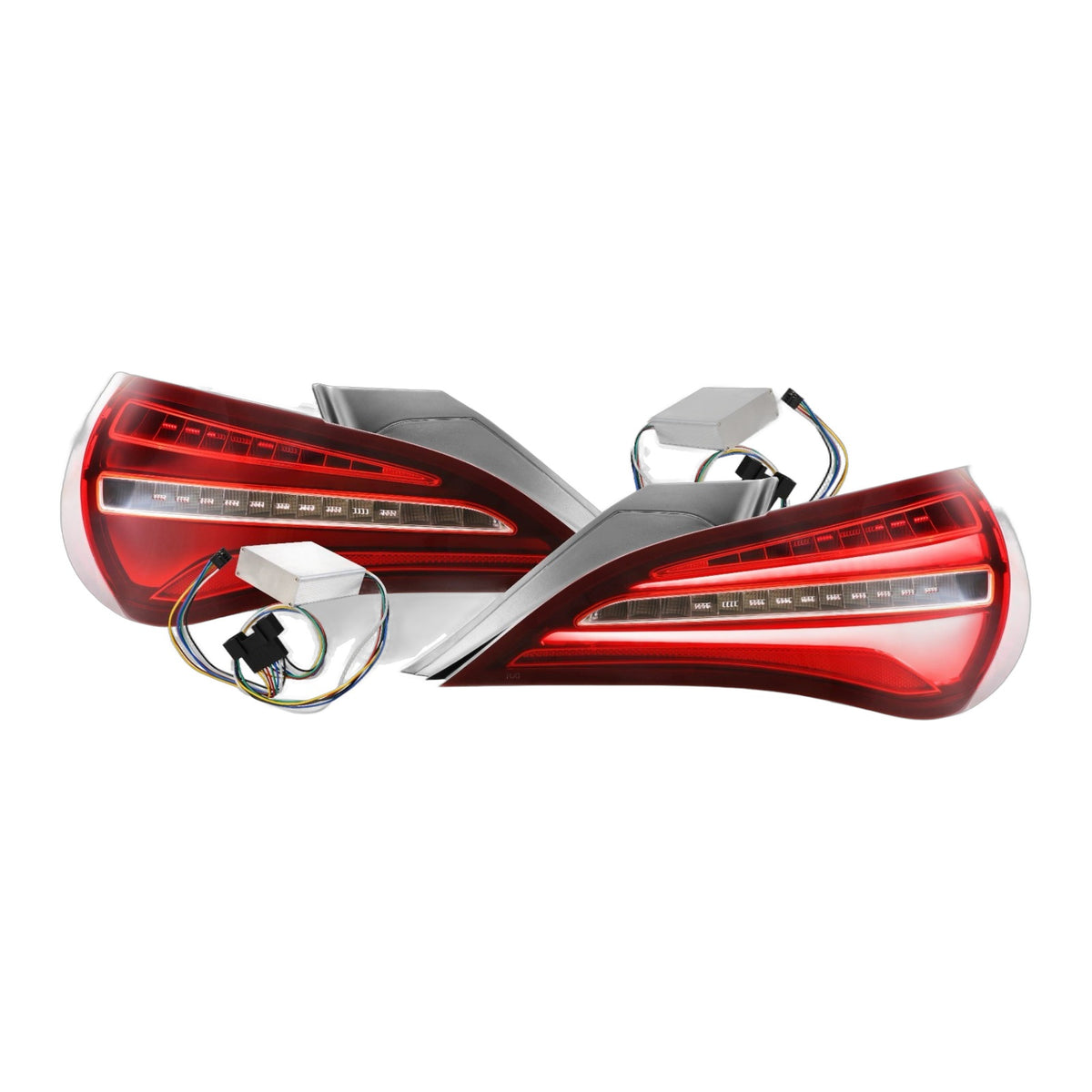

What's Included

• 1 x Left tail light
• 1 x Right tail light
• 2 x Resistor harnesses

Installation

1. Open the trunk and remove the side trim panel.
2. Unplug the tail light and undo the mounting nuts.

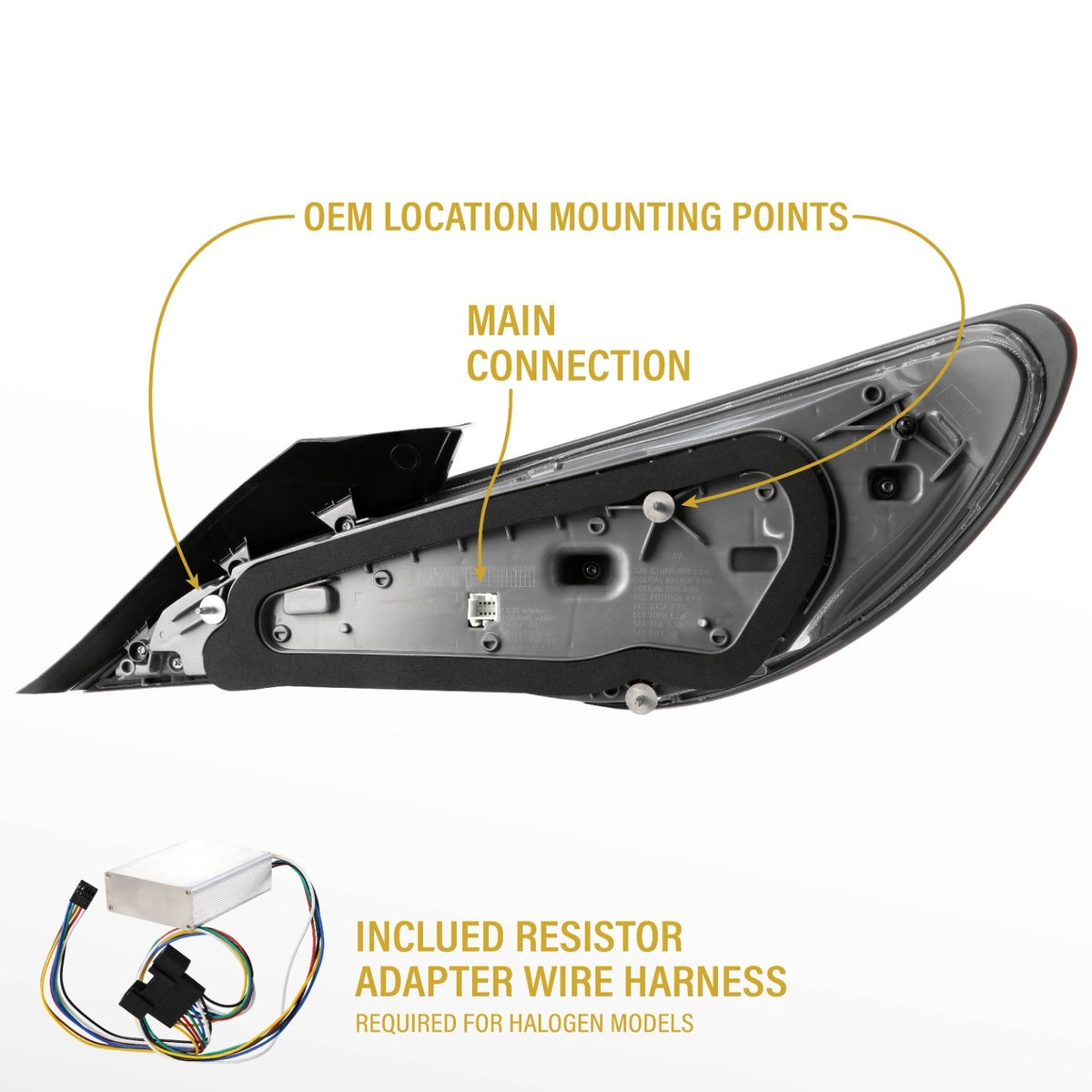

3. Fit the new tail light at the OEM mounting points.
4. Connect it through the included resistor harness.
5. Test all functions.

FAQ

Do these need bulbs?
No. All functions are built-in LEDs.

Will I get a bulb-out warning?
Not with the included resistor harness plugged in.
