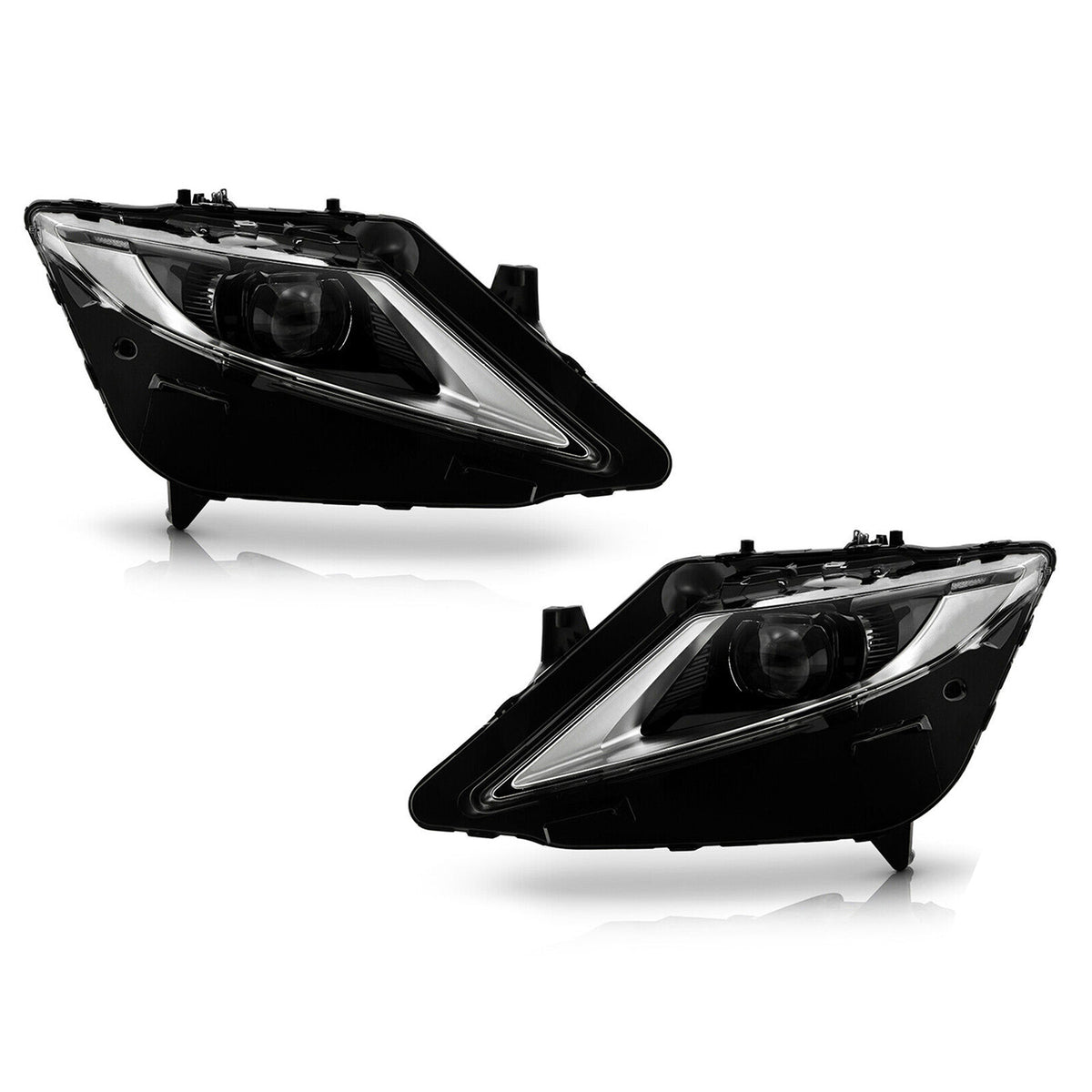

Full LED AFS Projector Headlights Pair for Lincoln MKZ (2013-2016)

Replace cracked or hazy headlights on your 2013-2016 MKZ with this brand-new full LED projector pair with adaptive (AFS) function.

Fitment

Will NOT fit: Non-AFS lamps; 2017-2020 MKZ; 2007-2012 MKZ.

Common Reasons to Replace

• Yellowed, hazy, or oxidized lenses reducing light output
• Cracked lens or broken mounting tabs
• Moisture or condensation inside the housing
• Collision damage

Specs

• Low/high beam, DRL, turn: built-in LED
• AFS: Yes
• Housing: chrome
• DOT compliant
• Quantity: Pair (Left + Right)
• Condition: New

Interchange Part Numbers

OEM: DP5Z13008S. Partslink: FO2503364, FO2502364.

What's Included

• 1 x Driver side headlight assembly
• 1 x Passenger side headlight assembly
• Left and right headlights

Installation

1. Disconnect the battery. Remove the four 7 mm screws in each front wheel-well liner and pull the liner back.
2. Remove the eight 8 mm screws along the bottom of the bumper and the upper grille/radiator support clips.
3. Unplug the fog/sensor harnesses and remove the bumper with the headlamps (on the 2013-2016 MKZ the lamps come off with the bumper).
4. Remove the 10 mm headlamp bolts, unplug the lamp, install the new one, refit the bumper and aim.

Steps compiled from "DIY 2014 Lincoln MKZ how to remove the front bumper along with the head lamp" video; Go-Parts 2013-2020 MKZ headlight guide. Professional installation and headlight aiming are recommended.

FAQs

Will these fit a 2017 MKZ?
No. The 2017 refresh uses different lamps.

Do these have AFS?
Yes. For MKZs equipped with adaptive headlights.

Do I need to remove the front bumper to replace these headlights?
Yes. On the 2013-2016 MKZ the bumper must come off and the lamps come out with it; plan 2 hours with a helper.

Can I install HID or LED kits?
Not applicable. The low and high beams are built-in factory LED; there is no replaceable headlight bulb for an LED or HID kit.
