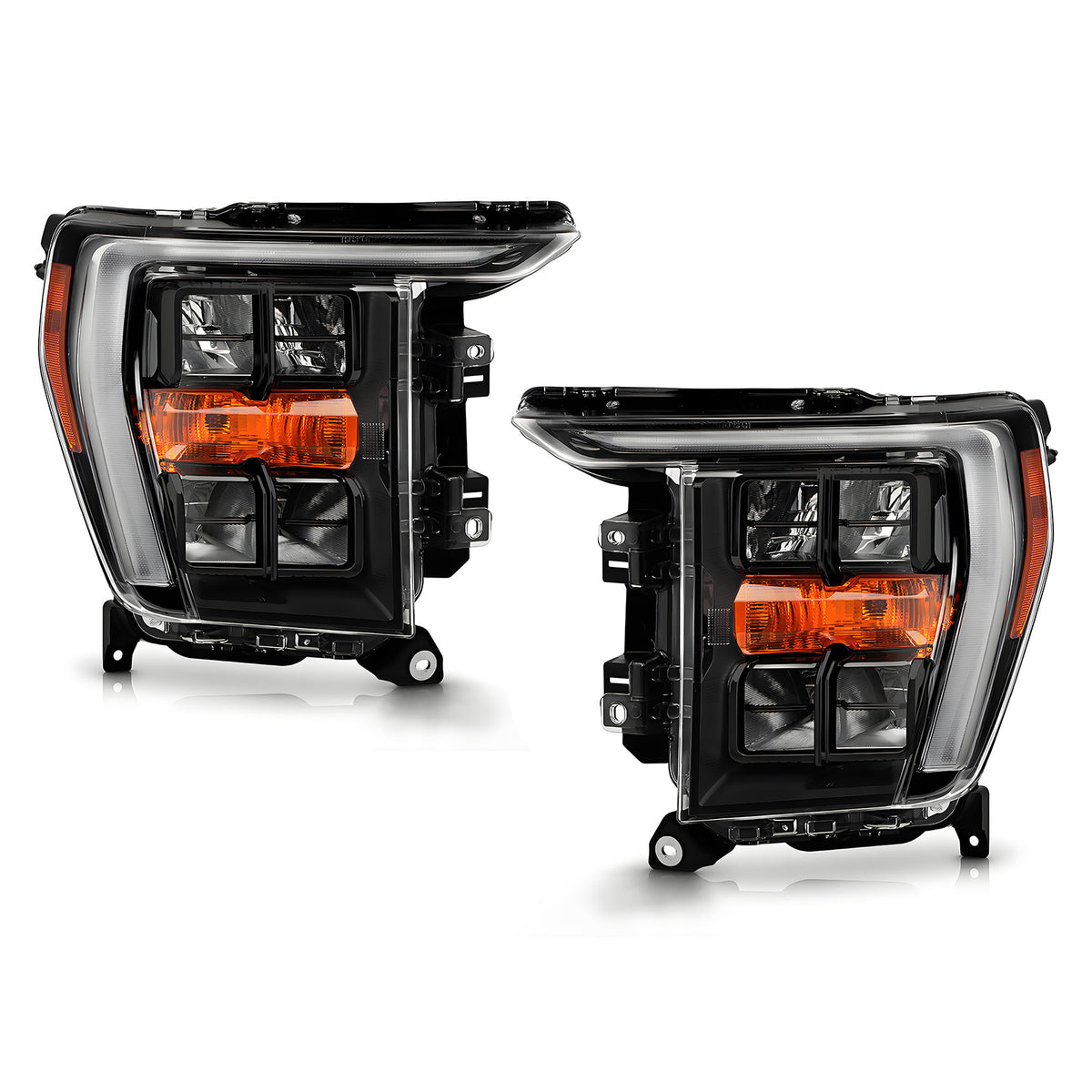

Full LED Headlights Pair, Black Bezel w/o AFS for Ford F-150 (2021-2023)
$612.95
DS-NL3Z13008J
Free shipping to the lower 48 · Returns & refunds · Questions? Contact us
Replace damaged headlights on your 2021-2023 F-150 with this brand-new full LED reflector pair with black bezel, for trucks without adaptive (AFS) lighting.
Fitment
| Year | Make / Model | Fits |
|---|---|---|
| 2021-2023 | Ford F-150 (factory LED reflector, black trim, without AFS) | Factory LED reflector headlights |
Will NOT fit: F-150 with halogen, LED projector or adaptive (AFS) headlights.
Common Reasons to Replace
- Yellowed, hazy, or oxidized lenses reducing light output
- Cracked lens or broken mounting tabs
- Moisture or condensation inside the housing
- Collision damage
Specs
- Low/high beam, DRL: built-in LED reflector
- Marker/side: 3157 per listing photo
- DOT compliant
- Quantity: Pair (Left + Right)
- Condition: New
Interchange Part Numbers
OEM: NL3Z13008J, NL3Z-13008-J, ML3Z-13008-U, NL3Z-13008-K, ML3Z-13008-V. Partslink: FO2503421, FO2502421.

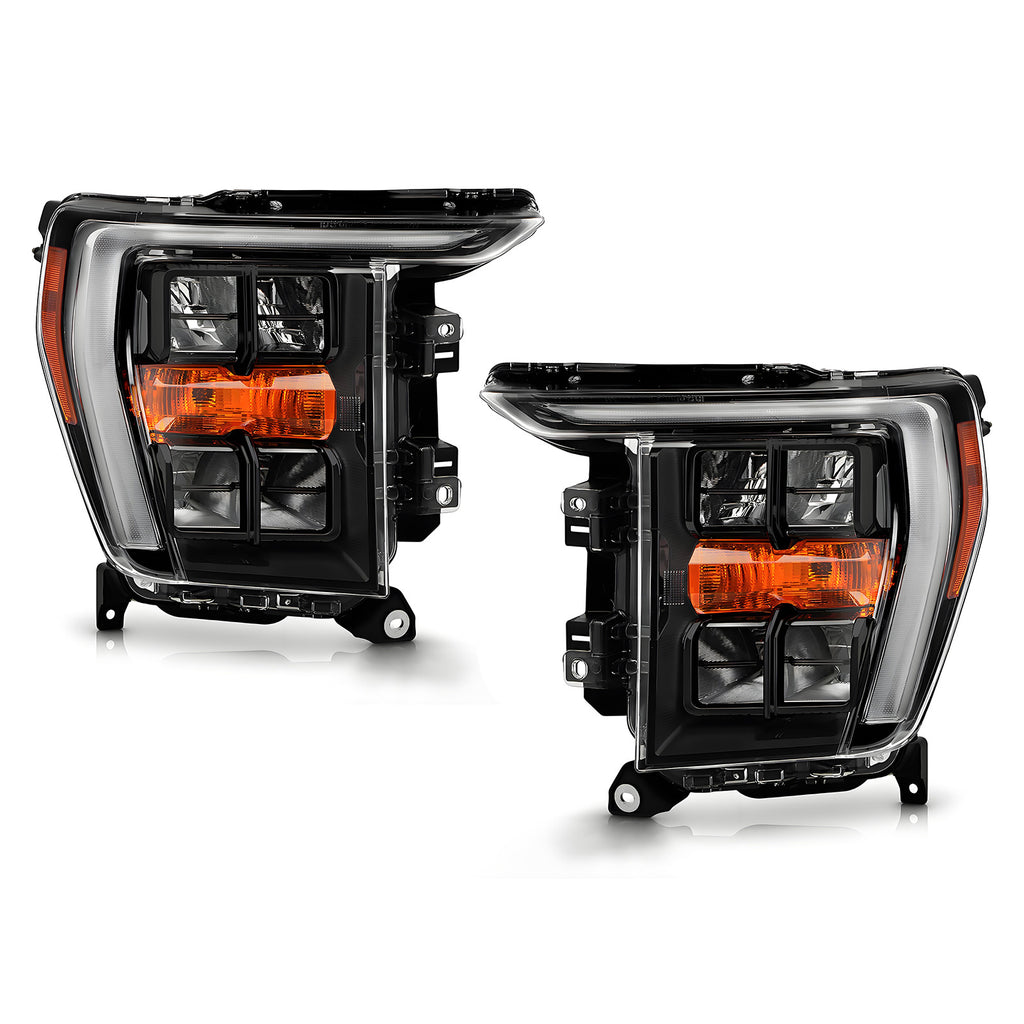

What's Included
- 1 x Driver side headlight assembly
- 1 x Passenger side headlight assembly
- LED module included
Installation
- Remove the upper grille cover, then unplug the front camera and washer connections.
- Remove the four 10 mm upper and two 8 mm lower grille bolts and lift the grille off; remove the two 7 mm fender-trim screws.
- Remove the headlamp hardware: two 10 mm bolts on top, one 10 mm nut, one 8 mm bolt at the bottom and the push pin; unplug the lamp.
- Install the new lamp, torque upper bolts to 36 lb-in and lower to 155 lb-in, reinstall the grille and aim.
Steps compiled from AmericanTrucks and Diode Dynamics 2021+ F-150 headlight install guides; Ford service information torque specs. Professional installation and headlight aiming are recommended.
FAQs
Will these fit a halogen F-150?
No.
Will these fit LED projector or adaptive headlights?
No. LED reflector without AFS only.
Do I need to remove the front bumper to replace these headlights?
No. Only the grille comes off; the lamp is held by two 10 mm bolts, a nut, an 8 mm bolt and a push pin.
Can I install HID or LED kits?
Not applicable. The low and high beams are built-in factory LED; there is no replaceable headlight bulb for an LED or HID kit.
