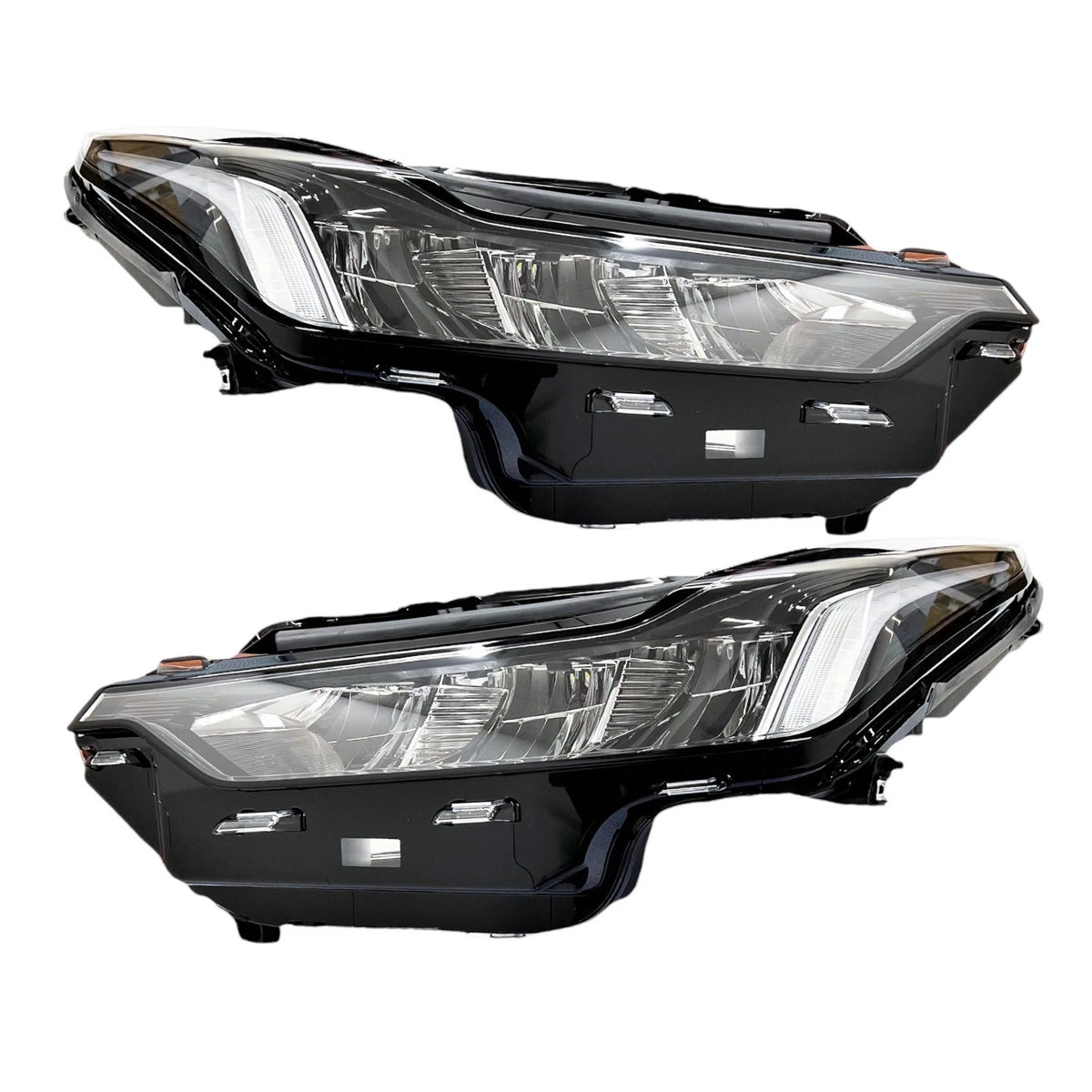

Full LED Headlights Pair w/ Cornering Lamp for Cadillac CT5 (2020-2024)

Replace damaged headlights on your 2020-2024 Cadillac CT5 with this brand-new full LED pair with cornering lamp.

Fitment

Will NOT fit: CT5 with full LED headlights without cornering lamp.

Common Reasons to Replace

• Yellowed, hazy, or oxidized lenses reducing light output
• Cracked lens or broken mounting tabs
• Moisture or condensation inside the housing
• Collision damage

Specs

• Low/high beam, DRL, cornering lamp: built-in LED
• DOT compliant
• Quantity: Pair (Left + Right)
• Condition: New

Interchange Part Numbers

OEM: 84894832, 84689817, 84759355, 84782274, 84861525, 84689816, 84759354, 84782272, 84861524. Partslink: .

What's Included

• 1 x Driver side headlight assembly
• 1 x Passenger side headlight assembly
• Headlight pair

Installation

1. Turn the wheels and remove the front wheelhouse-liner fasteners and the lower grille extensions on each side.
2. Remove the front bumper fascia fasteners (upper, lower and wheel well), release the fascia and pull it forward; unplug the fascia harness.
3. Remove the four headlamp bolts, pull the lamp forward and unplug the connectors.
4. Install the new lamp and torque the bolts to 2.5 N·m (22 lb-in), refit the fascia and aim the headlamps.

Steps compiled from GM service information "Front Headlamp Replacement" (Cadillac CT5). Professional installation and headlight aiming are recommended.

FAQs

Will these fit a CT5 without cornering lamps?
No. Cornering-lamp models only.

What torque for the headlamp bolts?
2.5 N·m (22 lb-in) per GM.

Do I need to remove the front bumper to replace these headlights?
Yes. GM procedure removes the front fascia to reach the four headlamp bolts.

Can I install HID or LED kits?
Not applicable. The low and high beams are built-in factory LED; there is no replaceable headlight bulb for an LED or HID kit.
