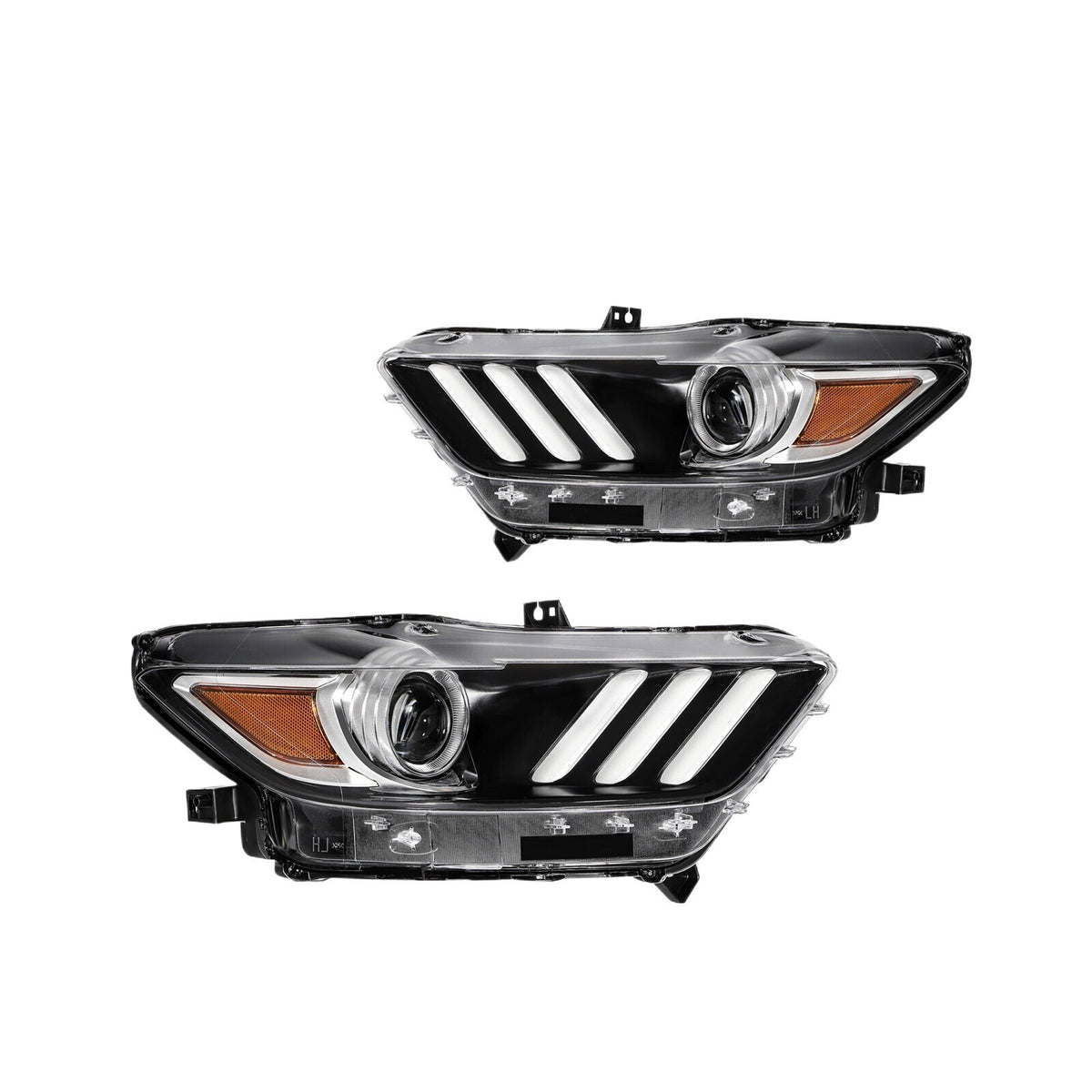

HID Xenon Projector Headlights Pair w/ LED DRL for Ford Mustang (2015-2017)

Replace hazy or cracked headlights on your 2015-2017 Ford Mustang with factory HID headlights with this brand-new pair of HID/Xenon projector headlights with tri-bar LED DRL. Half assembly: reuse your bulbs, ballasts and wires.

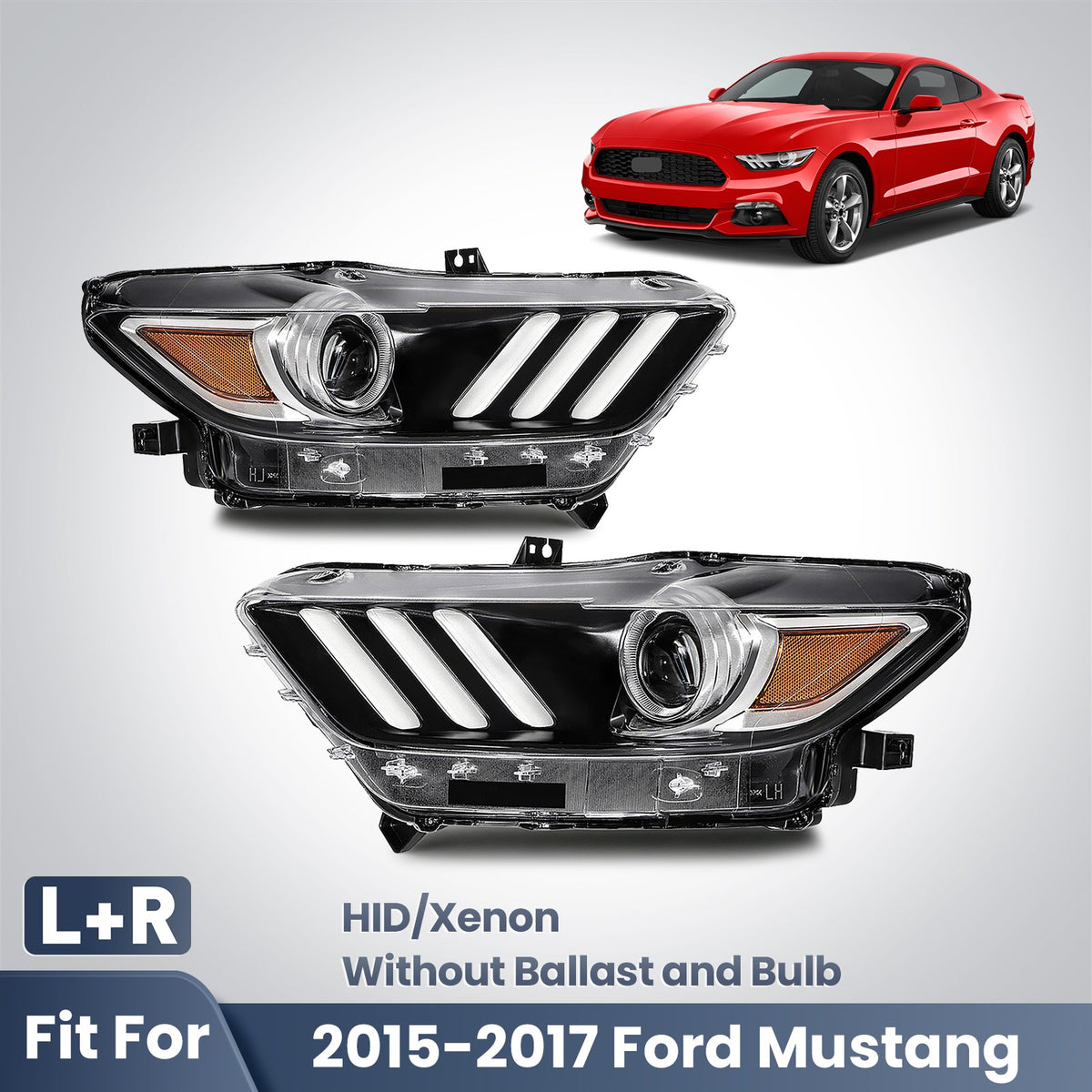

Fitment

Will NOT fit: Halogen Mustang; 2018-2023 facelift (LED); Shelby GT350 unless your lamp matches.

Common Reasons to Replace

• Yellowed, hazy, or oxidized lenses reducing light output
• Cracked lens or broken mounting tabs
• Moisture or condensation inside the housing
• Collision damage

Specs

• Low beam: HID projector (bulb NOT included)
• DRL: tri-bar LED
• DOT compliant
• Quantity: Pair (Left + Right)
• Condition: New

Interchange Part Numbers

OEM: FR3Z13008K, FO2518124, FO2519124. Partslink: .

What's Included

• 1 x Driver side headlight assembly
• 1 x Passenger side headlight assembly

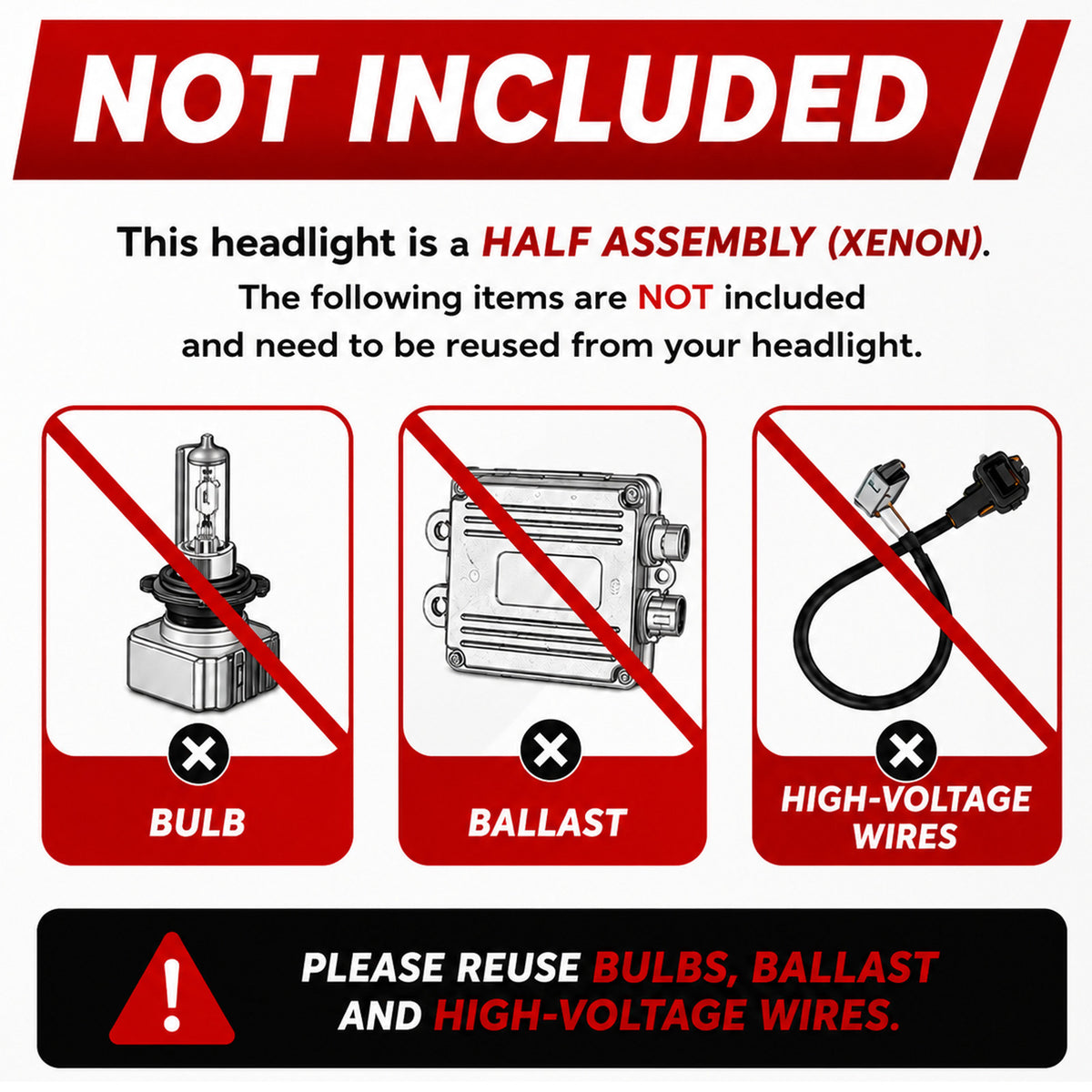

• Half assembly: HID bulbs, ballasts, and high-voltage wires are NOT included; reuse yours

Installation

1. Disconnect the battery. Remove the eight push clips and the radiator cover, then the six 8 mm and two 5.5 mm upper bumper bolts.
2. Underneath, remove the 7 mm bolts along the bottom of the bumper cover.
3. In each wheel well, remove the three push clips, pull the liner back and remove the 7 mm bumper-to-fender bolt. Unplug the turn, parking and fog connectors.
4. Lift and pull the bumper cover forward off the car.
5. Remove the two 10 mm and one 13 mm headlight bolts, unplug and pull the lamp. Transfer your HID bulbs and ballasts, fit the new lamp, refit the bumper and aim.

Steps compiled from Morimoto 2015-2017 Mustang headlight guide and Mustang6G bumper/headlight removal how-to. Professional installation and headlight aiming are recommended.

FAQs

What bulbs do these headlights use?
The listing does not state the bulb size. This is a half assembly: per the listing, move over your HID bulbs, ballasts and high-voltage wires.

Do I need to remove the front bumper to replace these headlights?
Yes. On the S550 Mustang the bumper cover comes off: radiator cover clips, upper 8 mm and 5.5 mm bolts, lower 7 mm bolts and a hidden 7 mm fender bolt each side. Then two 10 mm and one 13 mm bolt hold each headlight.

Will these fit a 2018 Mustang?
No. The 2018 facelift uses a different all-LED headlight and bumper.

Can I install HID or LED kits?
Not applicable. These are factory-style HID/Xenon housings; reuse your factory HID bulbs and ballasts.
