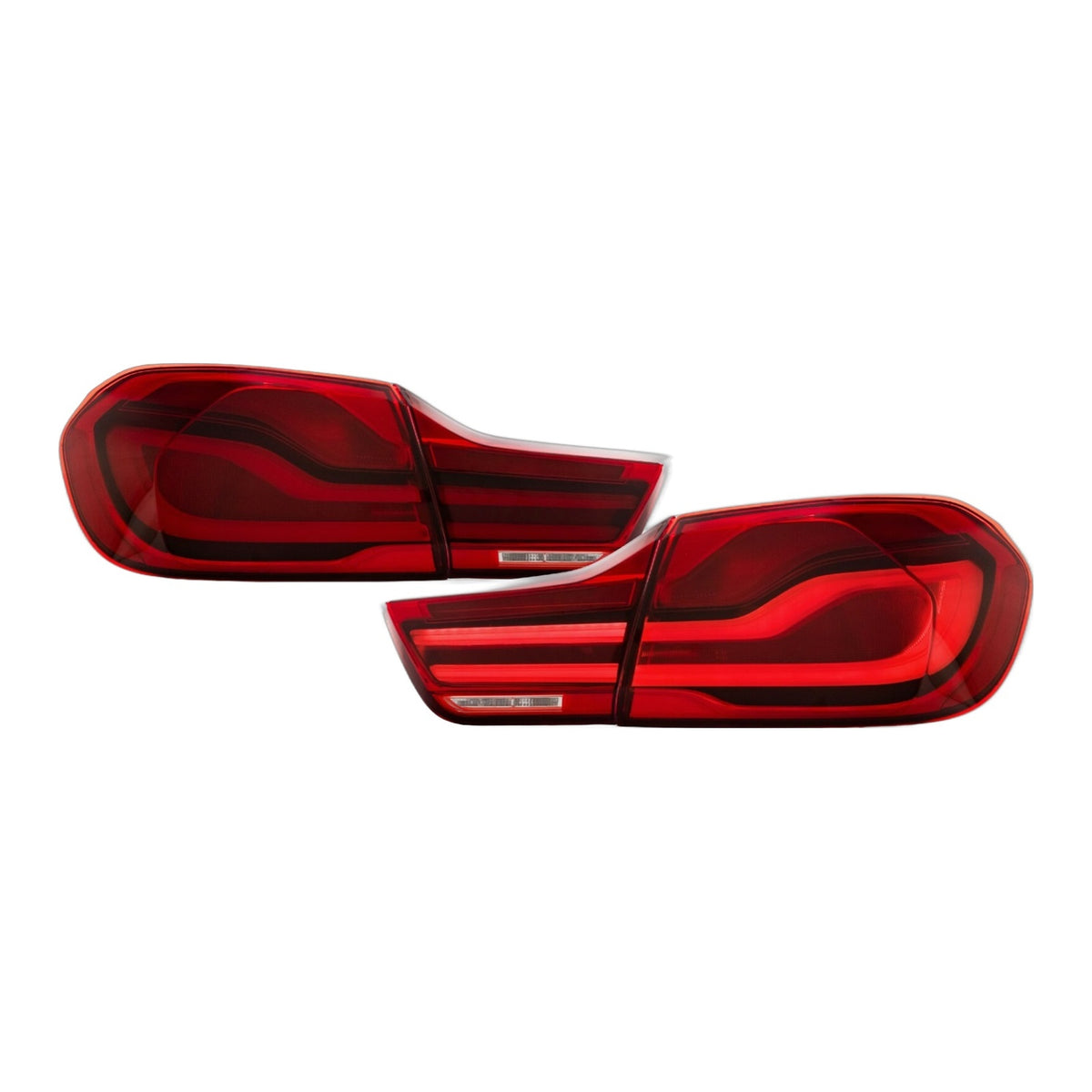

LCI-Style Red LED Light Bar Tail Lights for BMW 4 Series F32 F33 F36 and M4 (2014-2017)

2018+ LCI-style full LED tail lights with red lenses for pre-LCI BMW 4 Series and M4 models. LED light-bar parking lights and built-in red LED signals replace the factory incandescent lamps.

Fitment

• 2014-2016 BMW 428i (F32/F33/F36)
• 2017-2017 BMW 430i (F32/F33/F36)
• 2014-2016 BMW 435i (F32/F33/F36)
• 2017-2017 BMW 440i (F32/F33/F36)
• 2015-2017 BMW M4 (F82/F83)

Fits the F32 coupe, F33 convertible, F36 Gran Coupe and F82/F83 M4. Does not fit 2018+ LCI 4 Series or M4 (they already have these lamps).

Common Reasons to Replace

• Update a pre-LCI car to the LCI look
• Faded or cracked factory lenses

Specs

• Lens: red, UV-protected polycarbonate
• Lighting: full LED (built in)

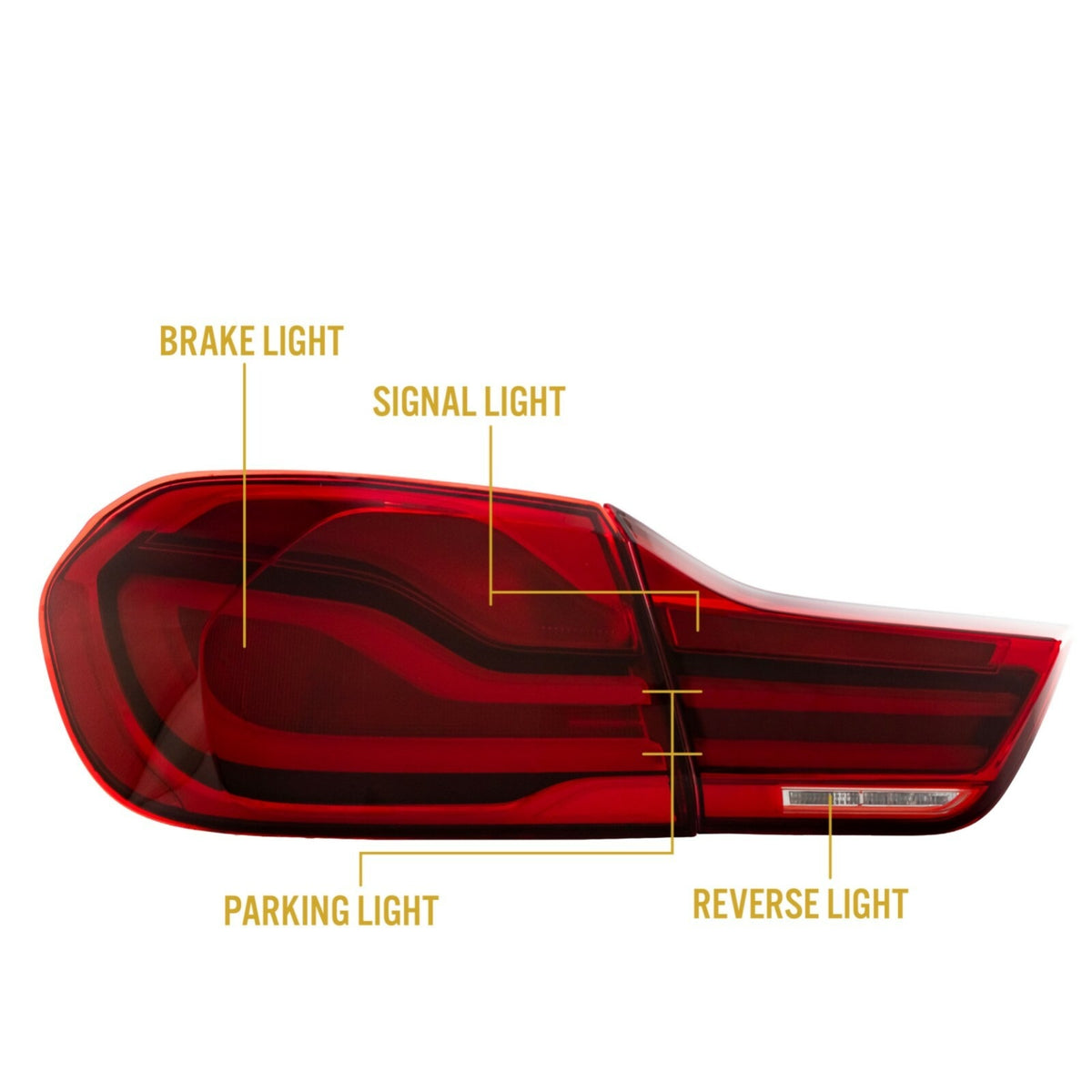

• Functions: parking, brake, red signal, reverse
• Manufacturer: DEPO

Interchange

Replaces OEM 63217296099 / 63217296101 (left) and 63217296100 / 63217296102 (right).

What's Included

• Left and right outer tail lights
• Left and right inner trunk lid lights

Installation

1. Open the trunk and remove the trim behind the outer lamps and on the trunk lid.

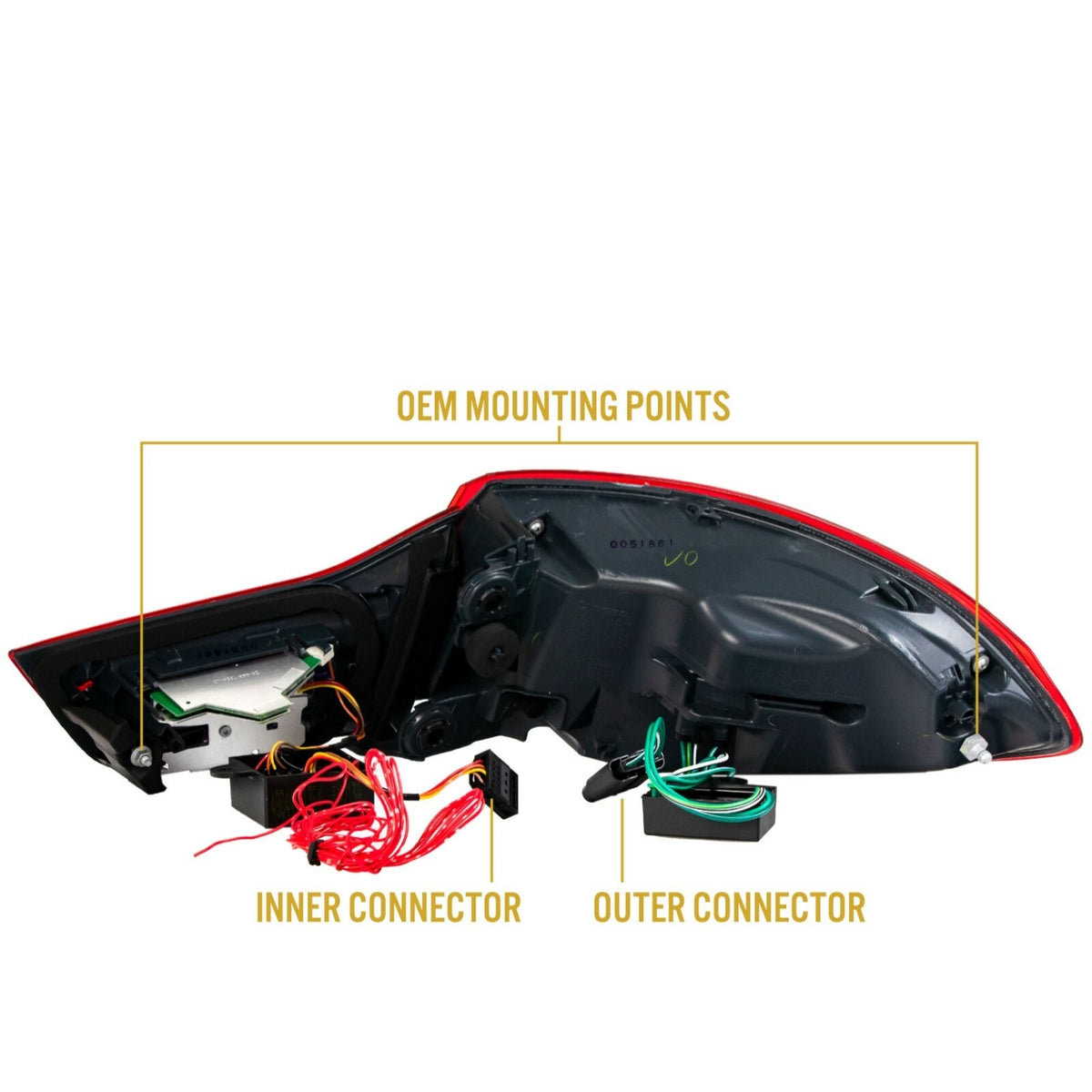

2. Unplug the connectors and remove the mounting nuts.
3. Fit the new lamps using the OEM mounting points and the supplied connectors.
4. Optional: to make the inner lamp signal work like a true LCI, tap the inner connector's signal wire into the outer lamp's signal wire on the same side. The stock inner lamp has no signal circuit.
5. Test every function before refitting the trim.

FAQ

Do the inner lamps flash with the signal?
Only if you tap the signal wire as shown in step 4. Without it, the outer signals work normally.

Will they fit my 2018 440i?
No. 2018+ cars use the LCI wiring and already come with this style.
