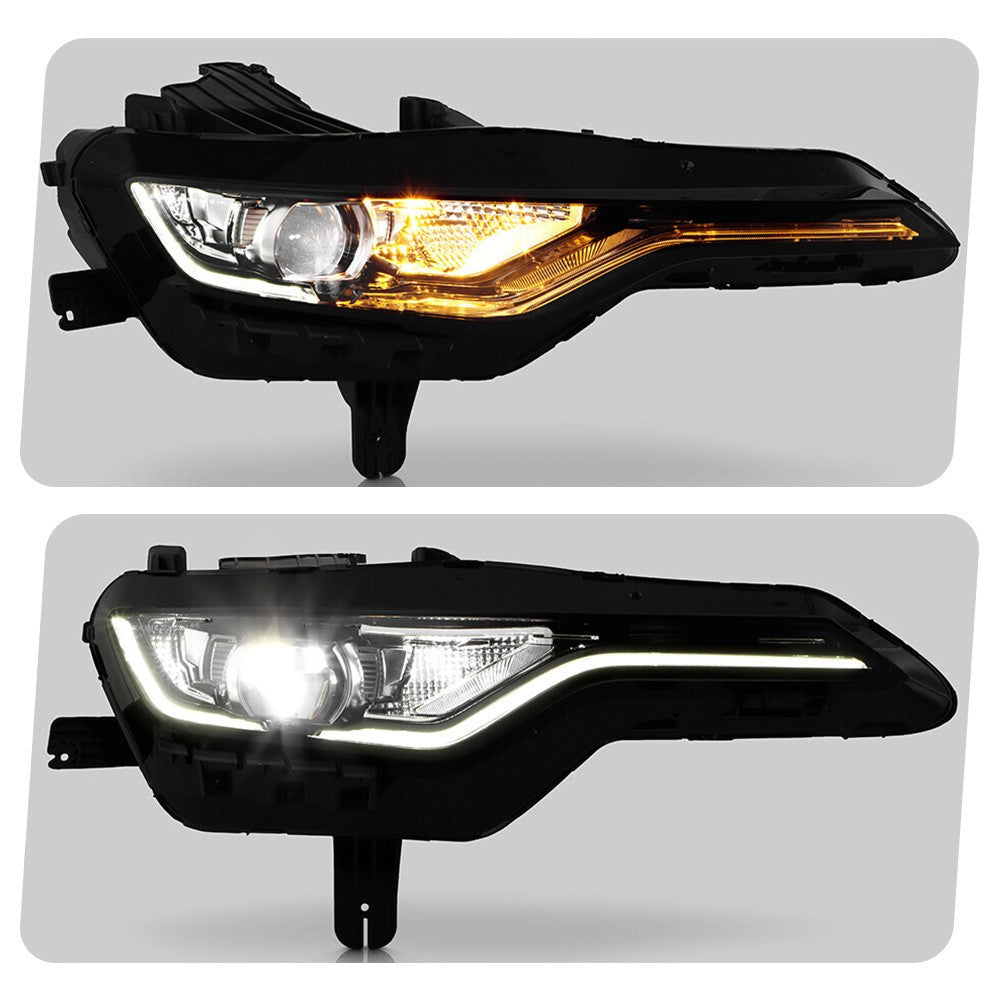

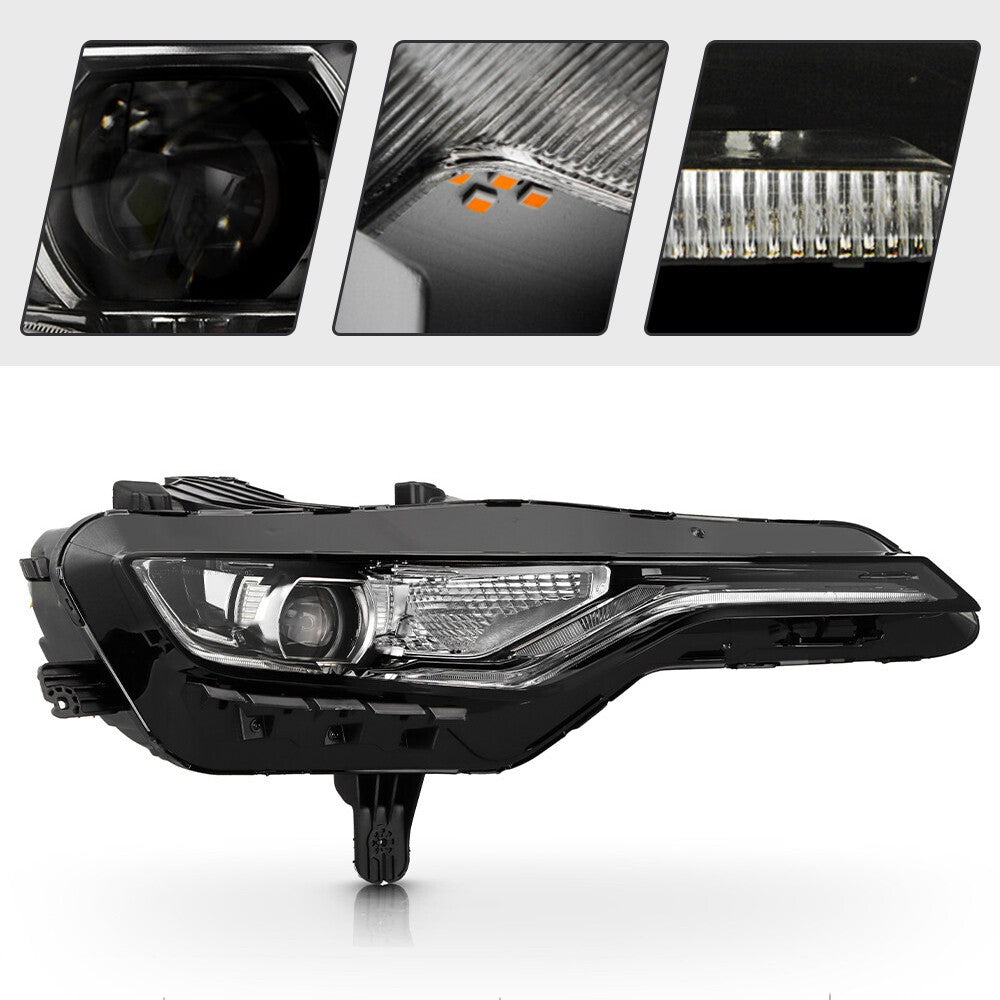

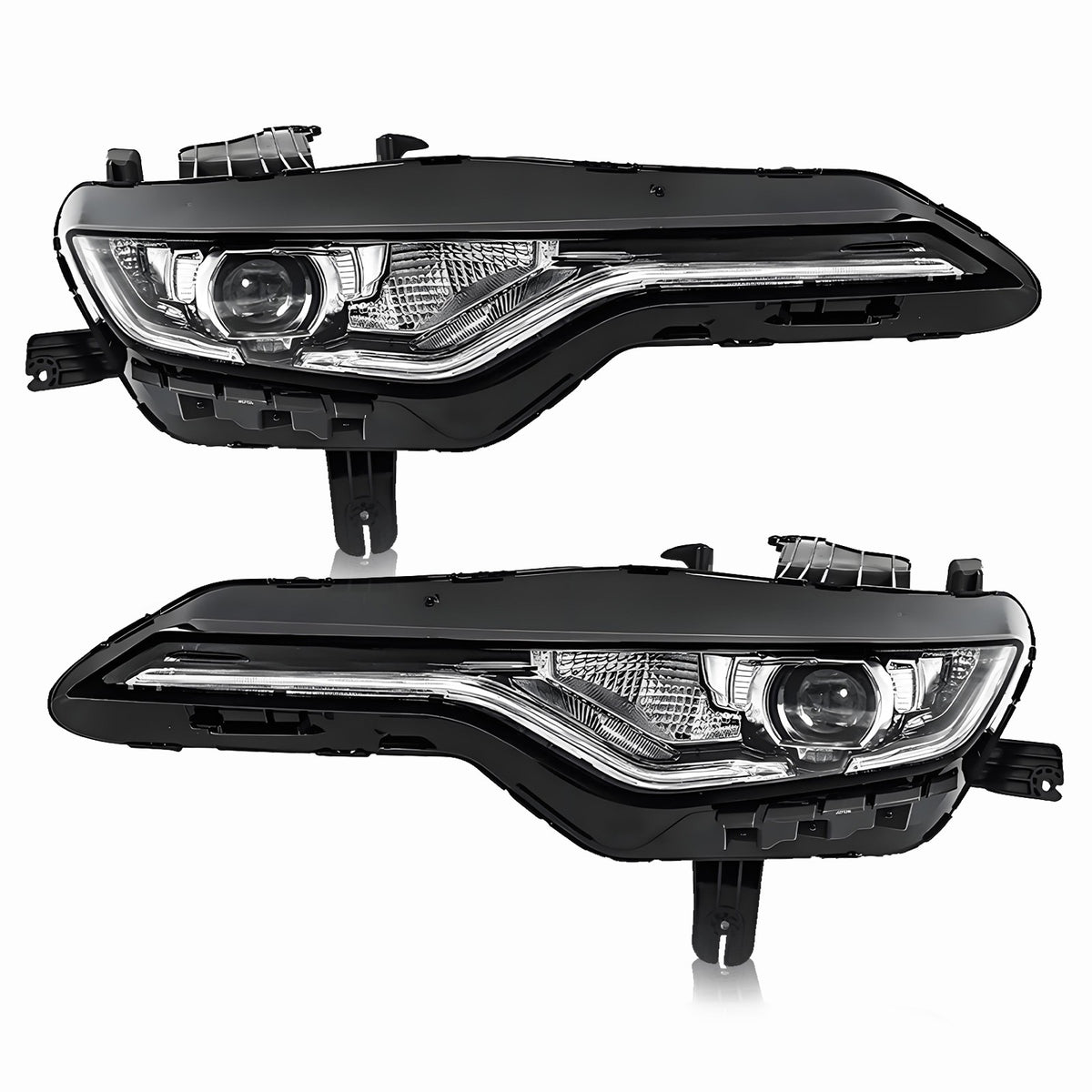

LED Headlights Pair w/ LED DRL w/o Leveling for Chevy Camaro (2019-2024)

Replace damaged LED headlights on your 2019-2024 Chevrolet Camaro LS/LT/SS with this brand-new LED pair with LED DRL for models without auto-leveling.

Fitment

Will NOT fit: Camaro with headlamp leveling; ZL1 HID; 2016-2018 Camaro.

Common Reasons to Replace

• Yellowed, hazy, or oxidized lenses reducing light output
• Cracked lens or broken mounting tabs
• Moisture or condensation inside the housing
• Collision damage

Specs

• Low/high beam, DRL, turn: LED
• DOT compliant
• Quantity: Pair (Left + Right)
• Condition: New

Interchange Part Numbers

OEM: 84756148, 84495524, 84529723, 84666967, 84698217, 84495523, 84529722, 84666966, 84698216. Partslink: GM2503494, GM2502494.

What's Included

• 1 x Driver side headlight assembly
• 1 x Passenger side headlight assembly
• Headlight pair

Installation

1. Remove the plastic clips along the top edge of the fascia and the 10 mm screw at each upper bumper-bracket corner.
2. Remove the two 10 mm bolts below the bumper, then the three T20 screws in each wheel well; peel back the liner and remove the 10 mm and 7 mm bolts.
3. Pull the fascia forward, unplug the fascia harness and set it aside.
4. Remove the four 7 mm headlamp bolts (two top, two lower front), lift the red lock tab, unplug the lamp and install the new one; test and aim.

Steps compiled from 1A Auto Camaro headlight replacement video and GM 2019 Camaro "Front Headlamp Replacement (LED)" procedure. Professional installation and headlight aiming are recommended.

FAQs

Will these fit a 2018 Camaro?
No. 2019+ only.

Do these fit a Camaro with auto-leveling?
No. Models without leveling only.

Do I need to remove the front bumper to replace these headlights?
Yes. On the 2019-2024 Camaro the front bumper cover has to come off to reach the headlamp mounting bolts.

Can I install HID or LED kits?
Not applicable. The low and high beams are built-in factory LED; there is no replaceable headlight bulb for an LED or HID kit.
