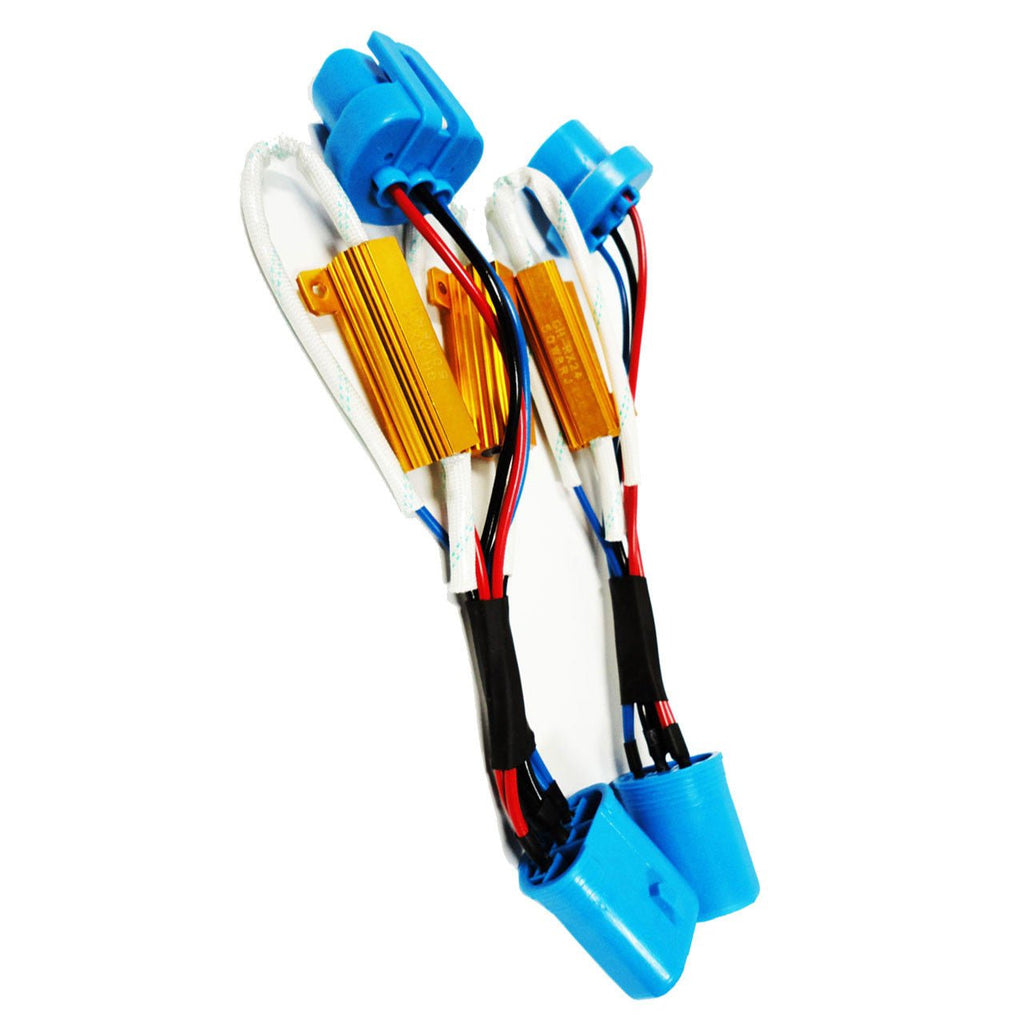

Resistor Capacitor Warning Bulb Out Canceller 9007 (2 Pack)

CANBUS error canceller for 9007 HID/LED kits—plug-in solution eliminates flickering, bulb-out warnings, and error codes on vehicles with monitoring systems.

End CANBUS Errors and 9007 LED/HID Flicker

You installed a 9007 LED or HID conversion kit expecting brilliant white light and improved visibility—instead, you got flickering headlights, dashboard error messages, or lights that randomly shut off. The culprit? Your vehicle's CANBUS monitoring system, which constantly checks bulb current draw. Modern cars, especially European and newer Japanese models, detect the lower power consumption of LEDs and HIDs, interpret it as a bulb failure, and trigger error codes or shut down your lights entirely.

This 9007 CANBUS Error Canceller solves the problem by adding the resistance your vehicle's computer expects. With integrated 50W 6-ohm load resistors and an optional capacitor module for voltage stabilization, it tricks your monitoring system into recognizing your aftermarket lights as fully functional—eliminating flicker, warnings, and shutdowns in one simple plug-and-play install.

Key Features at a Glance

• 9007-Specific CANBUS Solution: Designed for vehicles with 9007 bulb connectors and CANBUS or OBC monitoring systems
• 50W 6-Ohm Load Resistors: Simulates halogen bulb current draw to satisfy vehicle error detection systems
• Integrated Capacitor Module: Stabilizes voltage and reduces electrical interference (removable if not needed)
• Plug-and-Play Installation: Connects inline between factory harness and HID/LED kit—no wire cutting or splicing
• Male and Female Connectors: Pre-wired 9007 connectors on both ends for seamless integration
• 10V-15V Operation: Compatible with standard automotive electrical systems

Installation: Simple Inline Connection

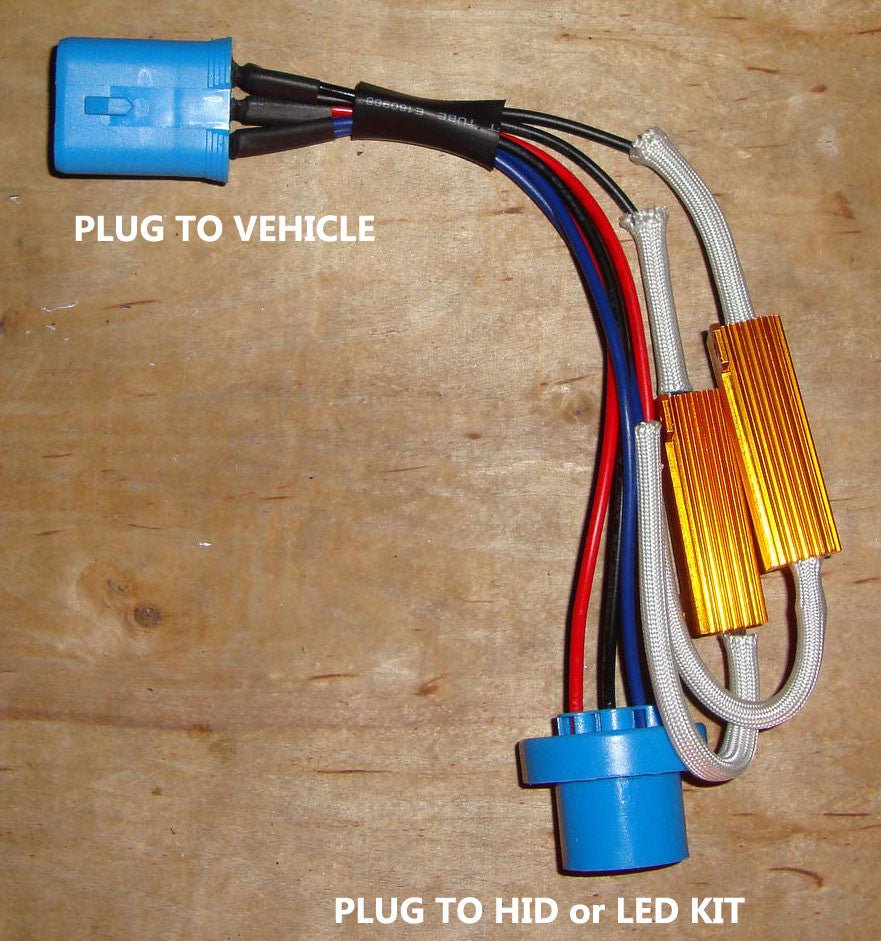

Plug the female end into your vehicle's factory 9007 headlight socket, then connect the male end to your HID or LED kit's wiring harness. Mount the load resistor securely on a metal surface or position it where air can circulate freely—these resistors generate significant heat and must be kept away from plastic components, wiring, or any meltable materials. If your vehicle doesn't require the capacitor module for voltage stabilization, you can safely cut it off.

What CANBUS Problems Does This Fix?

CANBUS (Controller Area Network) systems monitor electrical current across your vehicle's lighting circuits. When you install low-draw LEDs or HIDs that consume less power than factory halogens, the system detects abnormal current levels and responds with:

• Dashboard bulb-out warning messages
• Rapid flickering or strobing lights
• Random headlight shutdowns or failure to illuminate
• OBC (On-Board Computer) error codes and warnings

This error canceller adds the missing electrical load, convincing your vehicle's computer that your lighting system is operating within normal parameters.

Your Benefits at a Glance

• No More Dashboard Warnings: Eliminates bulb-out errors and OBC codes after LED/HID installation
• Stable, Flicker-Free Operation: Stops strobing, flashing, and random shutdowns caused by CANBUS monitoring
• Voltage Stabilization: Optional capacitor module smooths electrical fluctuations for consistent light output

Compatibility & Package Details

Compatibility:

• 9007 LED and HID Conversion Kits
• Vehicles with CANBUS or OBC monitoring systems (common in 2005+ European and Japanese models)
• Works with headlights (high/low beam), fog lights, and daytime running lights using 9007 connectors

Package Includes:

• 2x 9007 CANBUS Error Cancellers (Pair for Both Headlights)
• 50W 6-Ohm Load Resistors (Integrated)
• Capacitor Module (Removable if Not Required)
• Pre-Wired
