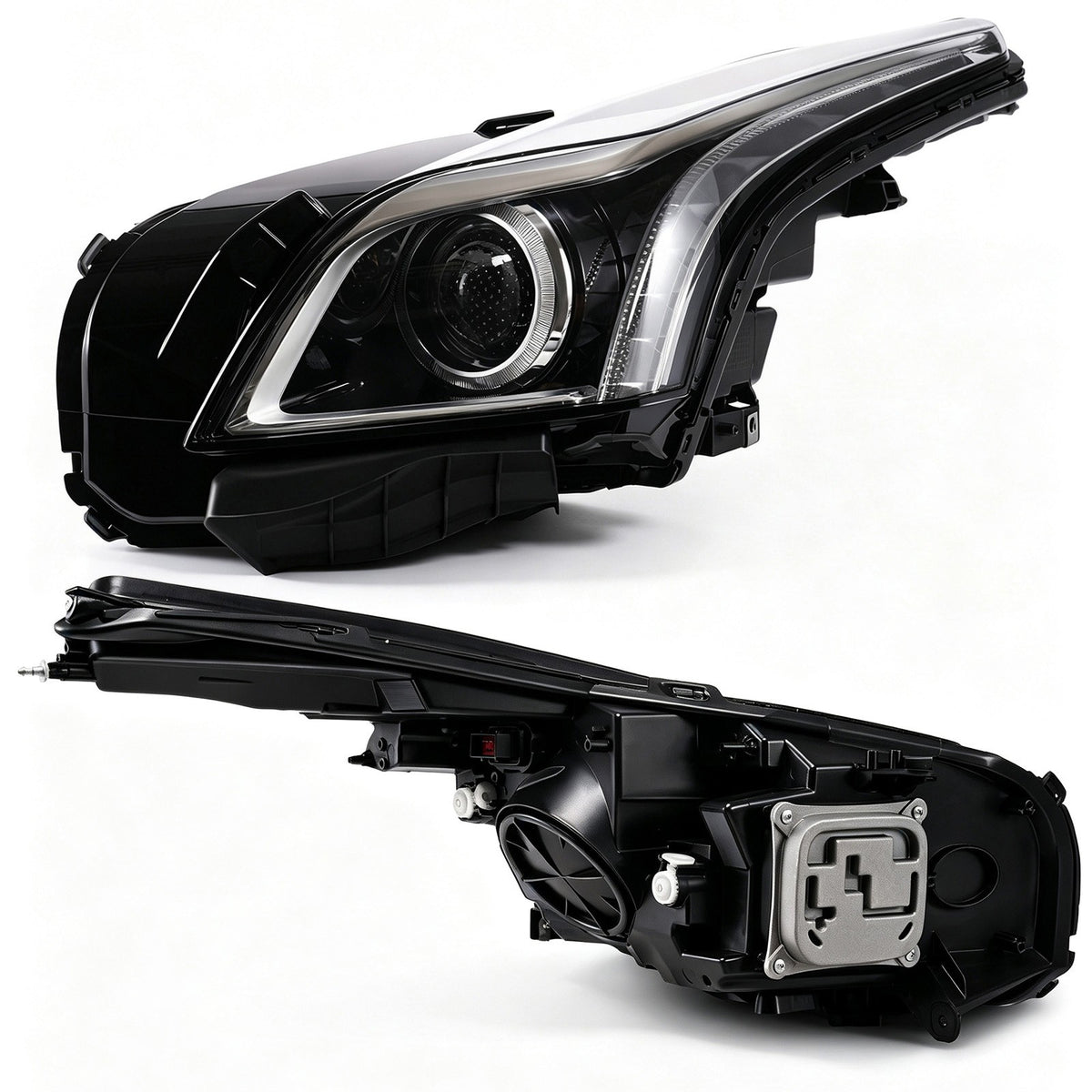

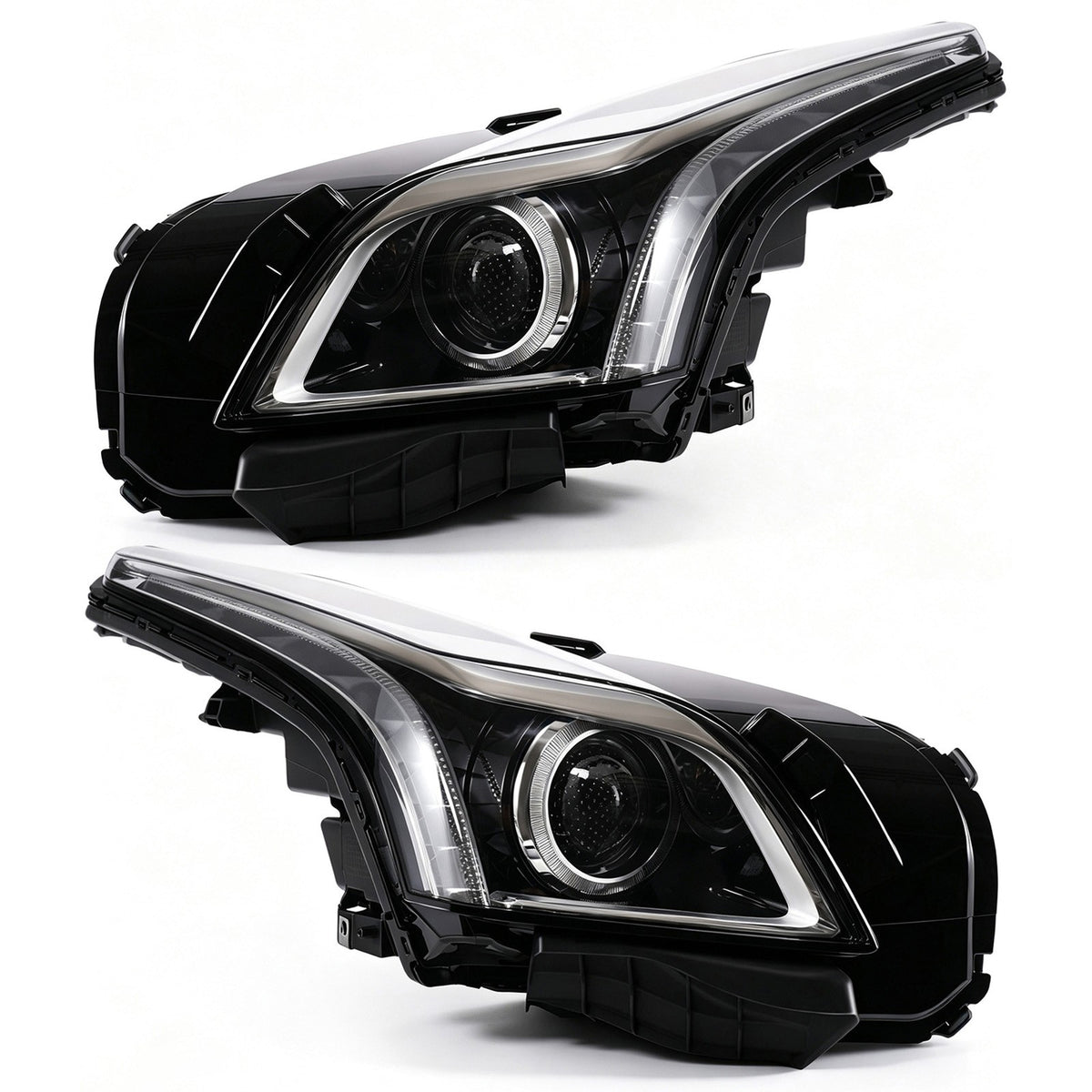

Chrome Halogen Projector Headlights Pair w/ Bulbs for Cadillac CTS Sedan Base (2014-2019)

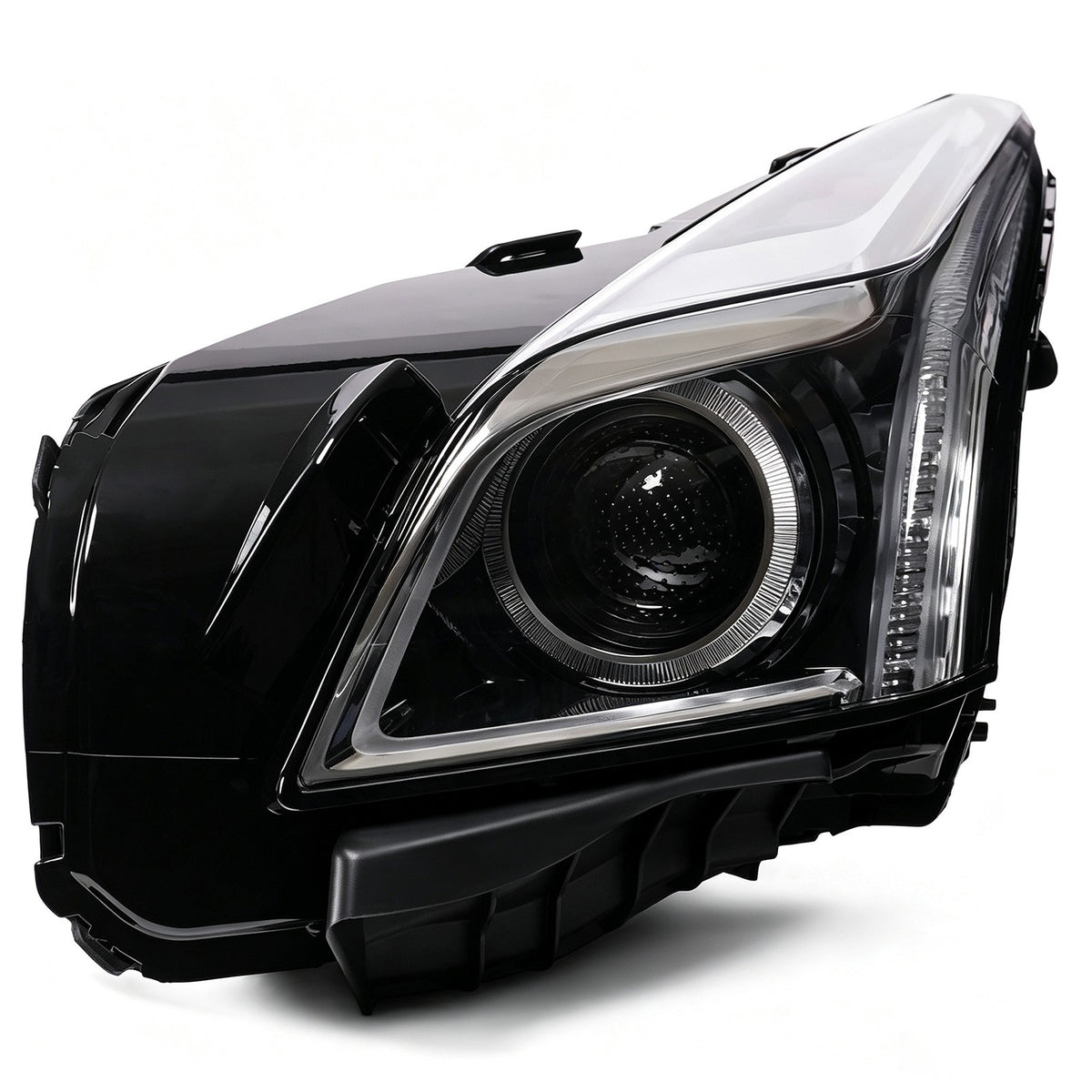

Replace foggy or cracked headlights on your 2014-2019 Cadillac CTS sedan Base (factory halogen, 4-pin plug) with this new chrome pair. HIR2 bulbs are included and the LED signature is built in.

Fitment

Will NOT fit: CTS with factory HID/AFS (see our HID versions); CTS-V; 2008-2013 CTS.

Common Reasons to Replace

• Yellowed, hazy, or oxidized lenses reducing light output
• Cracked lens or broken mounting tabs
• Moisture or condensation inside the housing
• Collision damage

Specs

• Low/high beam: 9012 / HIR2 (included)
• LED signature: built in

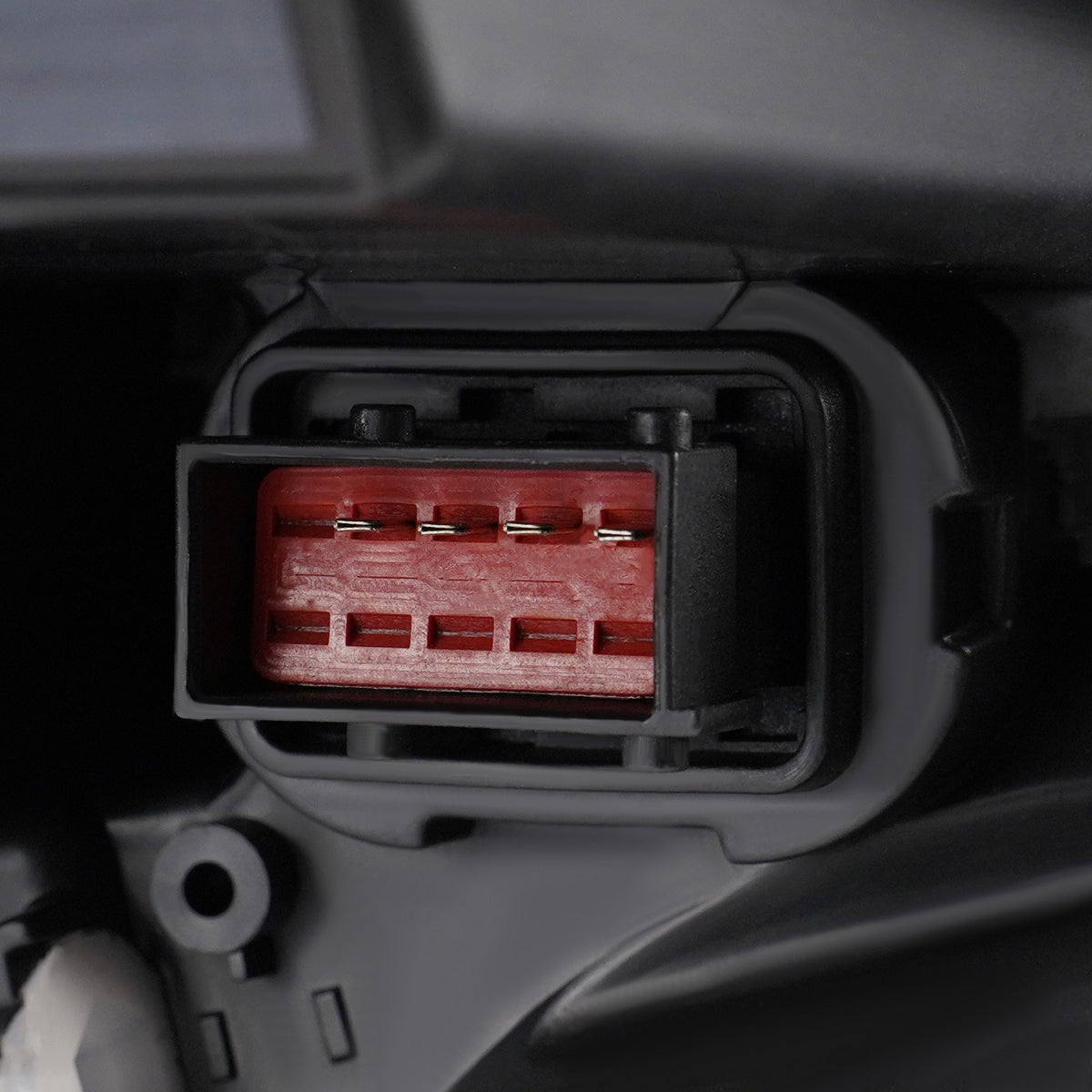

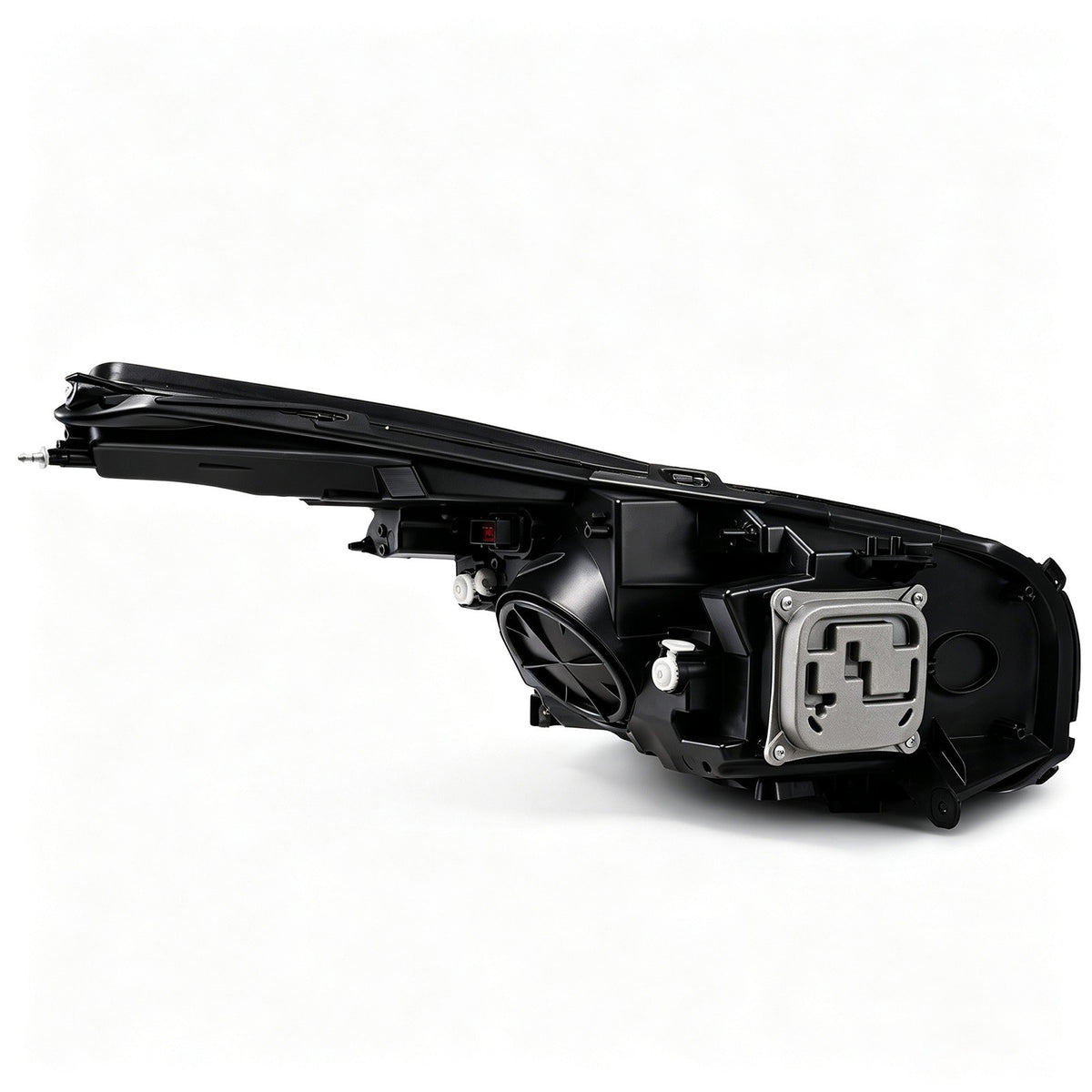

• Connector: 4-pin
• Housing: Chrome
• DOT compliant

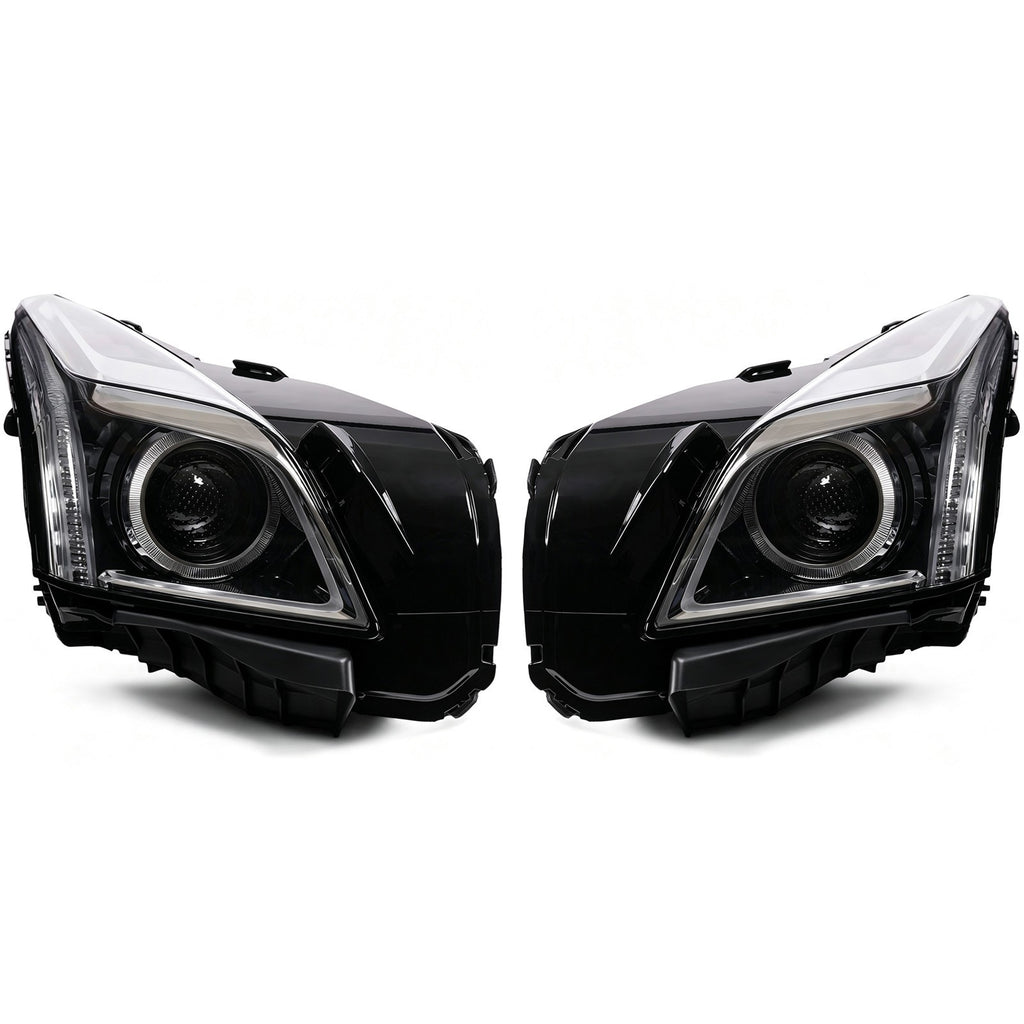

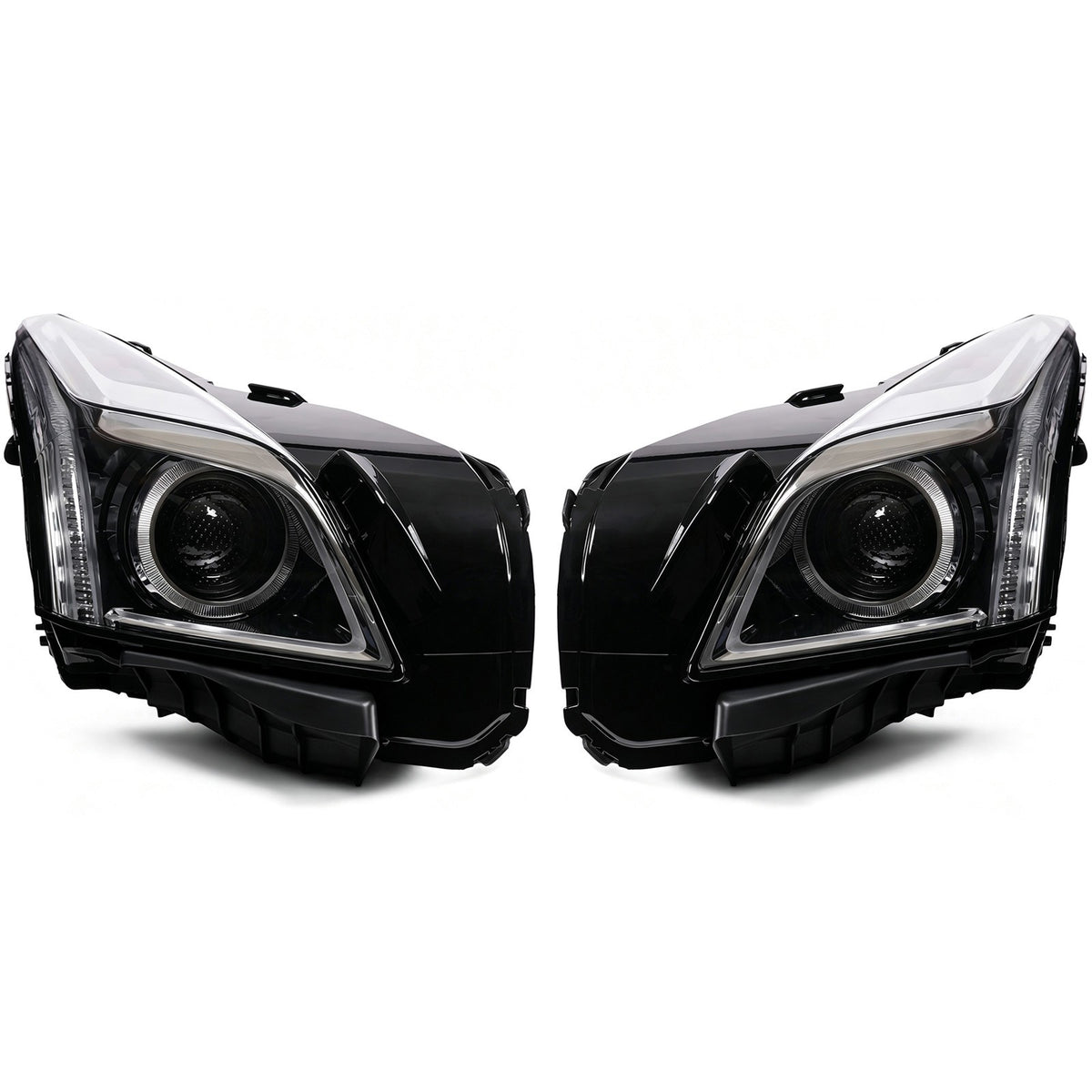

• Quantity: Pair (Left + Right)
• Condition: New

Interchange Part Numbers

OEM: 84319713, 20896545, 23210861, 23450861, 23458639, 20896546, 23210860, 23450862, 23458640. Partslink: GM2502419，GM2503419.

What's Included

• 1 x Driver side headlight assembly
• 1 x Passenger side headlight assembly
• Left and right headlights
• HIR2/9012 bulbs (included, per listing)

Installation

1. Open the hood, pull up the hood seal and remove the two clips and retainers holding the upper protective (sight) shield.
2. Under the shield remove the ten upper bumper screws (two sit under the fender edges), then the lower screws along the underside of the fascia.
3. Turn the wheels, pull back the front of each wheel-well liner and remove the two 10 mm bolts per side that hold the fascia to the fender.
4. Release the snaps under the headlamps, pull the fascia forward with a helper and unplug the main connector (left side).
5. Unplug the headlamp, remove its mounting bolts and pull it forward. Install the new lamp, refit the fascia and aim the headlights.

Steps compiled from remont-bampera.com "Cadillac CTS III 2014-2019: how to remove the bumpers"; GM service manual 2014 CTS sedan front bumper fascia replacement (via lemon-manuals.la); GM Parts headlight replacement guide. Professional installation and headlight aiming are recommended.

FAQs

How do I know if my CTS has halogen headlights?

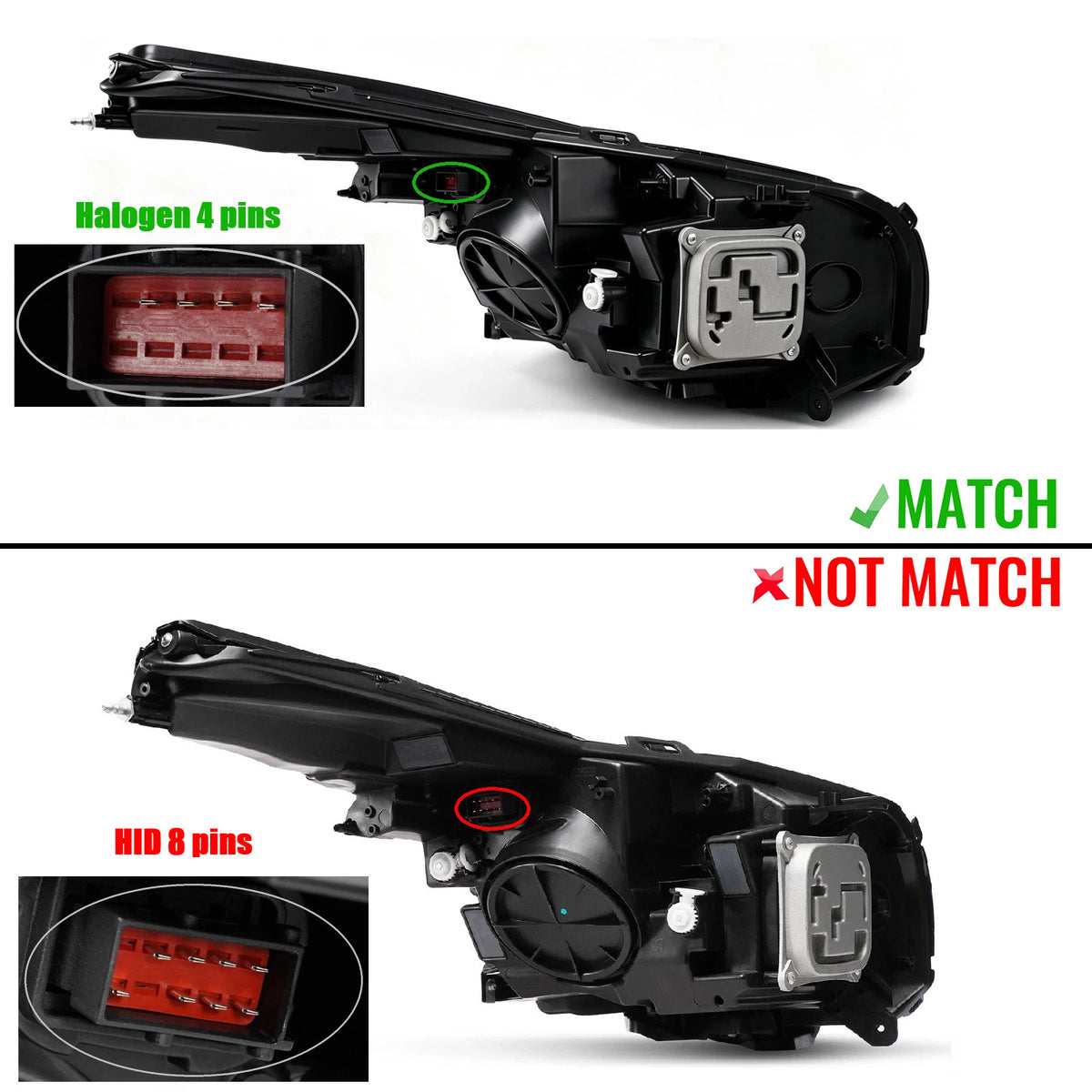

Per the listing, the halogen lamp uses a 4-pin plug; HID/AFS lamps use a different connector and do not match.

Will these fit a CTS with HID?
No. These are for factory halogen Base cars only.

Do I need to remove the front bumper to replace these headlights?
Yes. On the 2014-2019 CTS the front fascia comes off to reach the headlamp bolts.

What bulbs do these use?

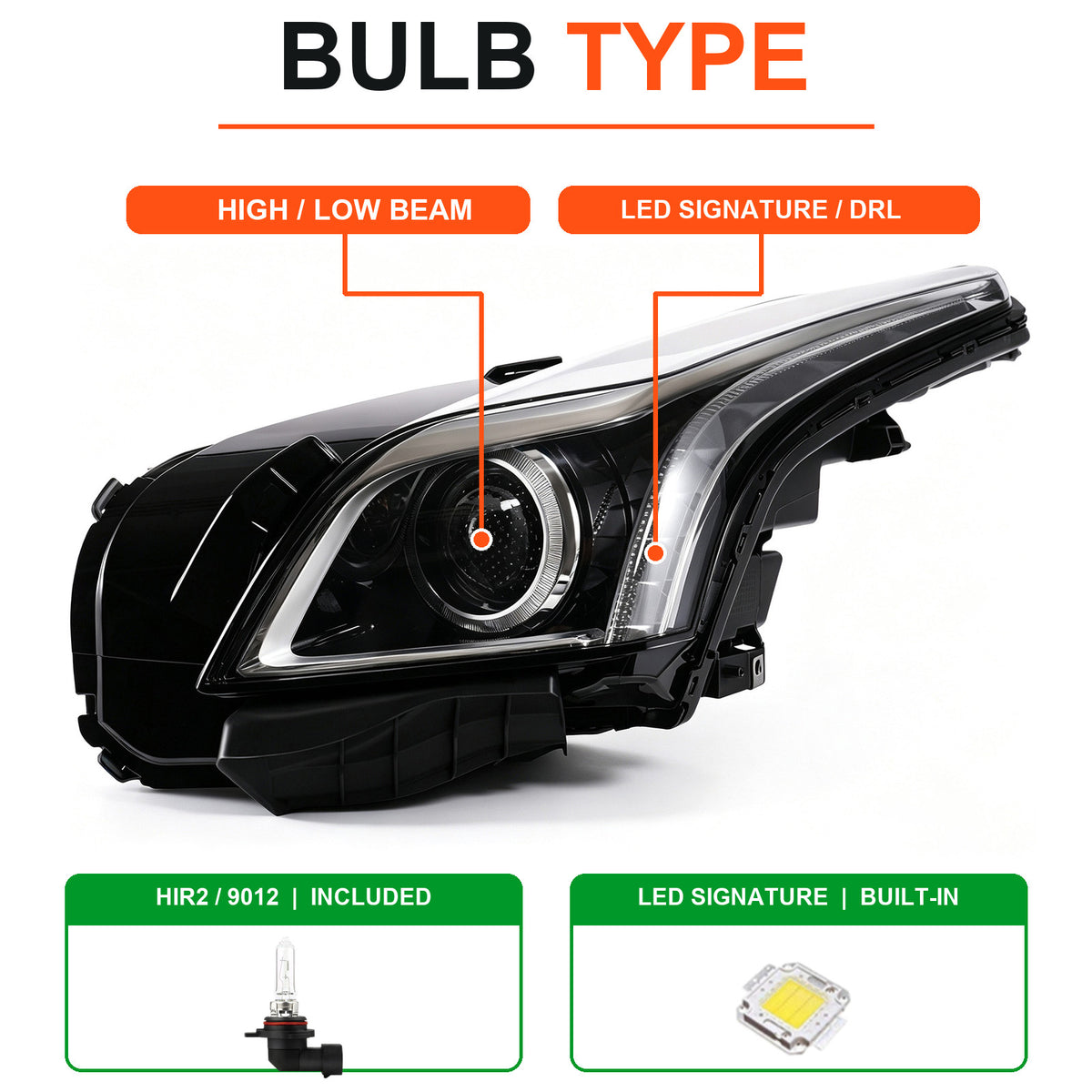

HIR2 (9012) low/high beam, included per the listing diagram. The LED signature is built in.

Can I install LED or HID kits?
Yes. This is a halogen housing, so a plug-in LED or HID kit in your factory bulb size can be used. Aim the headlights afterward.
