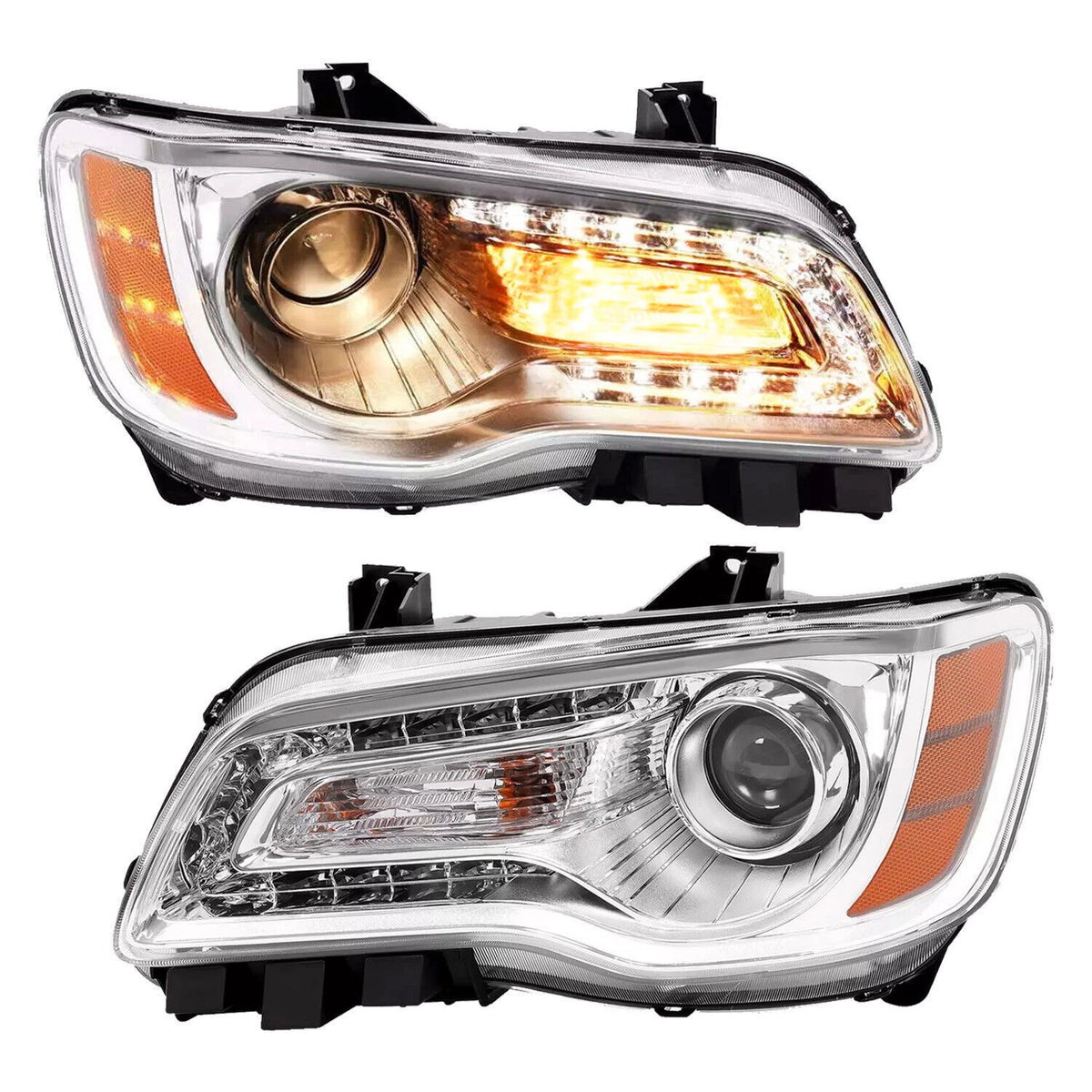

Chrome Halogen Projector Headlights Pair w/ LED DRL for Chrysler 300 (2011-2014)

Replace foggy headlights on your 2011-2014 Chrysler 300 with factory halogen headlights with this new chrome pair with LED DRL. 9012 and PSY24W bulbs are included.

Fitment

Will NOT fit: HID/AFS cars; 2015+ Chrysler 300.

Common Reasons to Replace

• Yellowed, hazy, or oxidized lenses reducing light output
• Cracked lens or broken mounting tabs
• Moisture or condensation inside the housing
• Collision damage

Specs

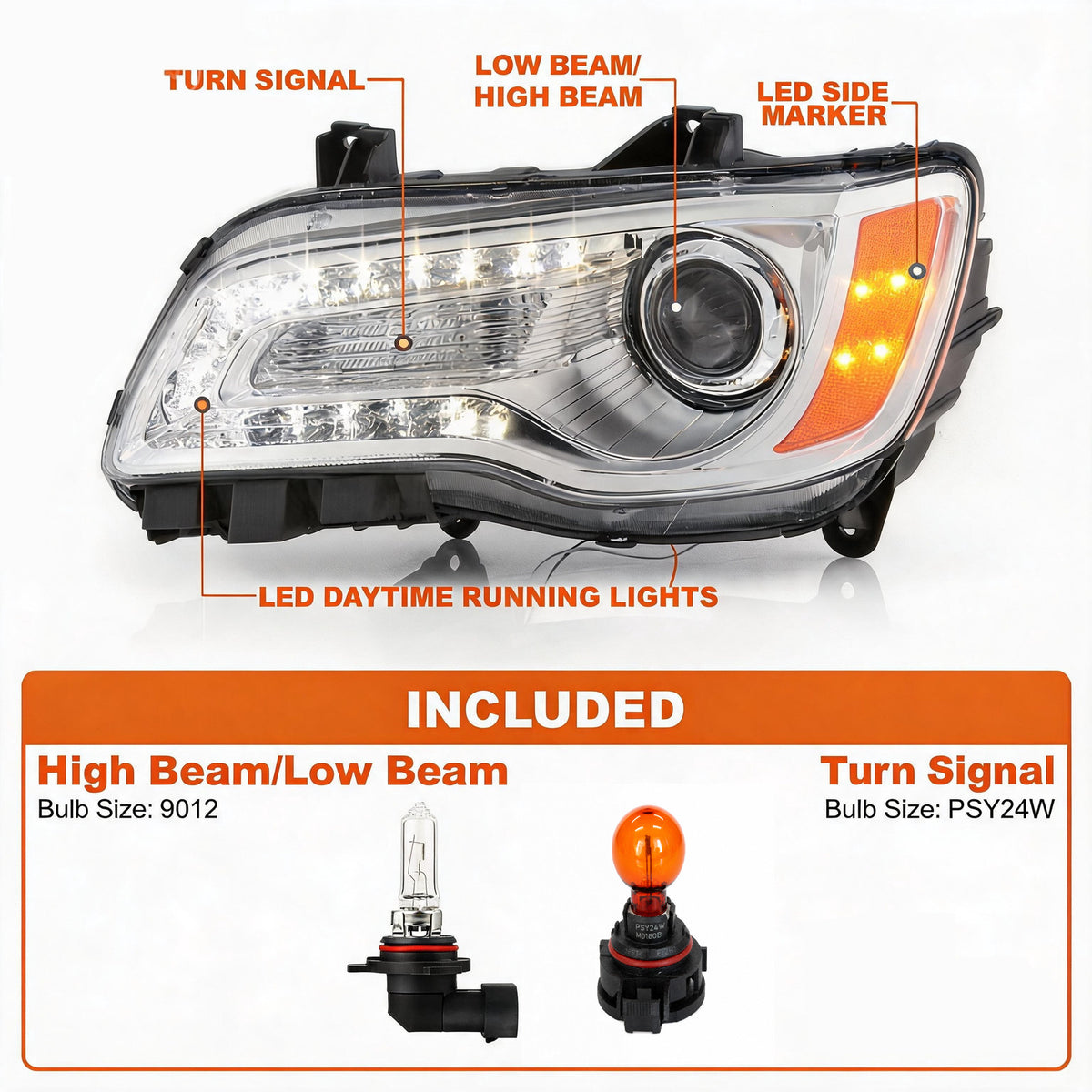

• Low/high beam: 9012 / HIR2 (included)
• Turn: PSY24W (included)
• DRL: LED
• Housing: Chrome
• DOT compliant
• Quantity: Pair (Left + Right)
• Condition: New

Interchange Part Numbers

OEM: 68143002AC, CH2503239, 68042151AC, 68143003AA, 68143003AB. Partslink: CH2503231, CH2502231.

What's Included

• 1 x Driver side headlight assembly
• 1 x Passenger side headlight assembly
• Left and right headlights
• 9012 and PSY24W bulbs (included, per listing)

Installation

1. Disconnect the negative battery cable. Raise and support the car, remove the fascia-to-fender fasteners and the three splash-shield fasteners per side.
2. Remove the belly pans and unplug the fog-lamp/side-marker connectors; lower the car and remove the upper radiator deflectors.
3. Release the fascia from the upper fender and wheel-house retaining brackets, remove the eight fascia-to-radiator-support fasteners and lift the fascia off with a helper.
4. Remove the four screws holding the two upper and two lower lamp brackets, pull the lamp forward and disconnect the harness (slide the red lock tab back).
5. Transfer any extra brackets, install the new lamp and fascia in reverse, then aim with the adjuster on top of the lamp.

Steps compiled from Chrysler LX front fascia and front lamp unit removal procedure as quoted on 300CForums.com; CarClubsUSA 2015 Chrysler 300 headlight assembly guide; Go-Parts 2011-2023 Chrysler 300 headlight guide. Professional installation and headlight aiming are recommended.

FAQs

Will these fit a 300 with HID?
No. These are for factory halogen cars.

Does it fit the 2015+ 300?
No. The 2015 refresh uses a different lamp.

Do I need to remove the front bumper to replace these headlights?
Yes. Chrysler's procedure removes the front fascia to reach the four lamp screws.

What bulbs do these use?
9012 high/low beam and PSY24W turn signal, included per the listing.

Can I install LED or HID kits?
Yes. This is a halogen housing, so a plug-in LED or HID kit in your factory bulb size can be used. Aim the headlights afterward.
