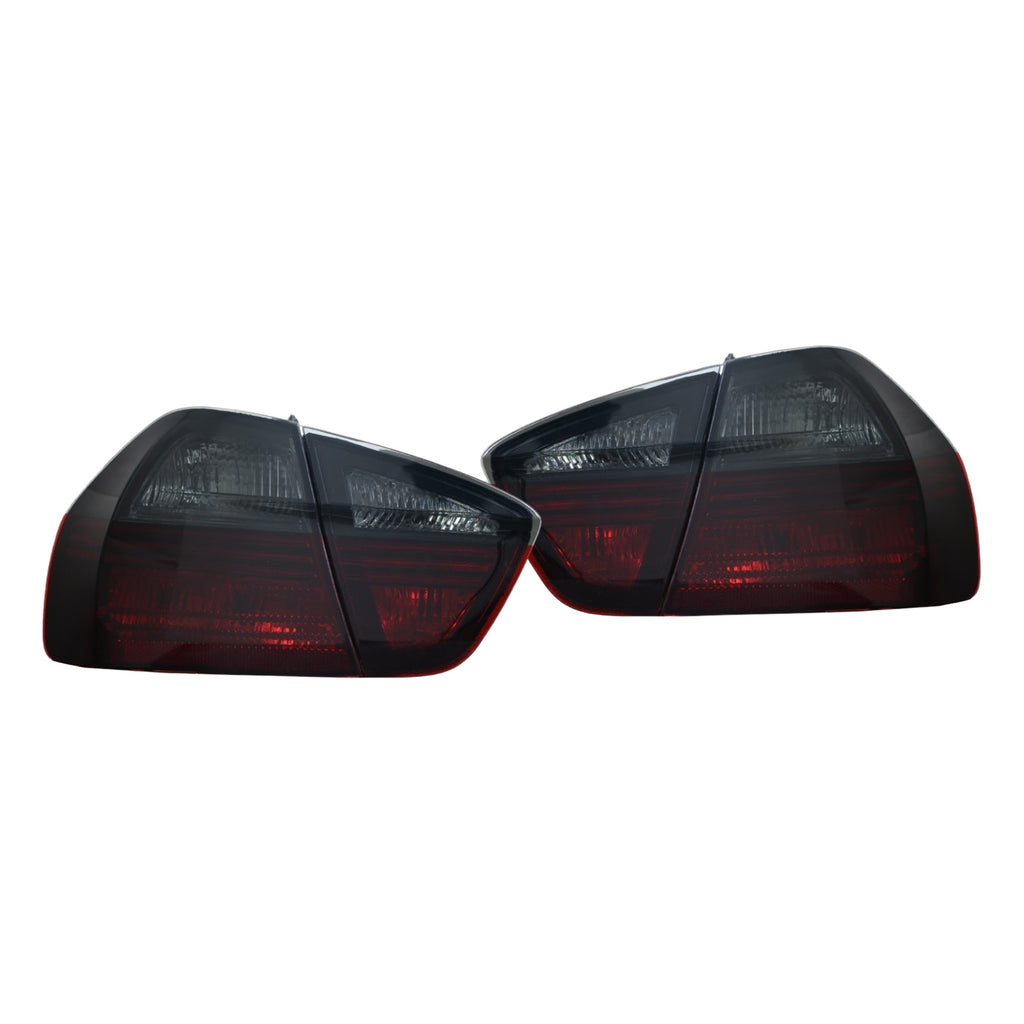

Euro Red Smoke Tail Lights Pair for BMW 3 Series E90 Sedan (2006-2008)

Give your pre-LCI 2006-2008 BMW E90 3 Series sedan the Euro blackline look with this DEPO-made cherry red / smoke tail light set. It's a complete 4-piece L+R kit (2 outer quarter-panel lamps + 2 inner trunk-lid lamps), and the smoke is molded into the lens, not painted or tinted, so it won't fade.

Fitment

Fits these US 4-door E90 sedans: 2006 BMW 325i, 325xi, 330i, and 330xi; 2007-2008 BMW 328i, 328xi, 335i, and 335xi.

Signs you need new tail lights

• Faded, hazy, or cracked factory lenses
• Moisture inside the lamp

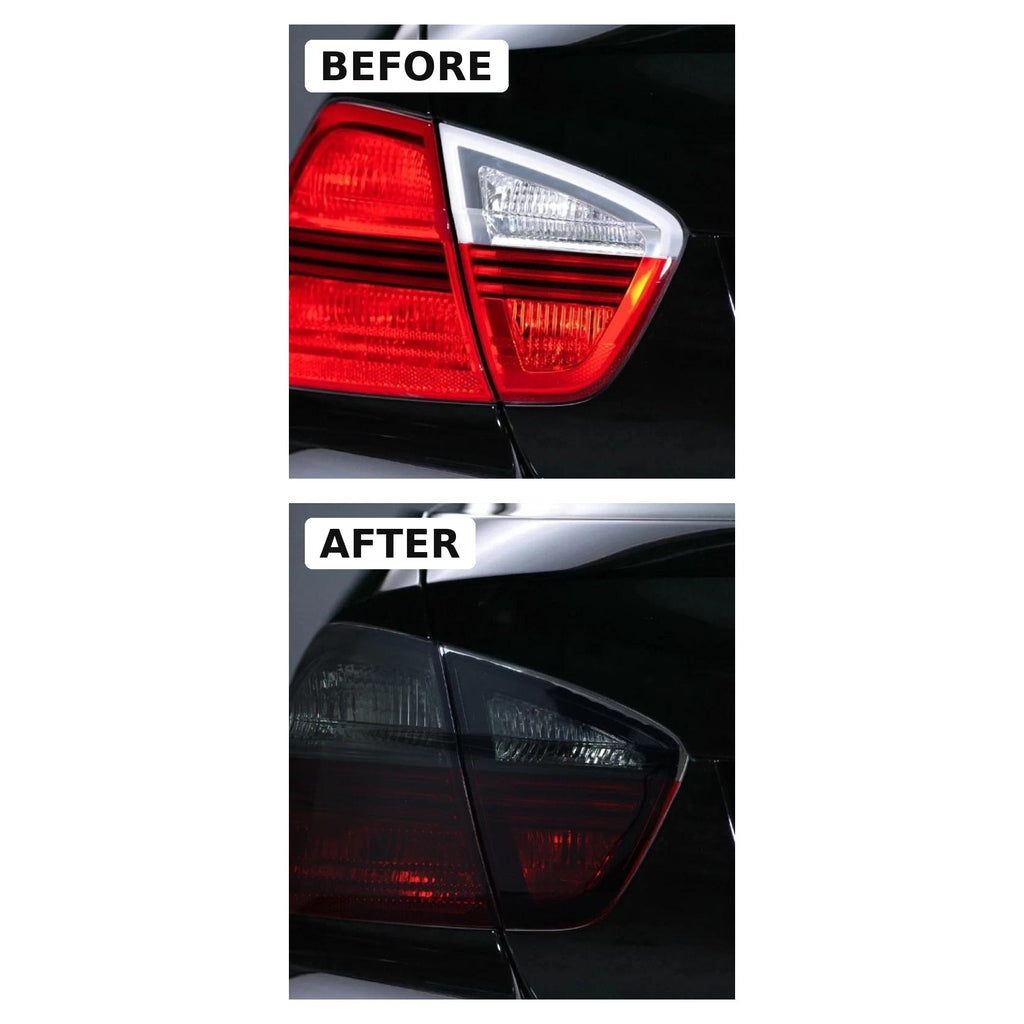

• Want the Euro blackline red/smoke look and not a tinted film

Specs

• Brand: DEPO

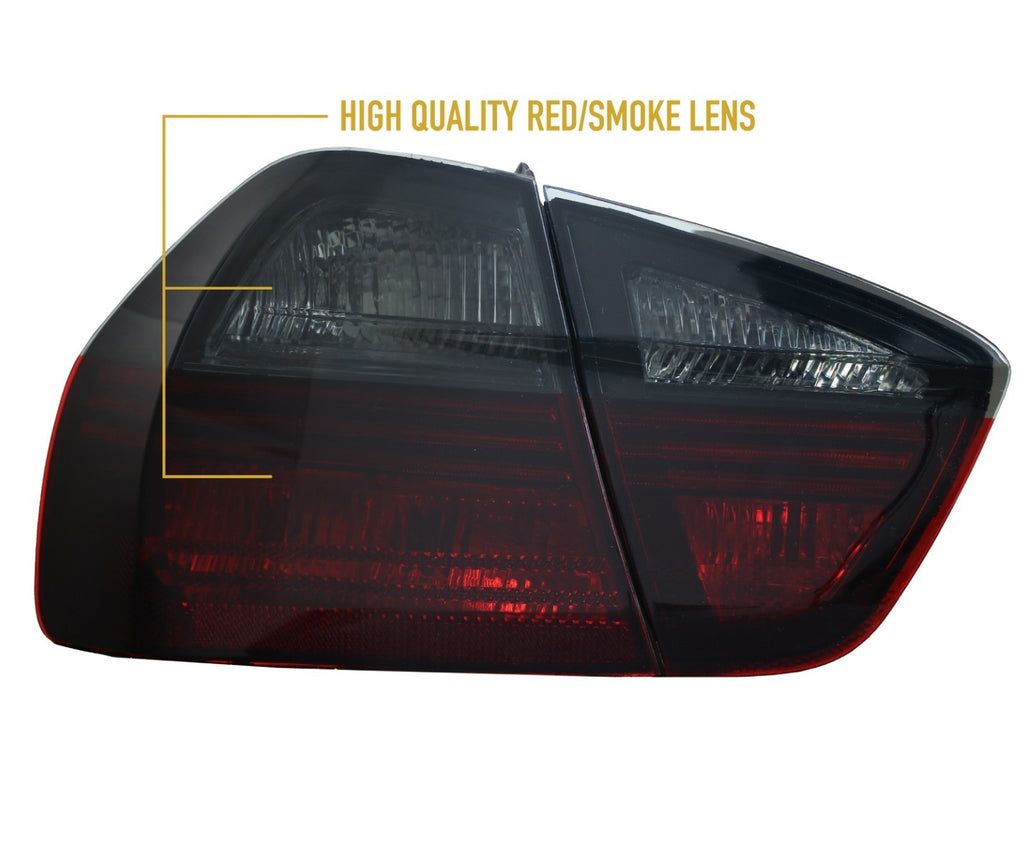

• Lens: Cherry red / light smoke (smoke molded in)
• Housing: Chrome reflector housing, sealed assembly
• Light source: Incandescent bulbs (not included)

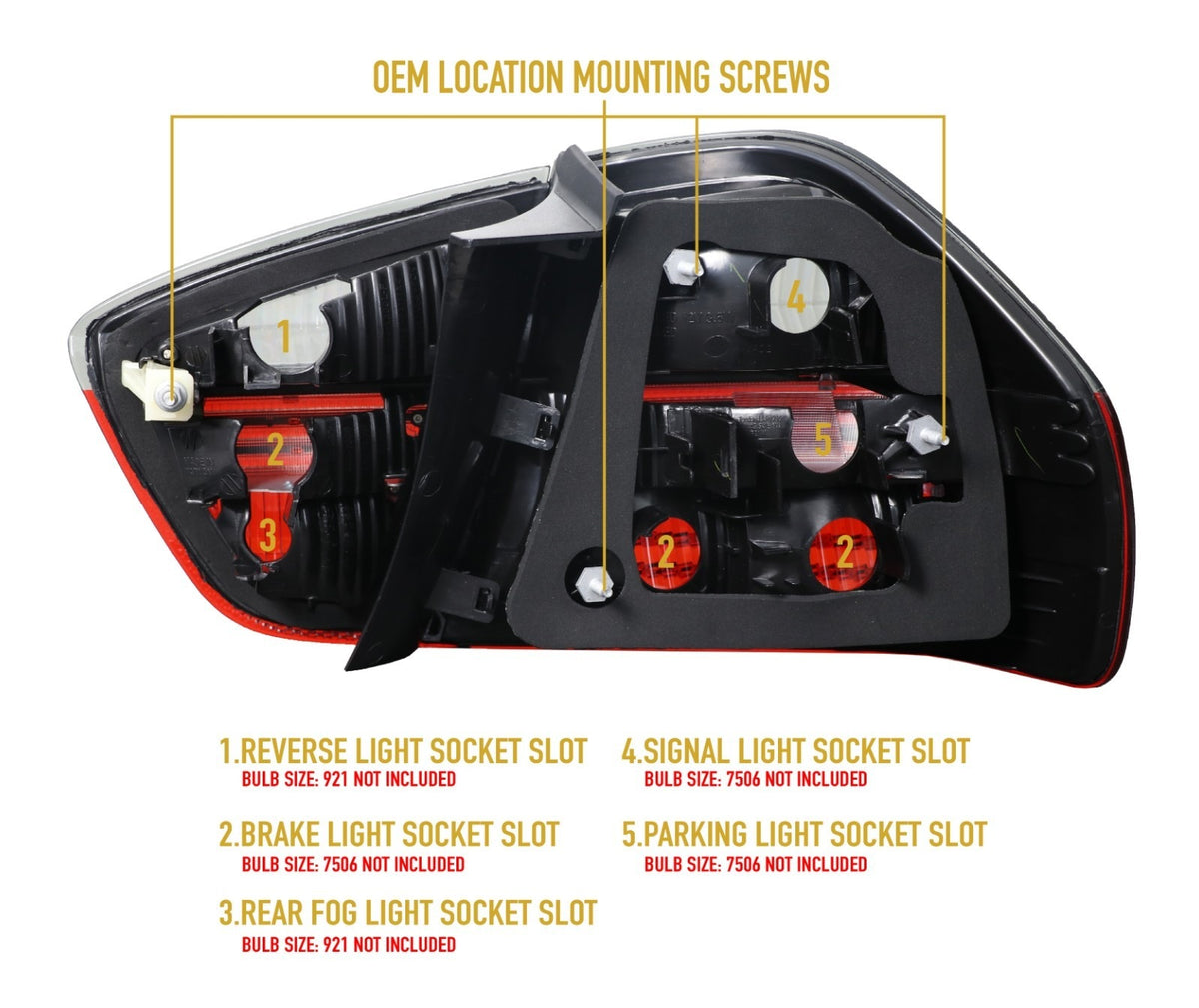

• Reverse and rear fog: 921 (bulbs not included)
• Brake, signal, and parking: 7506 (bulbs not included)
• Voltage: 12V; polycarbonate UV-protected lens
• Direct-fit replacement: bolts to the factory studs and plugs into the factory connectors, no splicing
• Warranty: 6 months (manufacturer)

Interchange

Replaces OEM 63217161955 / 63217161956 (outer), 63216937459 / 63216937460 (inner). Partslink BM2800119 / BM2801119 (outer), BM2802100 / BM2803100 (inner).

What's included

• 1 x left outer (quarter panel) tail light
• 1 x right outer (quarter panel) tail light
• 1 x left inner (trunk lid) tail light
• 1 x right inner (trunk lid) tail light
• Bulbs not included. Reuse your factory 921 and 7506 bulbs

Installation: 2006-2008 BMW E90 Sedan

Tools: 10 mm socket and extension, plastic trim tool. About 30-45 minutes for all four lamps.

1. Open the trunk. For the outer lamp, pull back or unclip the trunk side-wall liner access cover behind the lamp.
2. Unplug the connector and remove the bulb carrier if you're moving bulbs over. Undo the 10 mm nuts on the lamp studs and pull the outer lamp straight back out of the quarter panel.
3. For the inner lamp, pop the plastic clips on the trunk-lid trim panel and lower it to get to the back of the lamp.
4. Unplug the inner lamp, undo its 10 mm nuts, and pull it rearward off the trunk lid.
5. Put your bulbs in the new lamps (921 for reverse and fog, 7506 for brake, signal, and parking), fit each lamp onto its studs, then torque the nuts snug. Don't overtighten into the plastic.
6. Plug in and test parking, brake, turn, reverse, and rear fog before you refit the trim and liner. Check the trunk lid closes with even gaps to the outer lamps.

FAQ

Will these fit my 2009-2011 E90?

No. The 2009-2011 LCI (facelift) sedan uses a different lamp shape and connectors. This set is only for the 2006-2008 pre-LCI E90 sedan, and it doesn't fit the E91 wagon, E92 coupe, or E93 convertible.

Will I get a bulb-out error on the dash?

With the factory incandescent bulbs, these plug into the factory connectors and should not trigger a bulb-out error. Switching to LED bulbs can bring up a lamp-out warning on the E90 unless you use CANbus-rated bulbs.

What bulbs does it use?

921 for the reverse and rear fog lights, and 7506 for brake, signal, and parking. Bulbs aren't included.

Is this sold as a pair?

Yes. It's a full L+R set of 4 pieces: both outer and both inner lamps.

Will the smoke tint fade?

No. The smoke is molded into the polycarbonate lens and isn't a film or paint.
