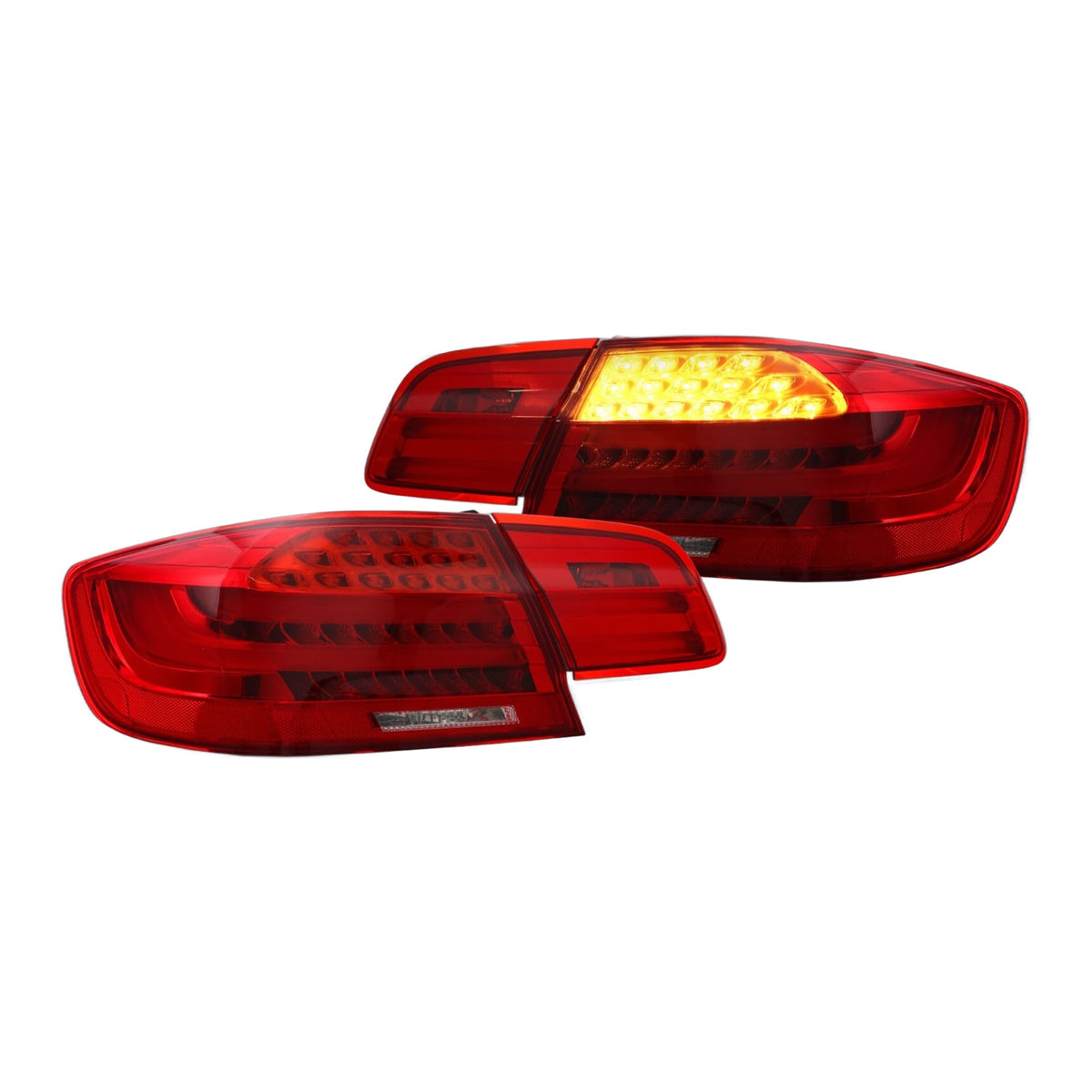

LCI Style Red LED Tail Lights Pair for BMW 3 Series E92 Coupe and M3 (2007-2010)

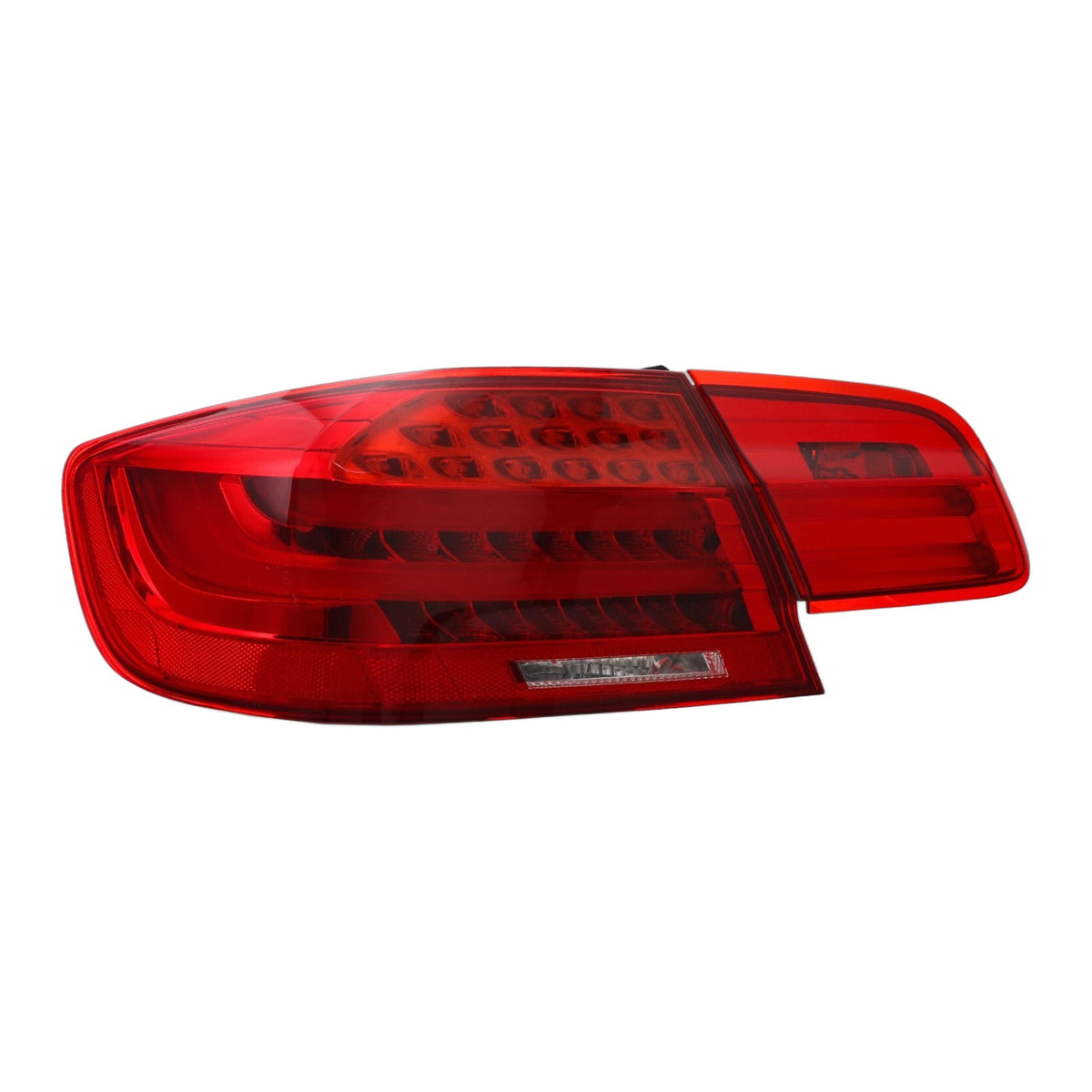

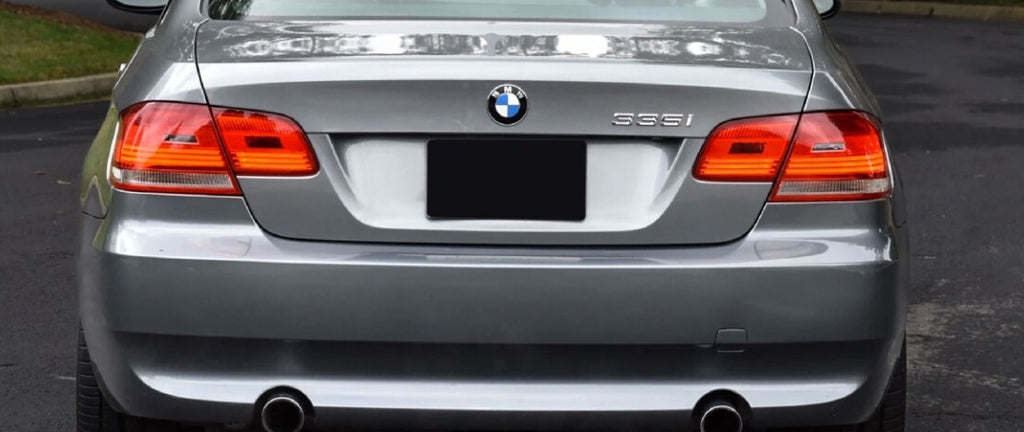

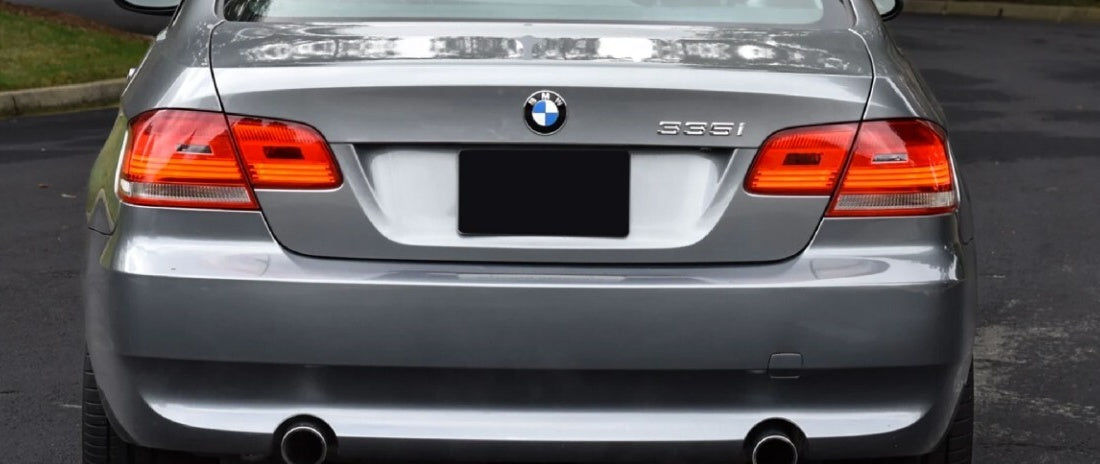

Give your pre-facelift 2007-2010 BMW E92 coupe the look of the 2011+ LCI cars. These LCI-style tail lights use LED light bars for the parking lights, LED brake lights and a built-in amber LED turn signal, with a cherry-red lens. The set covers both sides of the car: left and right outer quarter-panel lamps plus left and right inner trunk-lid lamps.

Fitment

Does not fit: E93 convertibles, E90 sedans or E91 wagons, and 2011-2013 LCI E92 coupes (which already have this style from the factory).

Common Reasons to Replace

• Update the pre-LCI look to the later LCI style
• Faded, cracked, or fogged factory lenses
• Failed factory LED sections

Specs

• Lens: cherry red, UV-coated polycarbonate

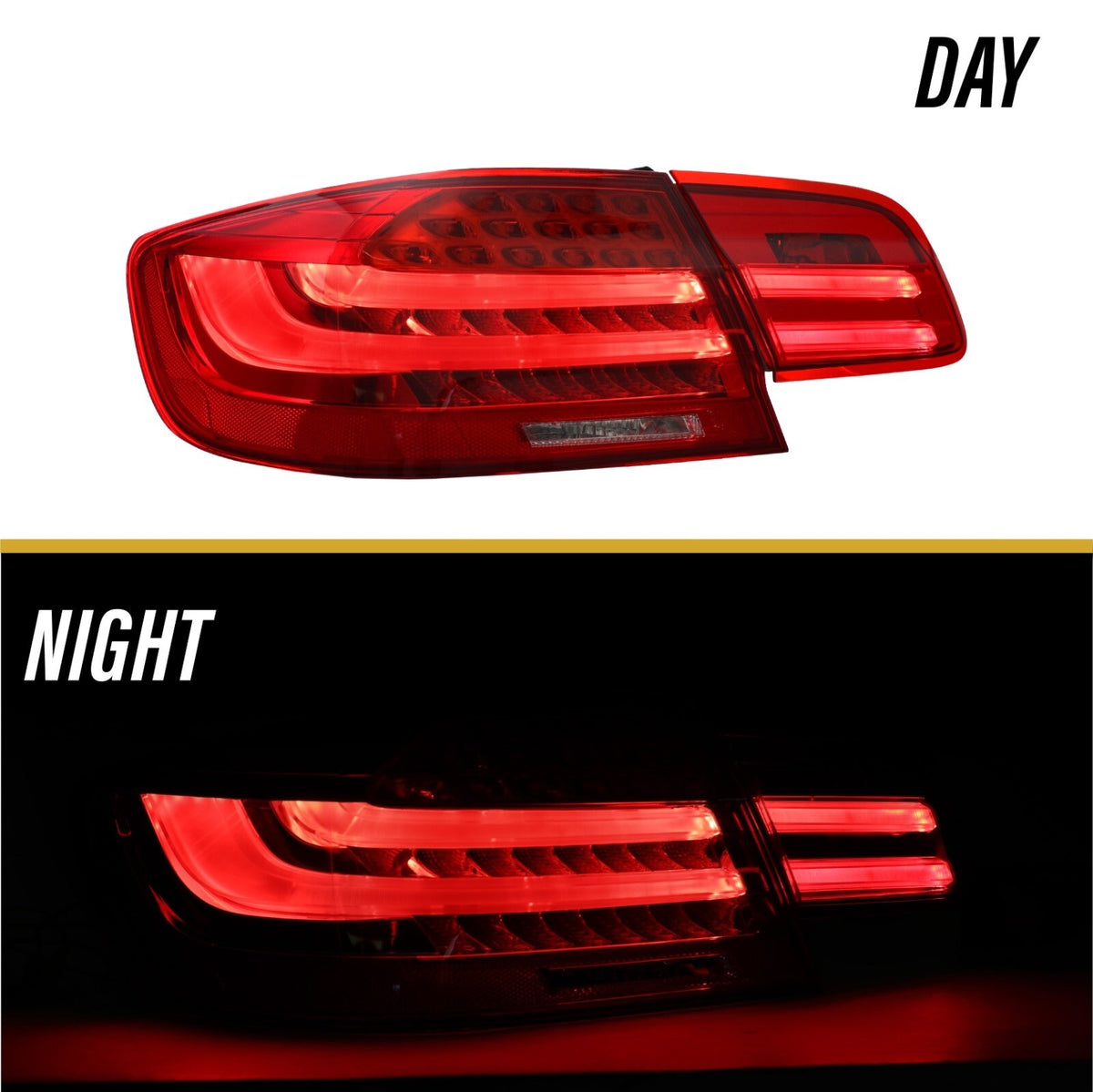

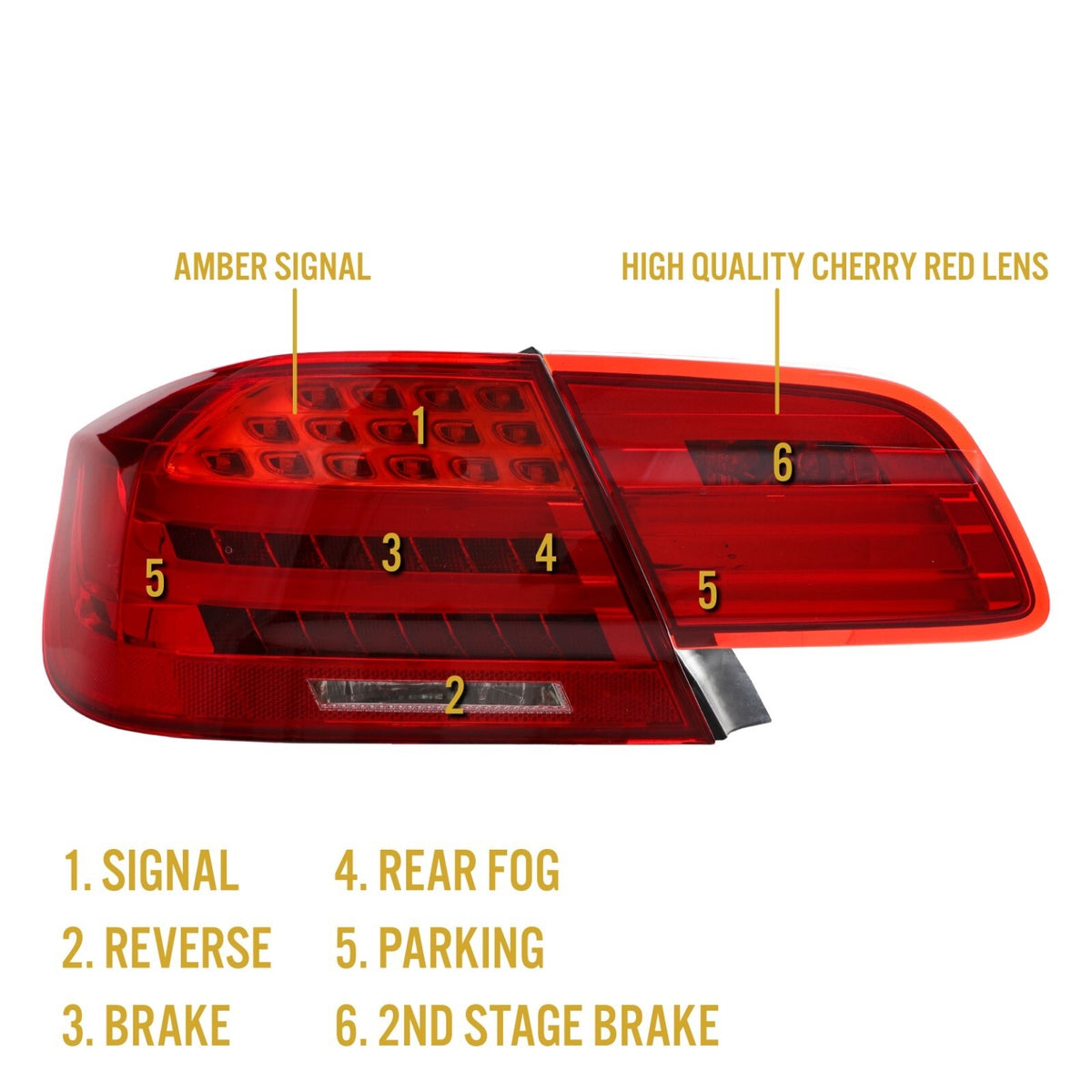

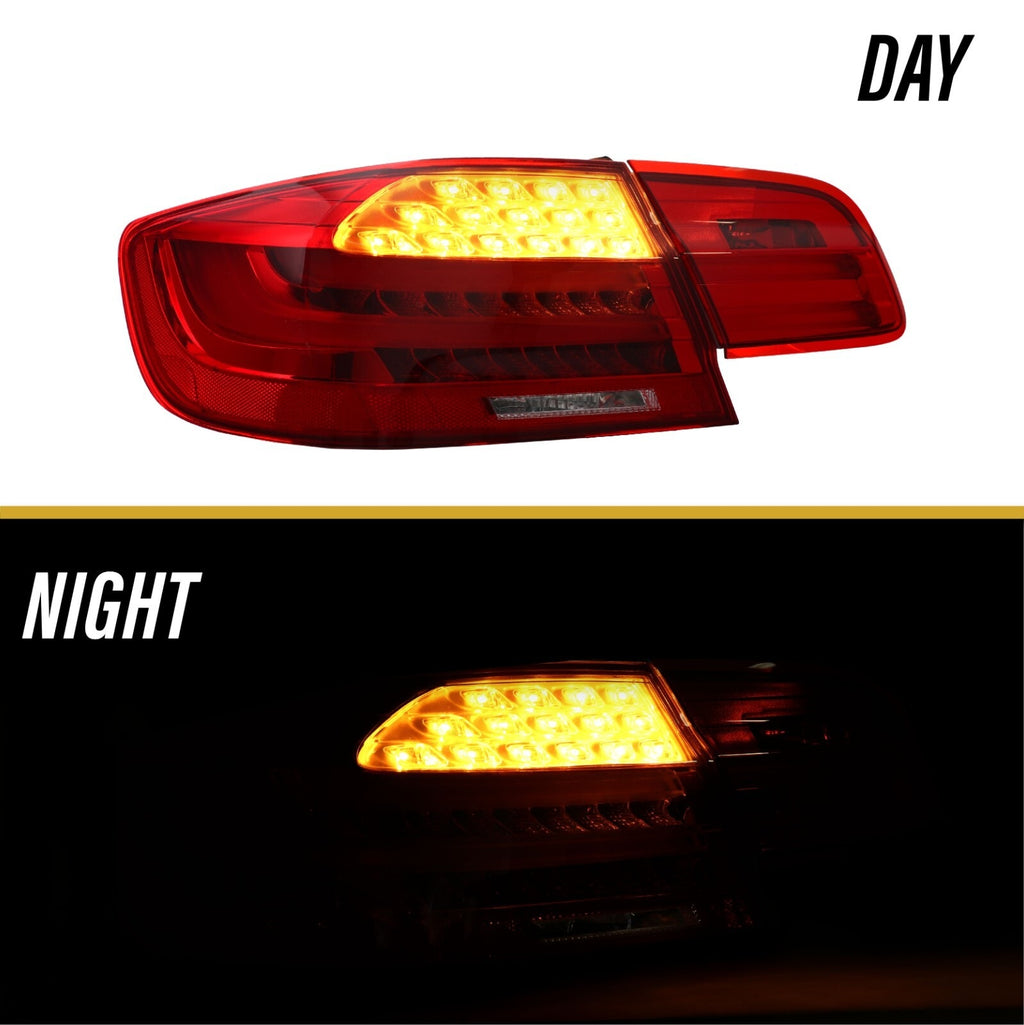

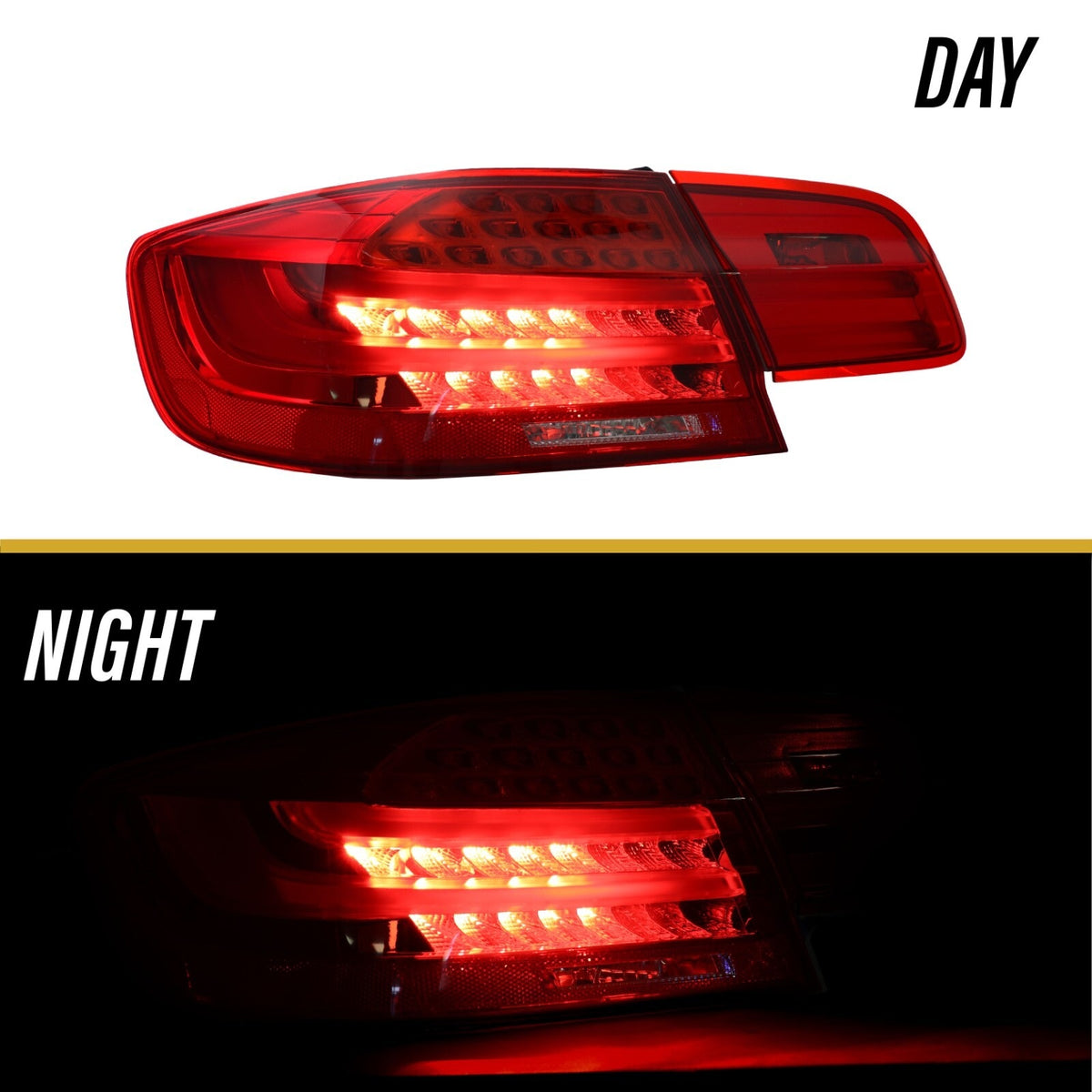

• Lighting: LED light-bar parking lights, LED brake, amber LED turn signal

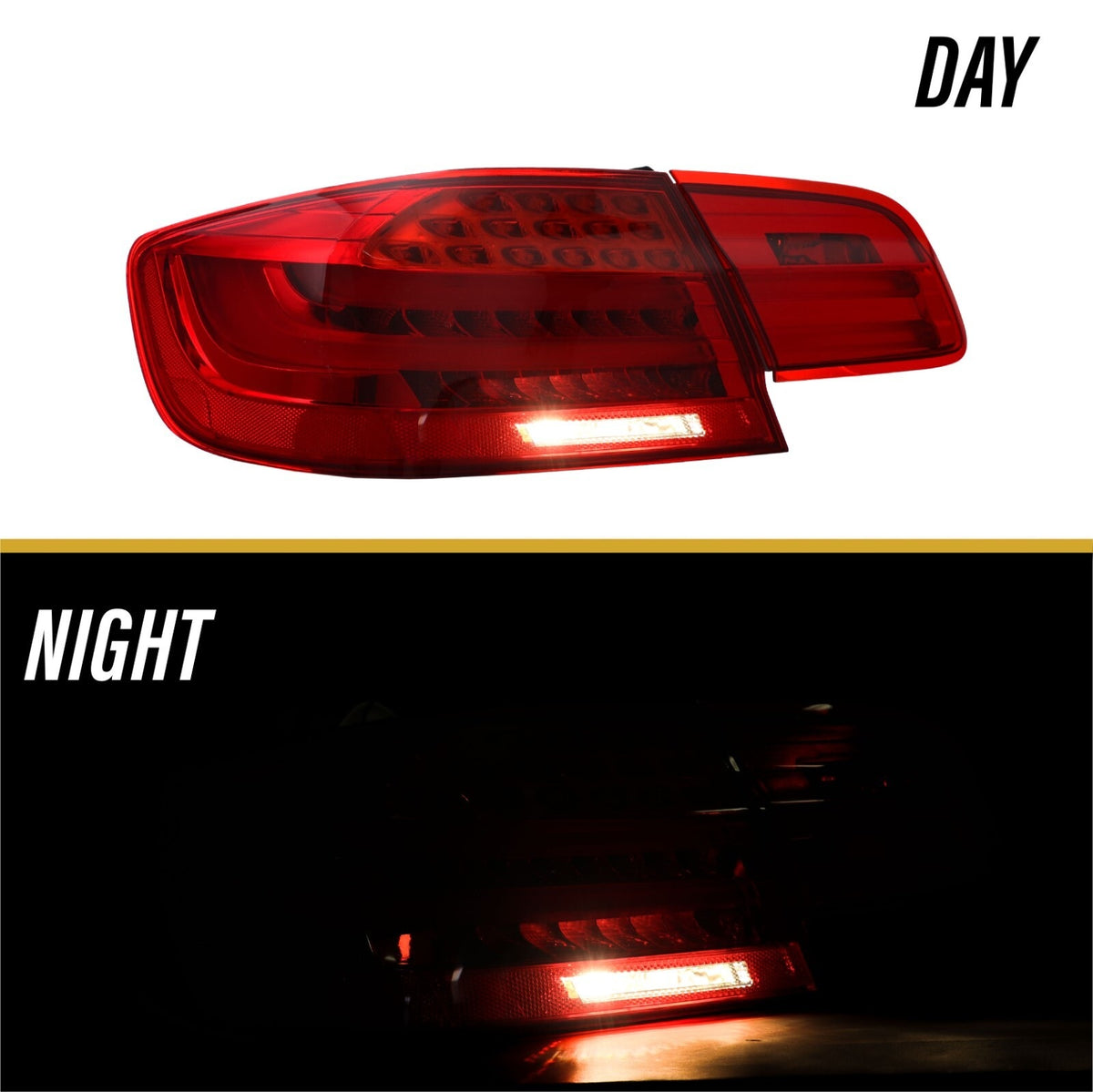

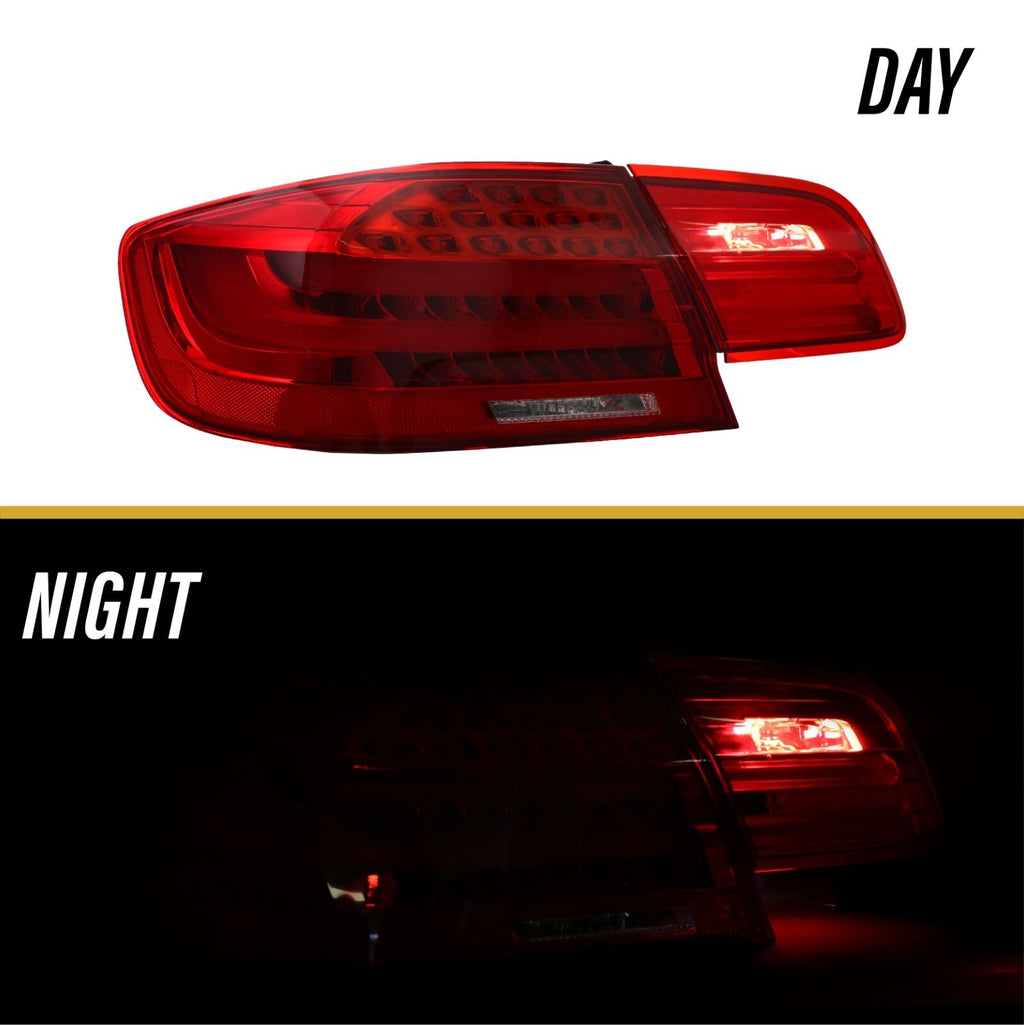

• Bulbs (included): 921 reverse, H21W 2nd-stage brake
• Wiring adapters and error-canceling resistors included
• Sealed, ISO-certified manufacturer
• Brand: DEPO
• Warranty: 6 months

Interchange

Replaces OEM 63217174403 / 63217162299 (left), 63217174404 / 63217162300 (right).

What's Included

• 1 x left outer tail light
• 1 x right outer tail light
• 1 x left inner (trunk-lid) tail light
• 1 x right inner (trunk-lid) tail light
• Wiring adapters and resistors
• 921 reverse bulbs and H21W 2nd-stage brake bulbs

Installation (2007-2010 E92 Coupe)

1. Open the trunk and remove the side trim access covers behind each outer tail light.
2. Unplug the factory connector and remove the plastic nuts from the mounting studs, then ease the outer lamp out of the quarter panel.
3. Remove the trunk-lid liner, unplug the inner lamp and remove its nuts to take it off the lid.

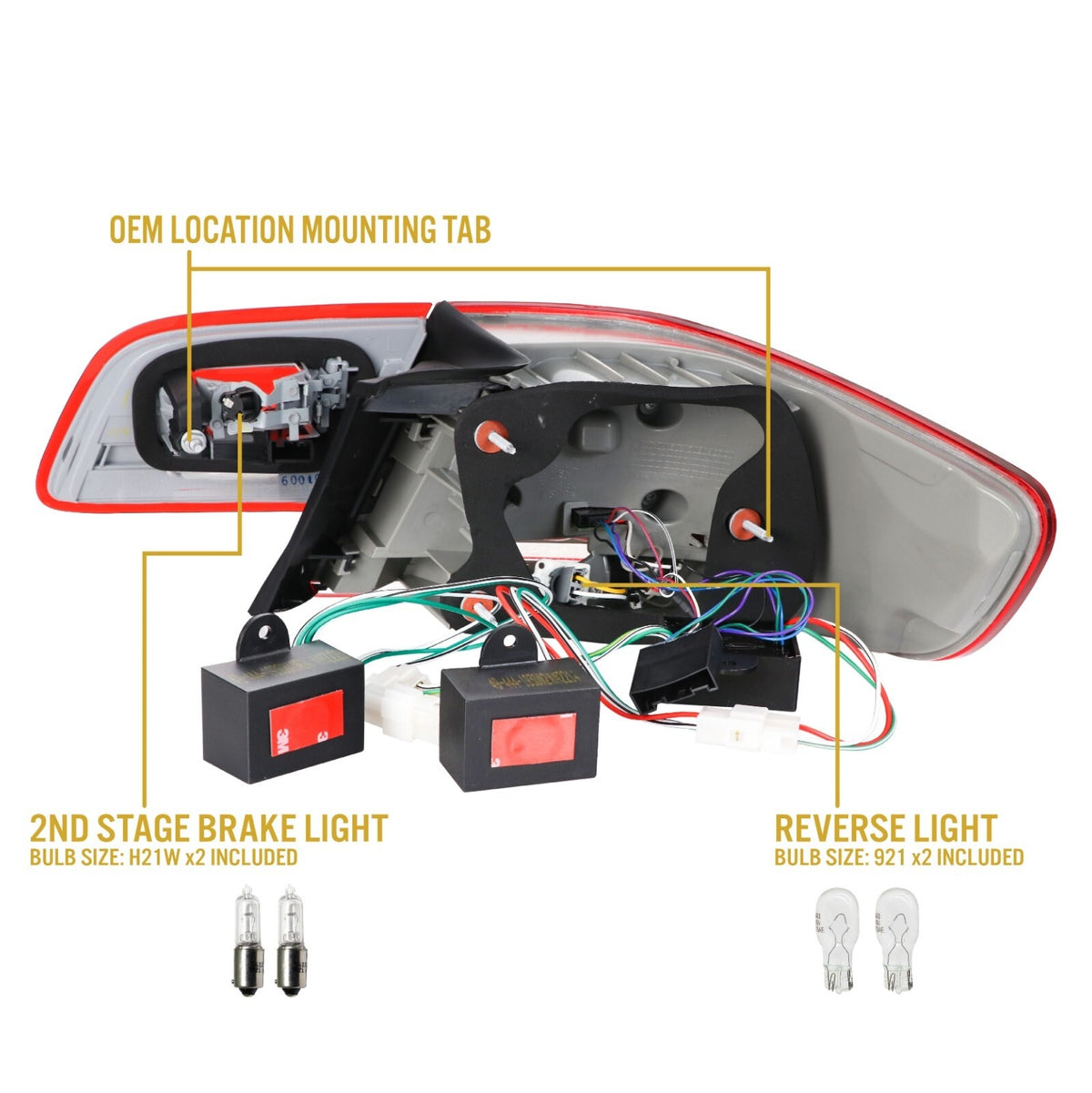

4. Fit the new lamps on the factory studs and OEM-location mounting tabs, check the gaskets sit flat, and tighten evenly.

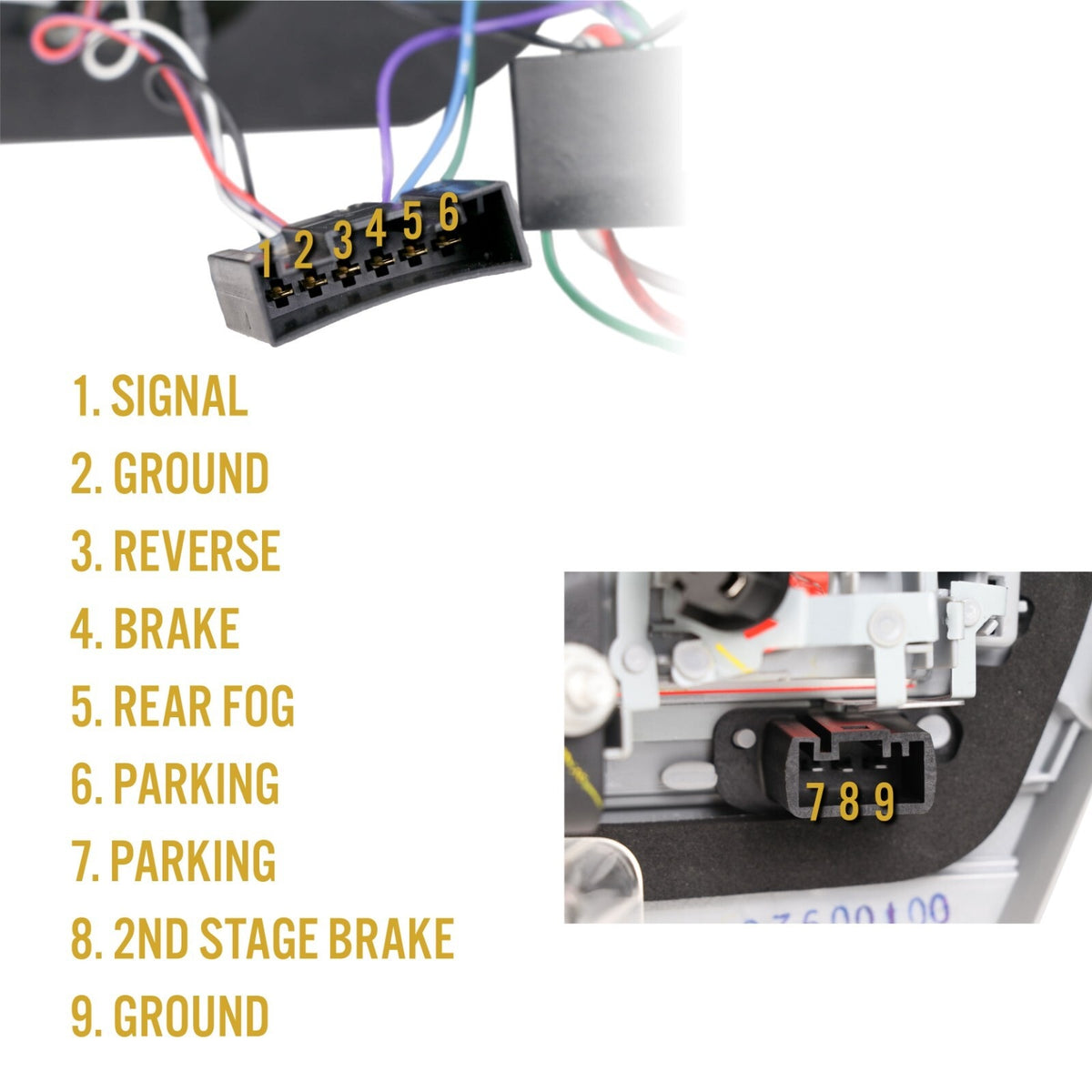

5. Connect the included wiring adapters and resistors between the lamps and the factory connectors, and install the 921 reverse and H21W 2nd-stage brake bulbs.

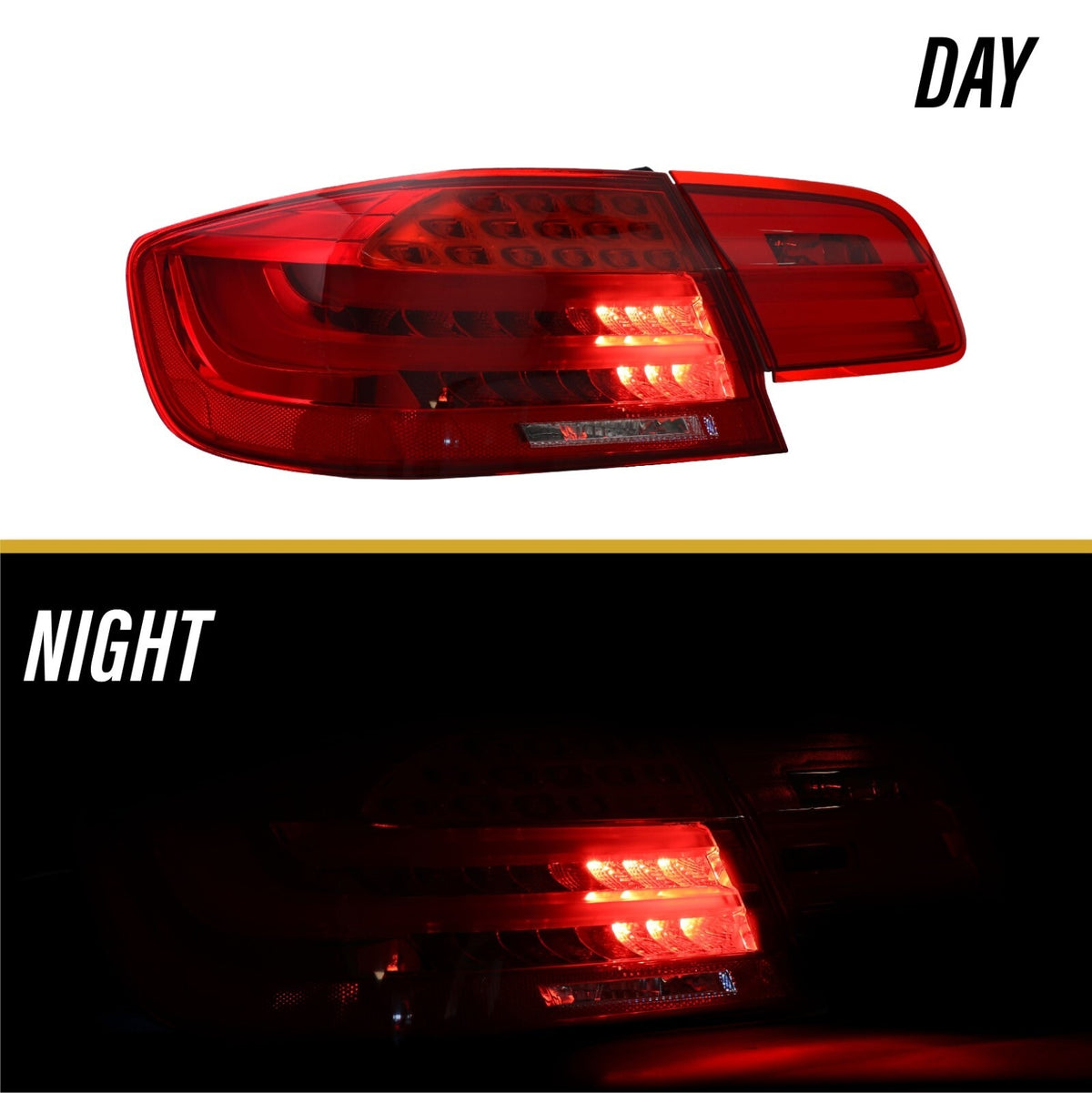

6. Test parking, brake, turn signal, reverse and rear fog before refitting the trim.

FAQ

Will these fit my E93 convertible?
No. The convertible uses a different tail light shape. These fit E92 coupes only, including the M3.

Do I need to code anything?
The included adapters and resistors are designed to work with the factory wiring and prevent bulb-out warnings and hyperflash.

Are bulbs included?
Yes: the 921 reverse bulbs and H21W 2nd-stage brake bulbs come in the box. Everything else is LED.

Do these fit my 2011 E92?
No. 2011-2013 LCI coupes already have LCI tail lights and a different body panel shape.
