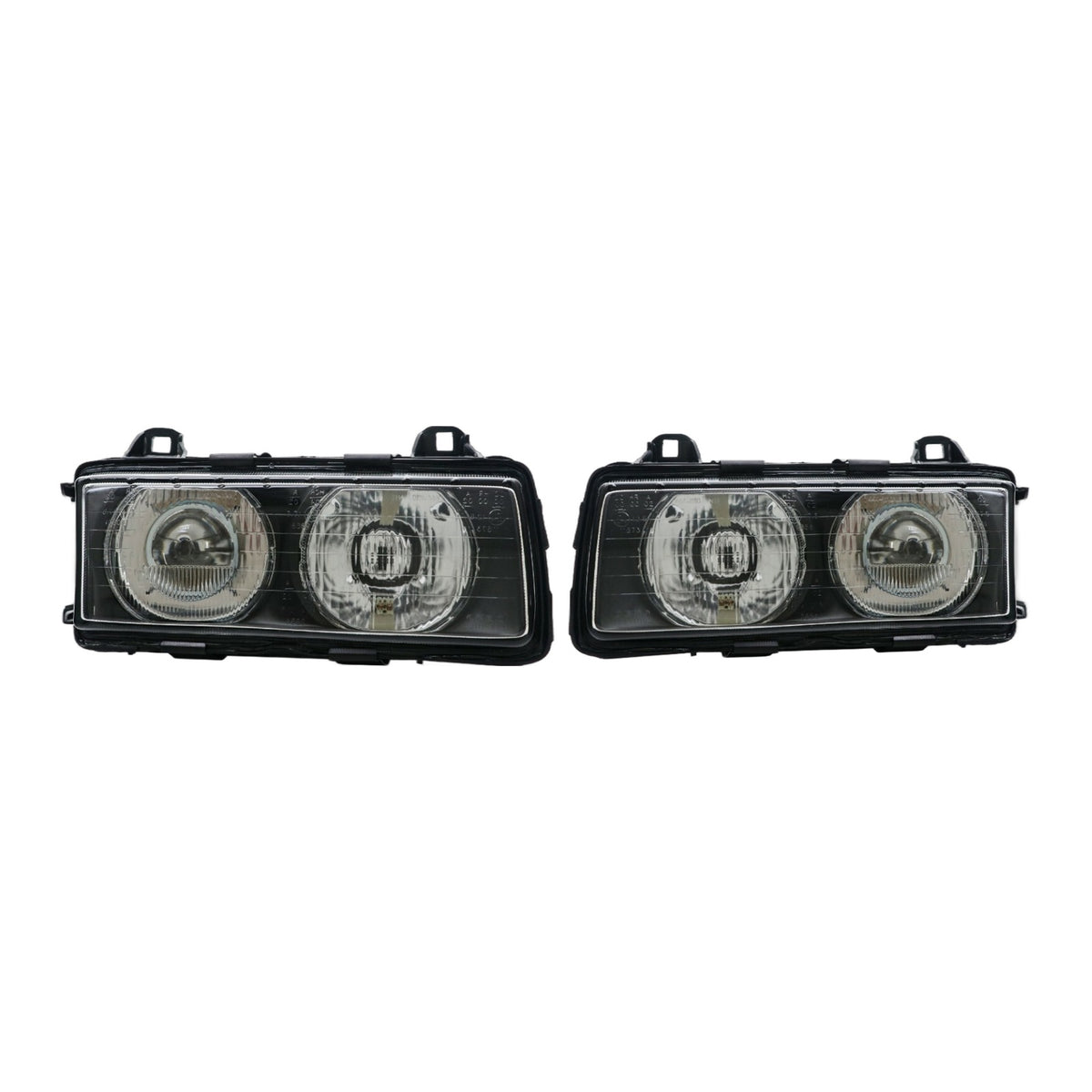

Black Euro Ellipsoid Projector Glass Headlights for BMW 3 Series E36 and M3 (1992-1999)

Euro-style ellipsoid projector headlights with clear glass lenses and black housings for the BMW E36 3 Series. They replace dull, hazy factory lamps with a cleaner, crisper look and add a Euro city light.

Fitment

• 1992-1998 BMW 318i (E36 sedan/convertible)
• 1992-1998 BMW 318is (E36 coupe)
• 1995-1999 BMW 318ti (E36 hatchback)
• 1998-1999 BMW 323i (E36 convertible)
• 1998-1999 BMW 323is (E36 coupe)
• 1992-1995 BMW 325i (E36 sedan/convertible)
• 1992-1995 BMW 325is (E36 coupe)
• 1996-1999 BMW 328i (E36 sedan/convertible)
• 1996-1999 BMW 328is (E36 coupe)
• 1995-1999 BMW M3 (E36)

Fits every 1992-1999 E36 body style: sedan, coupe, convertible and 318ti hatchback, plus the M3. Does not fit the 1984-1991 E30.

Common Reasons to Replace

• Hazy, pitted or yellowed factory lenses
• Euro projector look and sharper low beam

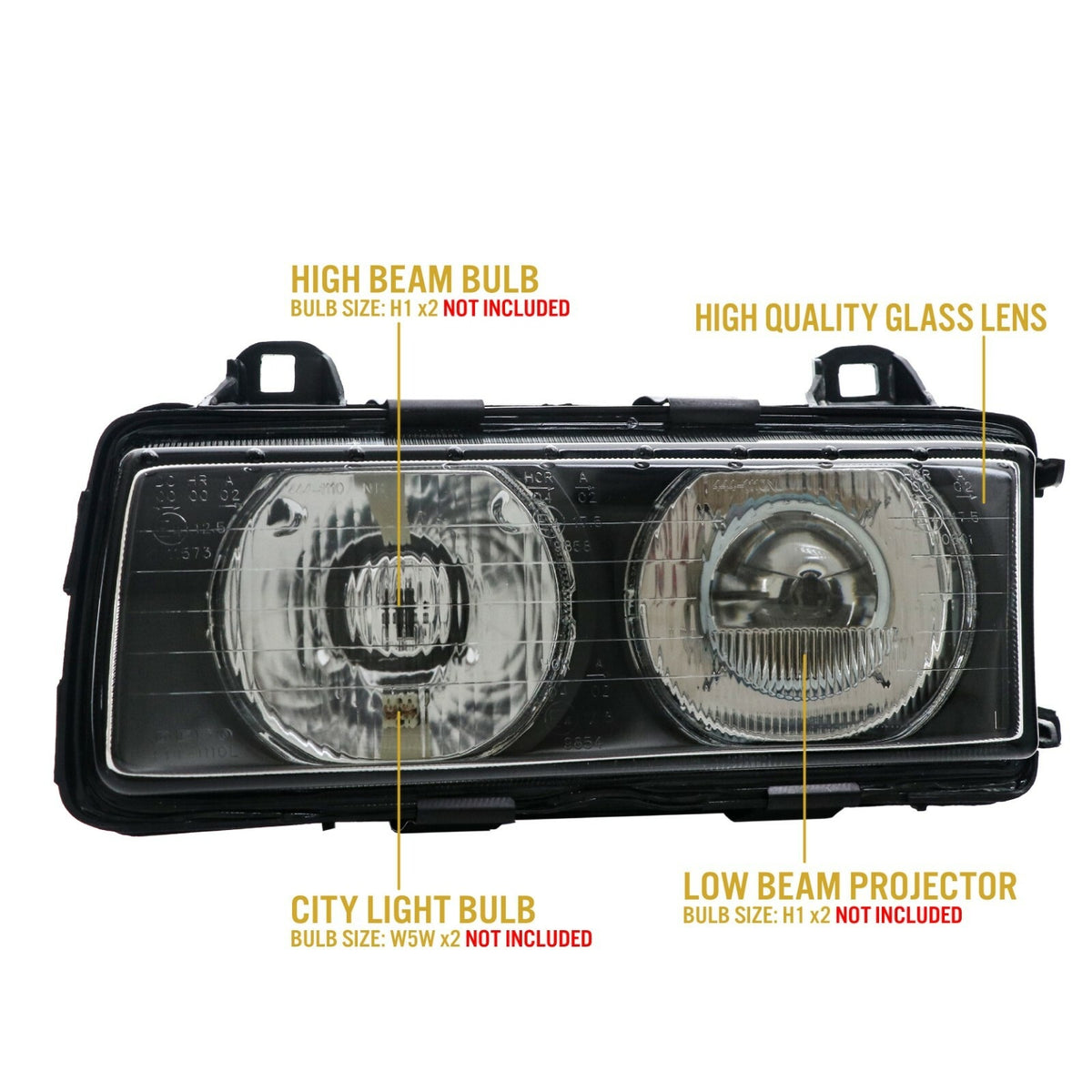

Specs

• Housing: black
• Lens: clear glass
• Low beam: H1 projector (not included)
• High beam: H1 (not included)
• City light: W5W (not included)
• E-marked
• Manufacturer: DEPO

Interchange

Replaces OEM 63121468865 (left) / 63121468866 (right).

What's Included

• 1 x Driver side headlight assembly
• 1 x Passenger side headlight assembly
• 2 x 9005/9006 wiring adapters

Installation

1. Open the hood and unplug the headlight connector.
2. Remove the turn signal corner lamp and the headlight mounting screws.

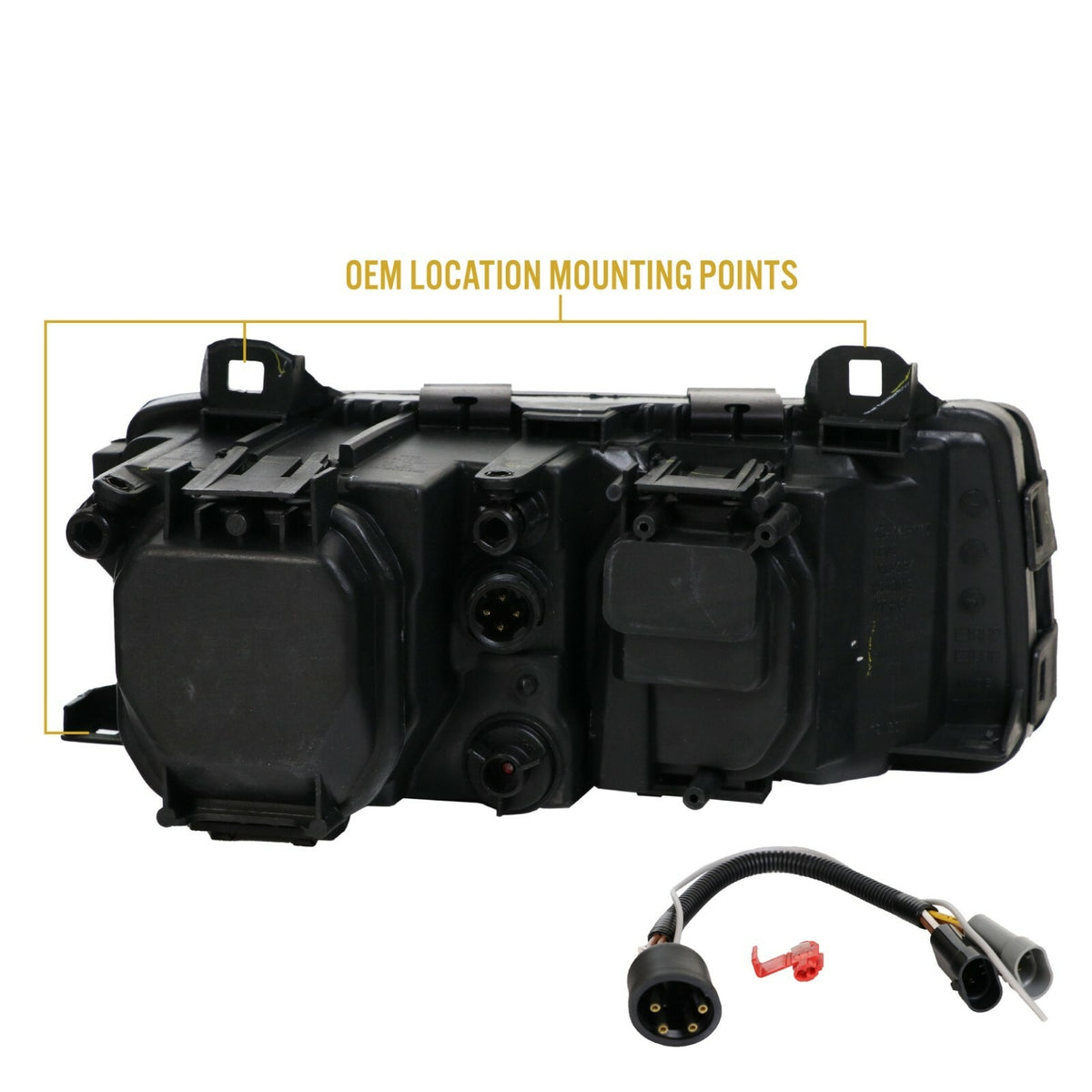

3. Pull the headlight out and fit the new one with the OEM mounting points.

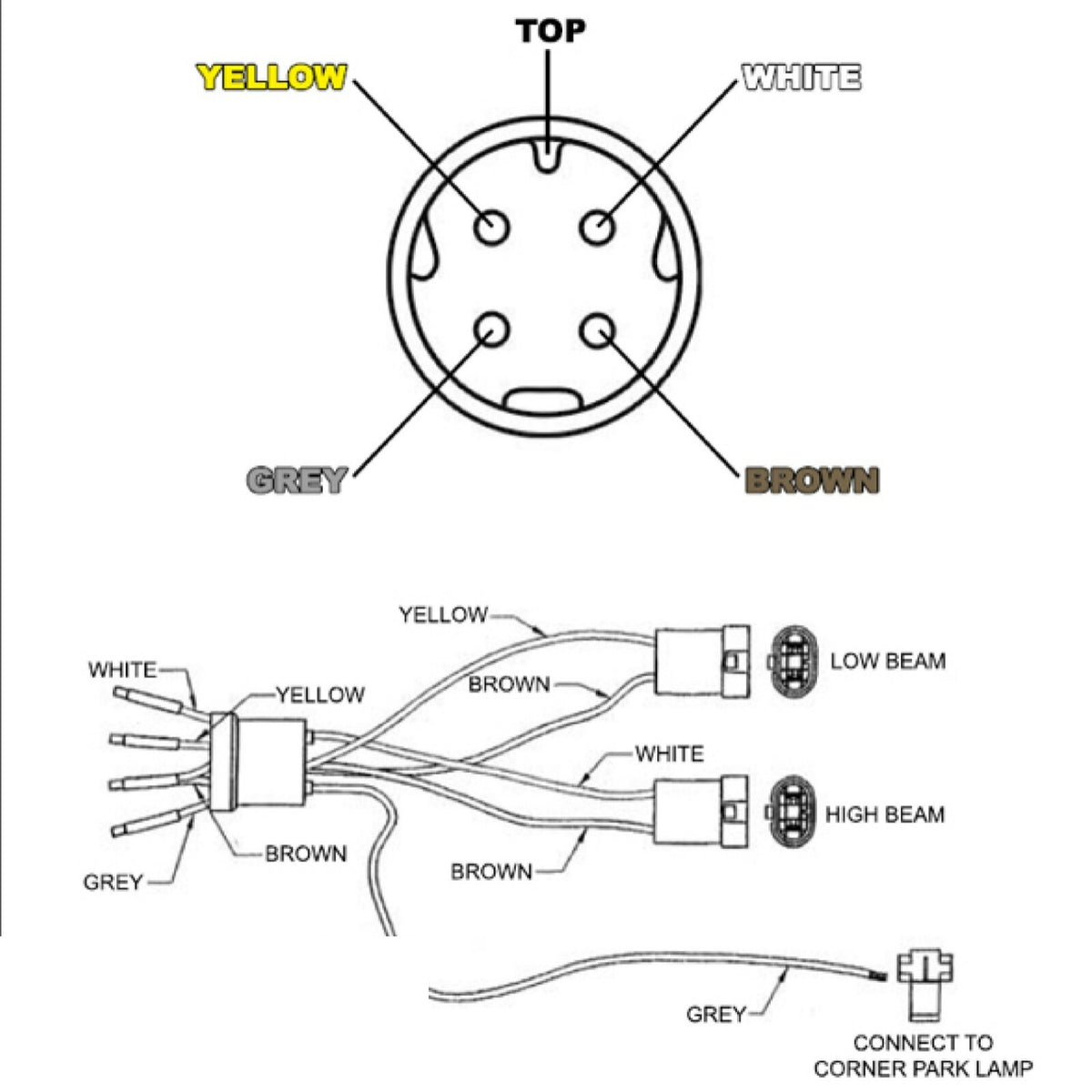

4. Plug in using the included 9005/9006 wiring adapter. To use the city light, splice its grey wire into the factory parking light wire.
5. Test, then aim the headlights.

FAQ

Do I need to rewire?
No for the low and high beams. The included adapters plug into the factory harness. The city light only needs one splice to the parking light wire.

Are bulbs included?
No. You need H1 bulbs for low and high beam and W5W for the city light.
