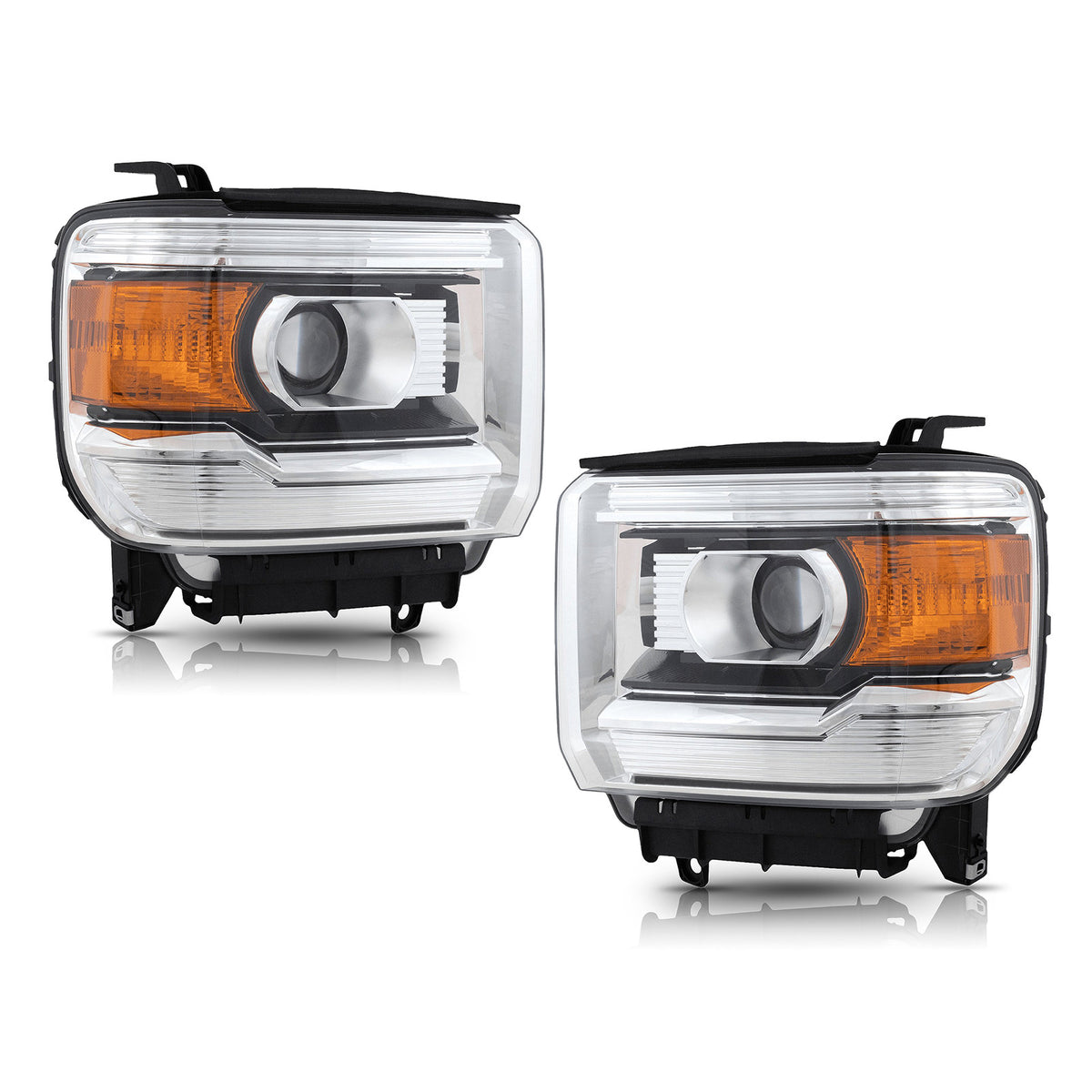

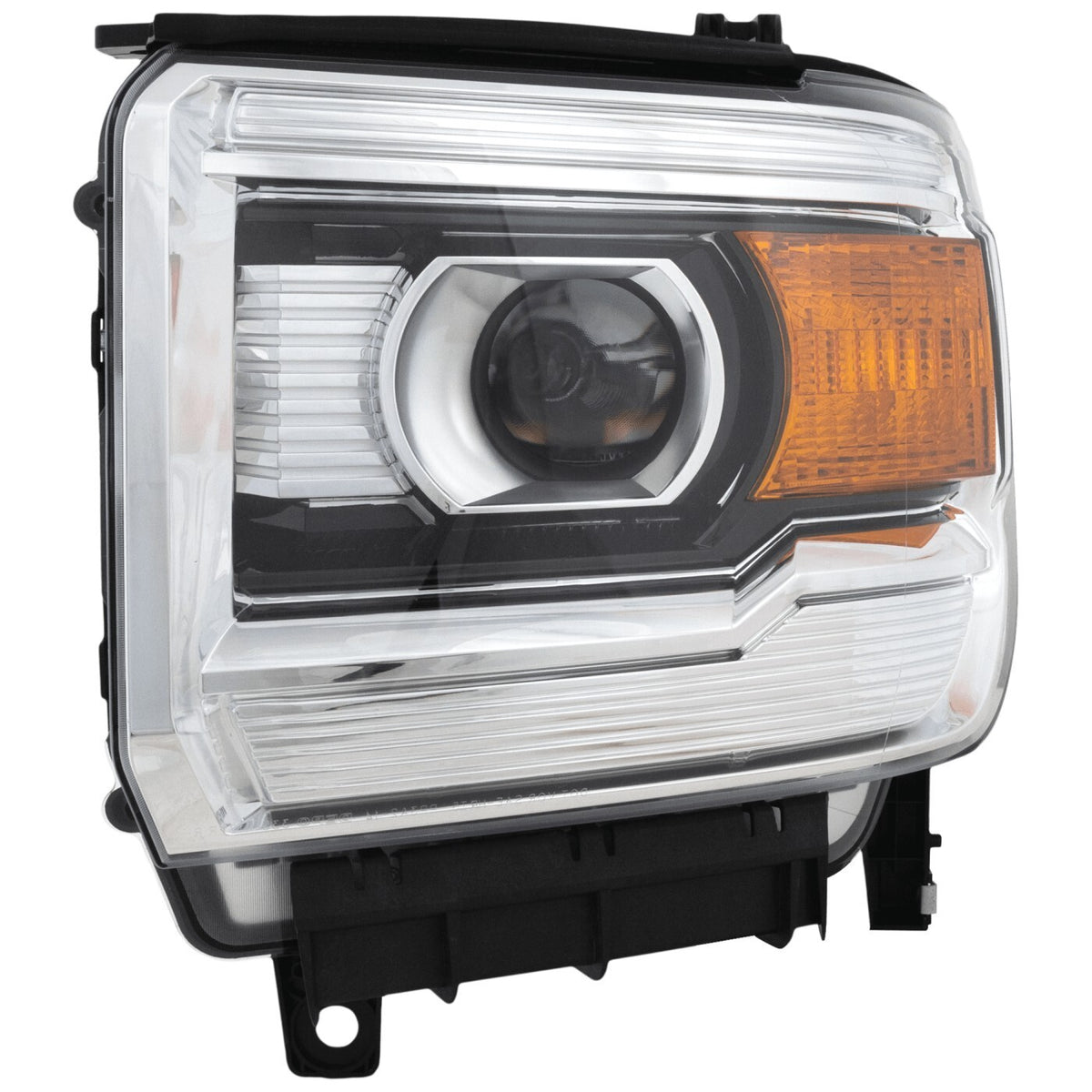

Chrome Halogen Projector Headlights Pair w/ Bulbs for GMC Sierra 1500 (2014-2015) & 2500HD/3500HD (2015-2019)

Replace yellowed or damaged headlights on your 2014-2015 GMC Sierra 1500 or 2015-2019 Sierra 2500HD/3500HD with this brand-new pair of chrome halogen projector headlights for trucks WITHOUT the LED DRL, bulbs included.

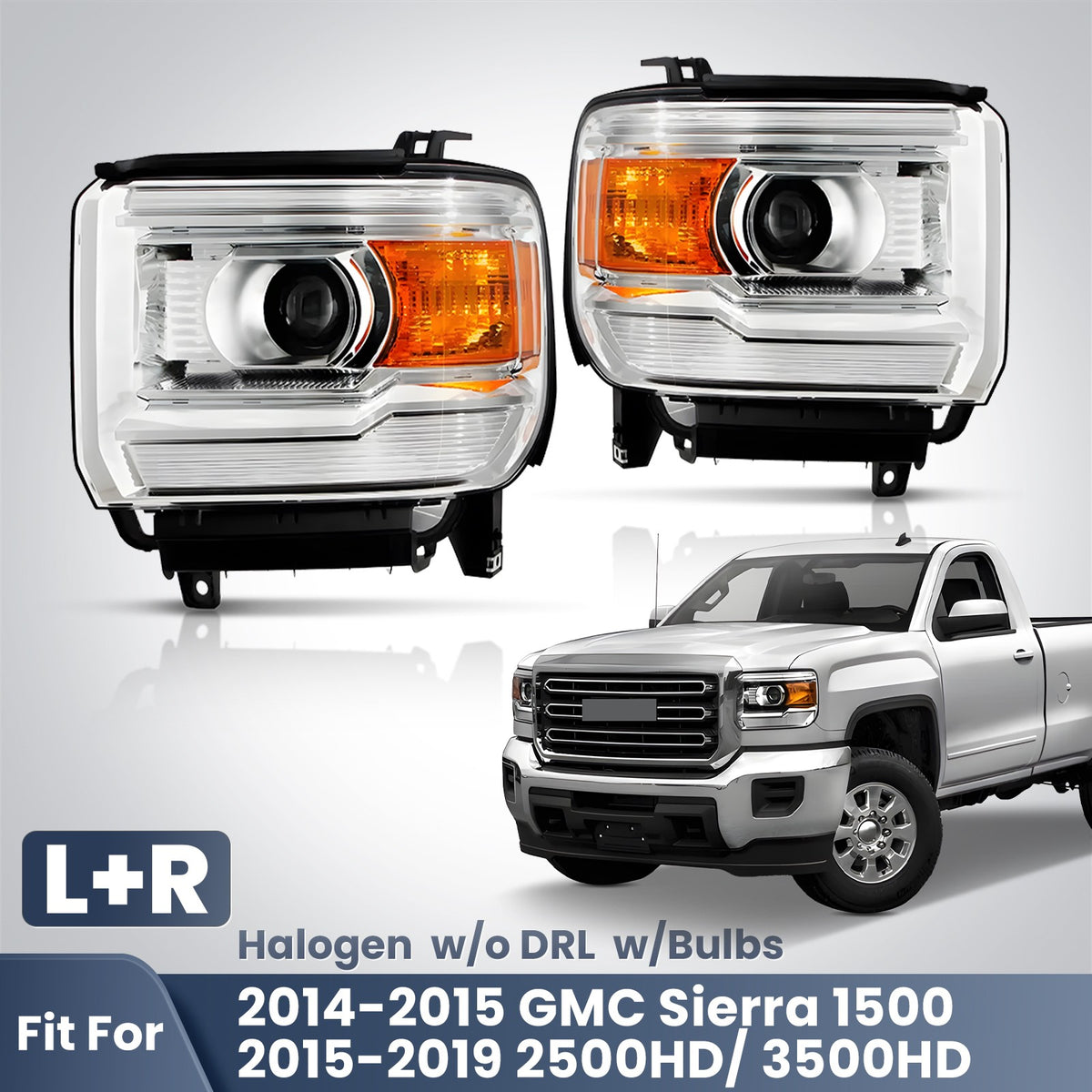

Fitment

Will NOT fit: Trucks with the LED DRL strip; Denali/HID trucks; 2016-2018 Sierra 1500 (facelift); Chevrolet Silverado.

Common Reasons to Replace

• Yellowed, hazy, or oxidized lenses reducing light output
• Cracked lens or broken mounting tabs
• Moisture or condensation inside the housing
• Collision damage

Specs

• Housing: Chrome
• High/low beam: HIR2 (9012) (included)
• Turn signal: W21/5W (included)
• LED DRL: none
• DOT compliant
• Quantity: Pair (Left + Right)
• Condition: New

Interchange Part Numbers

OEM: 84144049, 23130718, 23268193，23130717, 23268192. Partslink: GM2502394, GM2503394.

What's Included

• 1 x Driver side headlight assembly
• 1 x Passenger side headlight assembly
• HIR2 (9012) and W21/5W bulbs included

Installation

1. Open the hood and remove the plastic clips holding the grille cover, then the four 10 mm bolts along the top of the grille.
2. Loosen the valance/fender trim (7 mm bolts and Torx screws) as needed, remove the four lower 10 mm grille bolts and pull the grille out.
3. Remove the four 10 mm headlamp bolts (two top, two bottom), lift the lamp out and unplug it.
4. Plug in the new lamp, set it in place and tighten the bolts to 6 Nm (53 lb-in). Refit the grille and aim the headlights.

Steps compiled from 1A Auto 2014-2018 GMC Sierra headlight video and the GM Sierra headlamp replacement procedure (lemon-manuals). Professional installation and headlight aiming are recommended.

FAQs

What bulb sizes do these headlights use?

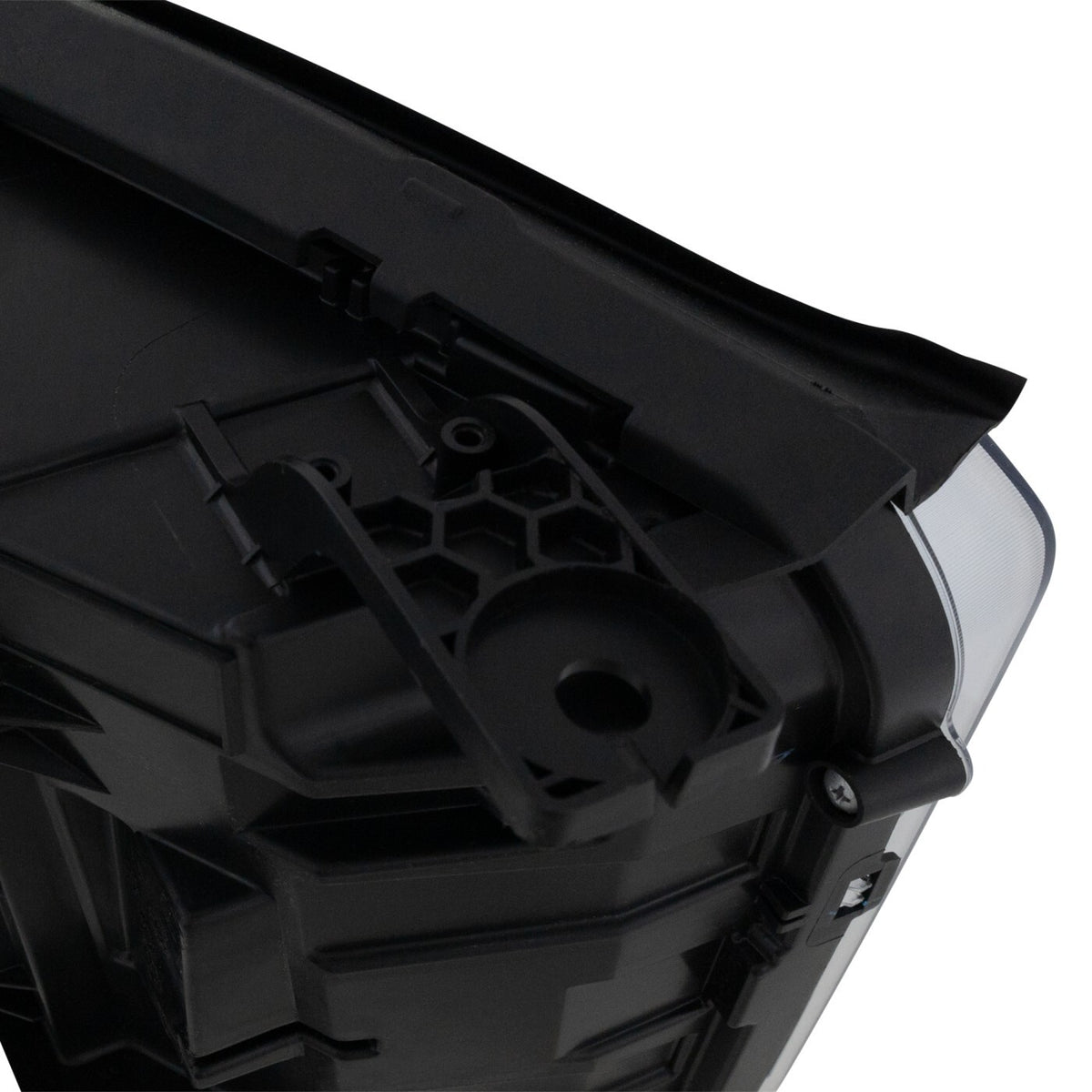

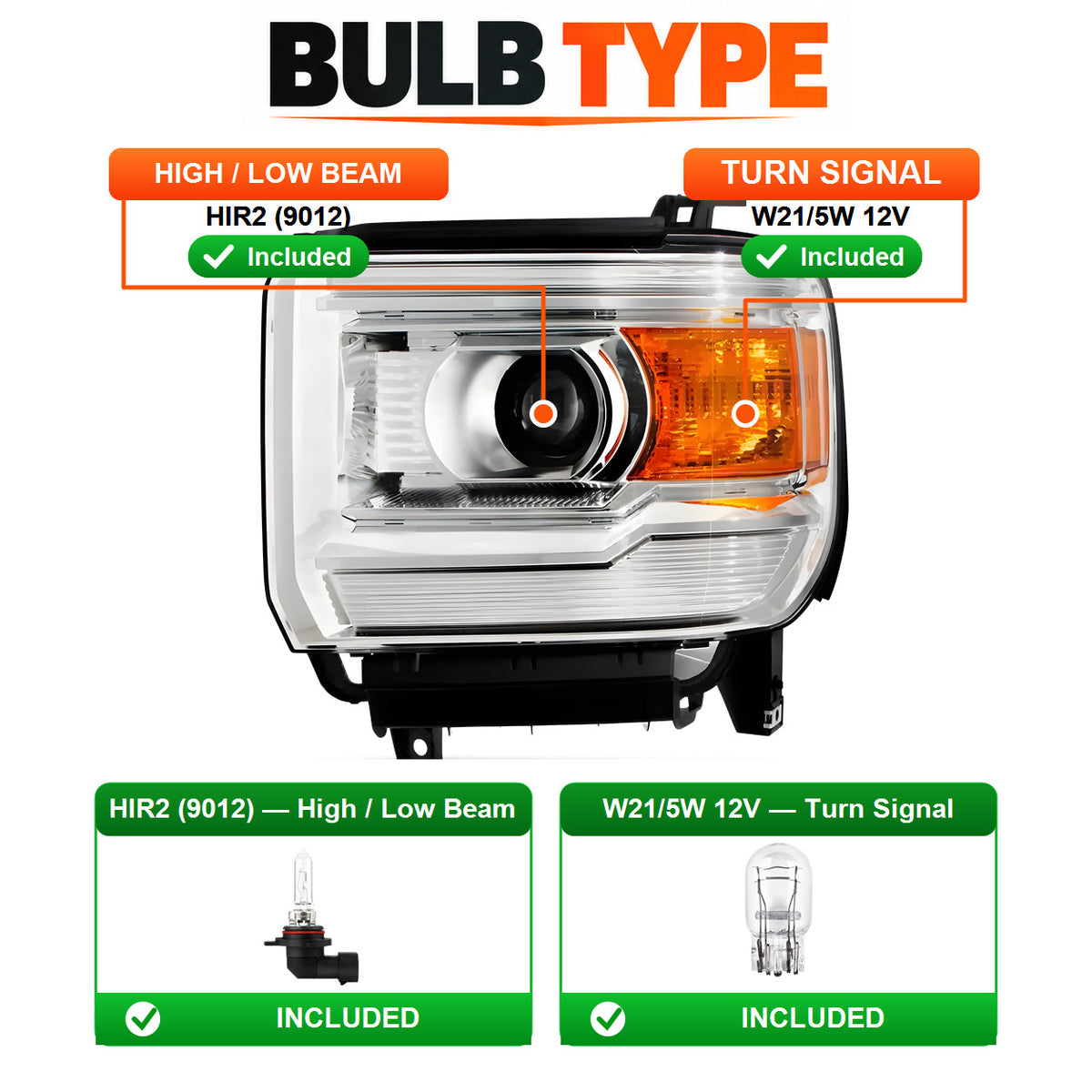

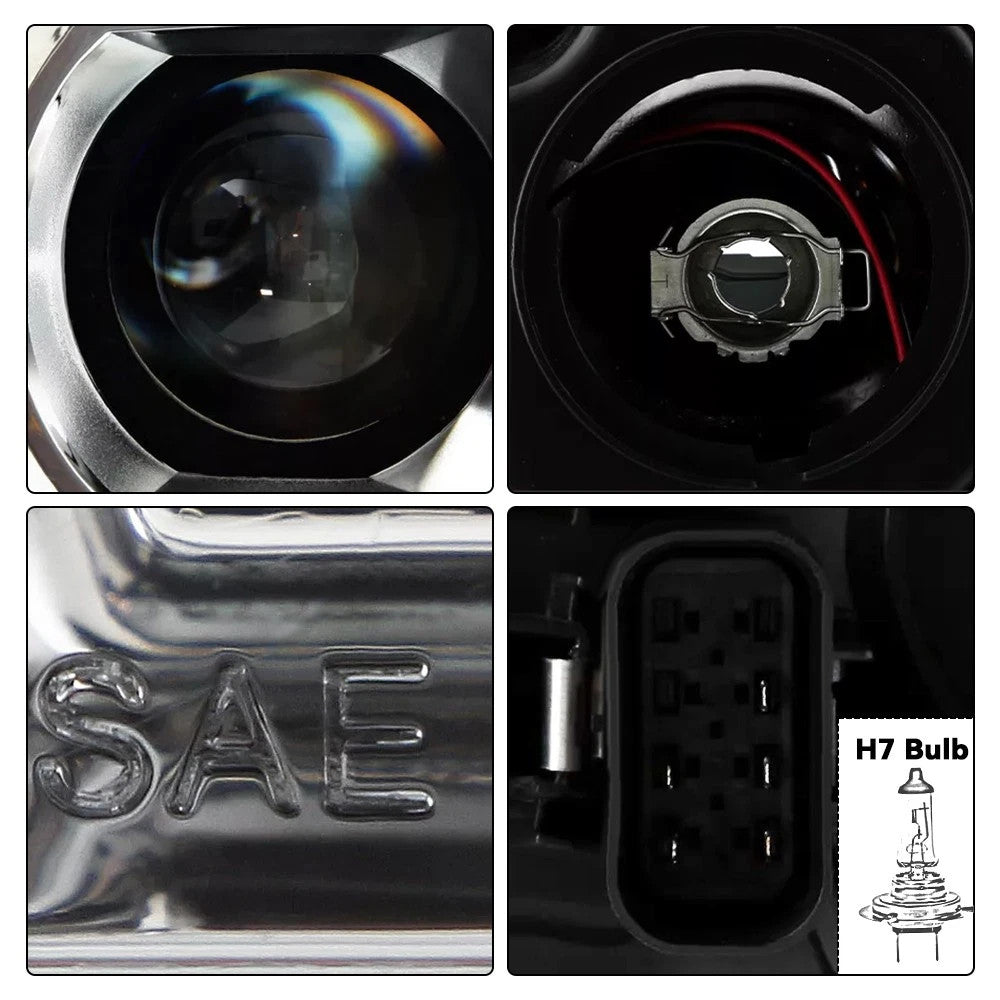

Per the listing bulb chart: high/low beam HIR2 (9012) and turn signal W21/5W, both included. One close-up image is labelled H7, so compare with your old lamp before buying spare bulbs.

Will these fit a Sierra with the LED DRL?

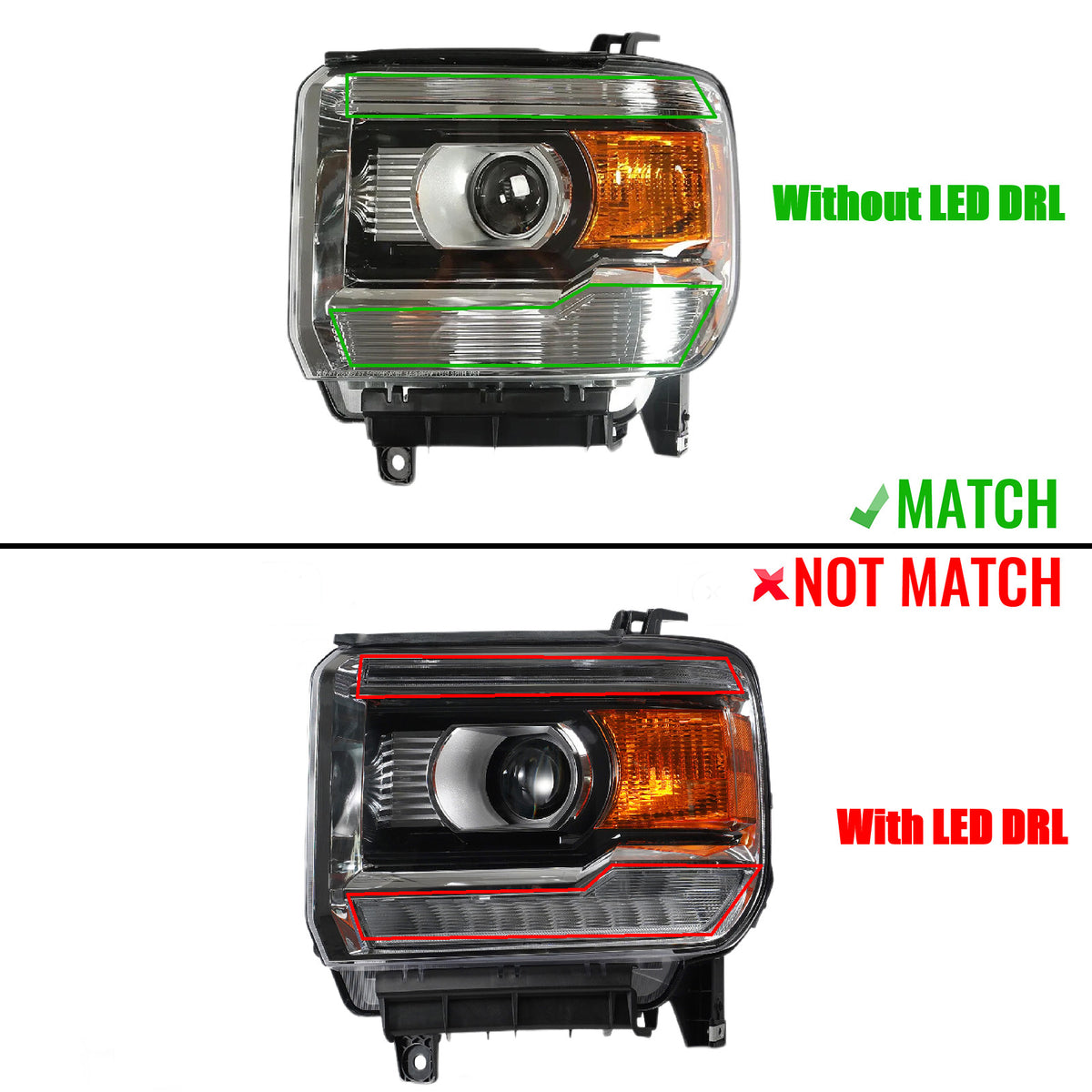

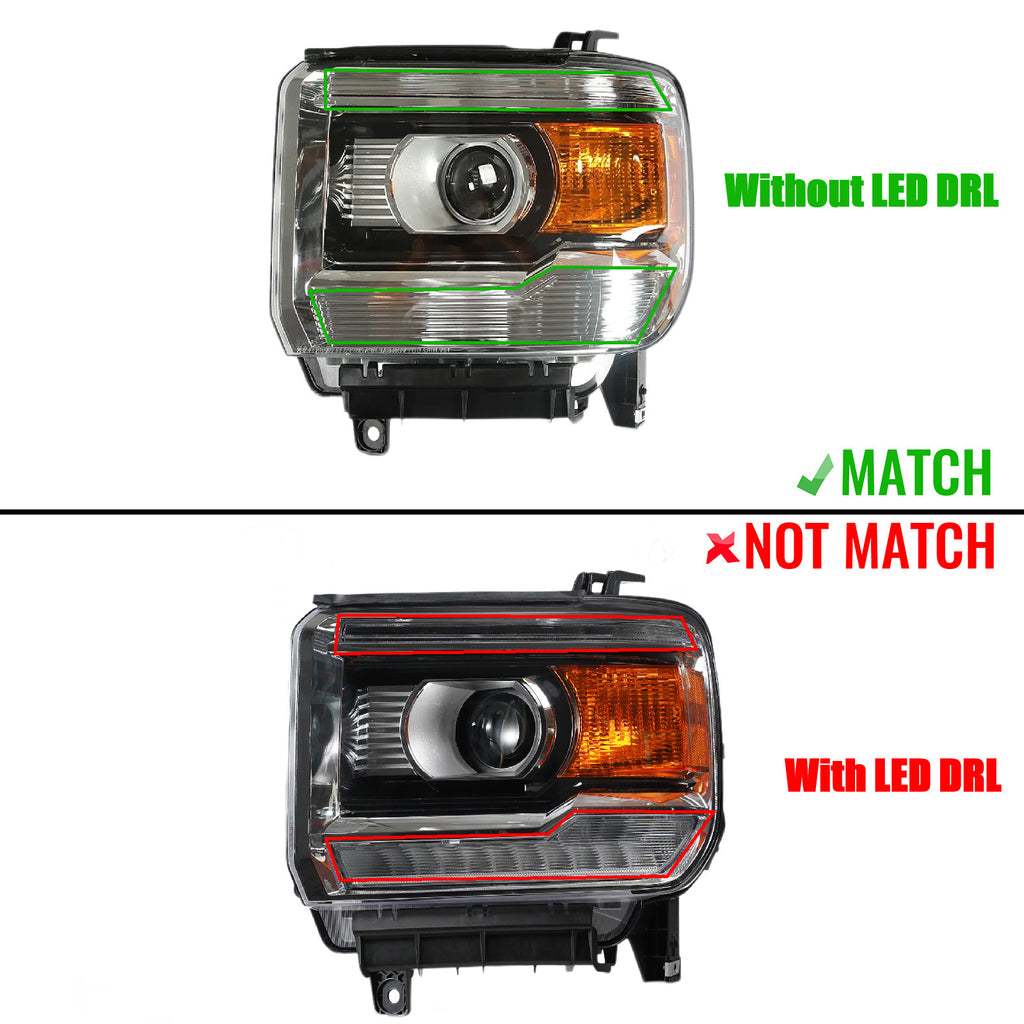

No. Per the listing match photo, these fit trucks without the LED DRL; LED DRL headlights do not match.

Do I need to remove the front bumper to replace these headlights?
No. On the 2014-2019 Sierra the grille comes out instead (top clips, 10 mm bolts top and bottom). Then four 10 mm bolts hold each headlight at 6 Nm (53 lb-in).

Can I install HID or LED kits?
Yes. This is a halogen housing, so a plug-in LED or HID kit in your factory bulb size can be used. Aim the headlights afterward.
