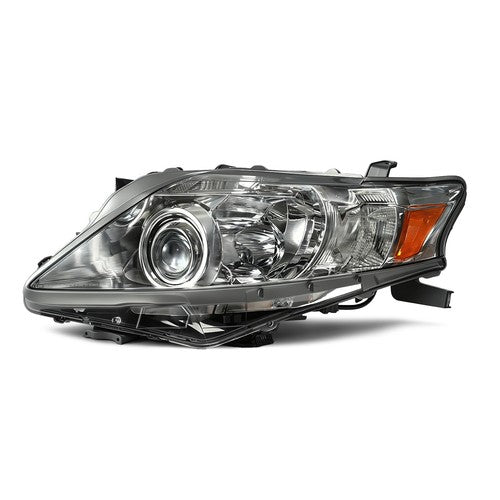

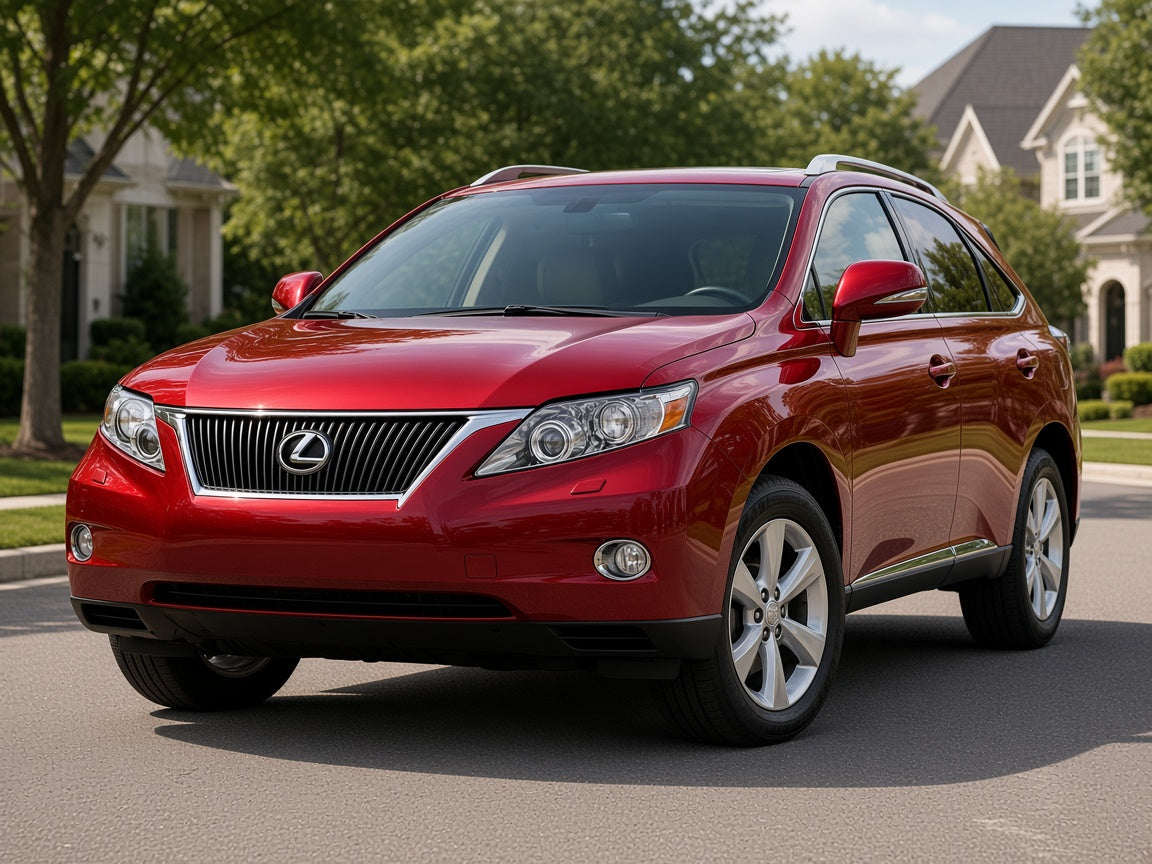

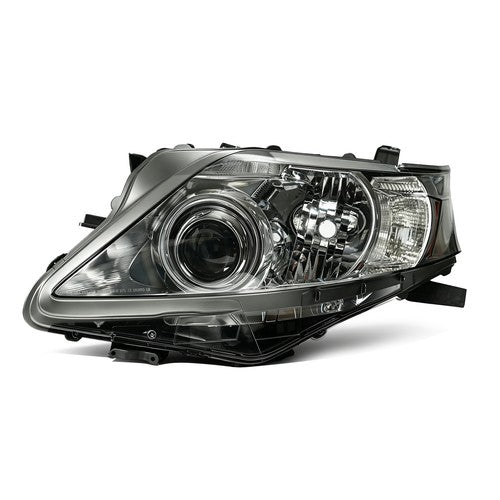

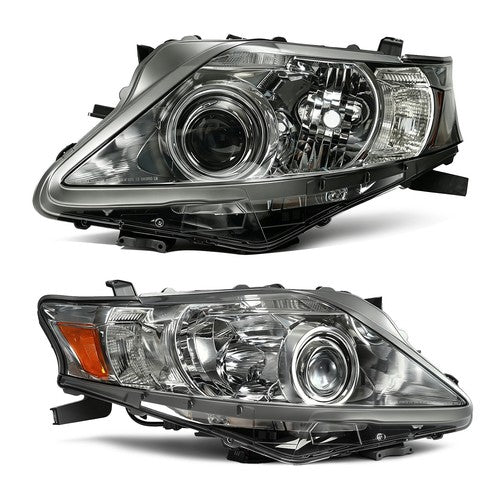

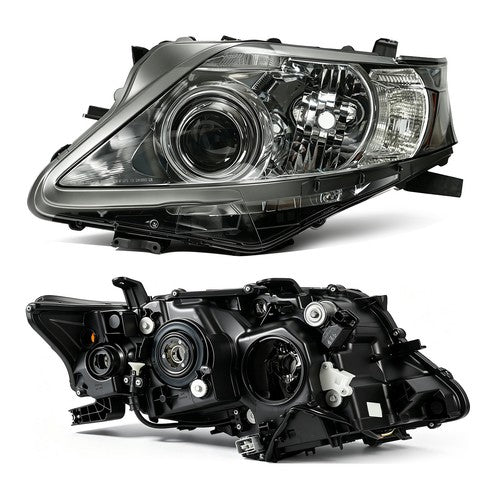

Chrome HID Projector Headlights Pair w/ AFS for Lexus RX350 (2010-2012)

Replace yellowed or damaged headlights on your 2010-2012 Lexus RX350 with this brand-new pair of chrome HID/Xenon projector headlight assemblies with AFS. Half assembly: reuse your HID bulbs and ballasts.

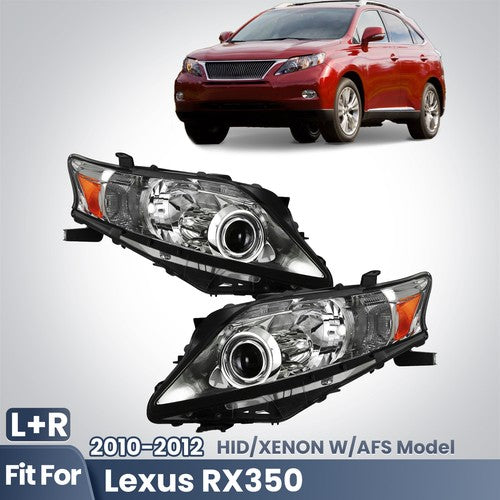

Fitment

Will NOT fit: 2013-2015 RX350 (spindle-grille facelift); halogen or non-AFS cars; RX450h-specific lamps.

Common Reasons to Replace

• Yellowed, hazy, or oxidized lenses reducing light output

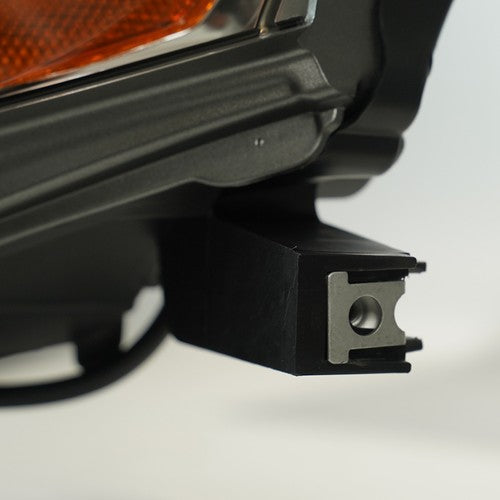

• Cracked lens or broken mounting tabs
• Moisture or condensation inside the housing
• Collision damage

Specs

• Housing: Chrome
• Lens: Clear

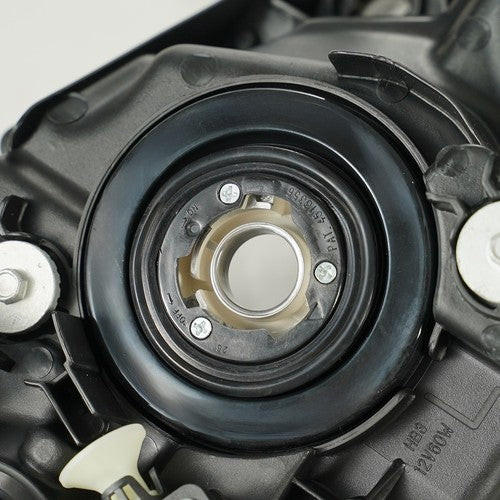

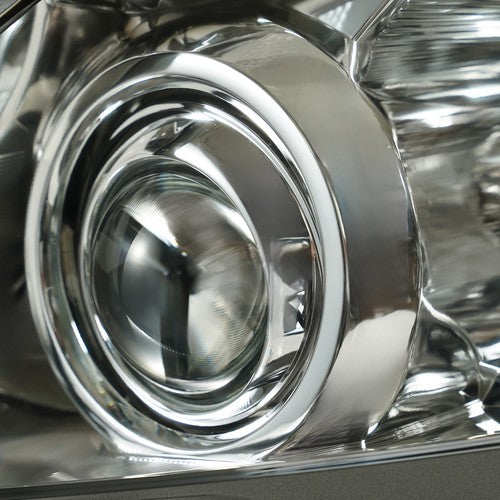

• Low beam: HID/Xenon projector (bulb not included)

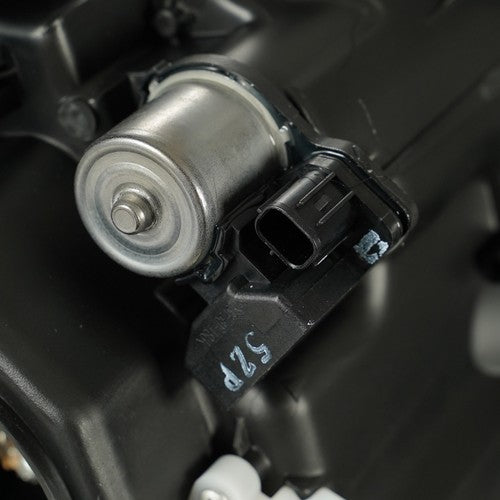

• AFS: adaptive swivel

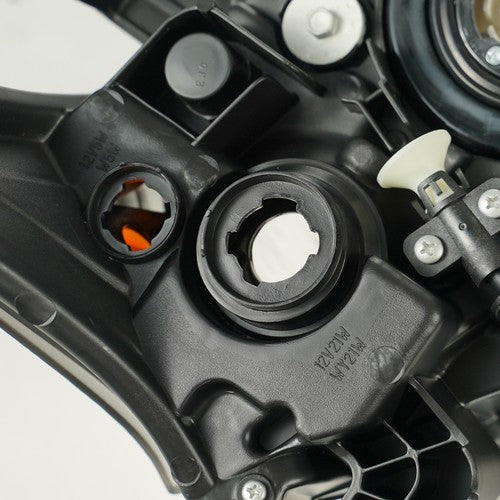

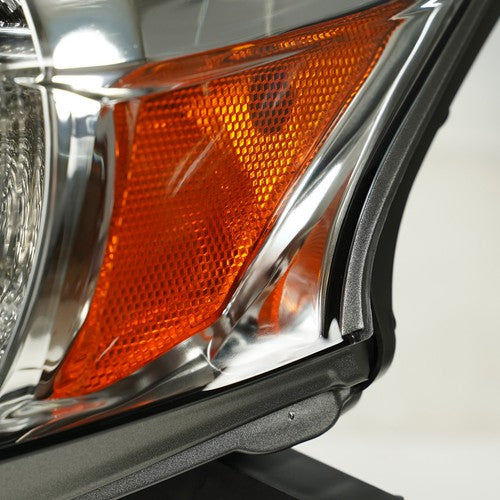

• Side marker: amber
• DOT compliant

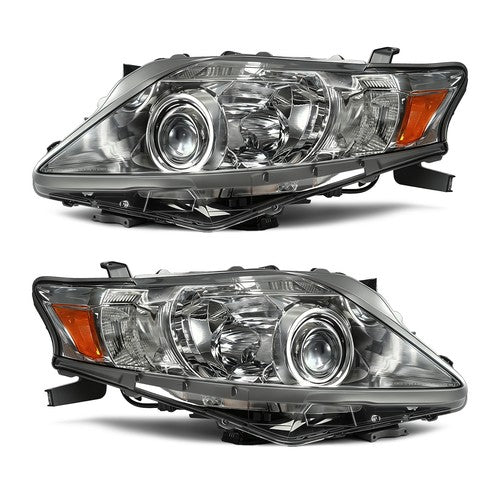

• Quantity: Pair (Left + Right)
• Condition: New

Interchange Part Numbers

OEM: 811500E061. Partslink: LX2502148, LX2503148.

What's Included

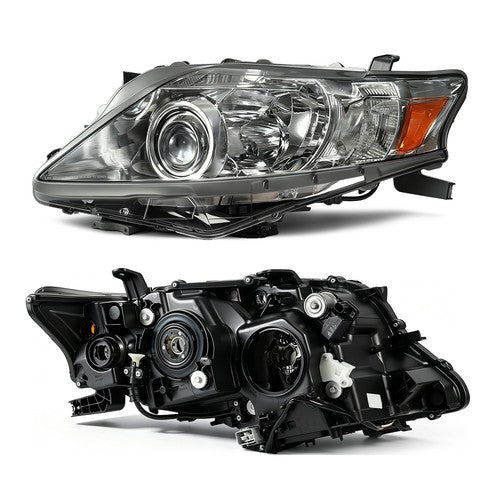

• 1 x Driver side headlight assembly

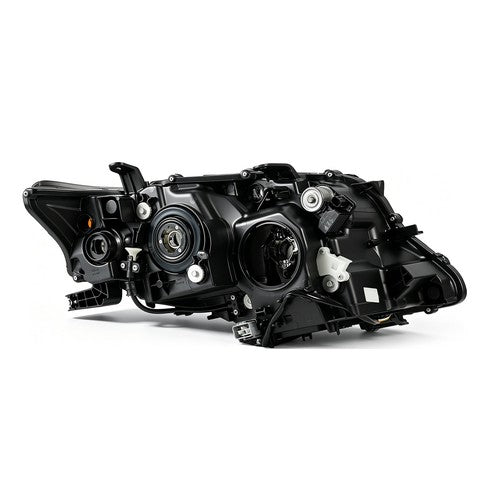

• 1 x Passenger side headlight assembly

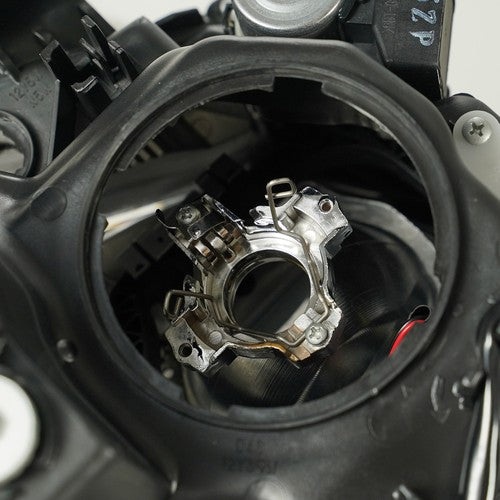

• Half assembly: HID bulbs, ballasts, and high-voltage wires are NOT included; reuse yours

Installation

1. Remove the clips on the plastic covers and the hood-stop clips along the top of the grille.
2. Remove the 10 mm bolts and clips around the lower splash shield and the 10 mm bolt with one clip at each bumper corner.
3. Remove the front wheels (21 mm), twist the felt fender-liner clips 90 degrees, pull the liner back and remove the hidden 10 mm bolt; release the side clip.
4. Remove the white plastic retainer at the headlight with needle-nose pliers (do not cut the bumper), unplug the fog lights, pull the corners straight out and pull the cover forward.

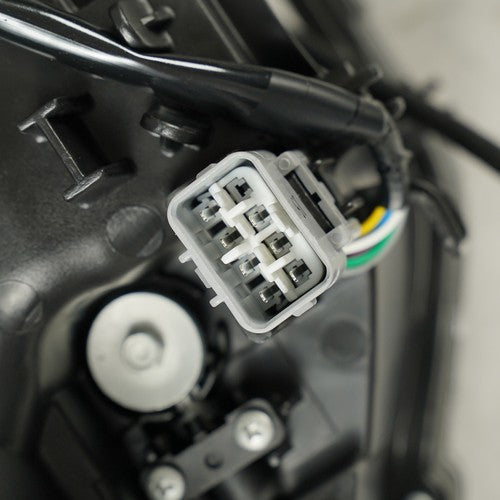

5. Remove the four headlight bolts, unplug the headlight and AFS connectors, and pull the lamp out.
6. Transfer HID bulbs/ballasts, install in reverse, torque wheels to 80 ft-lb, and aim.

Steps compiled from 1A Auto 2010-2015 RX350 bumper video and ClubLexus RX 3rd-gen headlight thread. Professional installation and headlight aiming are recommended.

FAQs

What bulbs do these headlights use?
The listing does not state bulb sizes. Half assembly: reuse your factory HID bulbs, ballasts and wiring.

Will these fit a 2013 RX350?
No. The 2013 facelift uses different headlights.

Do I need to remove the front bumper to replace these headlights?
Yes. Each RX350 headlight has a retainer the bumper slots into, so the bumper cover must come off. Remove the white plastic retainer with pliers rather than cutting it.

Do 2010-2012 and 2013-2015 RX350 headlights interchange?
No. The 2013 spindle-grille facelift changed the bumper and headlights; they do not swap.

Can I install LED or HID kits?
Not applicable. These are HID housings; reuse your factory HID bulbs and ballasts.
