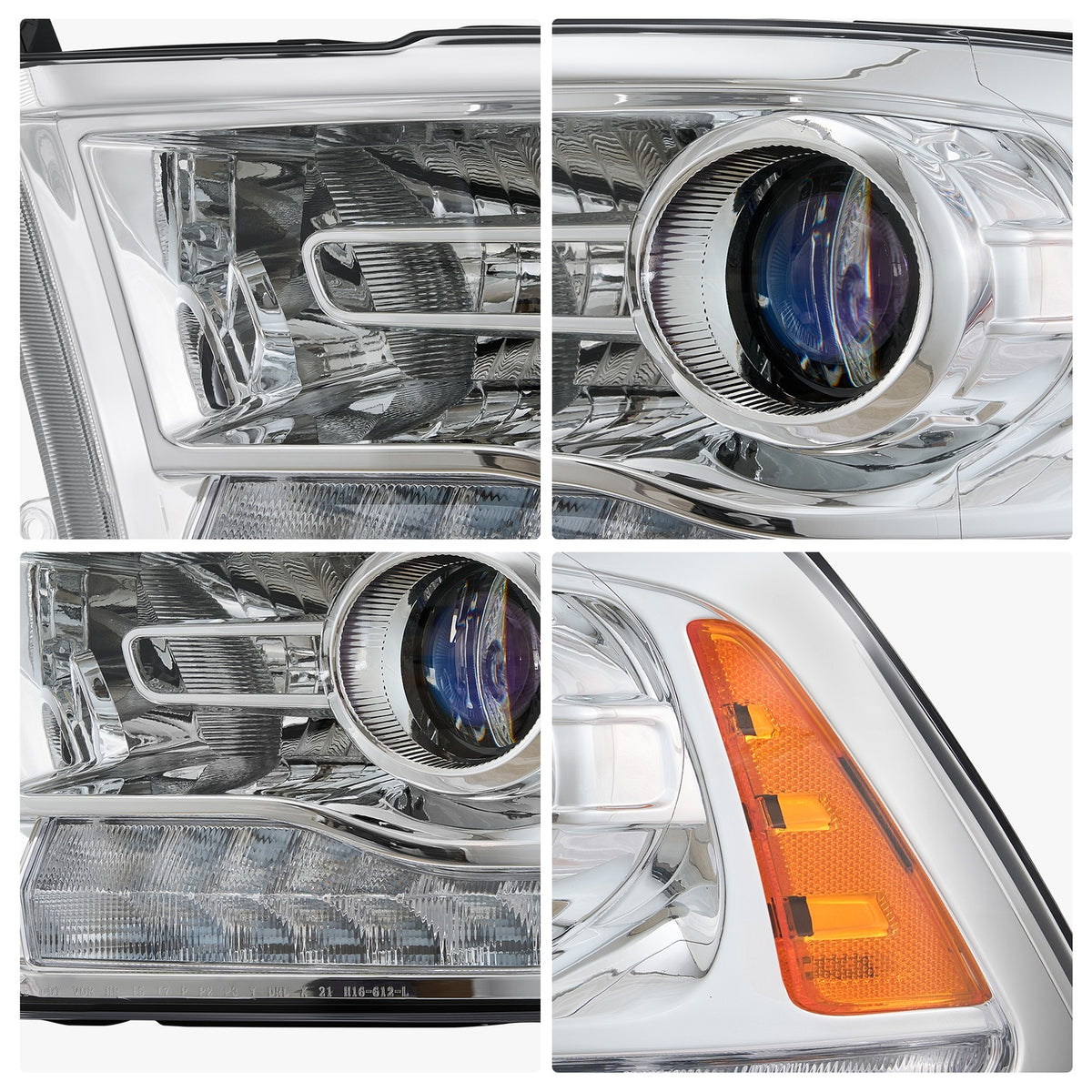

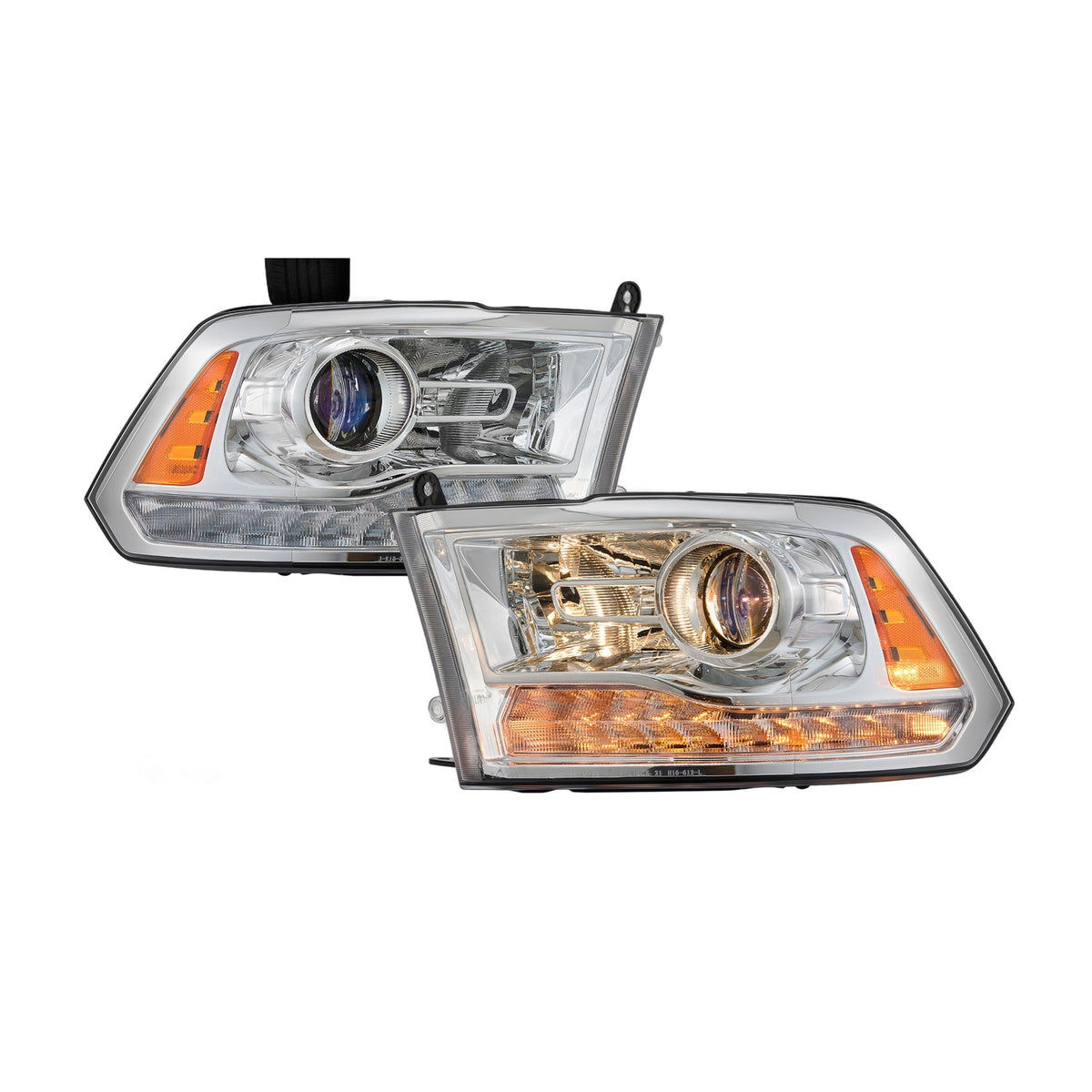

Chrome Projector Halogen Headlights Pair with LED DRL for Ram 1500 2500 3500 (2013-2018)

New chrome-housing projector headlight pair with built-in LED DRL for 2013-2018 Ram 1500, 2500 and 3500 trucks that came with factory projector headlights. 9005 bulbs are included.

Fitment

Will NOT fit: Ram trucks with factory quad (reflector) halogen headlights, 2019+ Ram 1500 (new body), or Ram 1500 Classic with reflector lamps. Check that your factory headlight has a projector lens.

Common Reasons to Replace

• Yellowed, hazy, or cracked factory lenses cutting light output
• Moisture or condensation inside the housing
• Broken mounting tabs or collision damage
• Refreshing the front end with a new chrome look

Specs

• Light type: Halogen projector (9005) + LED DRL
• Housing: Chrome, clear lens

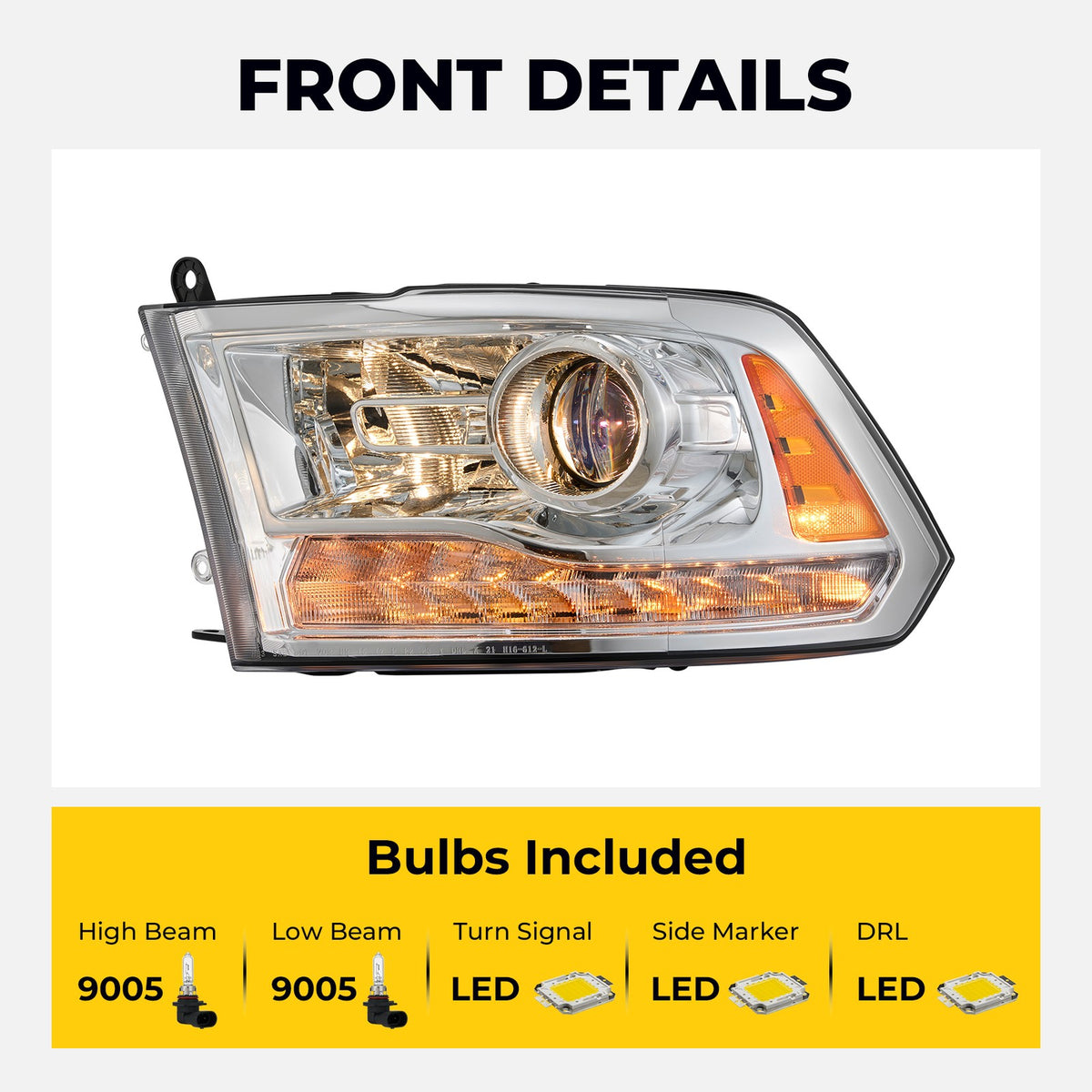

• Bulbs: Low/high beam 9005, DRL LED (built-in) (bulbs included)
• Lens: Polycarbonate; housing: polypropylene
• DOT & SAE compliant
• Fitment type: Direct replacement, plug-and-play connectors
• Quantity: Pair (Left + Right)
• Condition: New

Interchange Part Numbers

OEM: 68093217AD, 68093216AD (factory projector type)

What's Included

• 1 x Driver-side headlight assembly
• 1 x Passenger-side headlight assembly
• Bulbs included: Low/high beam 9005, DRL LED (built-in)

Installation (2013-2018 Ram 1500/2500/3500)

Tools: 10 mm socket and ratchet, trim/push-pin tool, flat screwdriver.

1. Open the hood and disconnect the negative battery cable.
2. Remove the push pins and 10 mm bolts along the top of the grille, release the grille tabs, unplug any grille sensors/cameras and lift the grille off.
3. Remove the headlight mounting bolts (along the top and at the inboard side, reachable once the grille is off).

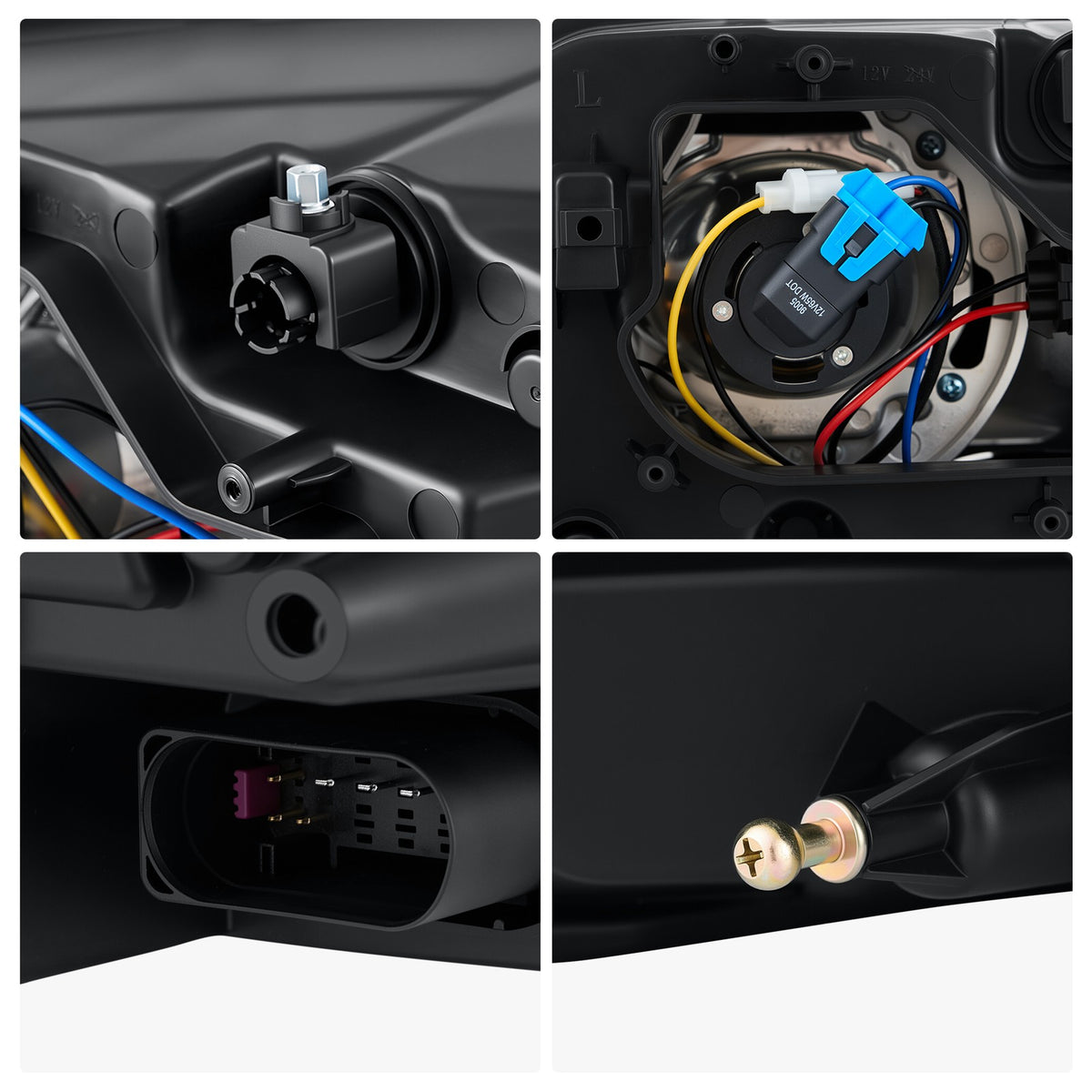

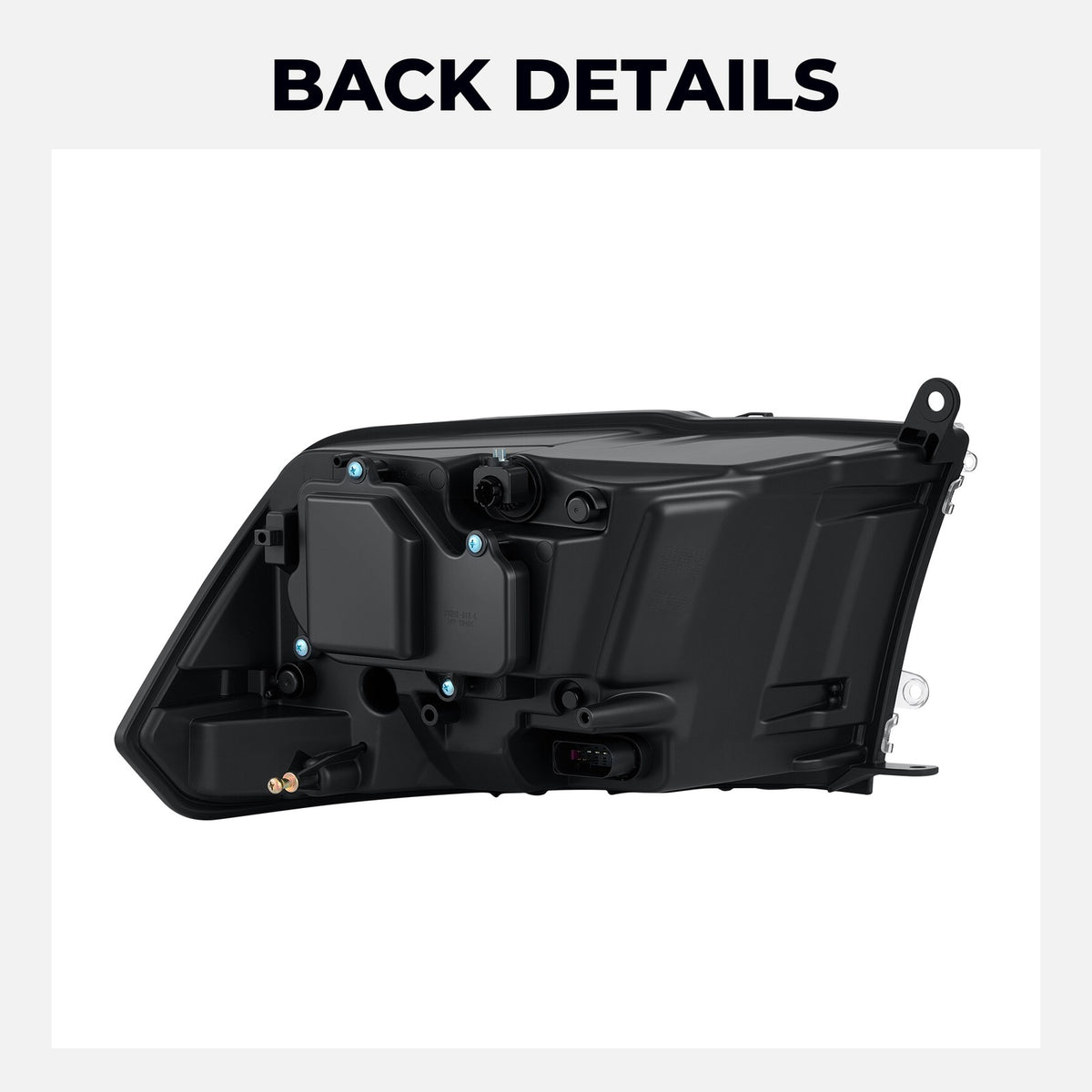

4. Pull the headlight forward, release the connector lock and unplug it.
5. Plug in the new headlight, set it into the locators and reinstall the bolts.
6. Test low beam, high beam, turn signal and the LED DRL, then refit the grille and check aim.

Steps based on the 2013-2018 Ram DS/DJ service information grille and headlamp removal procedure and RamForum owner write-ups.

FAQ

Will these fit a Ram with the quad halogen headlights?
No. This pair is for trucks that came with the factory projector headlight (9-pin type). Quad reflector trucks use a different housing and harness.

Is this plug-and-play?
The seller lists it as a direct replacement using the factory connector, with bulbs included. No splicing is needed on factory-projector trucks.

What bulb sizes do these use?
Low/high beam 9005, DRL LED (built-in) (bulbs included).

Can I put LED bulbs in these?
The low/high beam uses a 9005 bulb, so a 9005 LED conversion kit fits. The DRL strip is already built-in LED and has no replaceable bulb.
