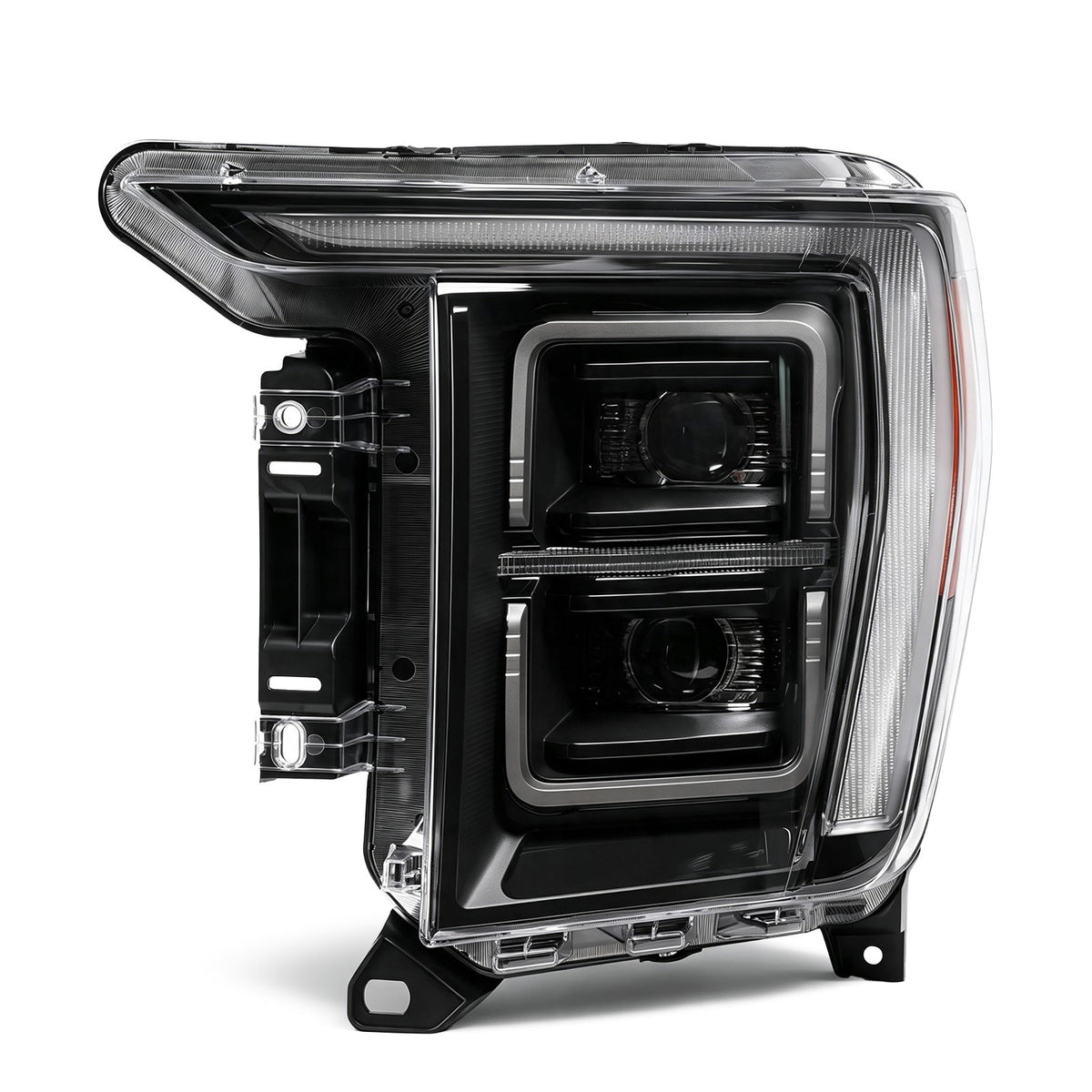

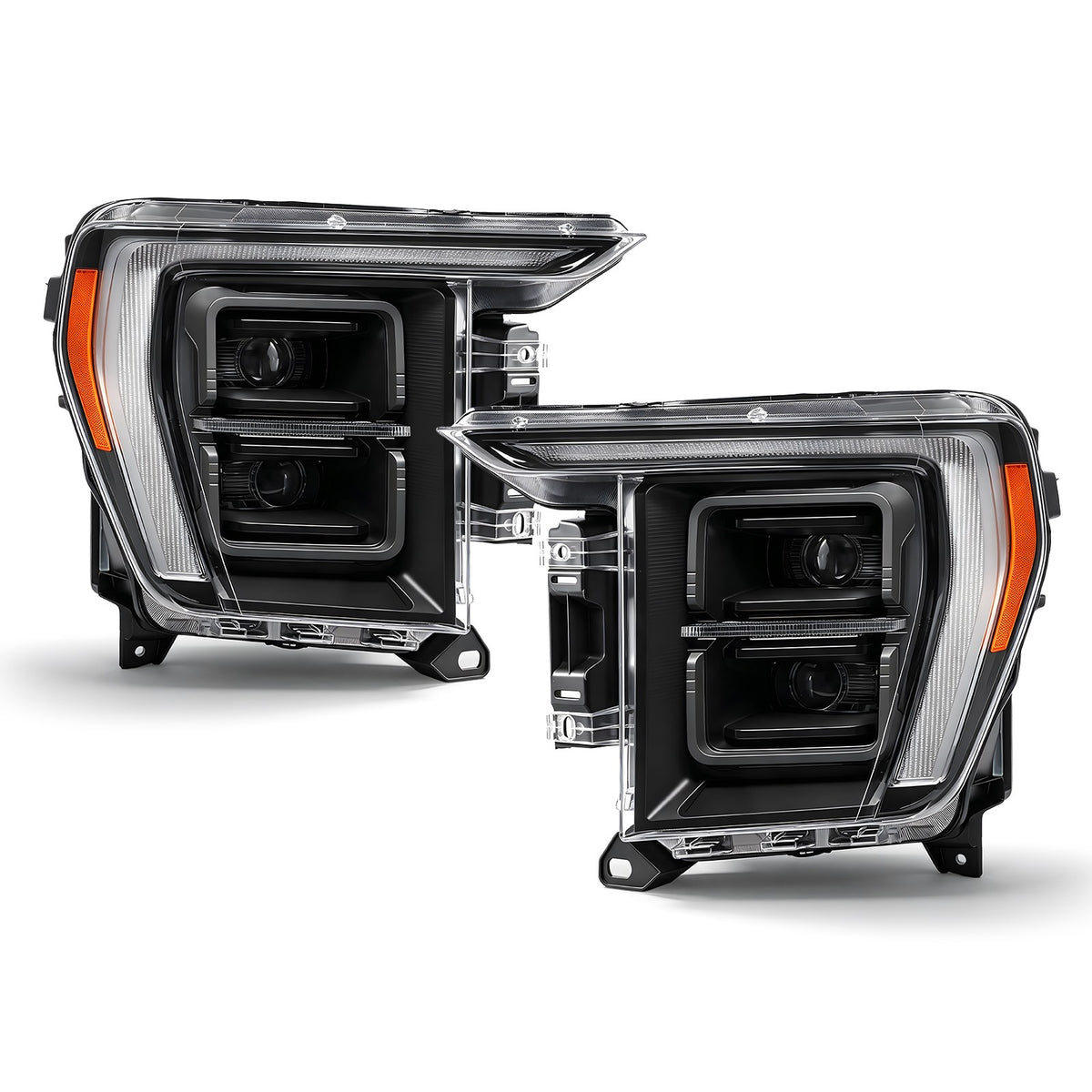

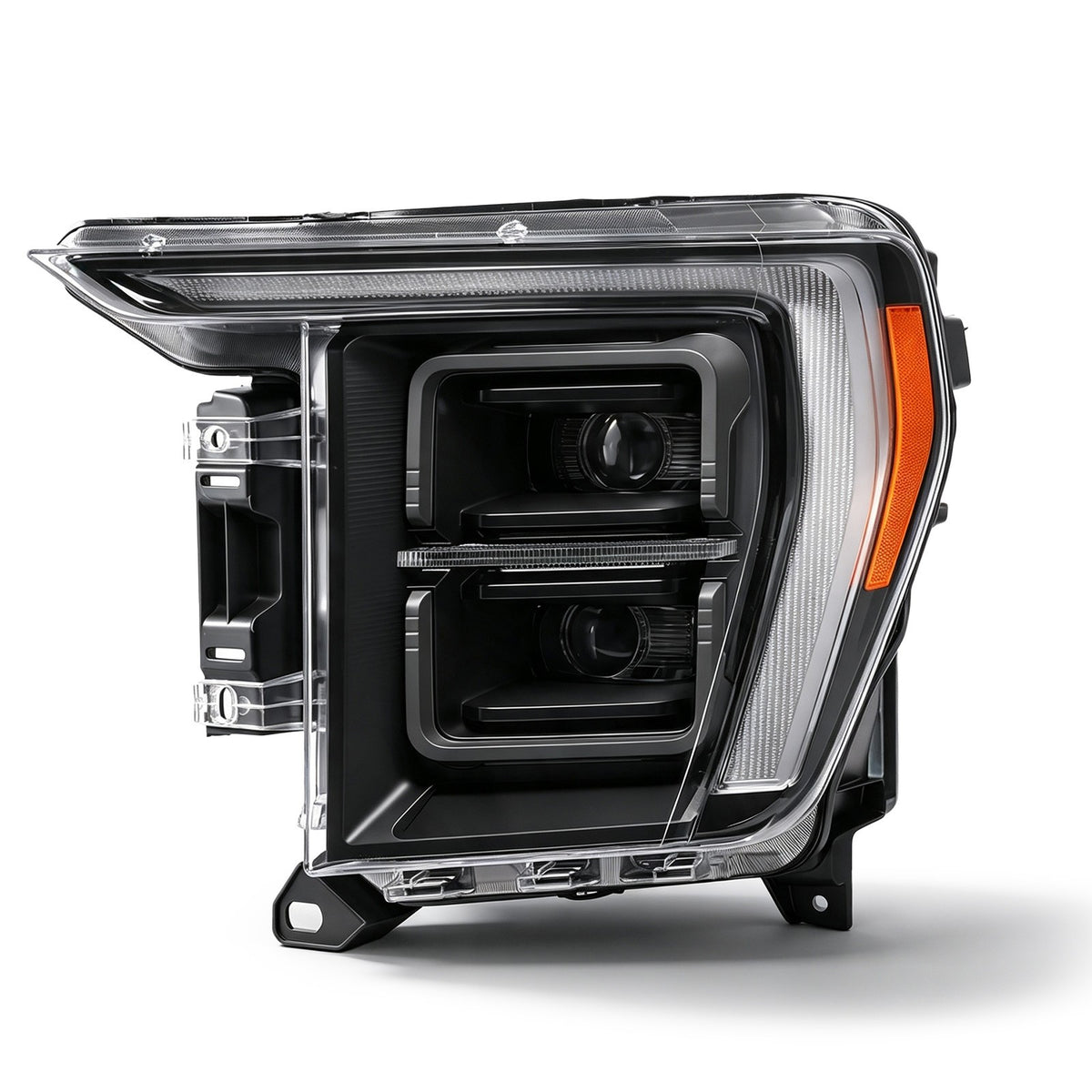

Full LED Headlights Pair w/ AFS & LED Module for Ford F-150 Raptor (2021-2023)

Replace cracked or hazy headlights on your 2021-2023 F-150 Raptor with this brand-new full LED pair with adaptive (AFS) function and LED module.

Fitment

Will NOT fit: Non-Raptor F-150; non-AFS lamps; 2024+ F-150.

Common Reasons to Replace

• Yellowed, hazy, or oxidized lenses reducing light output
• Cracked lens or broken mounting tabs
• Moisture or condensation inside the housing
• Collision damage

Specs

• Low/high beam, DRL, turn: built-in LED
• AFS: Yes
• LED module: included
• DOT compliant
• Quantity: Pair (Left + Right)
• Condition: New

Interchange Part Numbers

OEM: ML3Z13008AL, ML3Z-13008-AL, ML3Z-13008-AB, ML3Z13008AB, ML3Z-13008-AK, ML3Z-13008-AA, ML3Z13008AA. Partslink: .

What's Included

• 1 x Driver side headlight assembly
• 1 x Passenger side headlight assembly
• LED module included

Installation

1. Remove the upper grille cover, then unplug the front camera and washer connections.
2. Remove the four 10 mm upper and two 8 mm lower grille bolts and lift the grille off; remove the two 7 mm fender-trim screws.

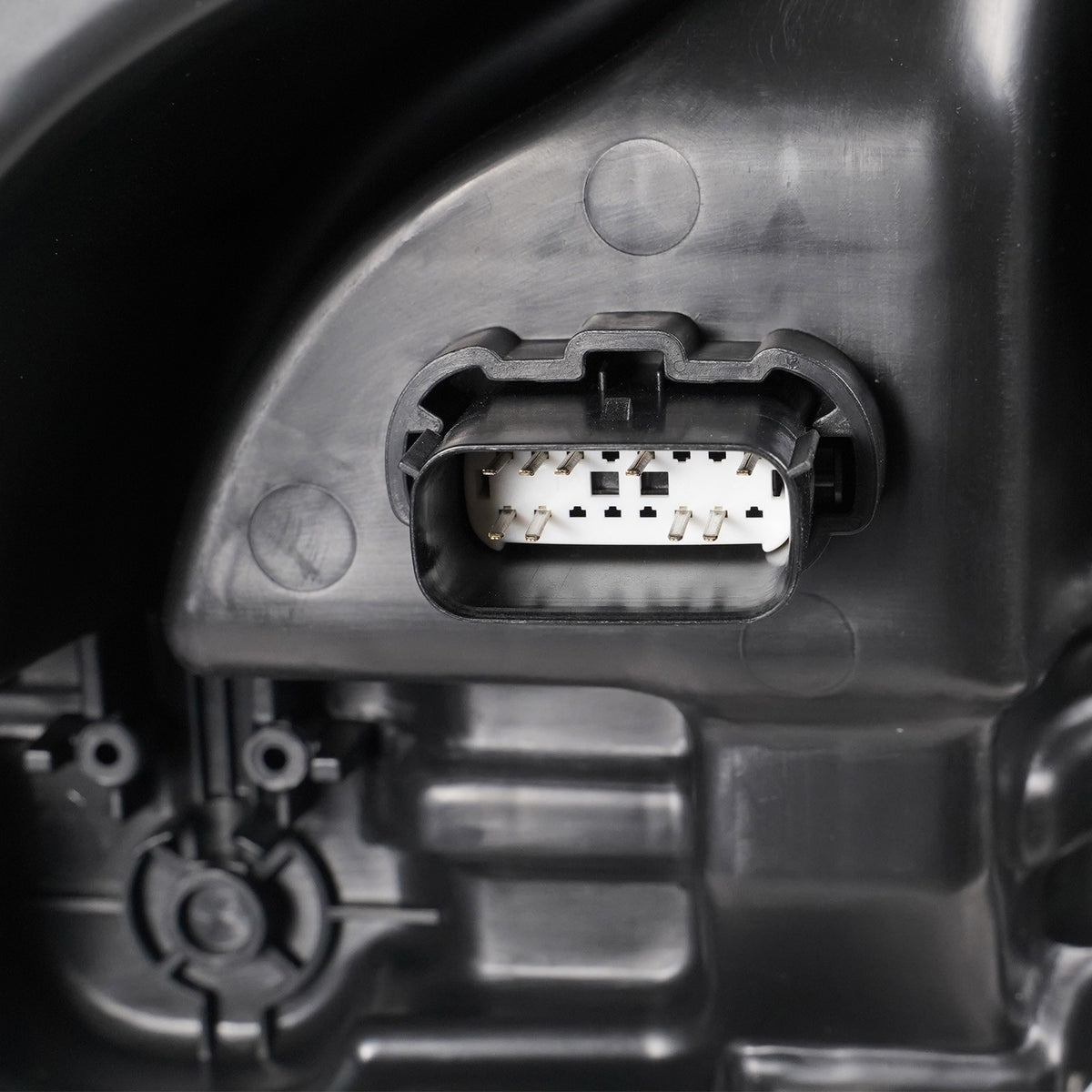

3. Remove the headlamp hardware: two 10 mm bolts on top, one 10 mm nut, one 8 mm bolt at the bottom and the push pin; unplug the lamp.
4. Install the new lamp, torque upper bolts to 36 lb-in and lower to 155 lb-in, reinstall the grille and aim.

Steps compiled from AmericanTrucks and Diode Dynamics 2021+ F-150 headlight install guides; Ford service information torque specs. Professional installation and headlight aiming are recommended.

FAQs

Will these fit a regular F-150?
No. Raptor only.

Do these have AFS?
Yes.

Do I need to remove the front bumper to replace these headlights?
No. The grille comes off; the lamps unbolt from the front.

Can I install HID or LED kits?
Not applicable. The low and high beams are built-in factory LED; there is no replaceable headlight bulb for an LED or HID kit.
