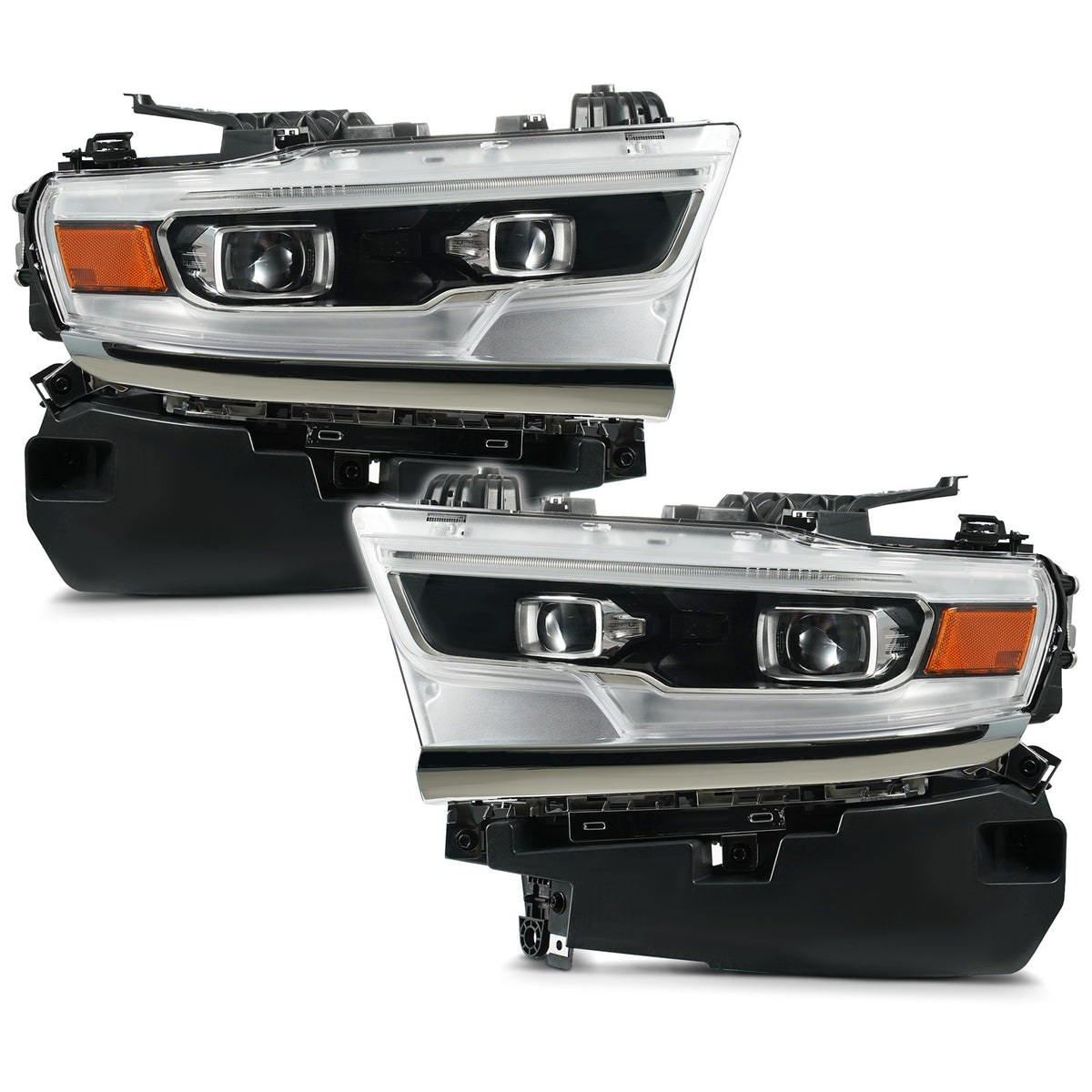

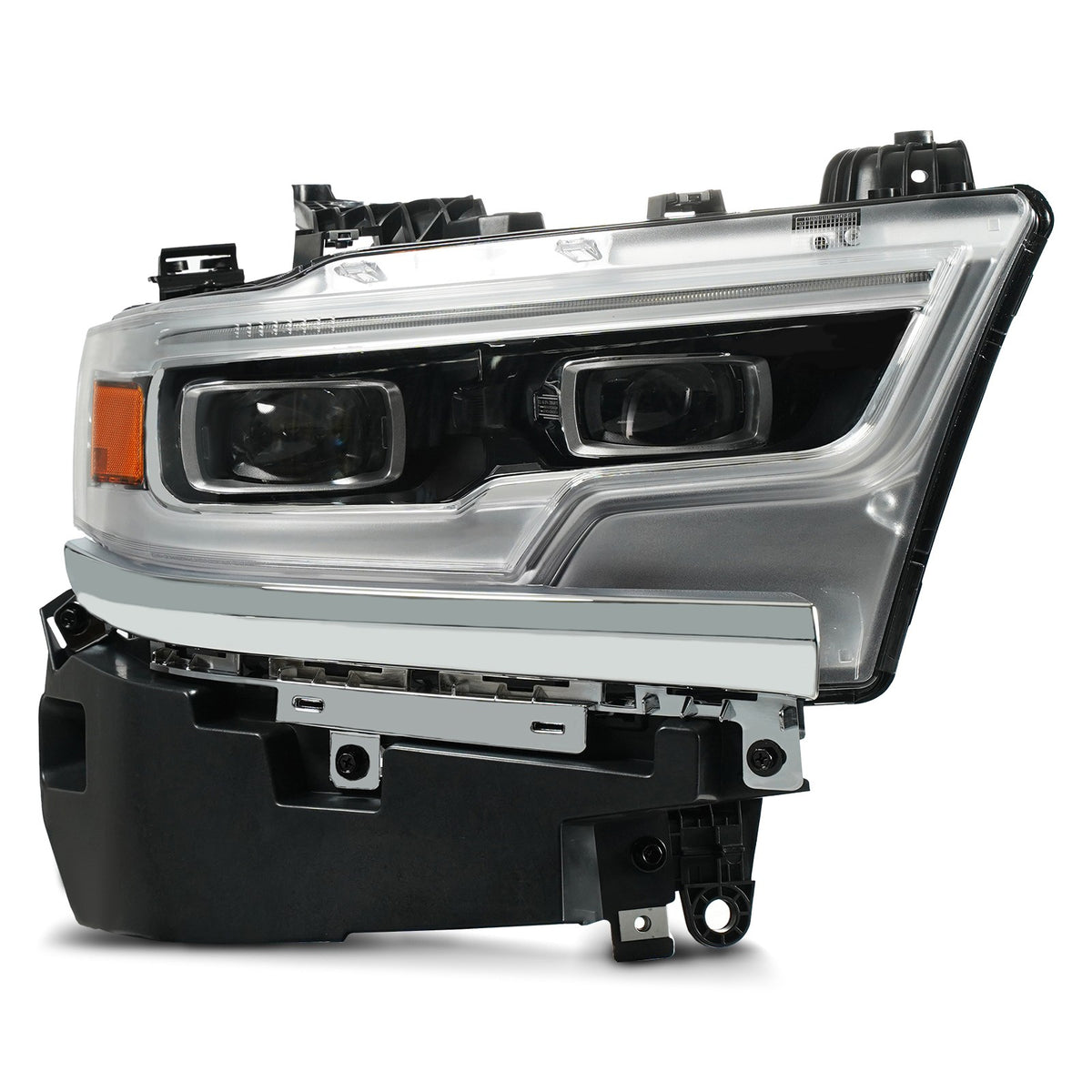

Full LED Projector Headlights Pair w/ AFS, Chrome Bezel for Ram 1500 (2019-2024)

Replace damaged LED projector headlights on your 2019-2024 Ram 1500 with this brand-new chrome-bezel full LED pair with AFS.

Fitment

Will NOT fit: Halogen or LED-reflector Ram 1500; Ram 1500 Classic.

Common Reasons to Replace

• Yellowed, hazy, or oxidized lenses reducing light output
• Cracked lens or broken mounting tabs
• Moisture or condensation inside the housing
• Collision damage

Specs

• Low/high beam, DRL: LED
• AFS: yes
• Module and bulbs: included
• DOT compliant
• Quantity: Pair (Left + Right)
• Condition: New

Interchange Part Numbers

OEM: 68316084AH, 68316084AB, 68316084AC, 68316084AD, 68316084AE, 68316084AF, 68316084AG, 68316085AB, 68316085AC, 68316085AD, 68316085AE, 68316085AF, 68316085AG. Partslink: CH2503321, CH2502321.

What's Included

• 1 x Driver side headlight assembly
• 1 x Passenger side headlight assembly
• LED module and bulbs included

Installation

1. Remove the twelve radiator-cover clips and the cover, the four clips and eight 10 mm bolts on the upper grille trim, and lift the trim off.
2. Remove the four 8 mm inner-fender bolts, the 10 mm corner bolt and release the corner filler panel on both sides.
3. Remove the three lower 10 mm grille/headlamp bolts behind each corner panel and the four 10 mm bolts on top of the grille; unplug the front camera and lift the grille off its tabs.
4. Remove the top and side 10 mm headlamp bolts, unplug and remove the lamp, install the new one and reverse; aim the headlights.

Steps compiled from Form Lighting "How to Install 2019+ Ram 1500 LED Headlights" guide and SPEC-D 2019-up Ram 1500 install guide. Professional installation and headlight aiming are recommended.

FAQs

Will these fit a Ram 1500 Classic?
No. 2019+ DT body only.

Will these fit halogen or LED-reflector trucks?
No. Factory LED projector with AFS models only.

Do I need to remove the front bumper to replace these headlights?
No. Only the grille and corner filler panels come off; the bumper stays on.

Can I install HID or LED kits?
Not applicable. The low and high beams are built-in factory LED; there is no replaceable headlight bulb for an LED or HID kit.
