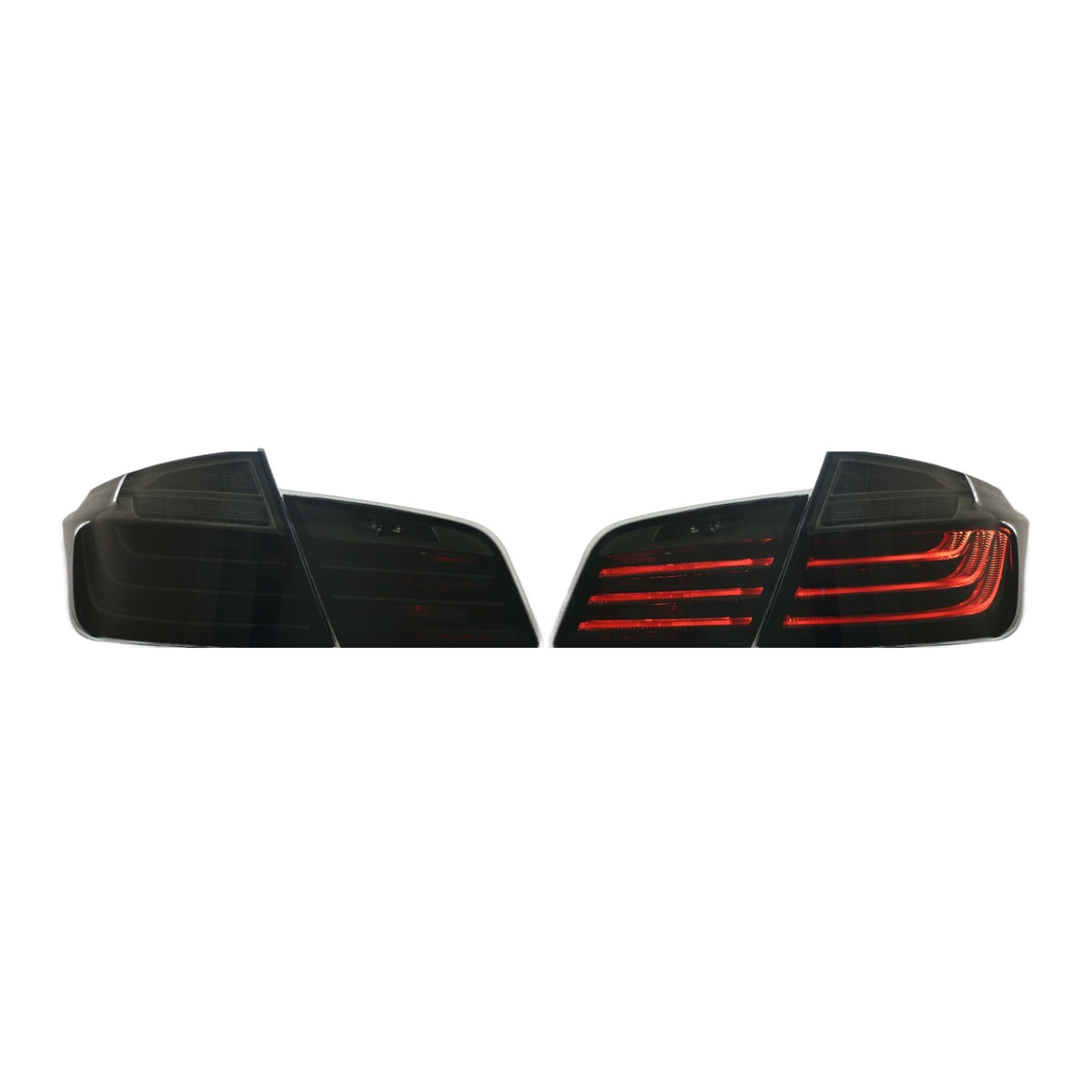

LED Smoke Blackline LCI-Style Tail Lights for BMW 5 Series F10 Sedan and M5 (2011-2016)

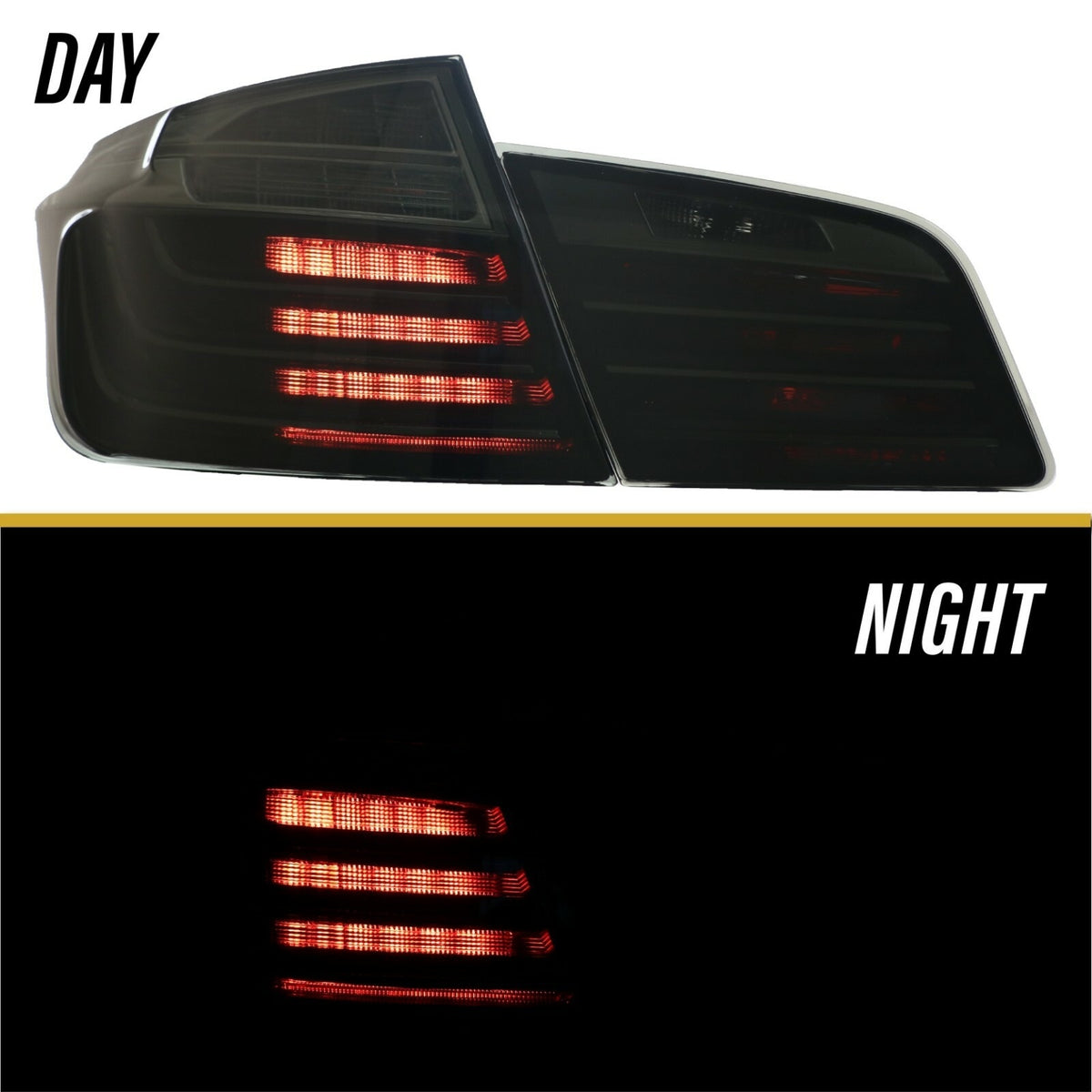

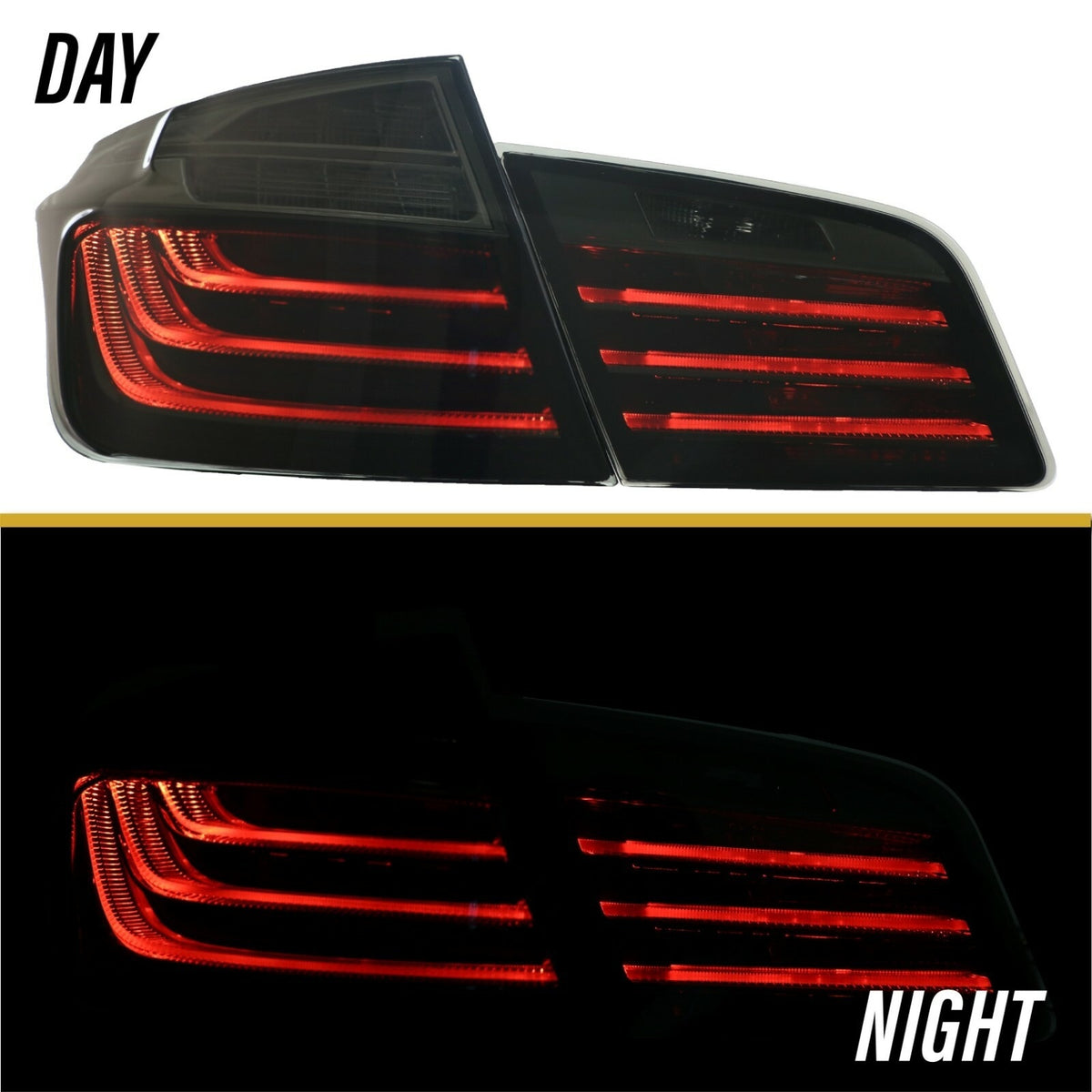

LCI Blackline-style smoked LED tail lights for the BMW F10 5 Series sedan and M5. Three-bar LED parking lights, LED signals and brake lights. Swaps factory pre-LCI or LCI lamps for the darker Blackline look. The inner lamps keep a red diffuser so the rear fog works like stock.

Fitment

• 2011-2016 BMW 528i
• 2011-2016 BMW 535i
• 2014-2016 BMW 535d
• 2011-2016 BMW 550i
• 2012-2016 BMW ActiveHybrid 5
• 2013-2016 BMW M5

F10 sedan only. Does not fit the F07 5 Series Gran Turismo or F11 Touring.

Common Reasons to Replace

• Upgrade early F10 to LCI Blackline look
• Faded, cracked or water-filled lenses

Specs

• Lens: smoke, UV-protected polycarbonate

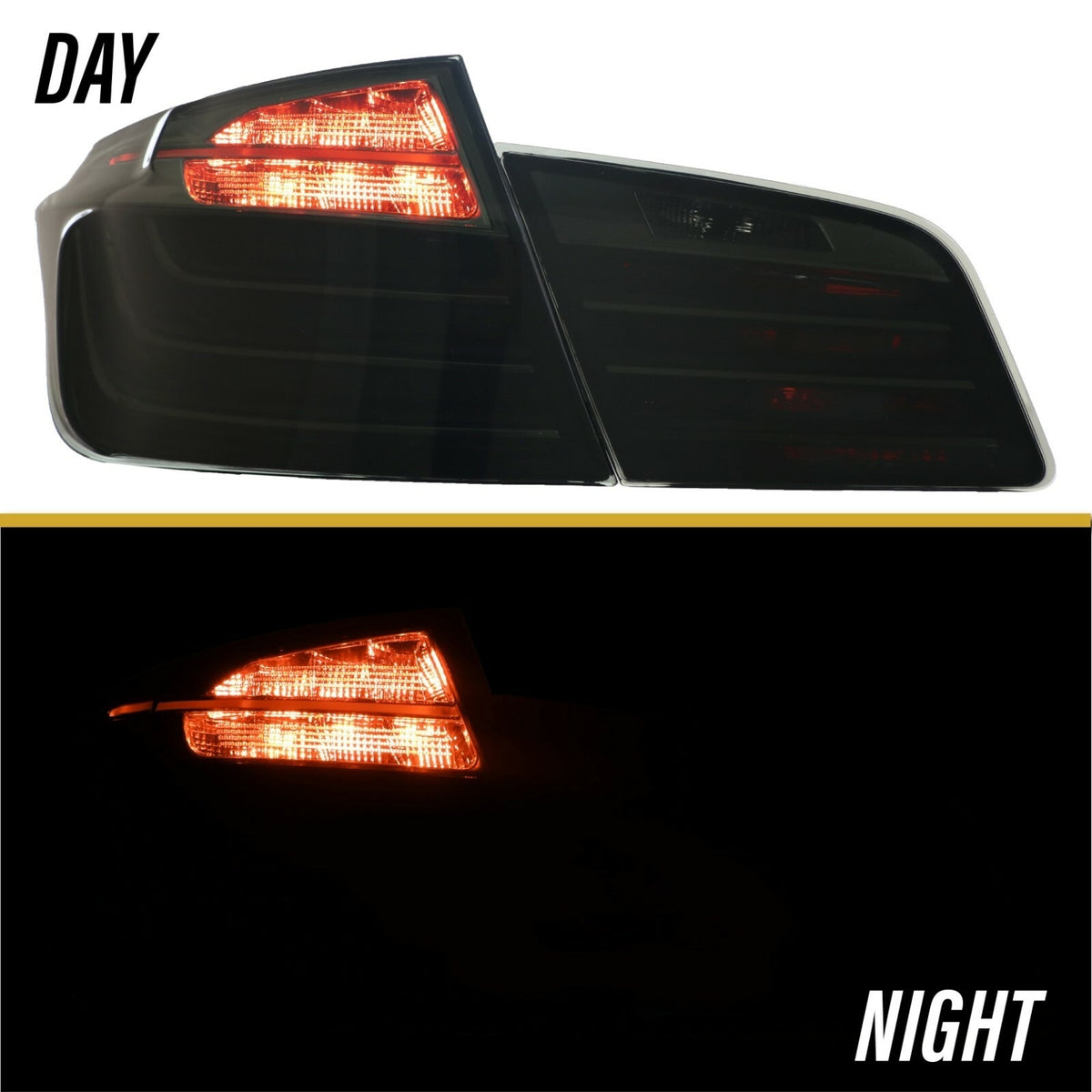

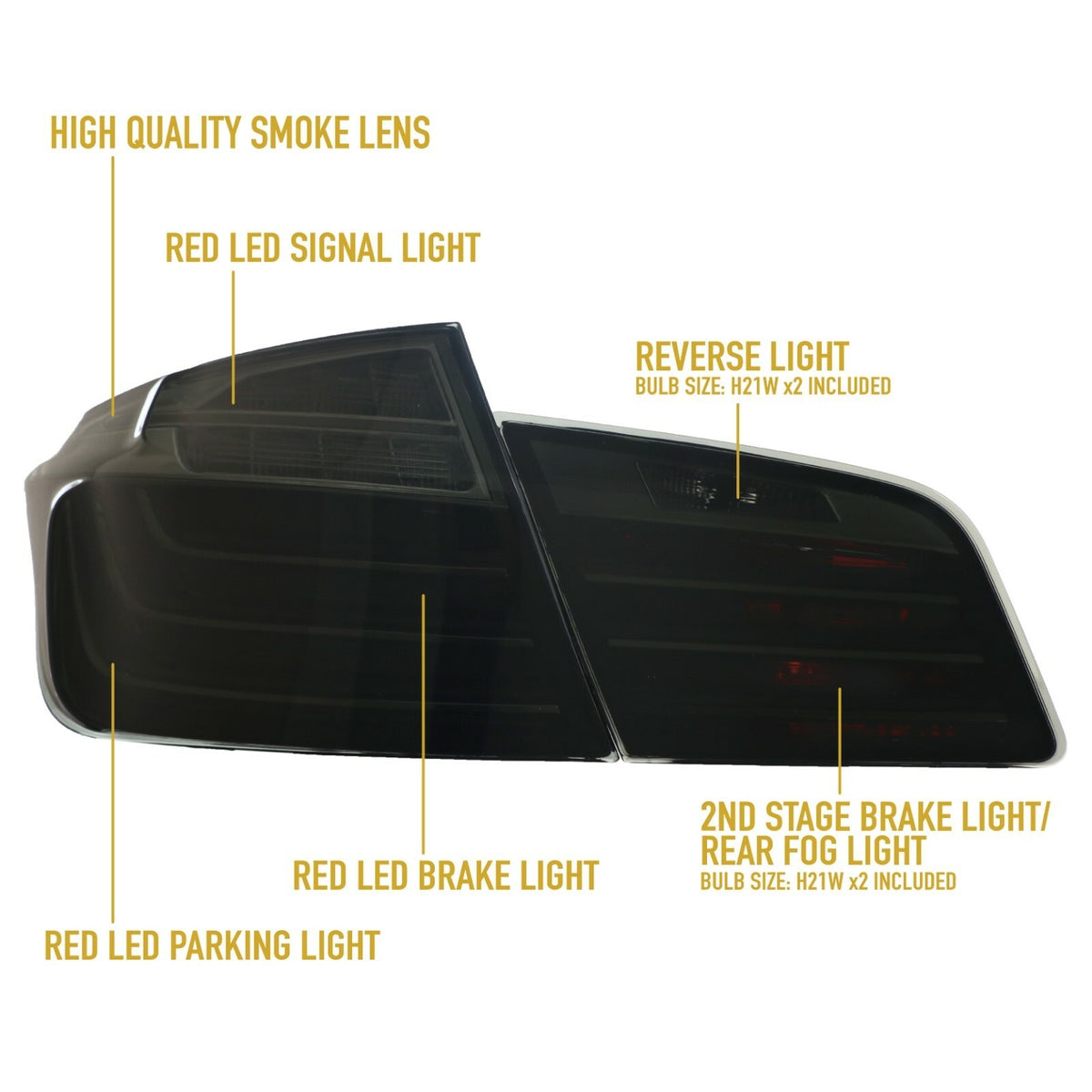

• Lighting: LED parking, signal and brake; H21W reverse and rear fog
• Manufacturer: DEPO

Interchange

Replaces OEM 63217203231 (left) / 63217203232 (right).

What's Included

• Left and right outer tail lights
• Left and right inner trunk lid lights
• 2 x H21W bulbs

Installation

1. Open the trunk and remove the trim covers behind the outer lamps and on the trunk lid.
2. Unplug the connectors and remove the plastic nuts (10 mm) on each lamp.

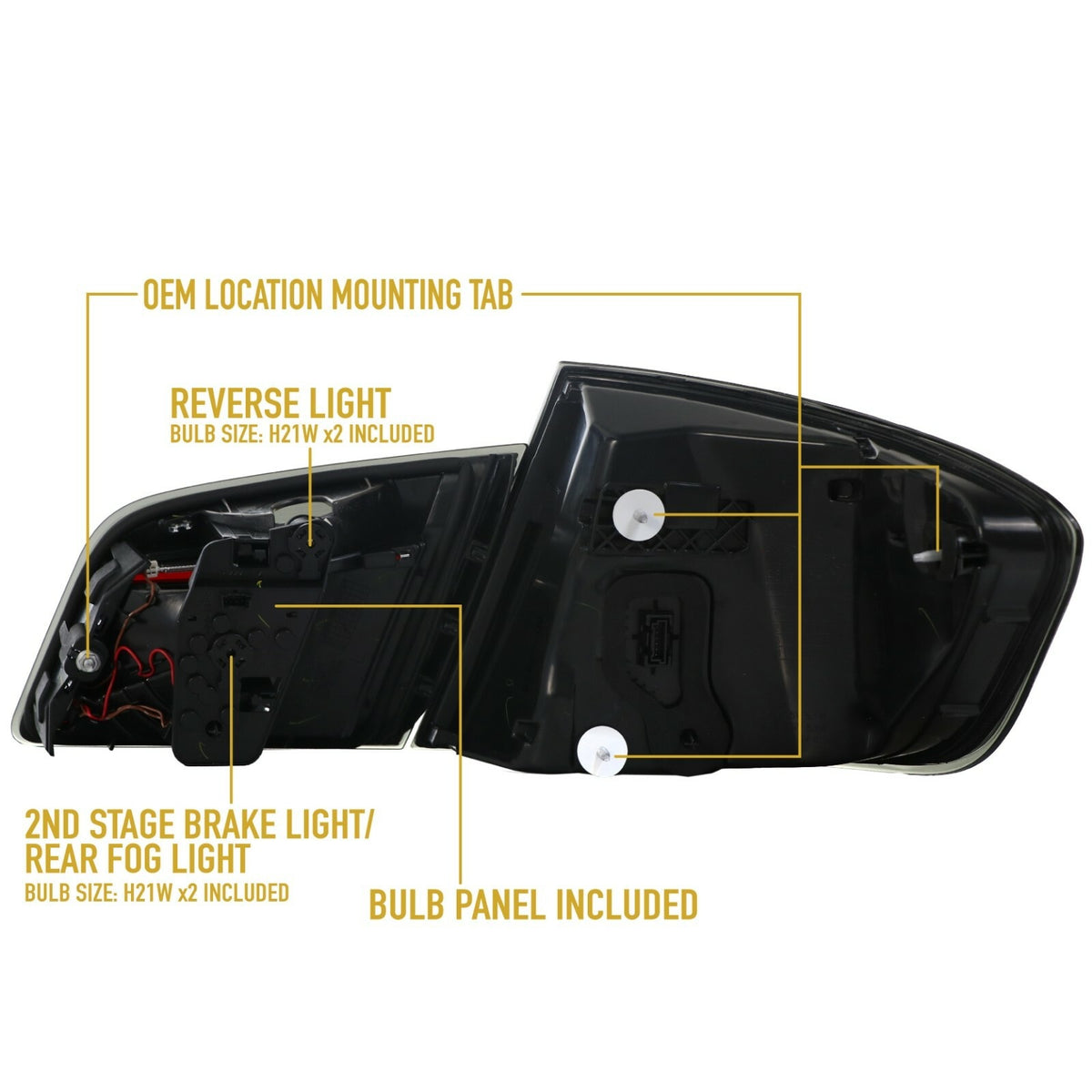

3. Pull the lamps out; move the reverse/fog bulb panel if needed.
4. Fit the new lamps, tighten the nuts, plug in and test every function before refitting the trim.

FAQ

Will this cause a bulb-out error?
These are made to work with the factory F10 wiring with no error codes.

Does it fit my 2015 LCI?
Yes, it fits all 2011-2016 F10 sedans.
