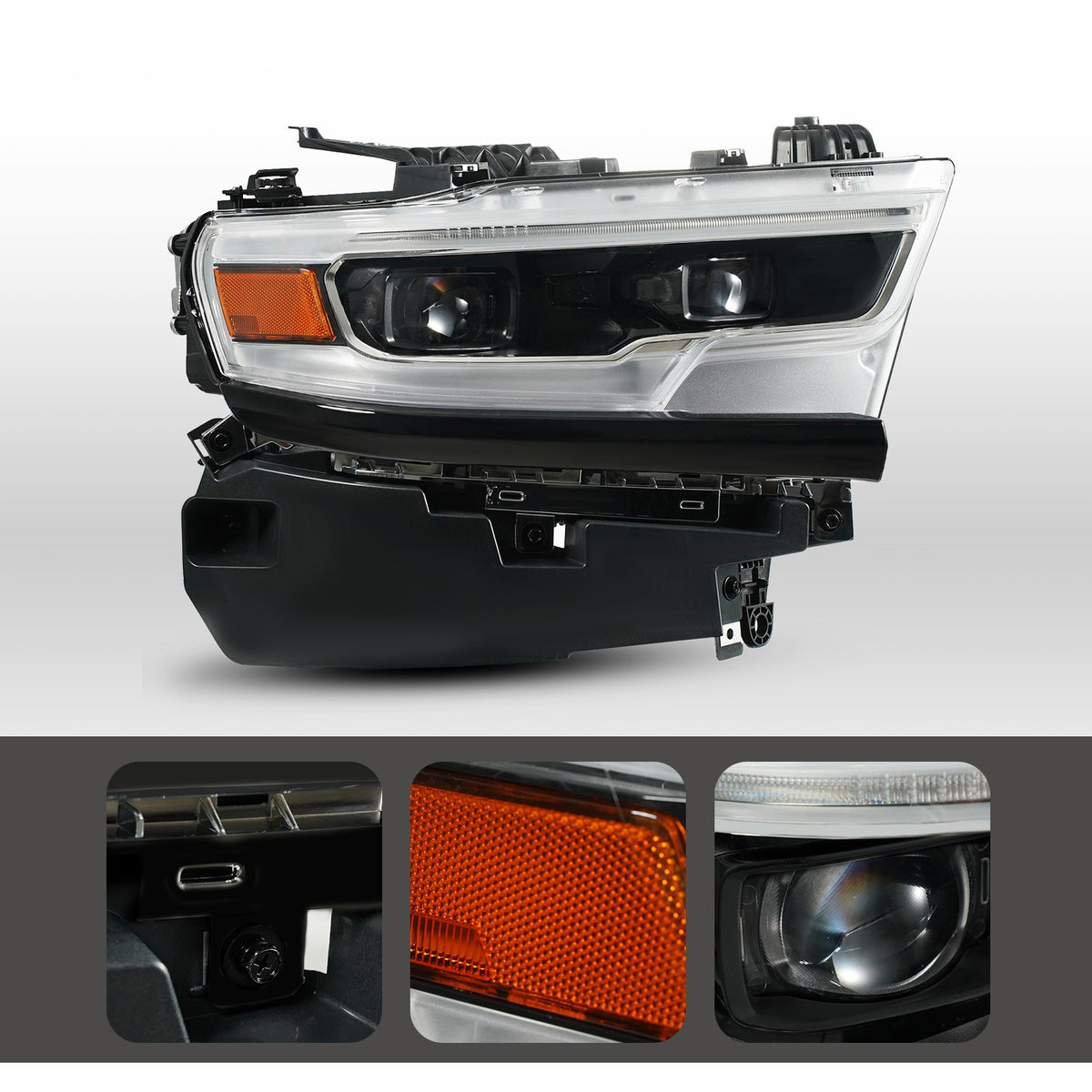

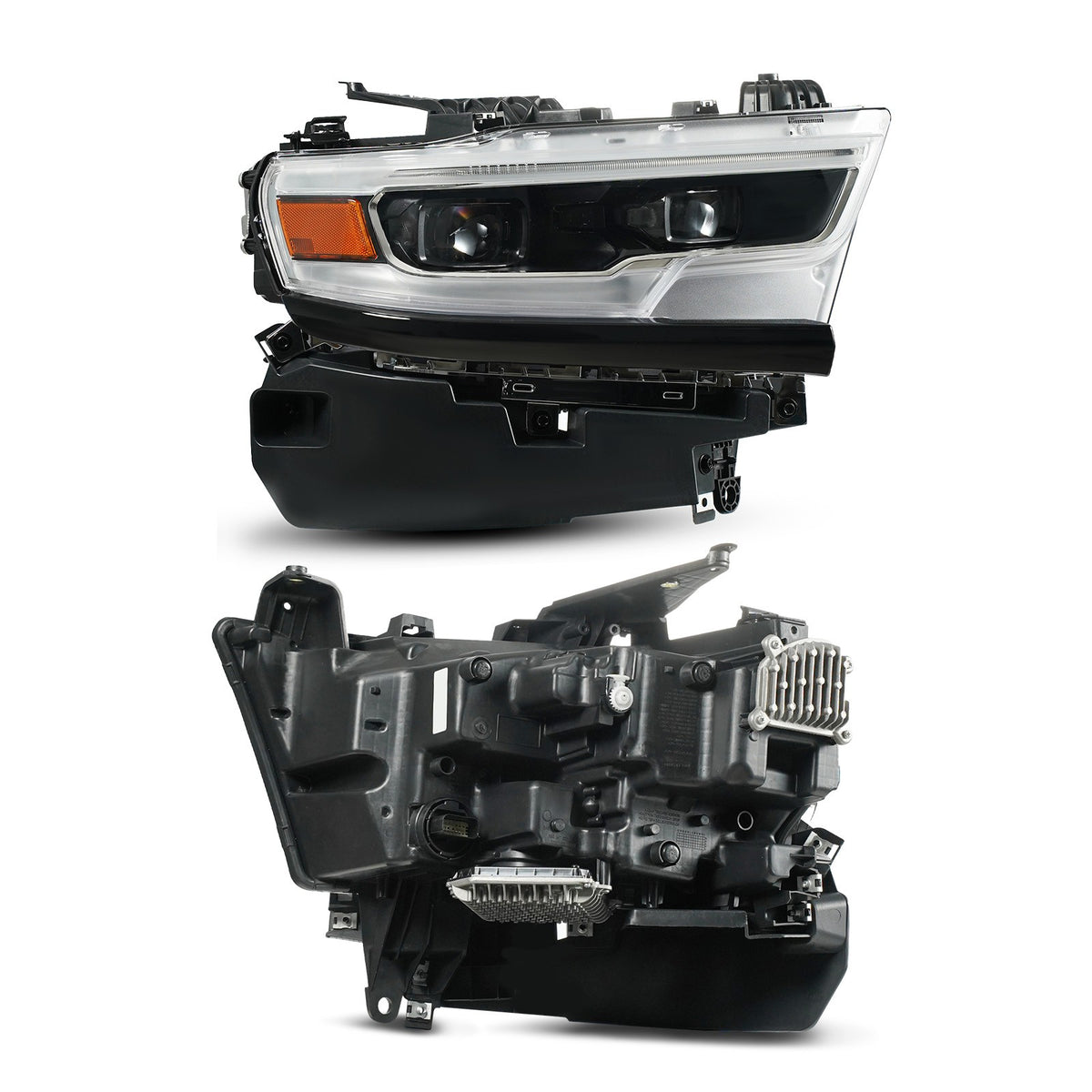

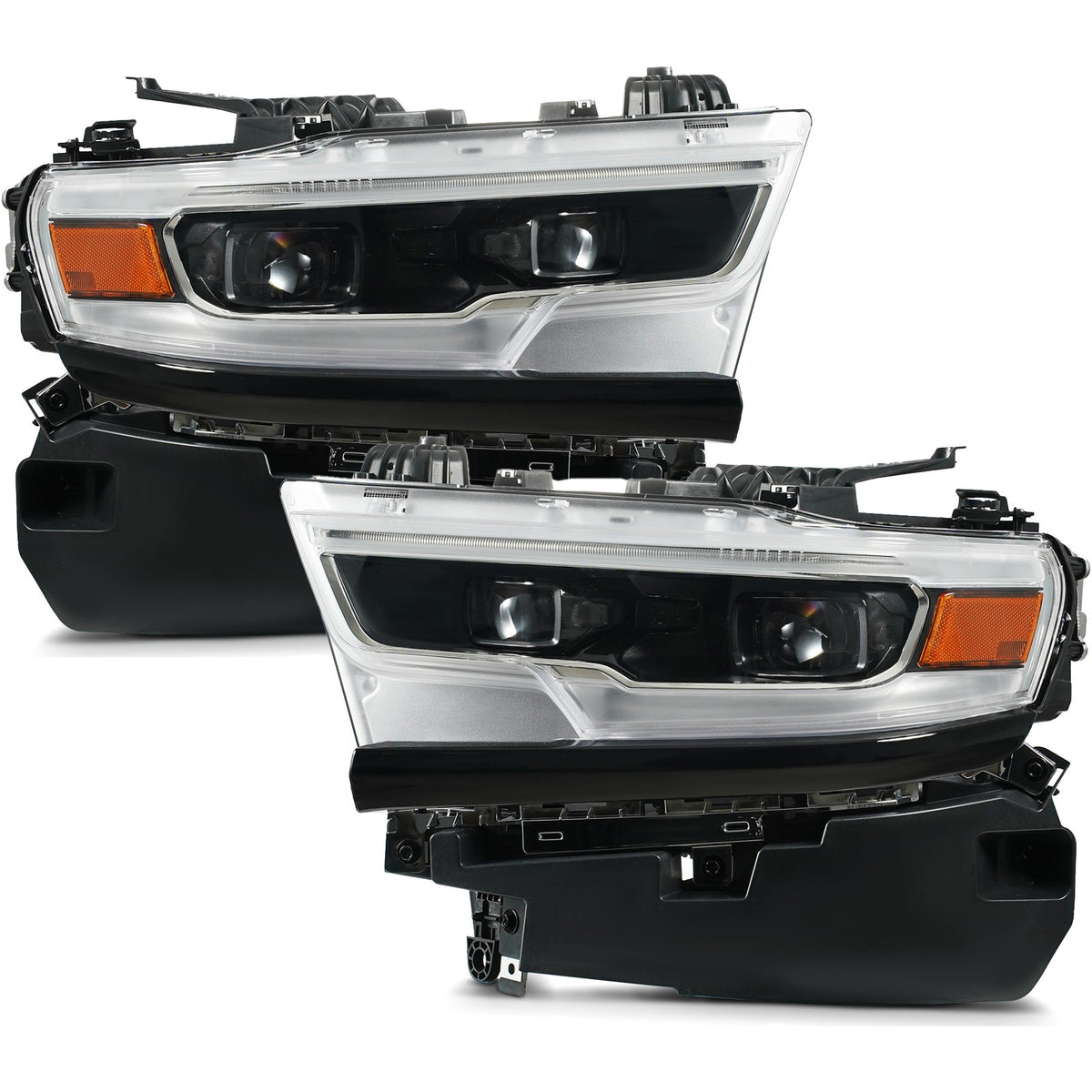

Upgrade LED Projector Headlights Pair w/ AFS, Black for Ram 1500 Halogen/LED Reflector (2019-2024)

Upgrade the halogen or LED-reflector headlights on your 2019-2024 Ram 1500 to LED projectors with AFS with this brand-new black pair, module and bulbs included.

Fitment

Will NOT fit: Ram 1500 Classic; trucks already fitted with LED projectors.

Common Reasons to Replace

• Yellowed, hazy, or oxidized lenses reducing light output
• Cracked lens or broken mounting tabs
• Moisture or condensation inside the housing
• Collision damage

Specs

• Low/high beam, DRL: LED projector
• AFS: yes
• DOT compliant
• Quantity: Pair (Left + Right)
• Condition: New

Interchange Part Numbers

OEM: 68316086AI, 68316086AJ, 68316086AB, 68316086AC, 68316086AD, 68316086AE, 68316086AF, 68316086AG, 68316086AH, 68316087AJ, 68316087AB, 68316087AC, 68316087AD, 68316087AE, 68316087AF, 68316087AG, 68316087AI, 68316088AC, 68316088AD, 68316088AE, 68316088AF, 68316088AG, 68533274AA, 68533275AB, 68316089AB, 68316089AC, 68316089AD, 68316089AE, 68316089AF, 68316089AG, 68533275AA. Partslink: CH2502328, CH2503328, CH2503320, CH2502320.

What's Included

• 1 x Driver side headlight assembly
• 1 x Passenger side headlight assembly
• LED module and bulbs included

Installation

1. Remove the twelve radiator-cover clips and the cover, the four clips and eight 10 mm bolts on the upper grille trim, and lift the trim off.
2. Remove the four 8 mm inner-fender bolts, the 10 mm corner bolt and release the corner filler panel on both sides.
3. Remove the three lower 10 mm grille/headlamp bolts behind each corner panel and the four 10 mm bolts on top of the grille; unplug the front camera and lift the grille off its tabs.
4. Remove the top and side 10 mm headlamp bolts, unplug and remove the lamp, install the new one and reverse; aim the headlights.

Steps compiled from Form Lighting "How to Install 2019+ Ram 1500 LED Headlights" guide and SPEC-D 2019-up Ram 1500 install guide. Professional installation and headlight aiming are recommended.

FAQs

Do I need a different grille?
Per the listing, halogen/LED-reflector trucks need the matching LED-style grille and bumper end caps for a full fit (sold separately).

Will these fit a Ram 1500 Classic?
No.

Do I need to remove the front bumper to replace these headlights?
No. Only the grille and corner filler panels come off.

Can I install HID or LED kits?
Not applicable. The low and high beams are built-in factory LED; there is no replaceable headlight bulb for an LED or HID kit.
