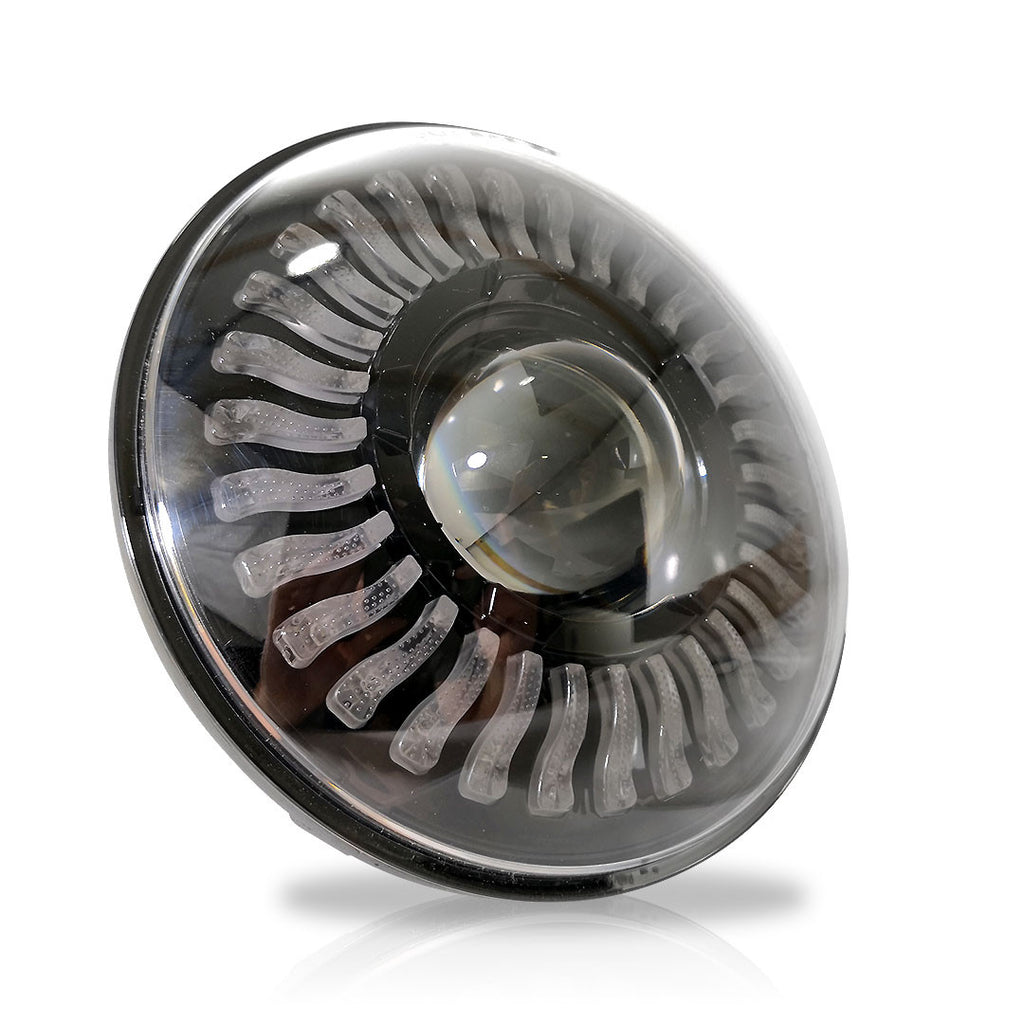

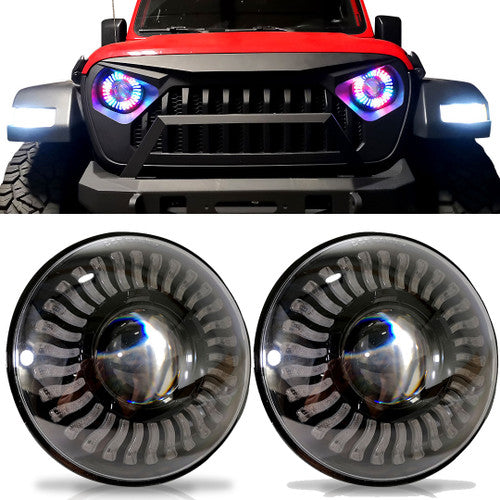

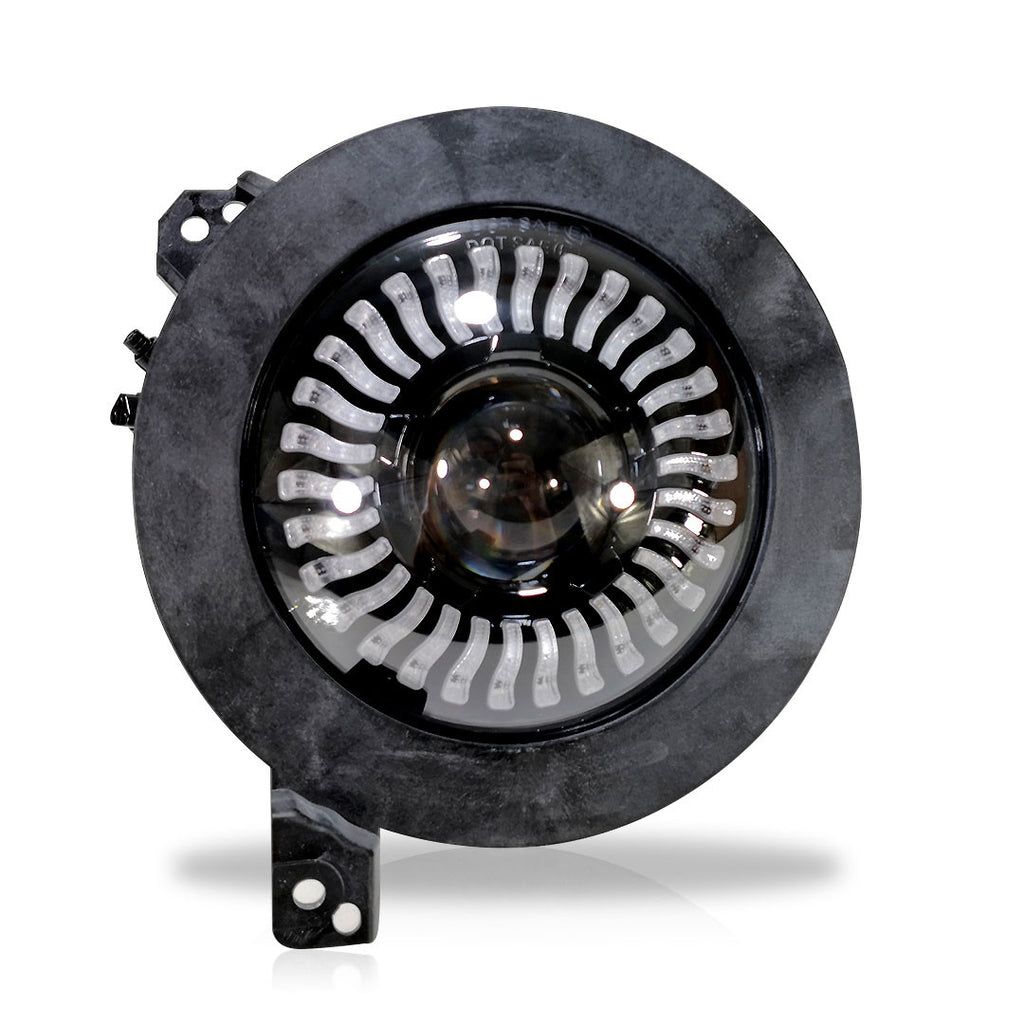

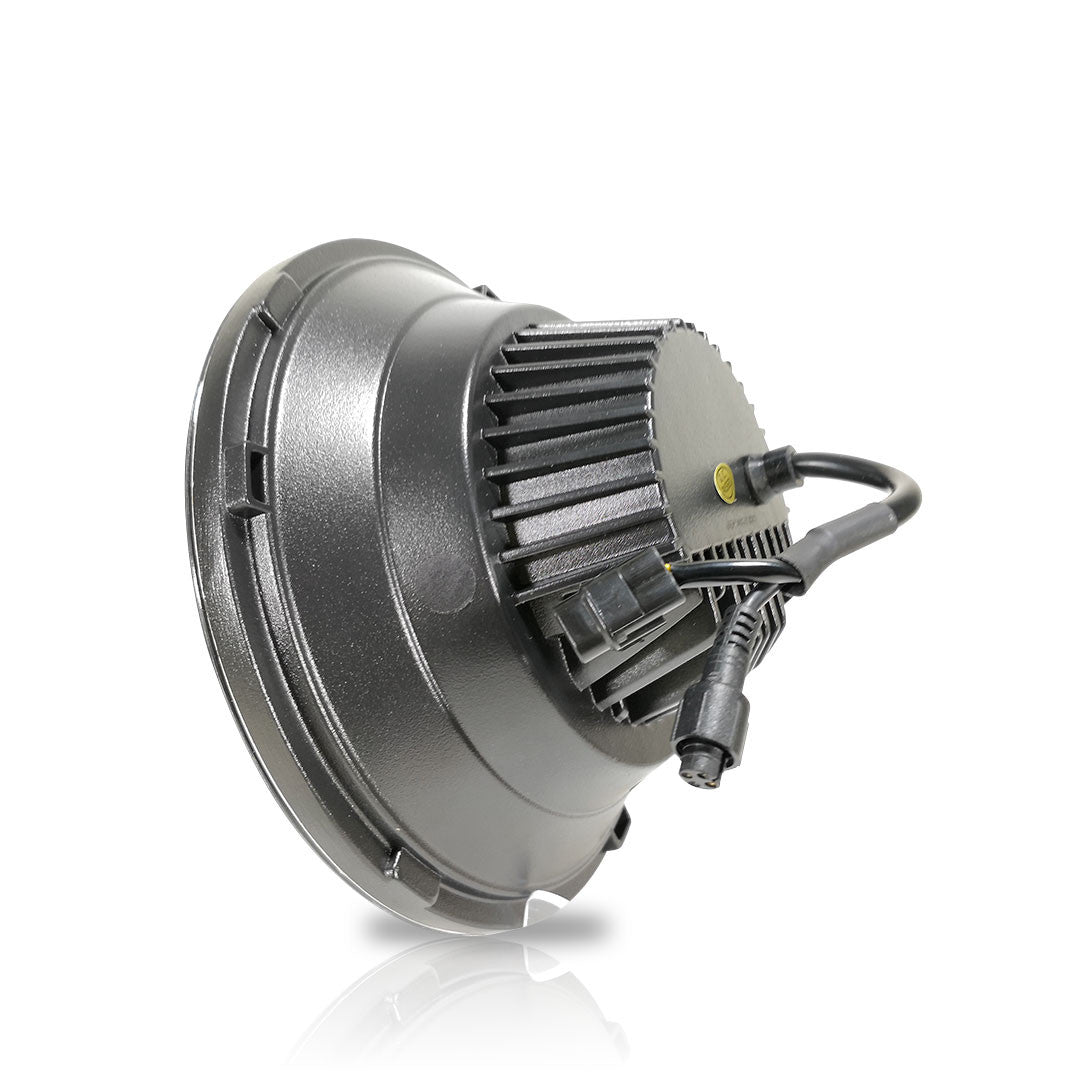

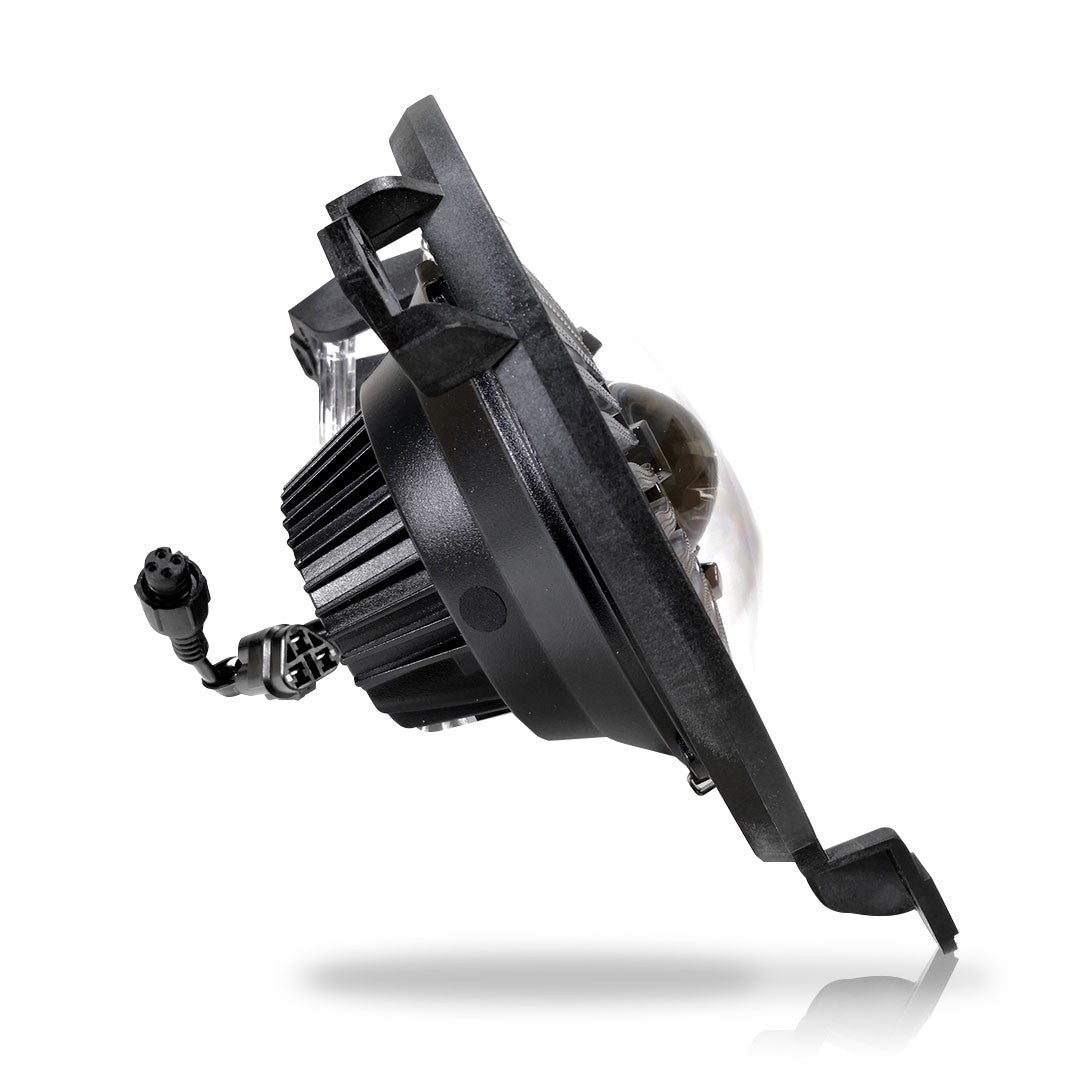

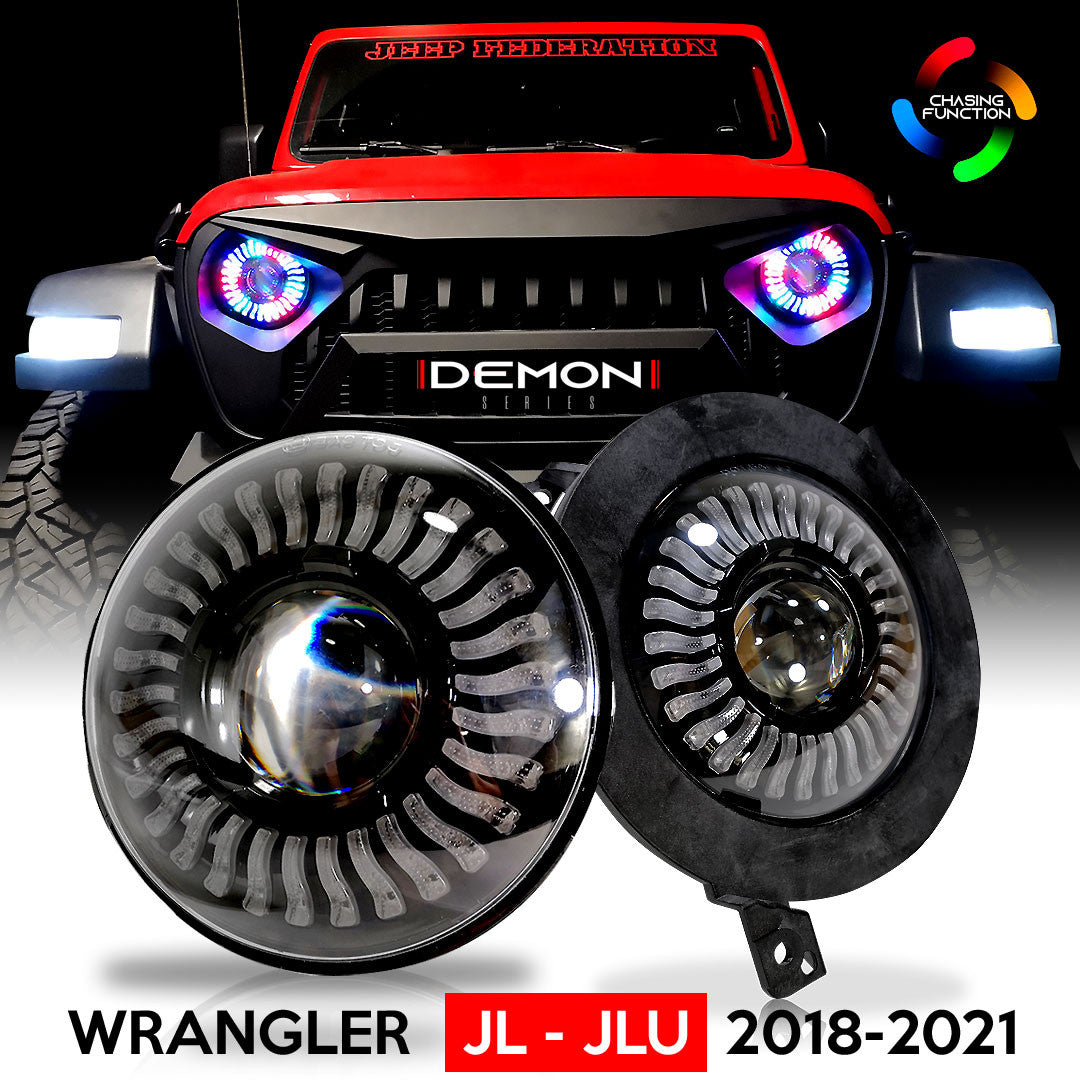

Demon Series LED headlights are the latest in modern headlight technology. Equipped with a powerful projector lens, unique 3D chasing halo ring and a sleek modern design. Control the Halo ring function via hand held remote or through the APP.
By far, one of the most capturing headlights we have ever released.
FITMENT: 7 inch type Headlights fits Jeep Wrangler 2018+ including JL, JL and Gladiator Models

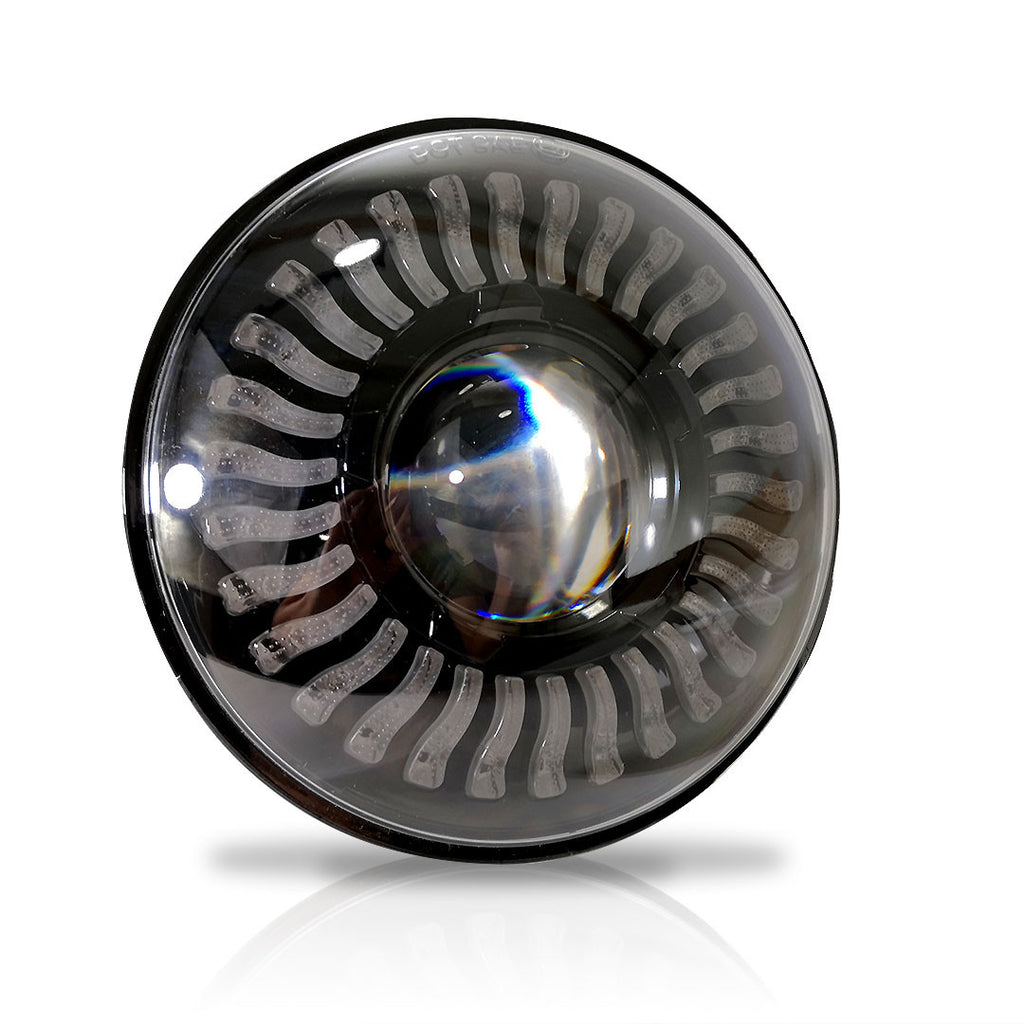

POWERFUL DUAL PROJECTOR: Low beam 3200 Lumens / High Beam 6400 Lumens at 6000-6500K cool white
CONTROL: Use the provided remote control or bluetooth (PRO RGB) APP found in Android/IOS app store

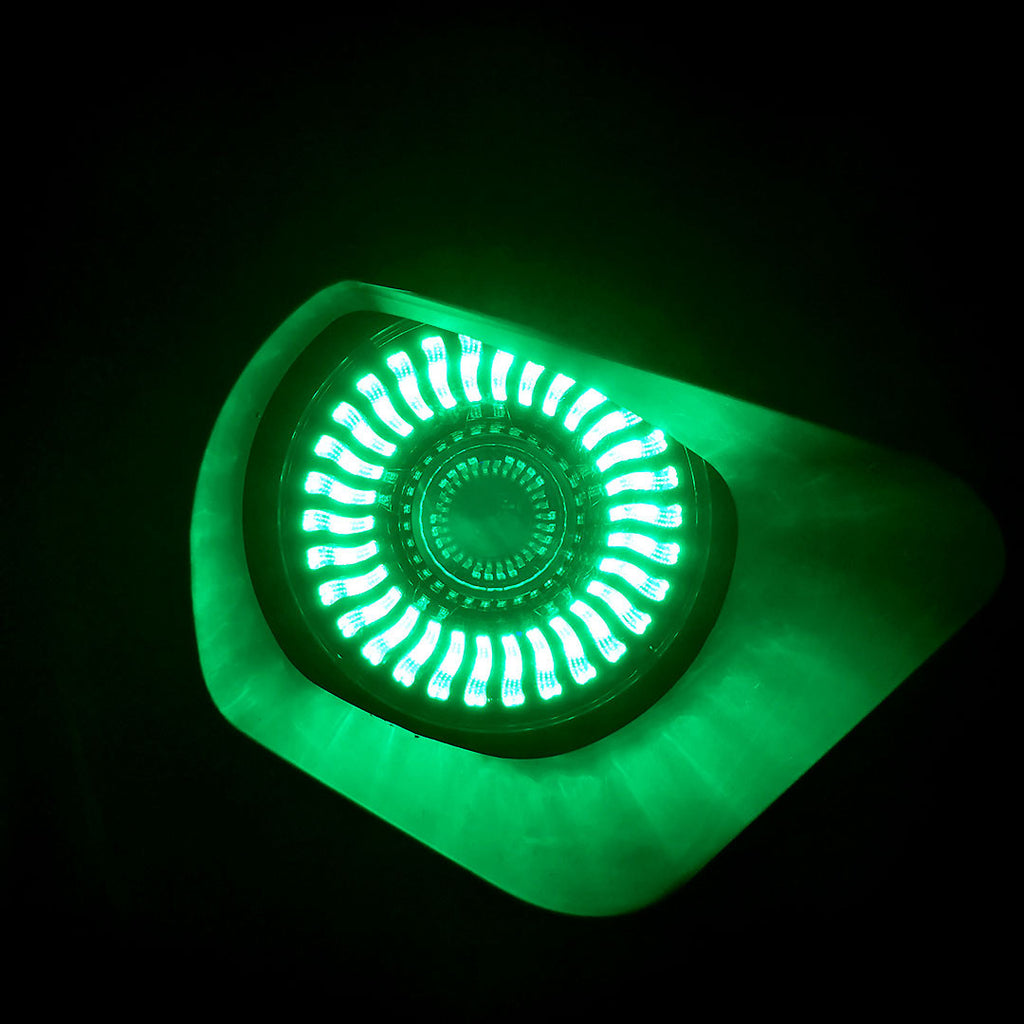

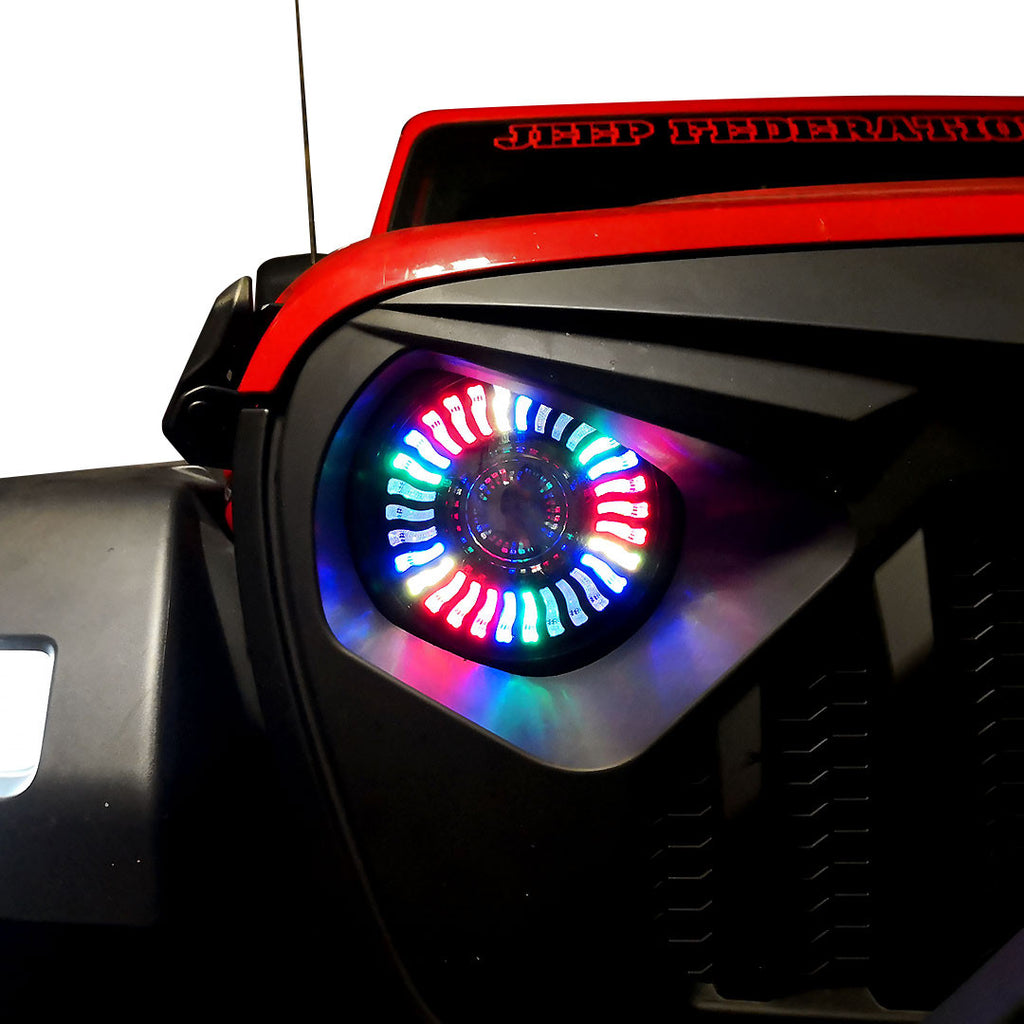

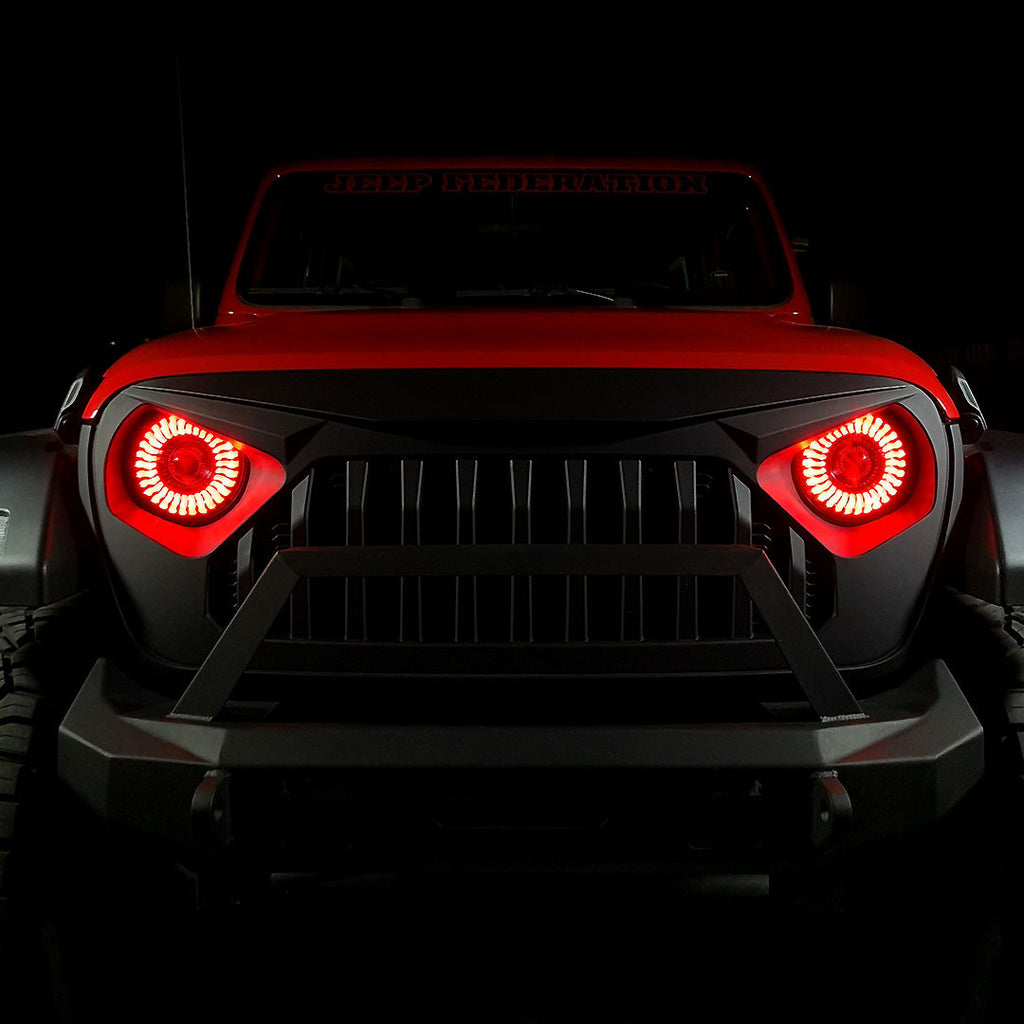

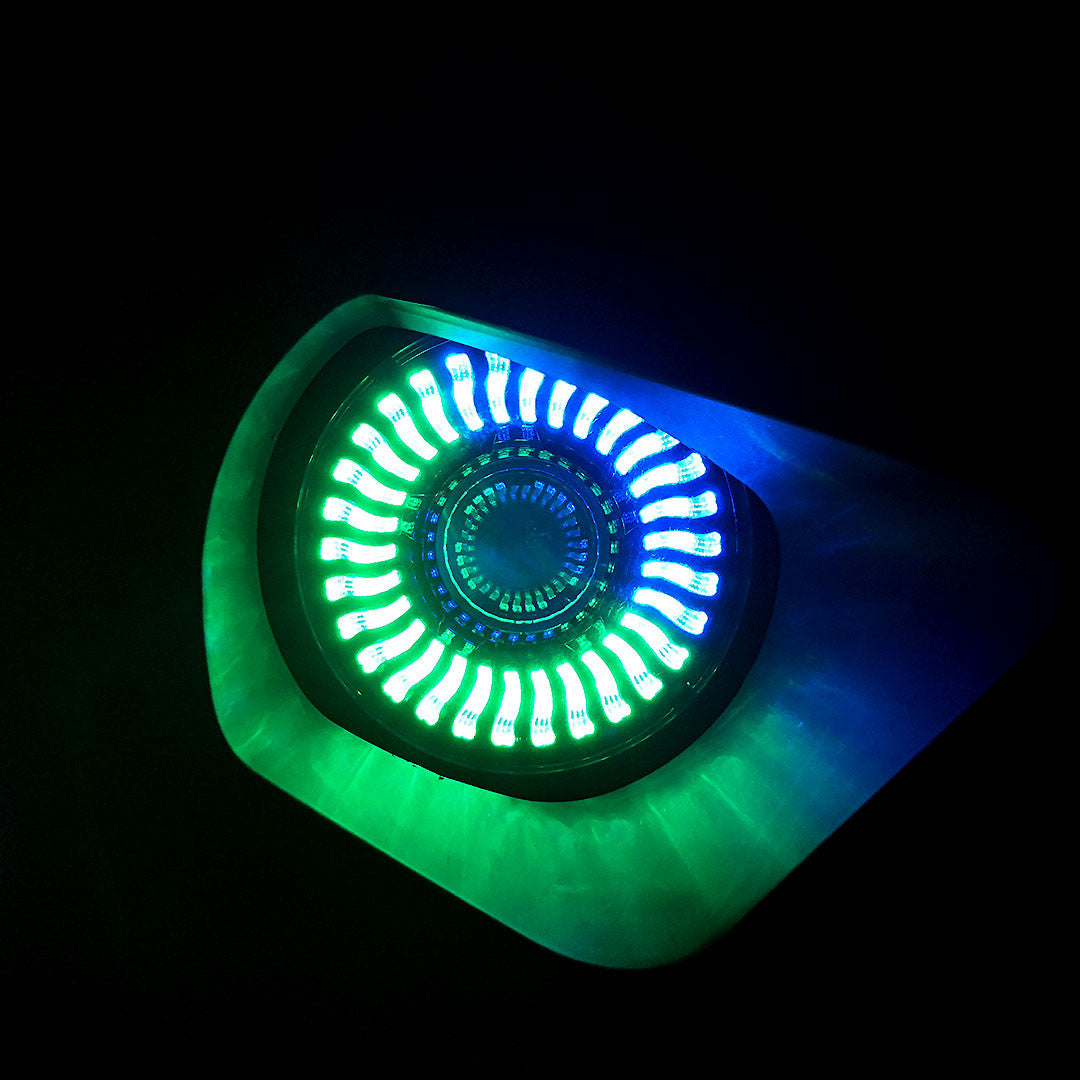

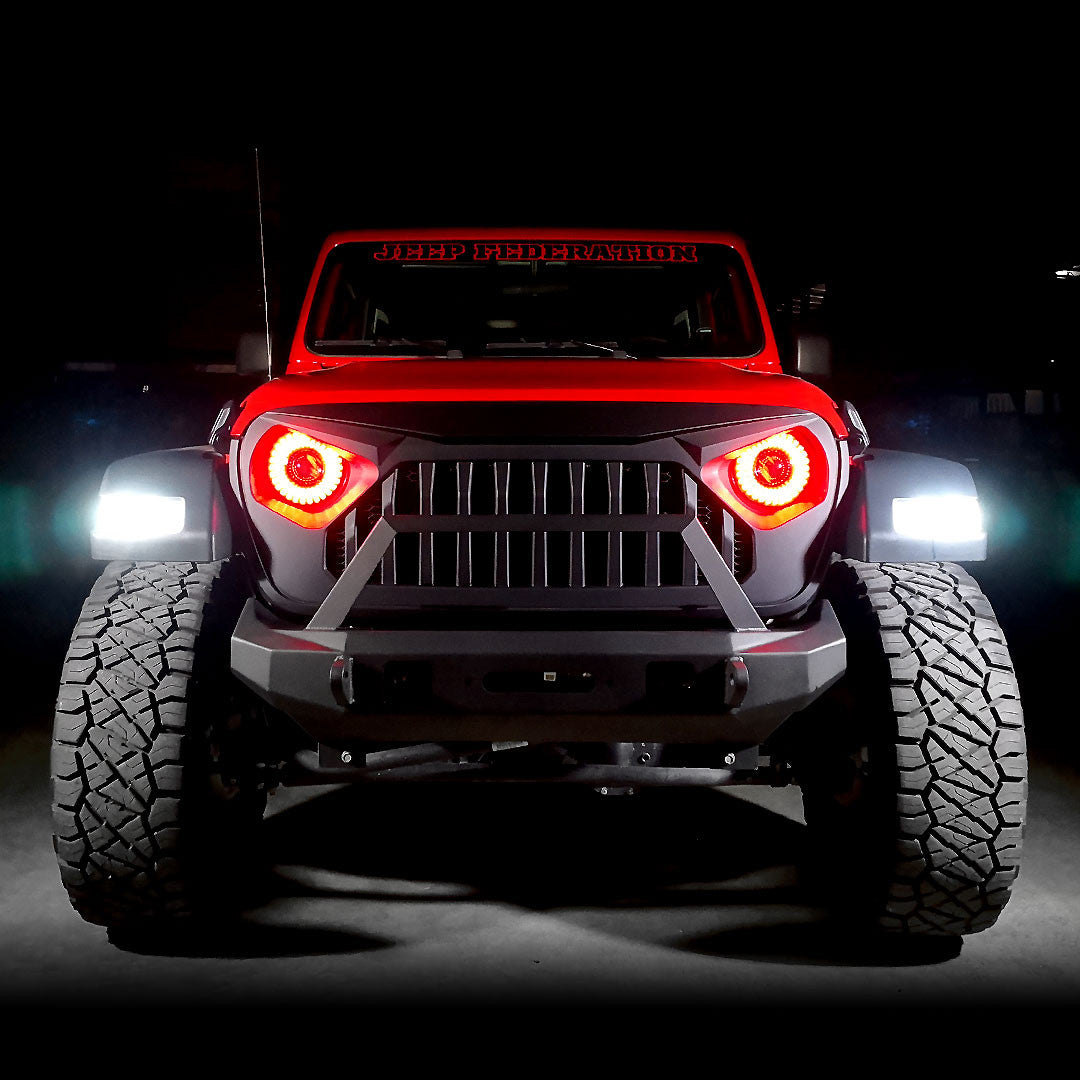

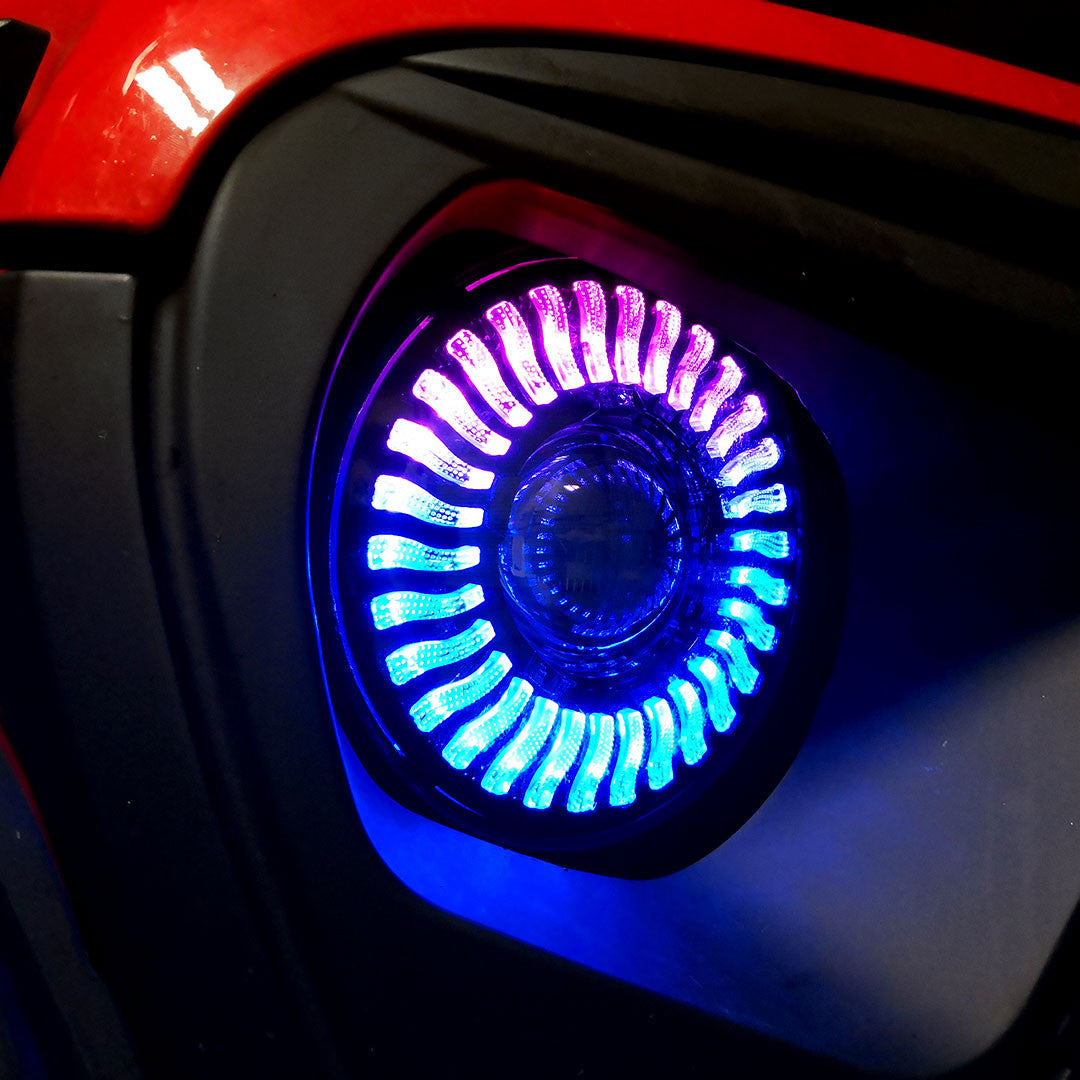

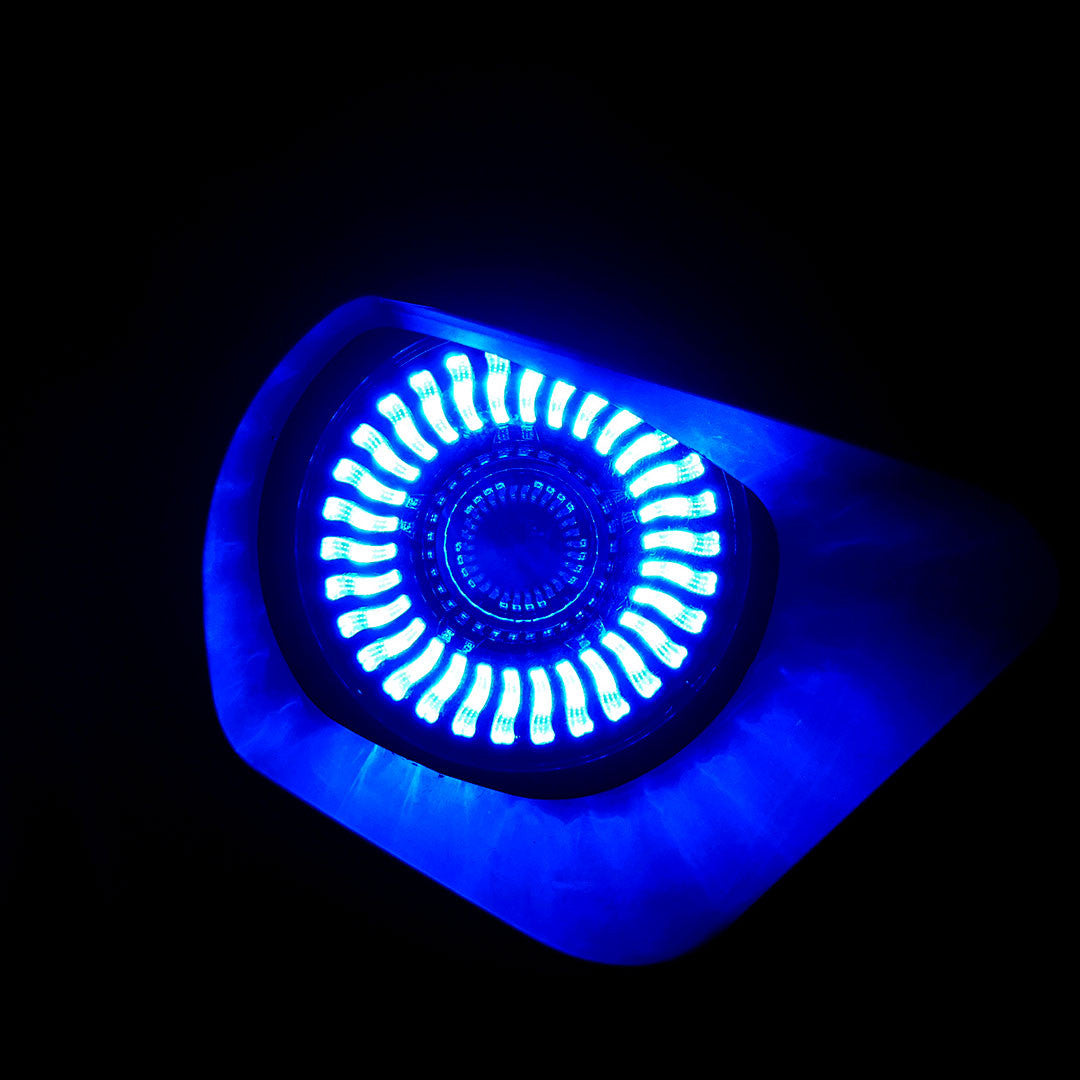

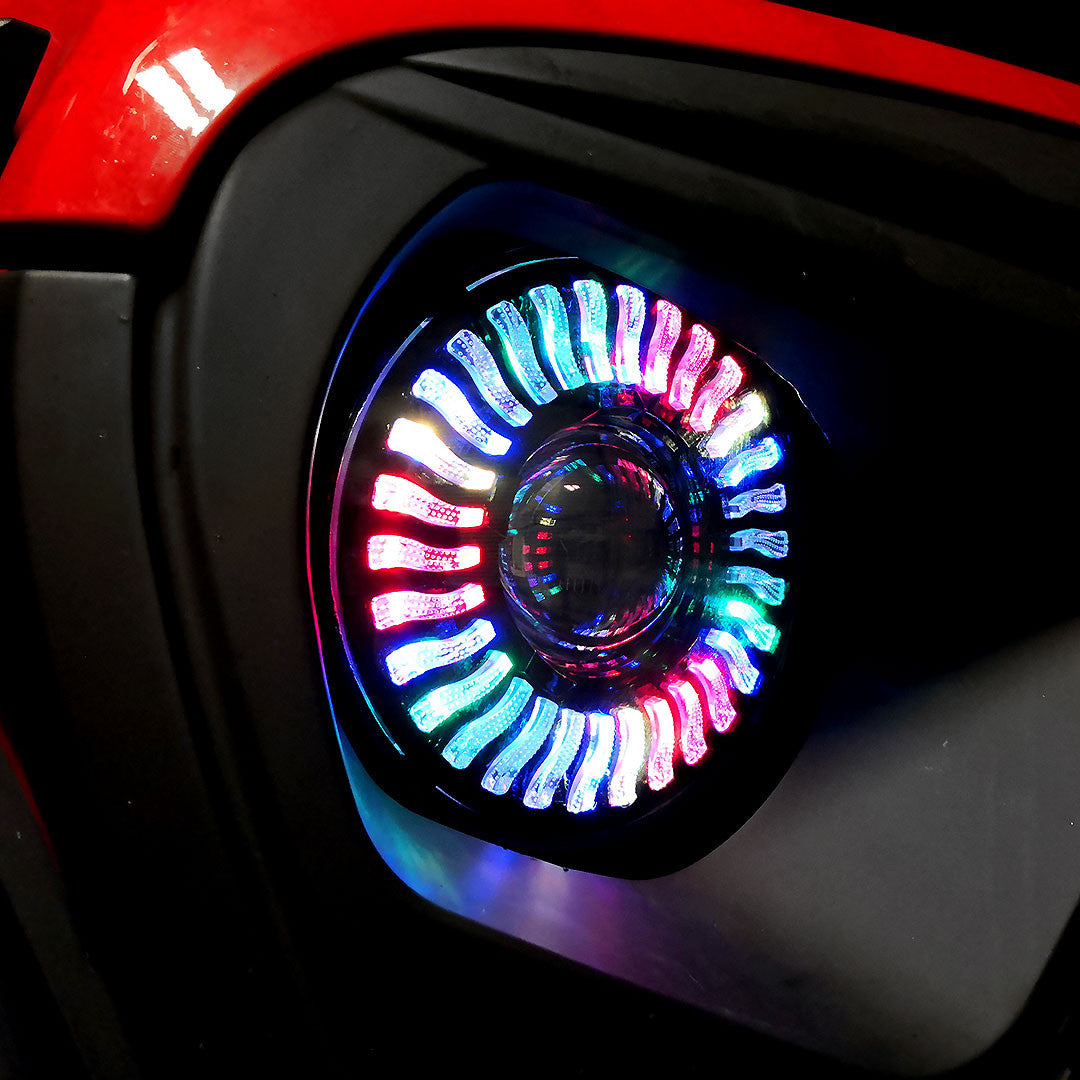

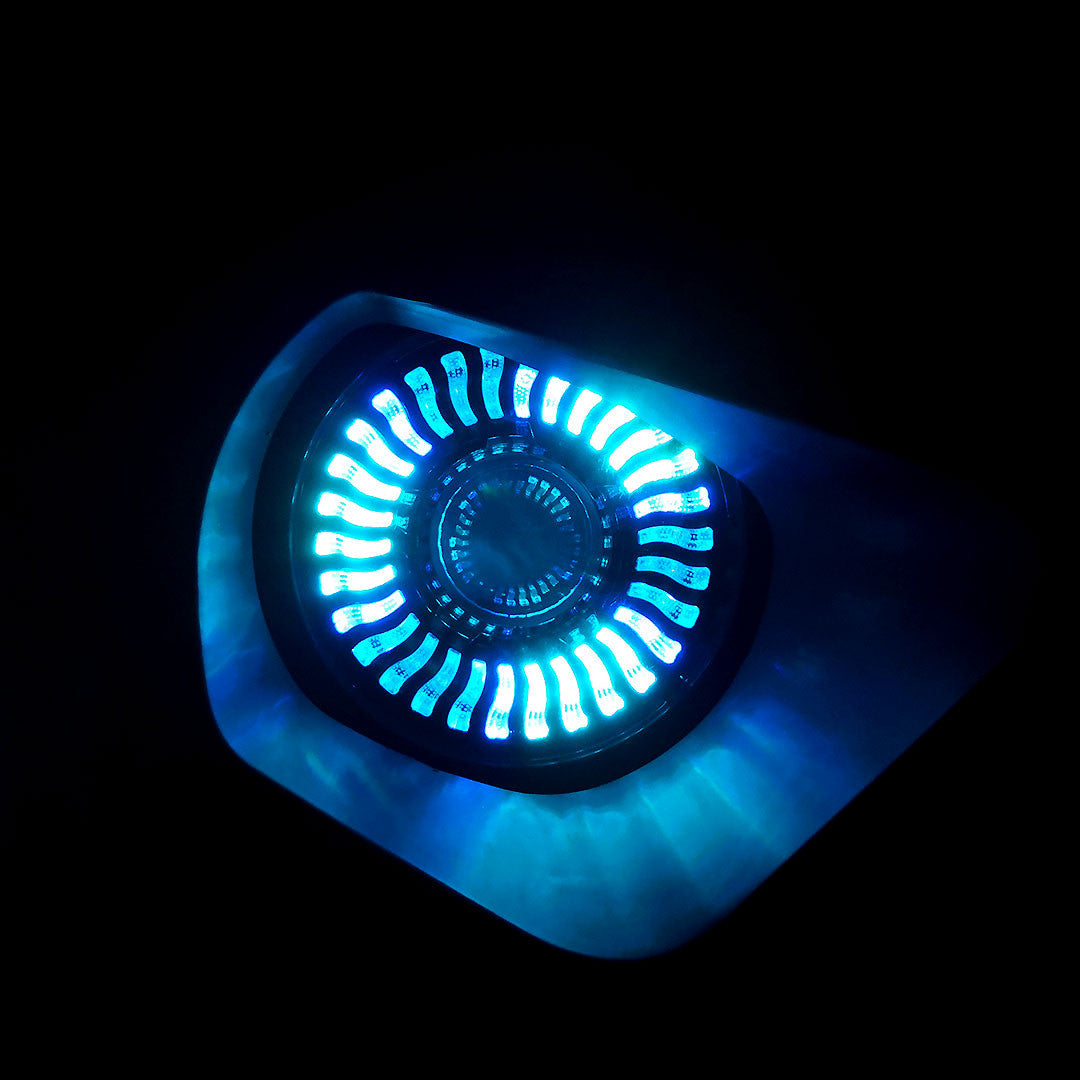

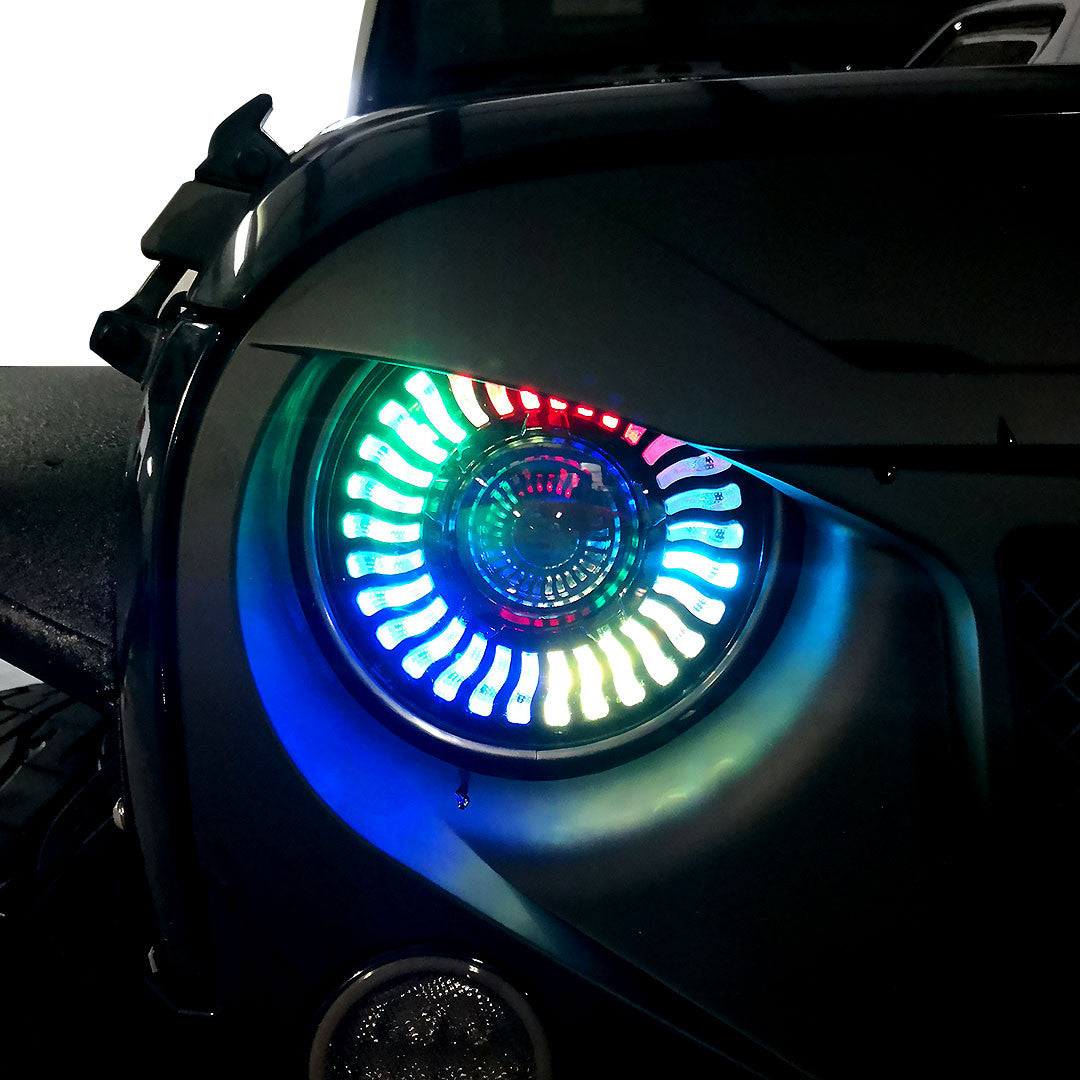

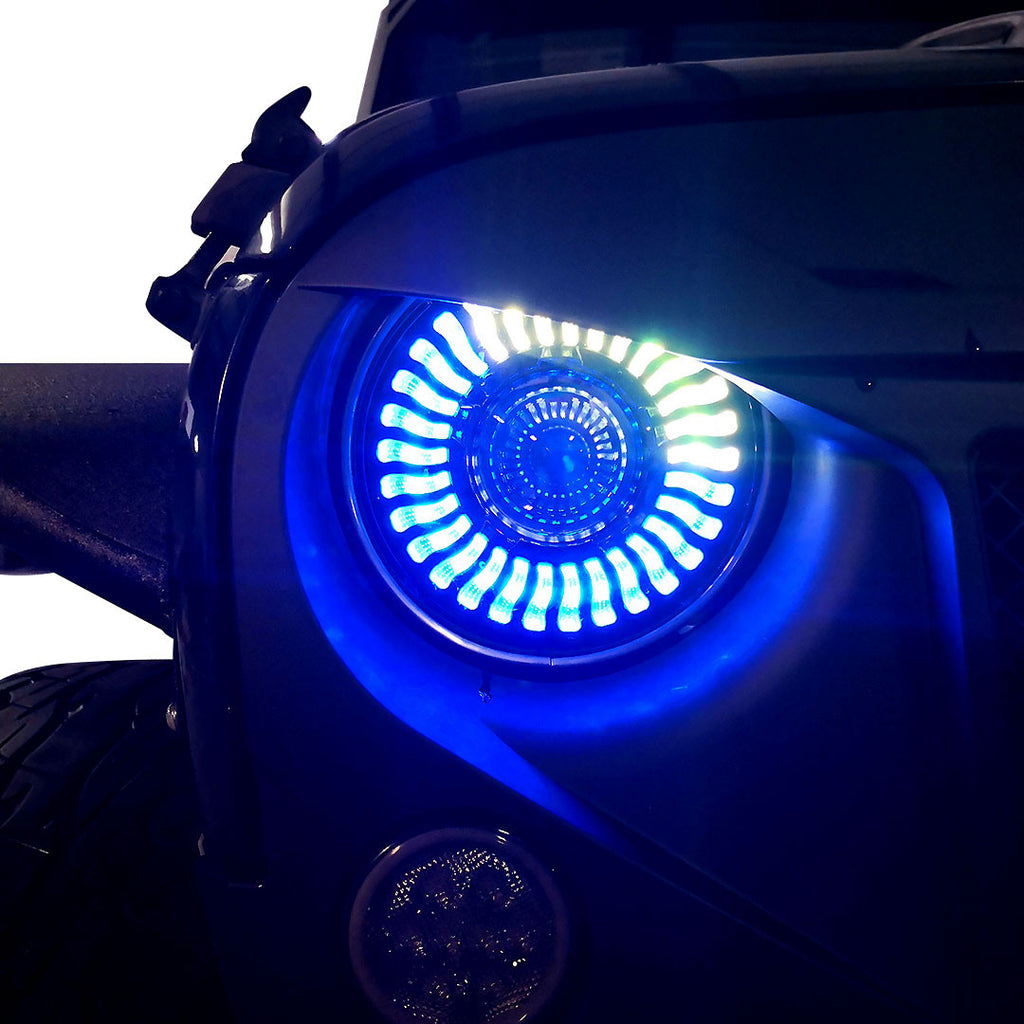

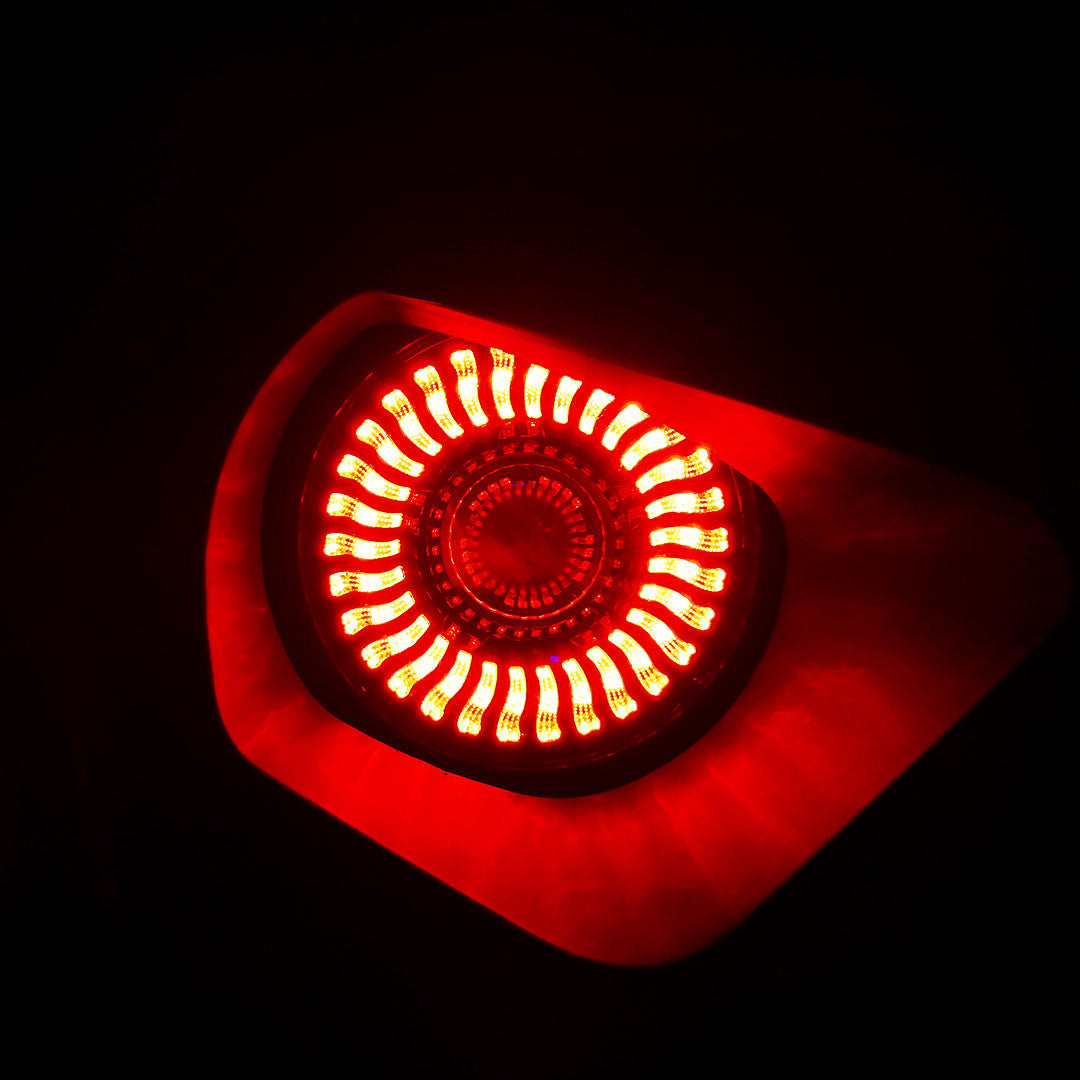

HALO RING: Choose chasing colors or optical illusion patterns uniquely not found in any other headlamp
INCLUDES: Two headlamps with custom bracket, controller, remote, and wiring adapters for fuse box installation

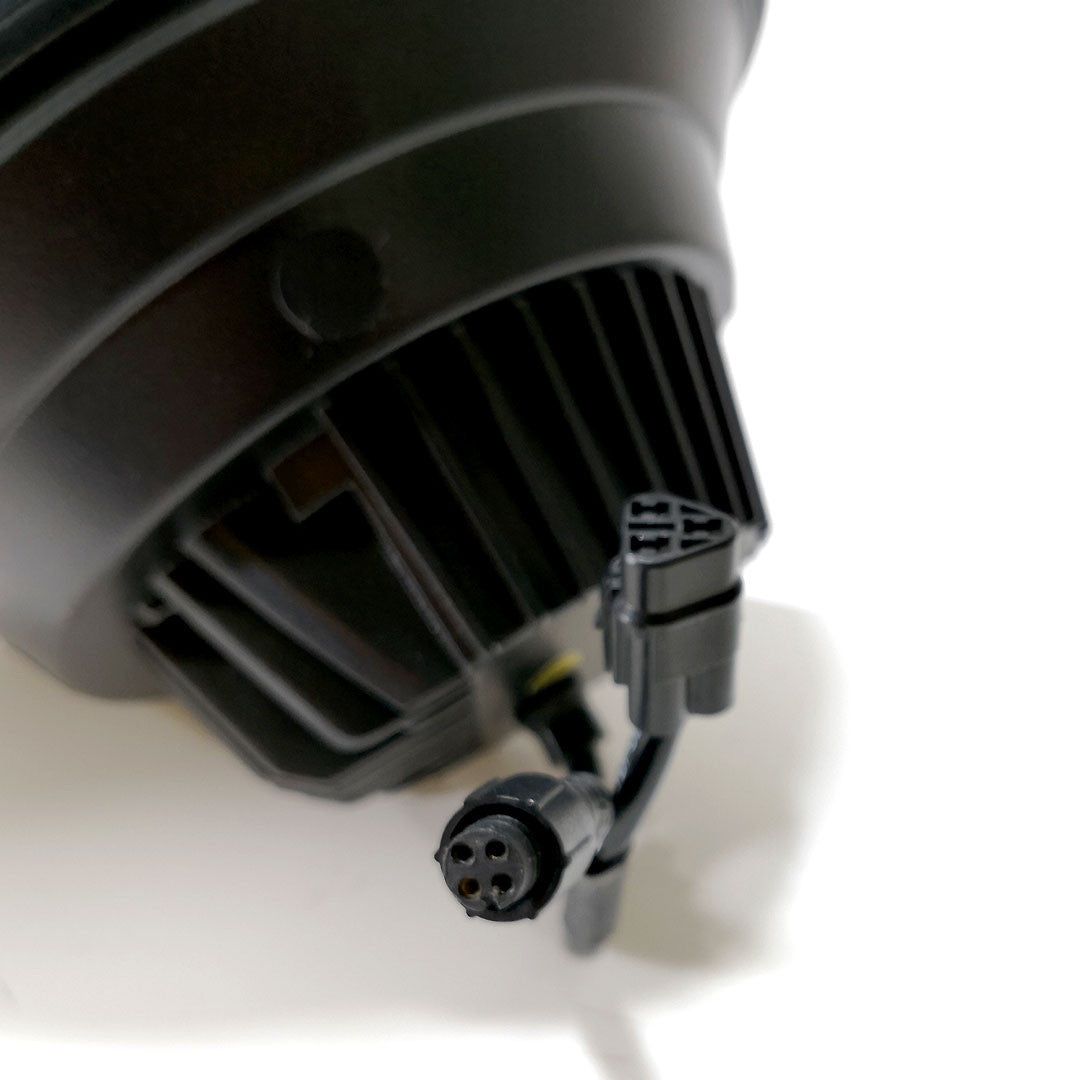

Low Beam and High beam connection to the H4/H13 factory headlight harness

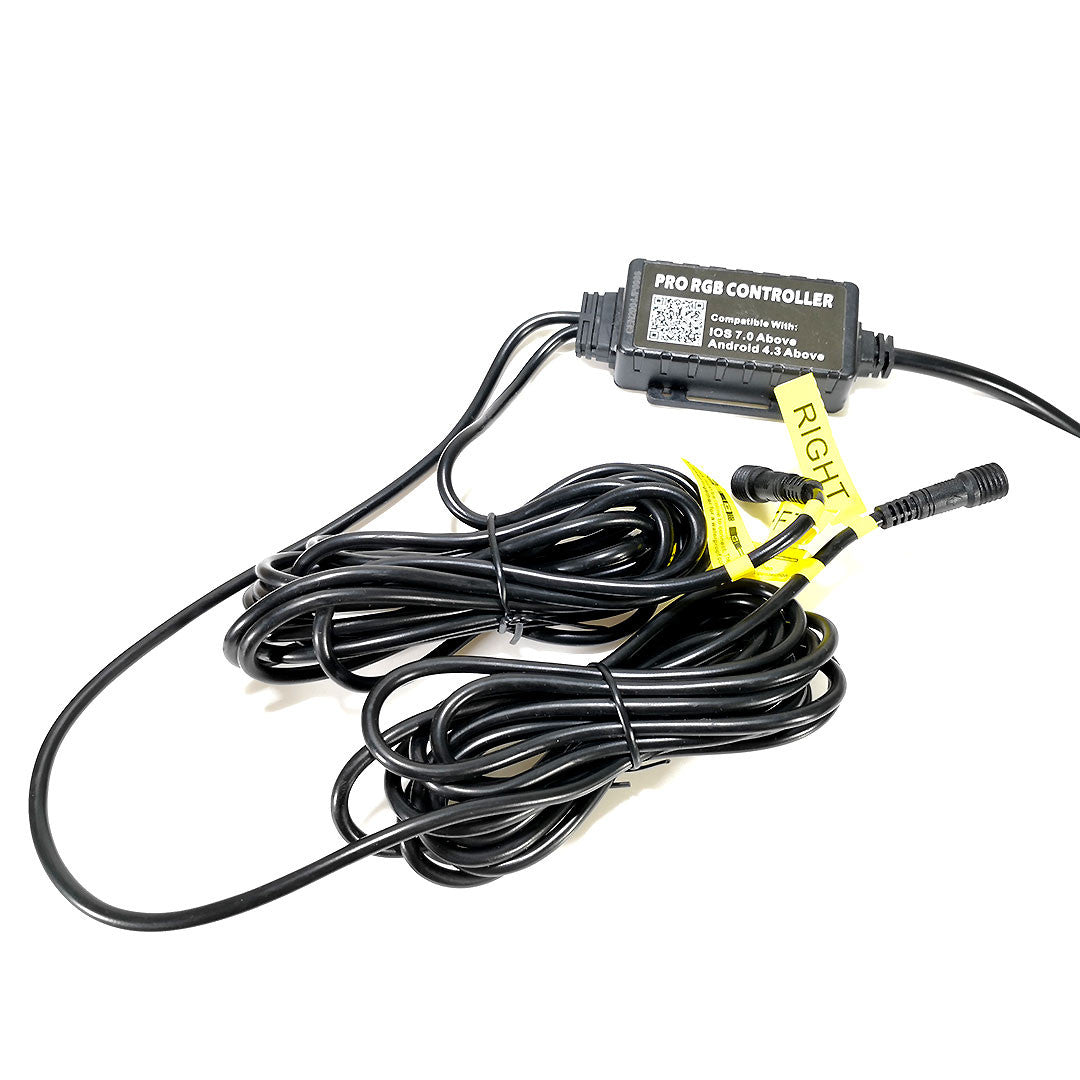

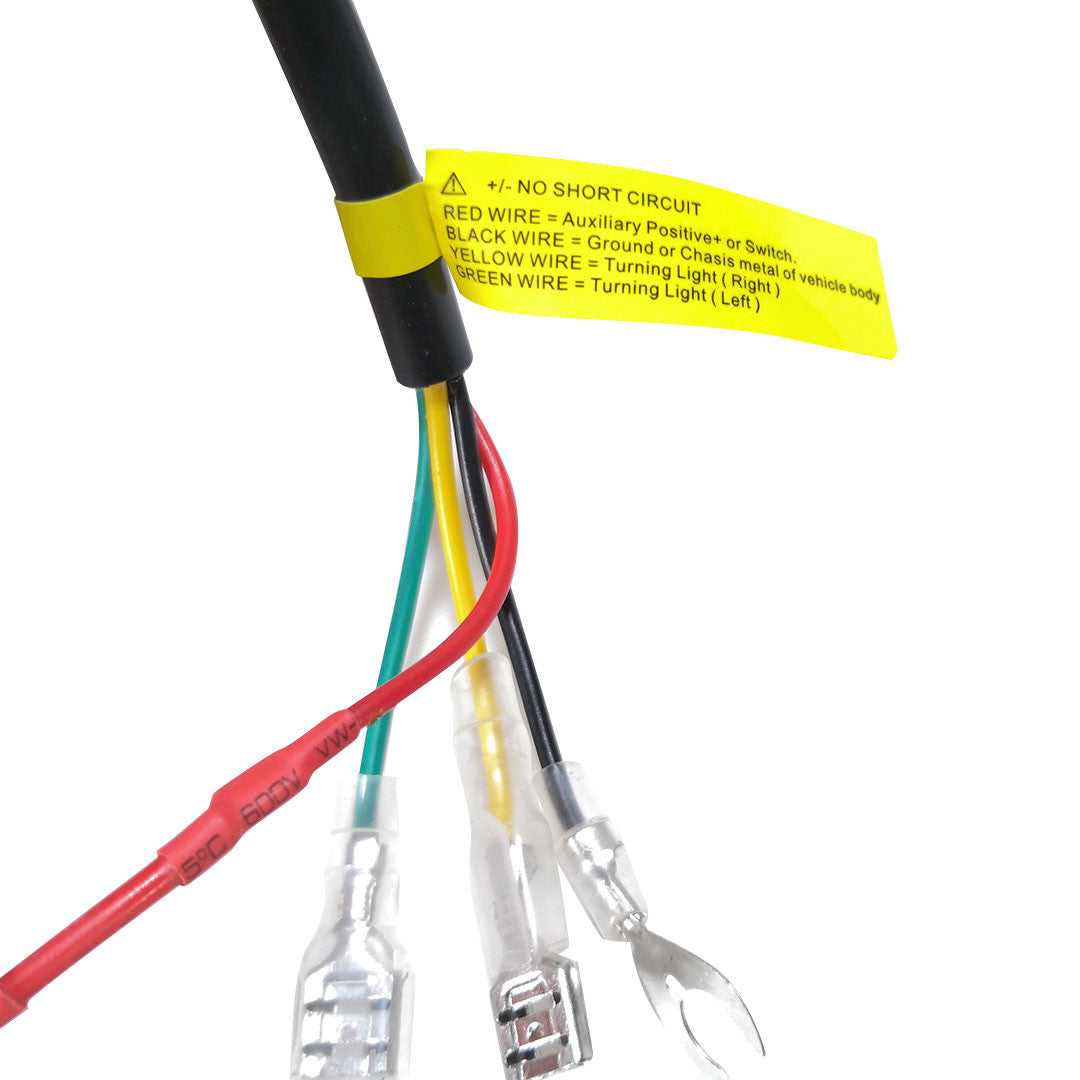

Halo Function is powered by a small wireless controller that needs to be wired.

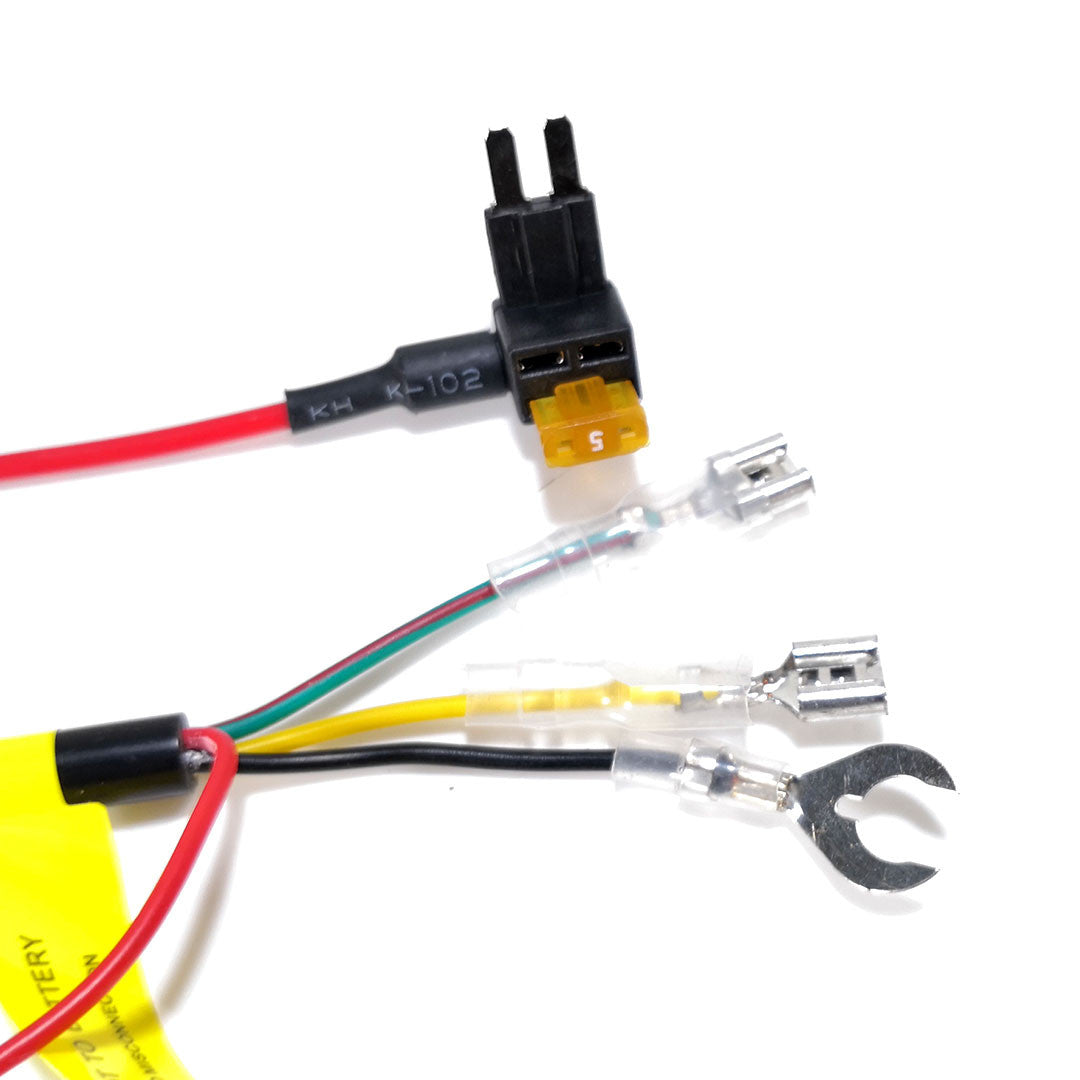

Use the optional fuse holder (Red) to insert into an existing fuse in your fuse box or cut and wire to 12V+ switched power source.
The controller should not be wired directly to the battery as it needs to be power cycled. Use an existing 12V+ that shuts off when vehicle off.
Ground wire (Black) can be installed to any bolt touching your chassis or wired to the negative terminal of battery.

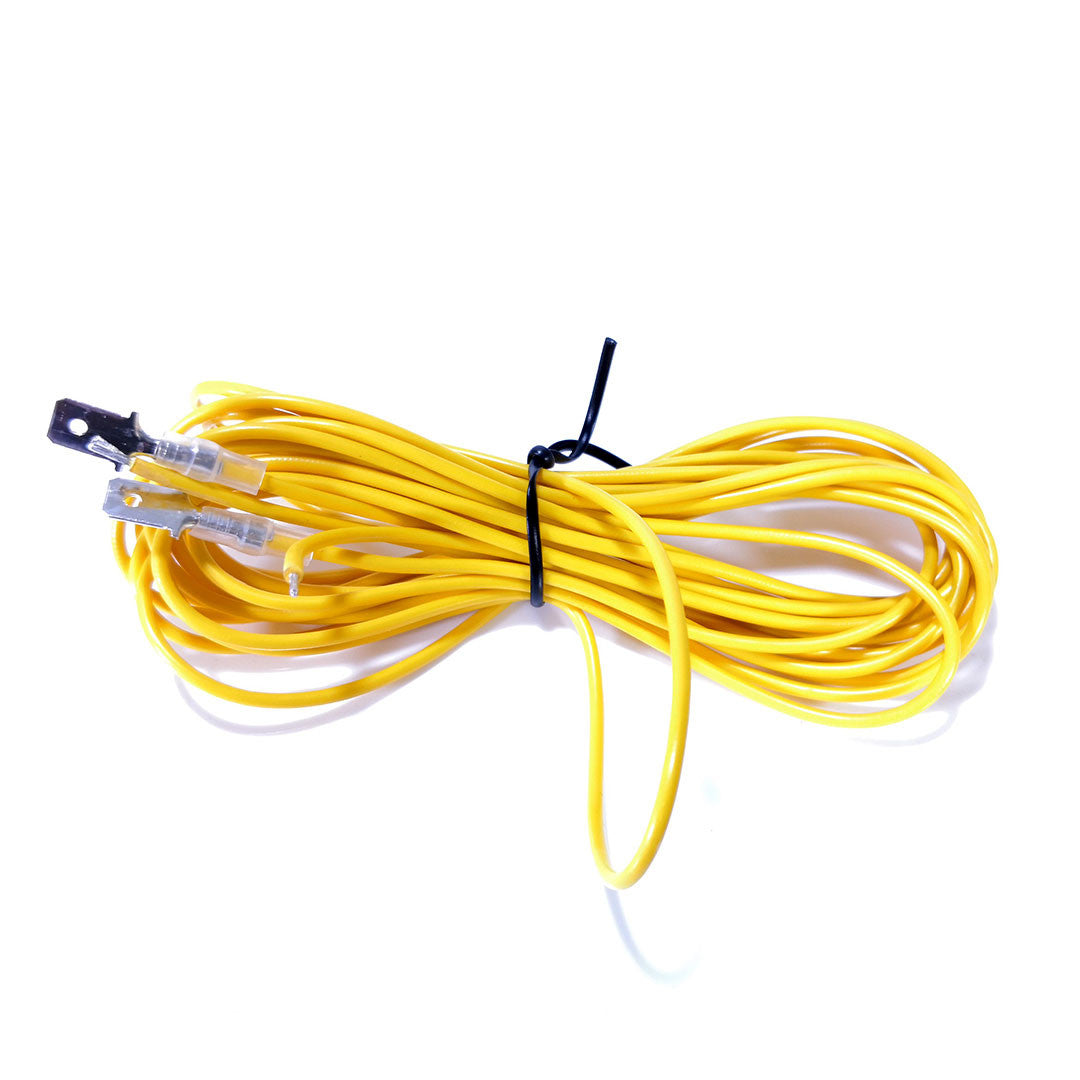

Yellow/Green Wires (optional) can be wired to your turn signal 12V+ wire if you desired.
Installation How does it works? By remote or by "PRO RGB" App for Android or IOS
Includes

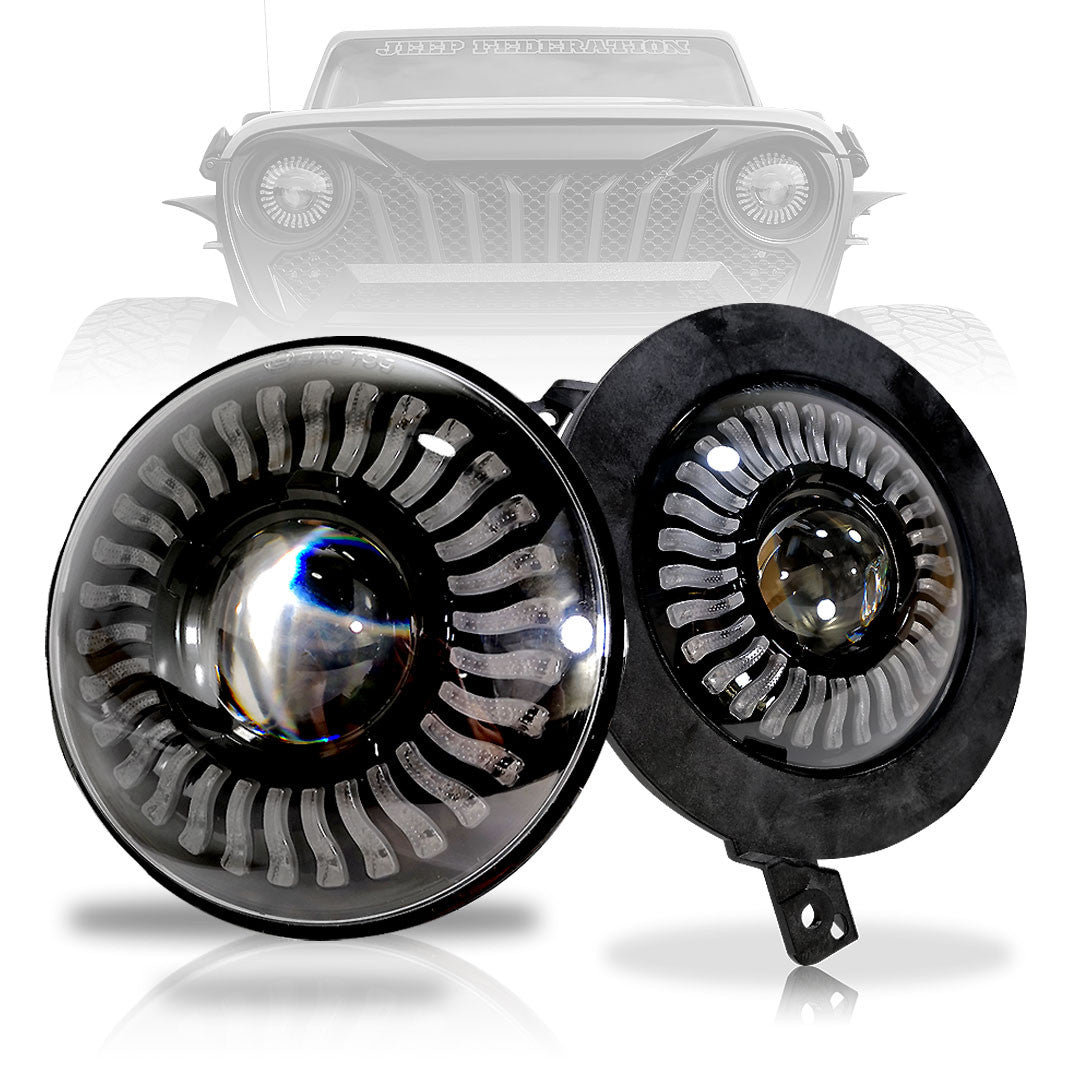

- 2x Headlights
- Wiring Harness and Connections

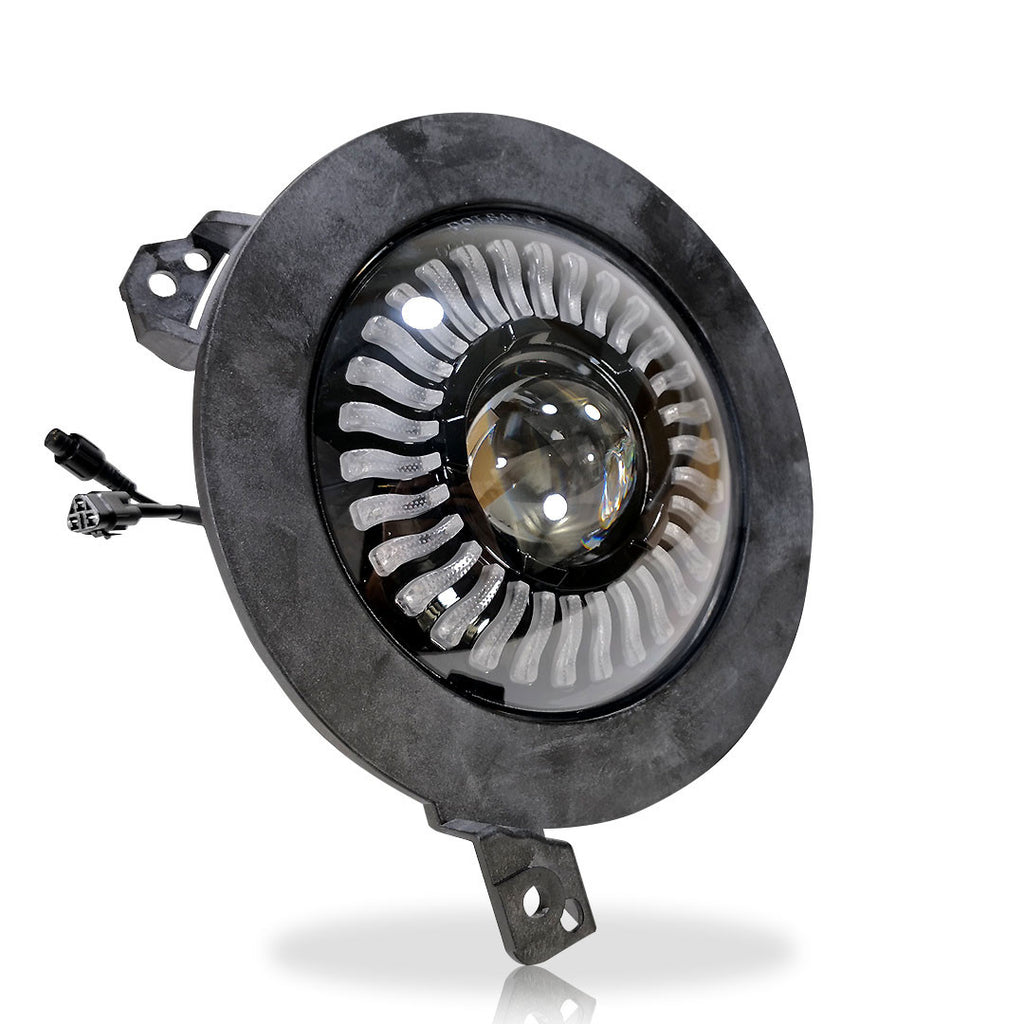

- Bracket for JL JLU Gladiator Installations 2018+
Specs
- Built-in EMC voltage regulator
- 100W
- 3200 Lumens Low Beam
- 6500 Lumens High Beam
- AHO-LED Technology
- DRL Function Plug and Play
- Bluetooth Controller
- RF Remote Control

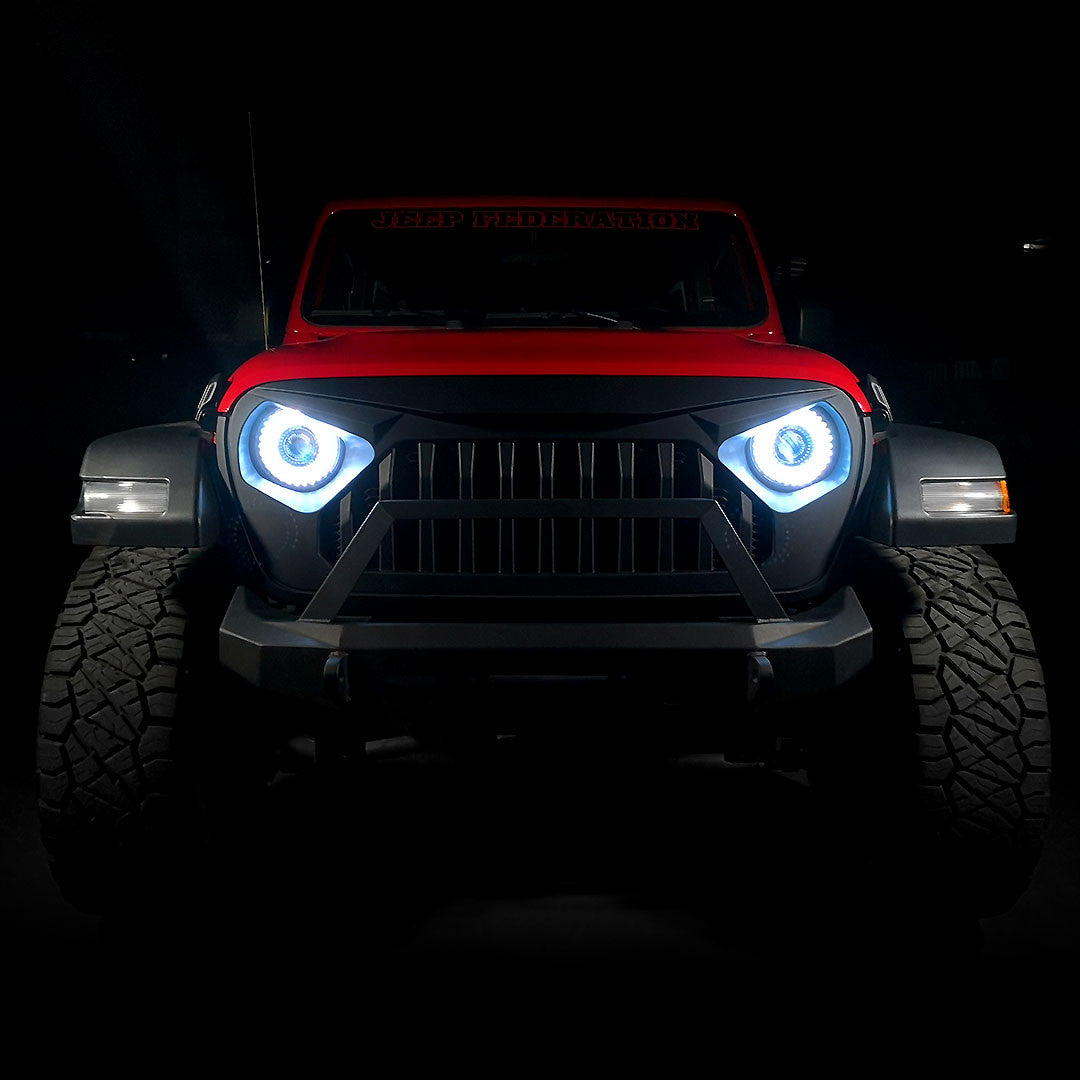

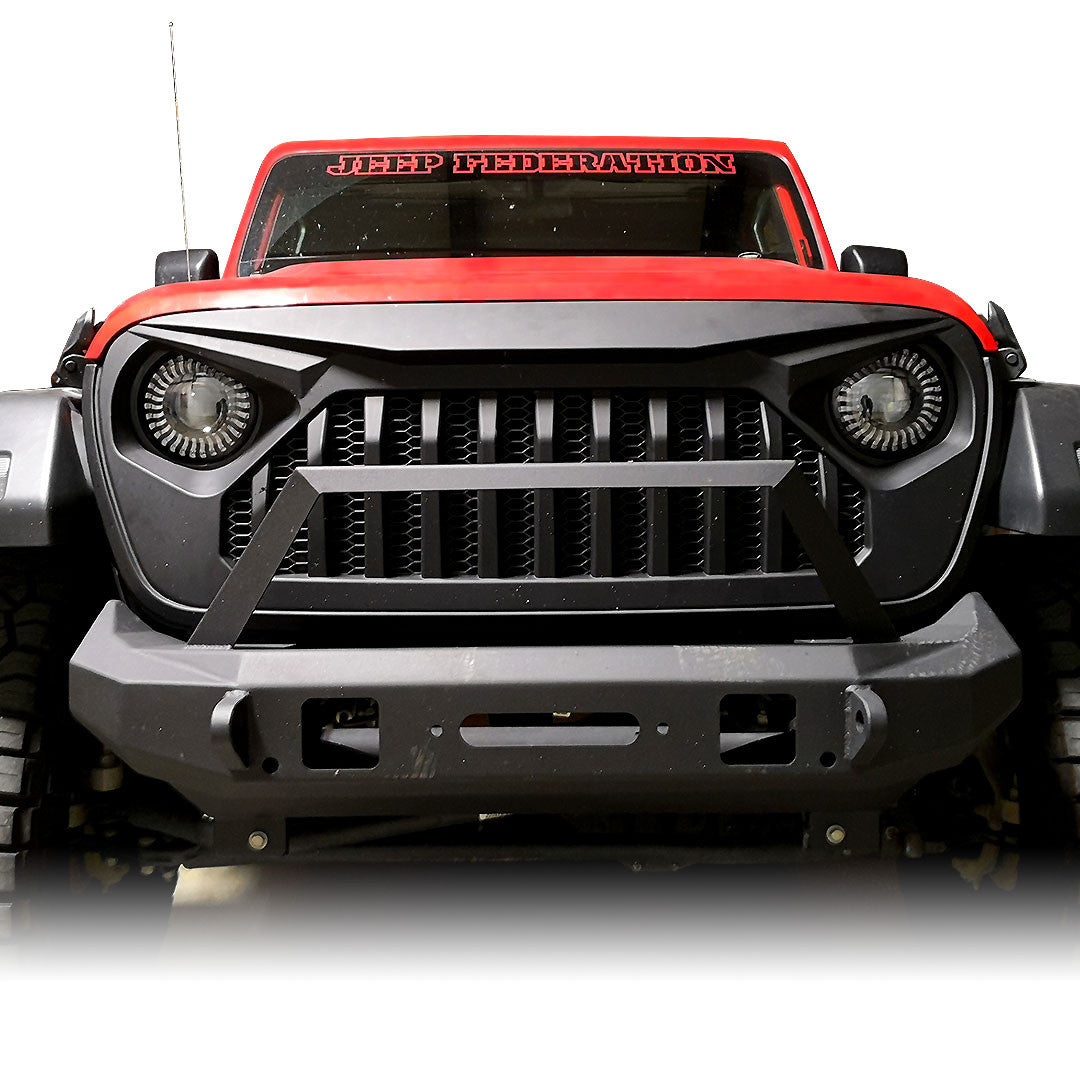

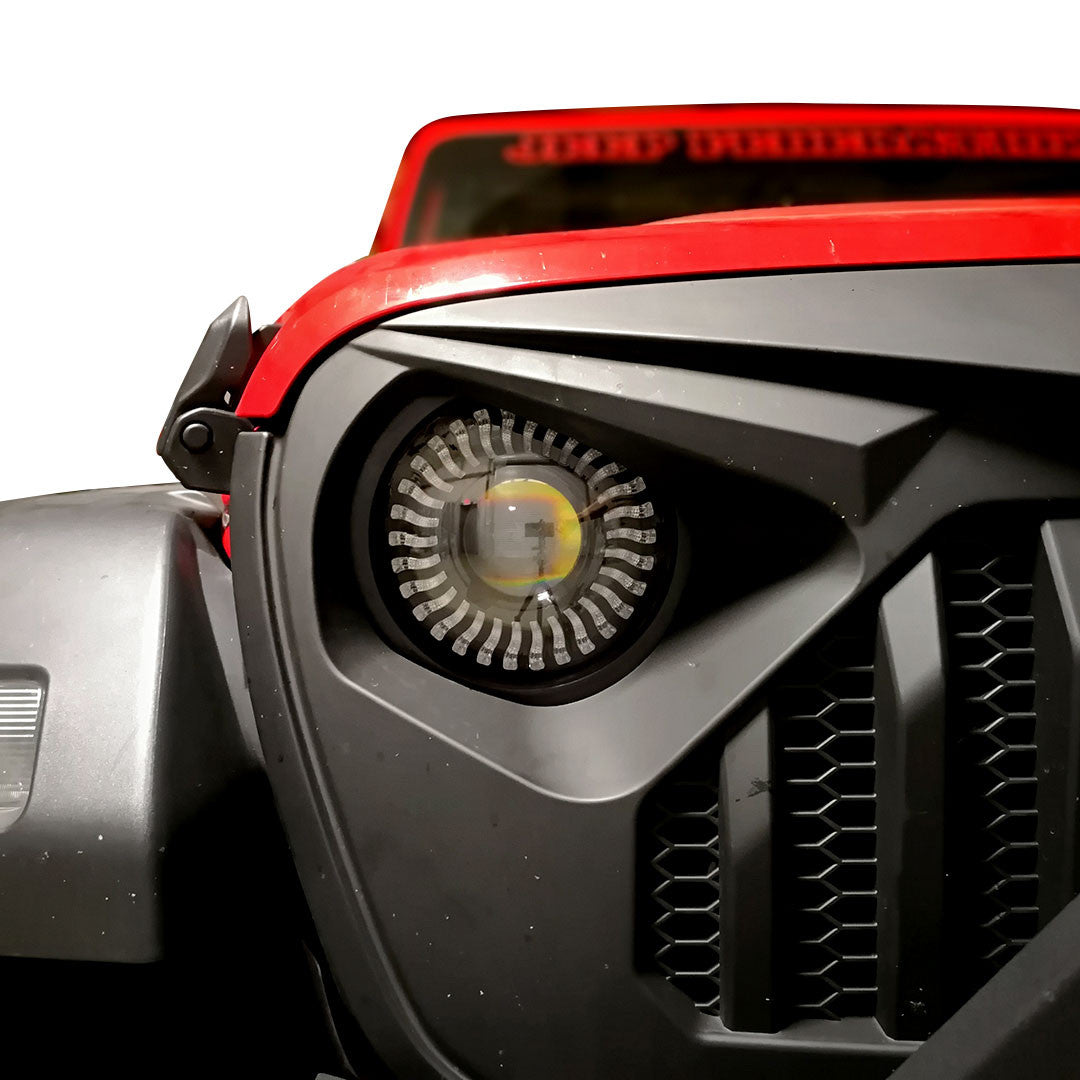

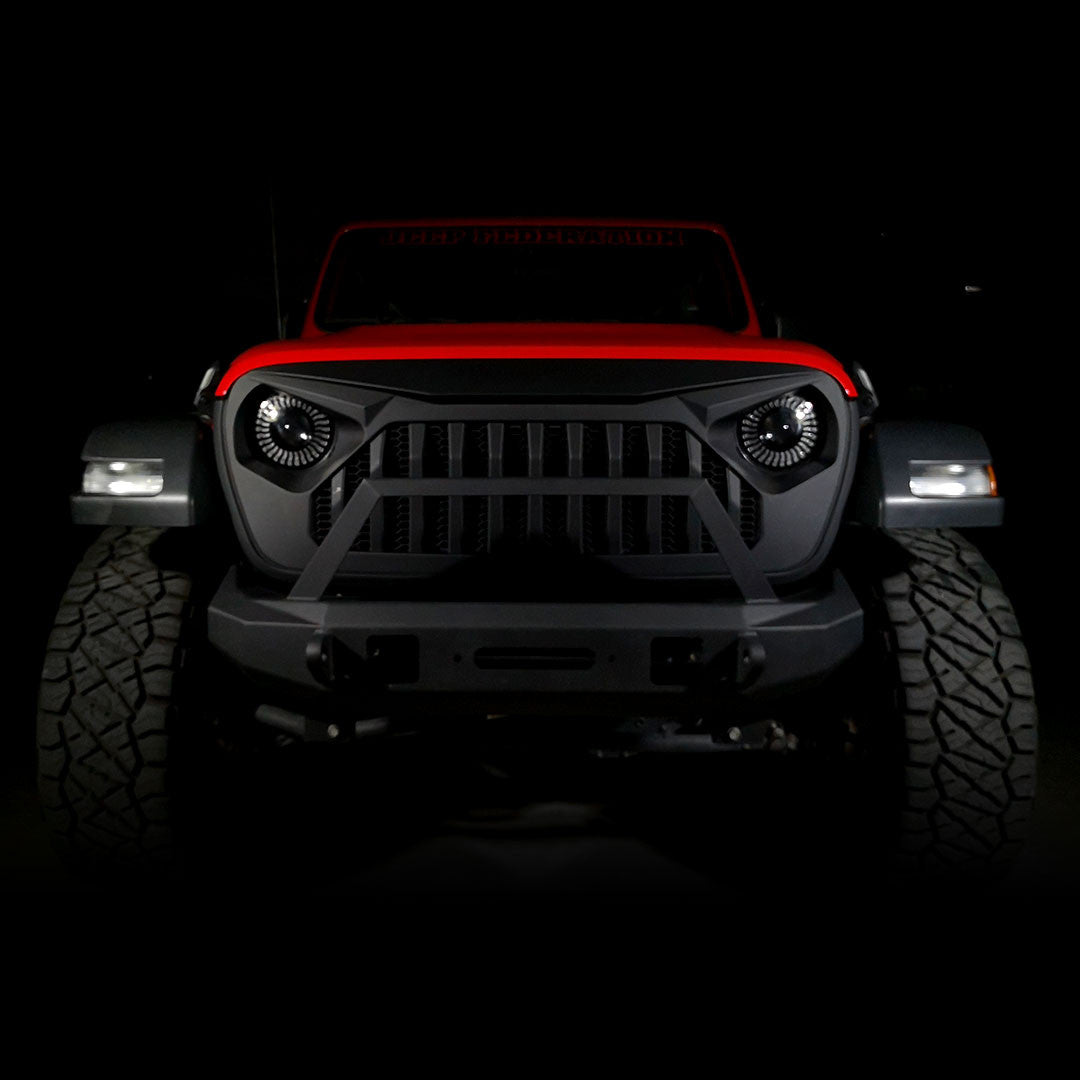

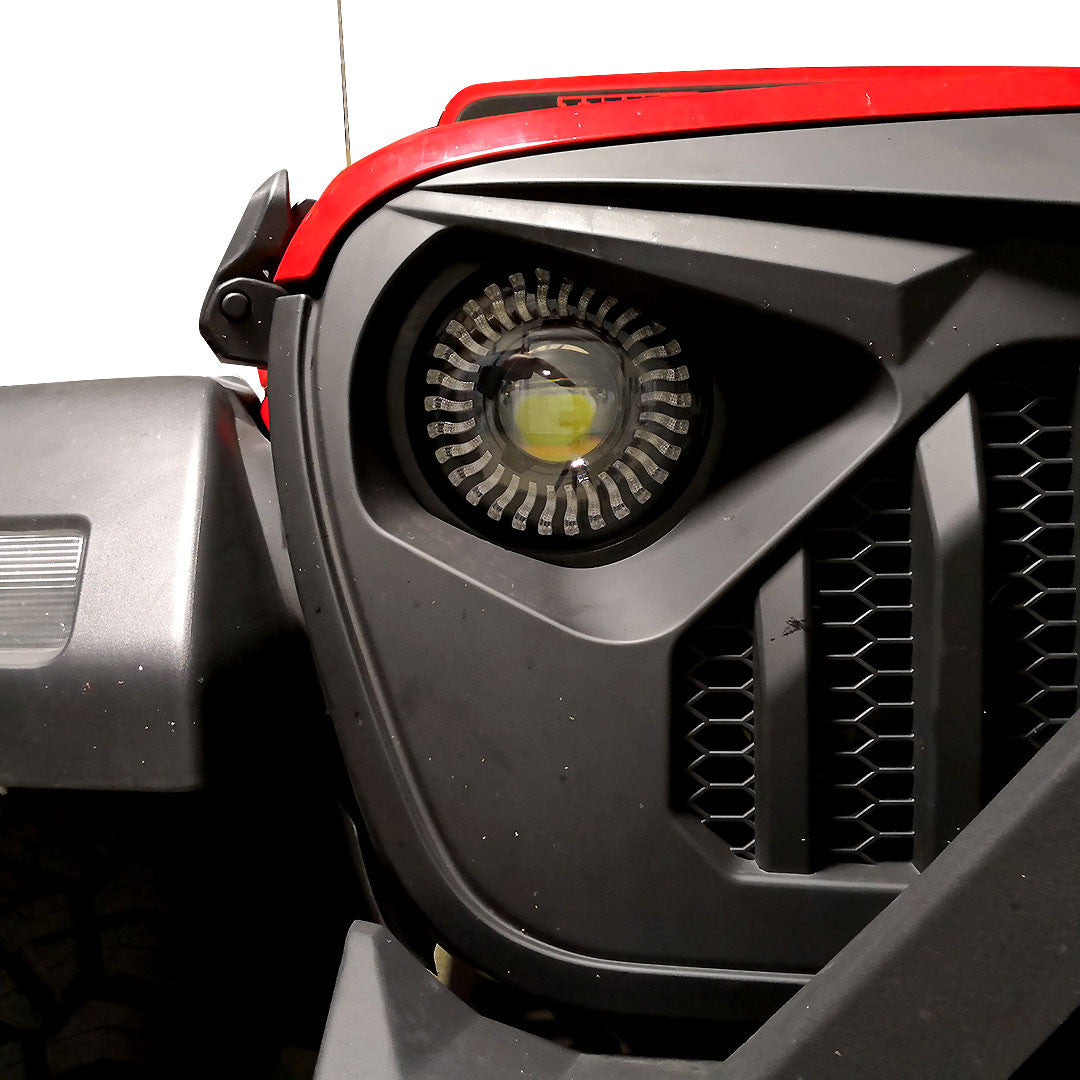

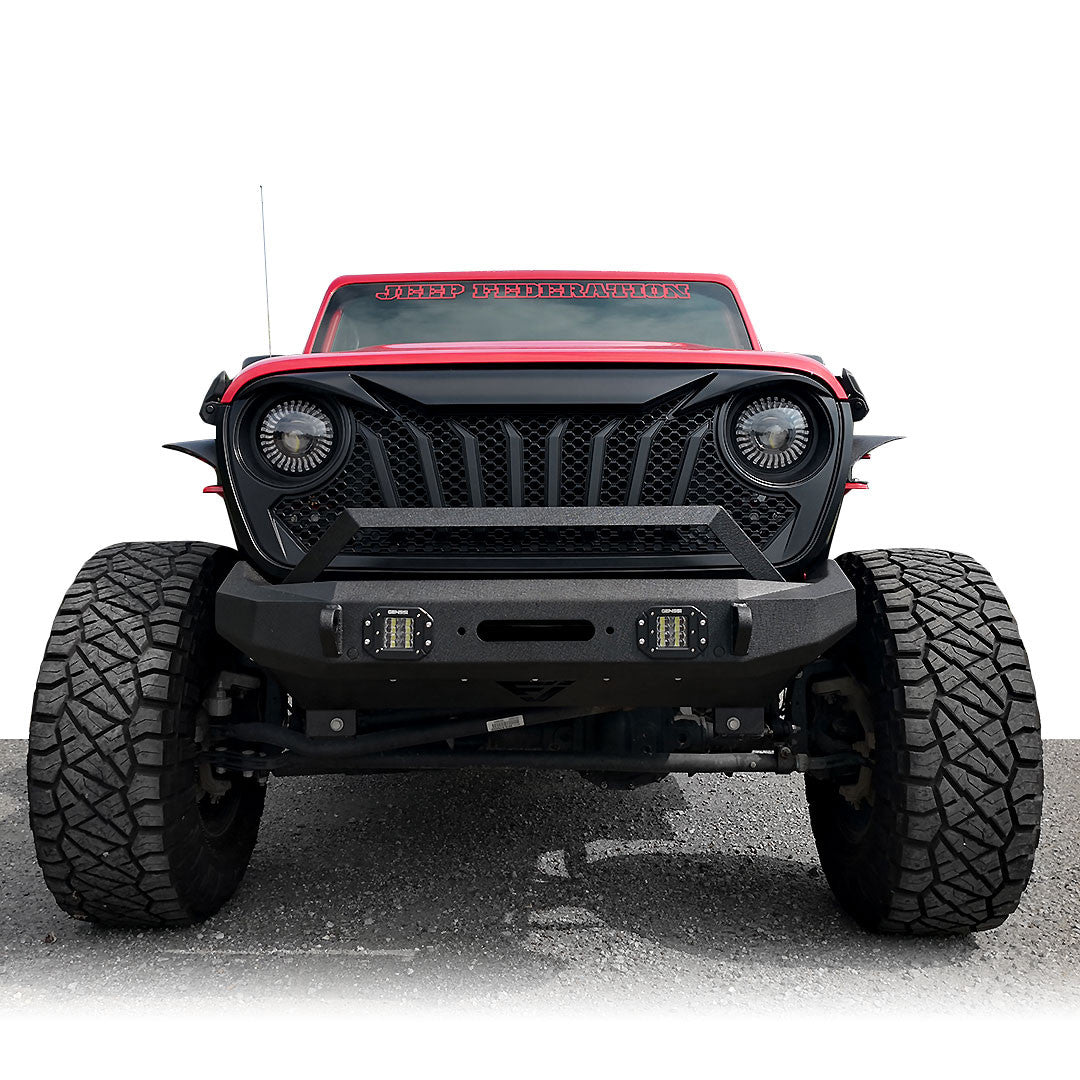

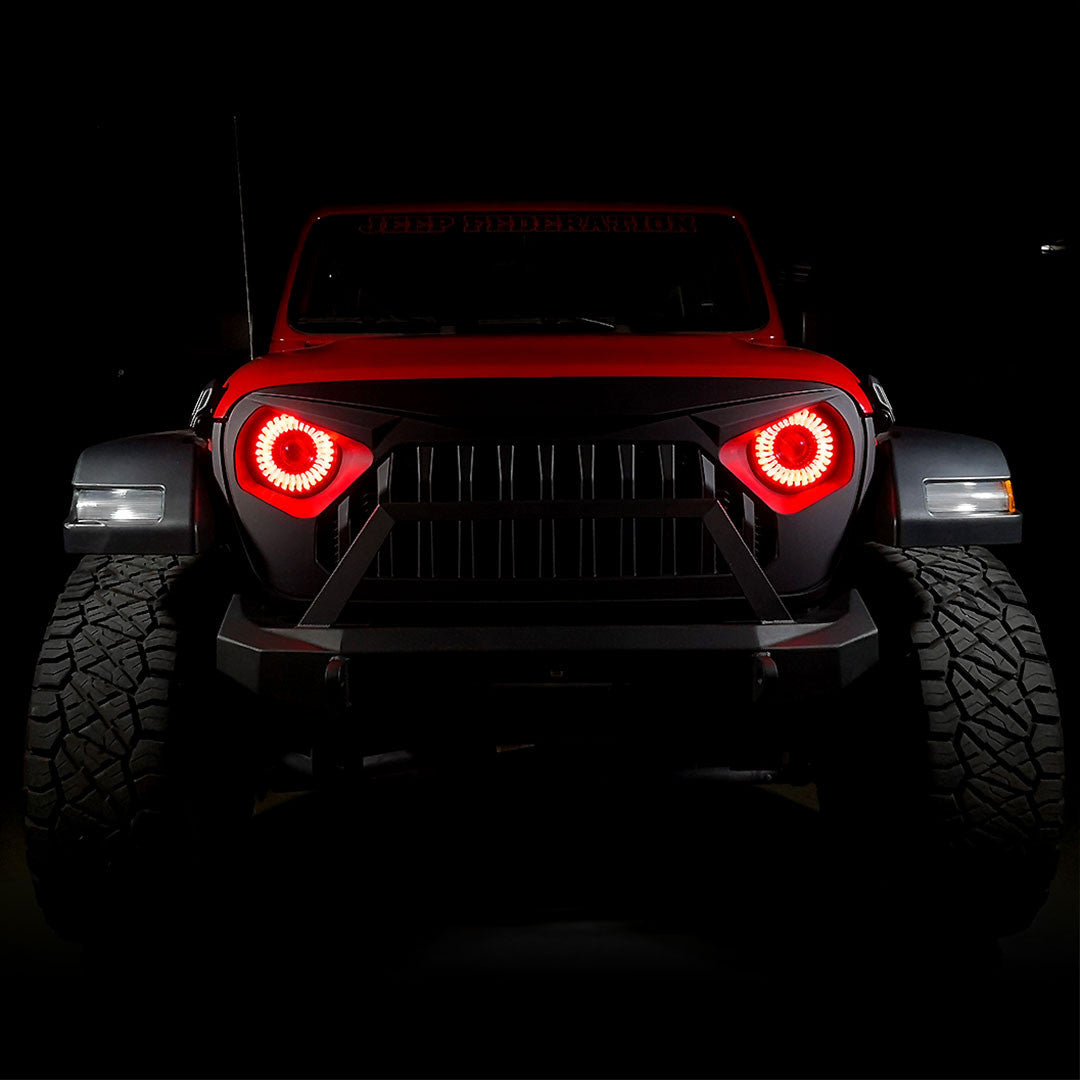

Make your Wrangler or Gladiator Stand Out!
No Expense was spared in making and designing these headlights
Yes you can spend less, but nothing will deliver the performance and look of these DEMON EYE Headlights!

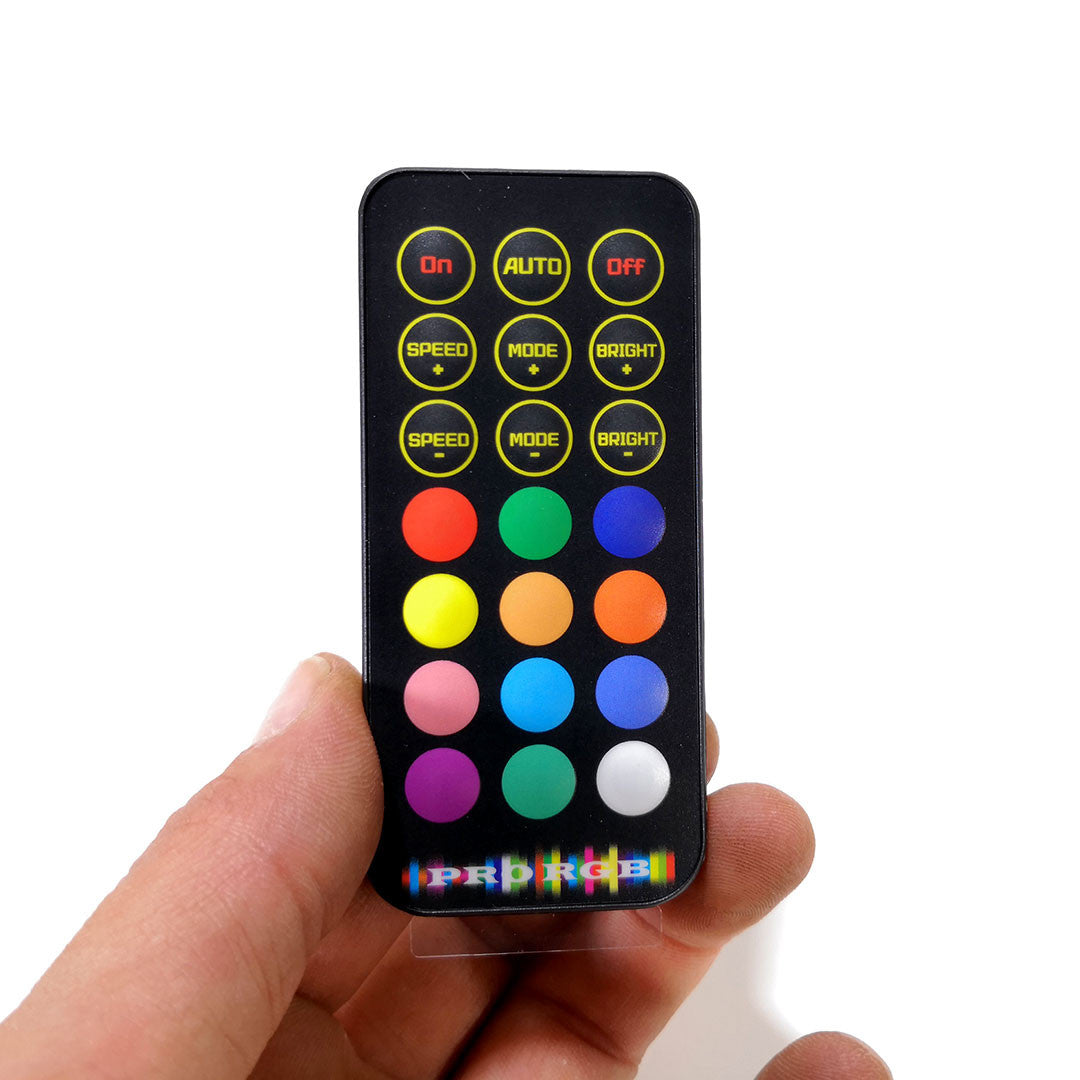

REMOTE CONTROL INCLUDED (OR YOU CAN USE THE APP ON YOUR PHONE PRO RGB)
FUSE ADAPTER INCLUDED TO INSTALL INTO YOUR FUSE BOX WITHOUT CUTTING ANYTHING
MANY FLASH PATTERNS AND COLOR FUNCTIONS ALL DONE THROUGH REMOTE OR APP
Installation
- Park on level ground, turn the engine off, and disconnect the negative battery cable.
- Remove the grille or headlight bezel/trim ring screws (varies by Jeep model) to access the headlight.
- Remove the retaining ring screws, pull the old headlight forward, and unplug it from the harness.
- Plug in the new LED headlight (use the included adapter if one is supplied for your model) and test high/low beam before fully mounting.
- Mount the new headlight with the retaining ring, then reinstall the bezel or grille.
- Reconnect the battery, check all functions (high, low, DRL/halo if equipped), and aim the headlights on a flat wall before night driving.
Some vehicles may need anti-flicker or CANbus decoders to prevent flicker or dash warnings. Professional installation is recommended if you are unsure.
