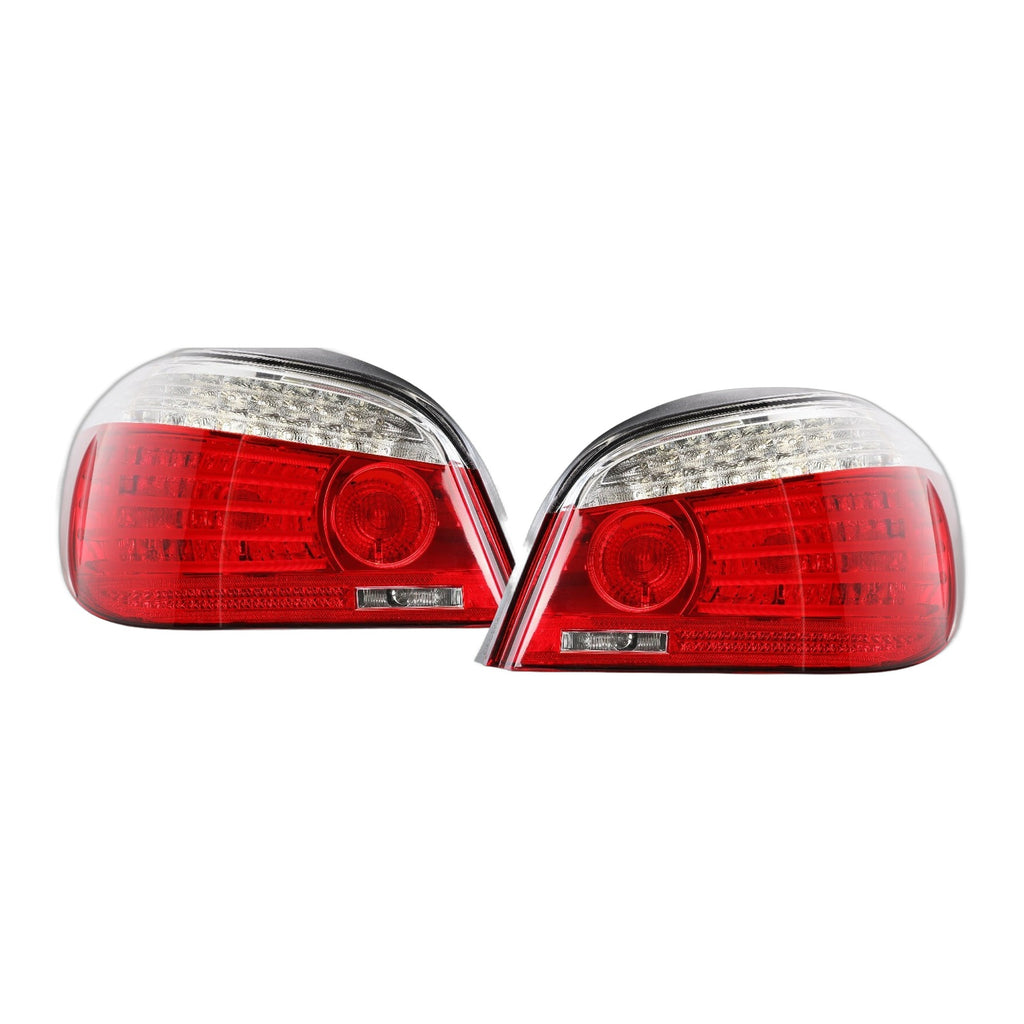

Facelift Style Red/Clear LED Tail Lights Pair for BMW 5 Series E60 Sedan and M5 (2004-2010)
$299.95
DS-63217361594-RC
Free shipping to the lower 48 · Returns & refunds · Questions? Contact us

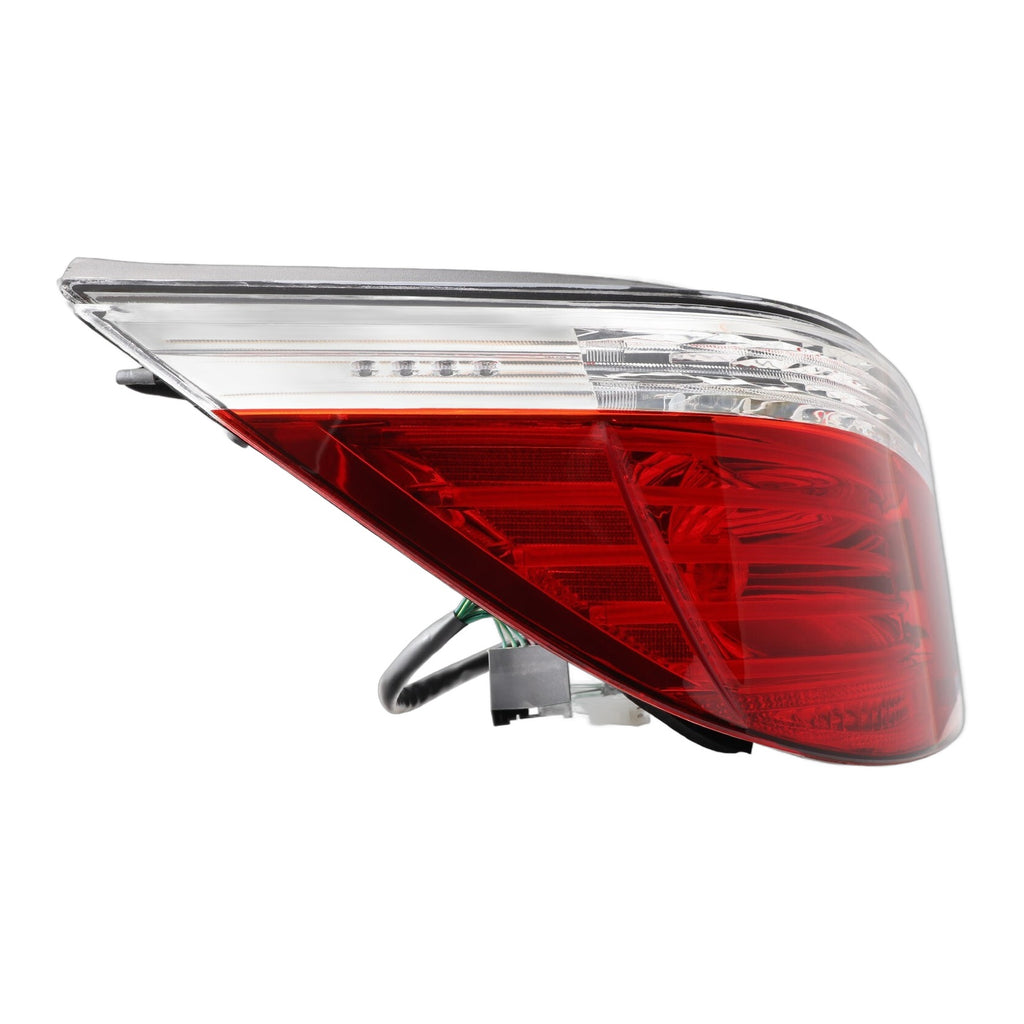

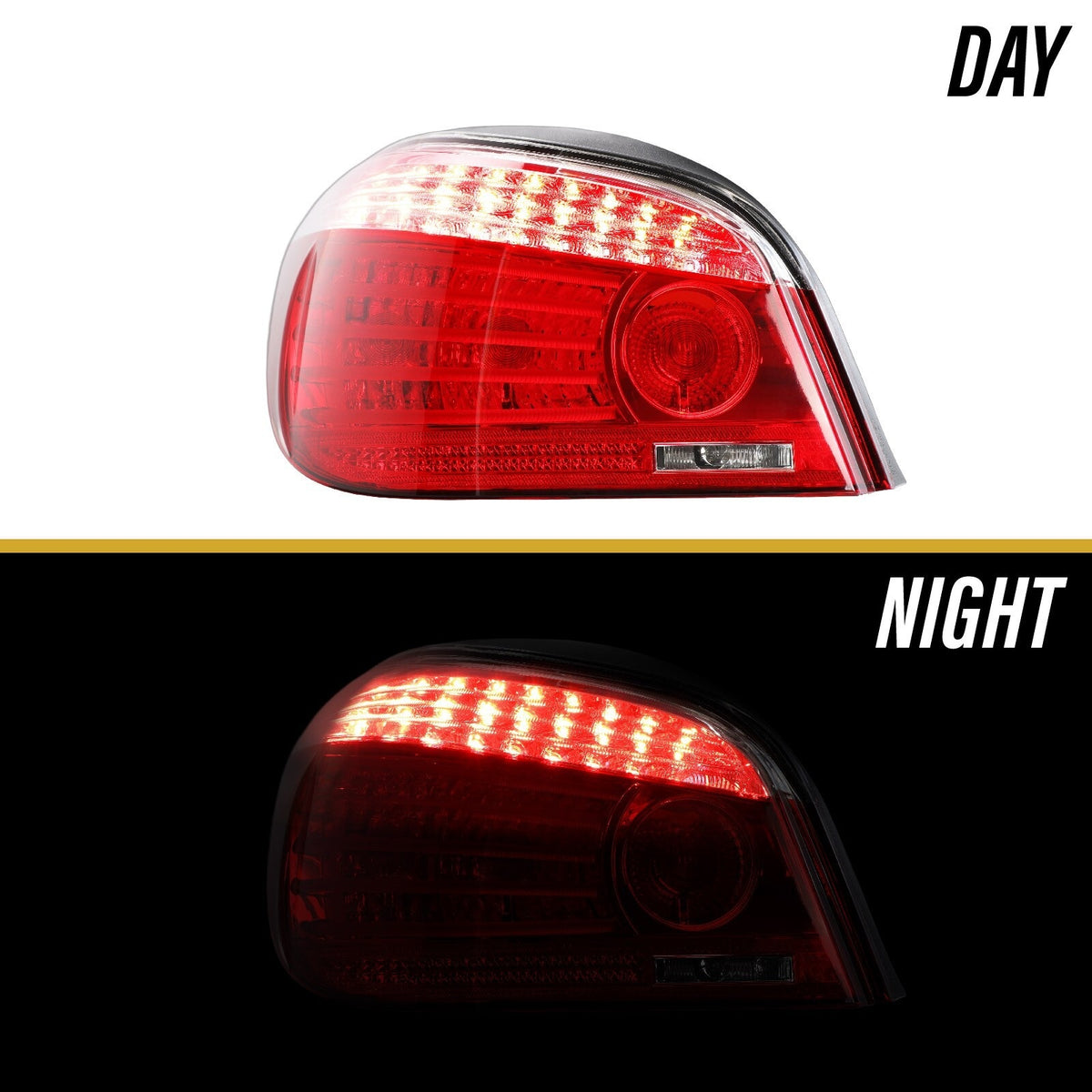

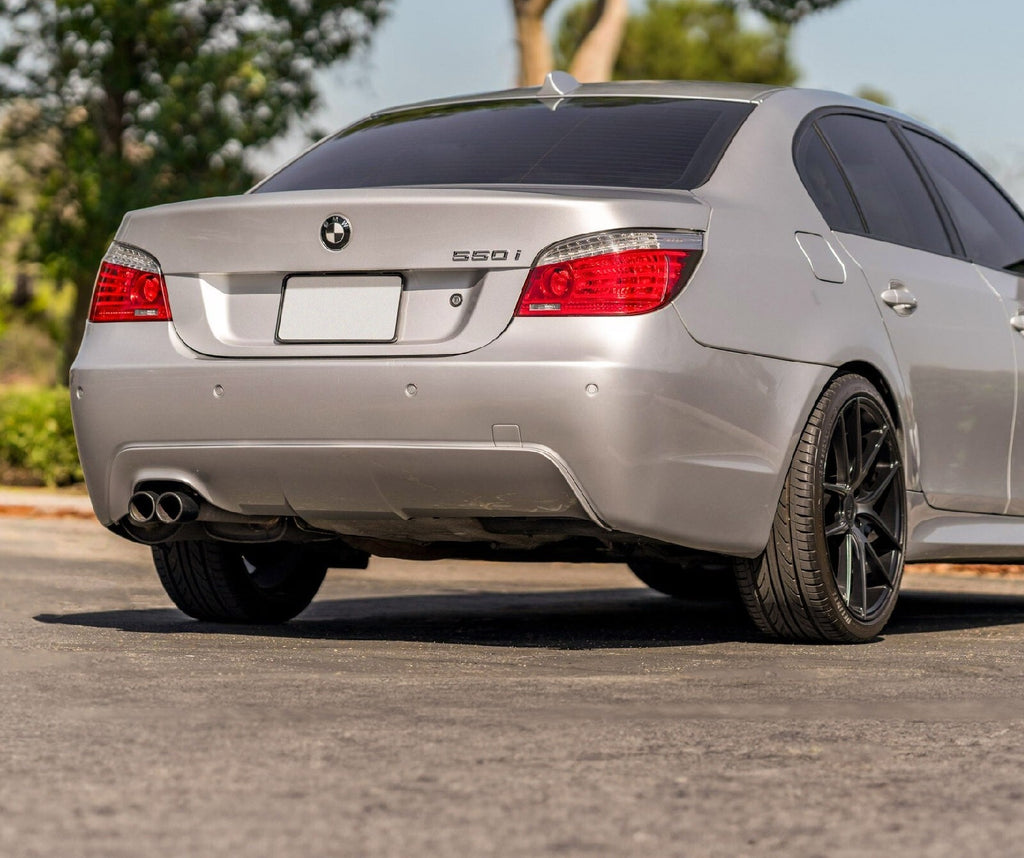

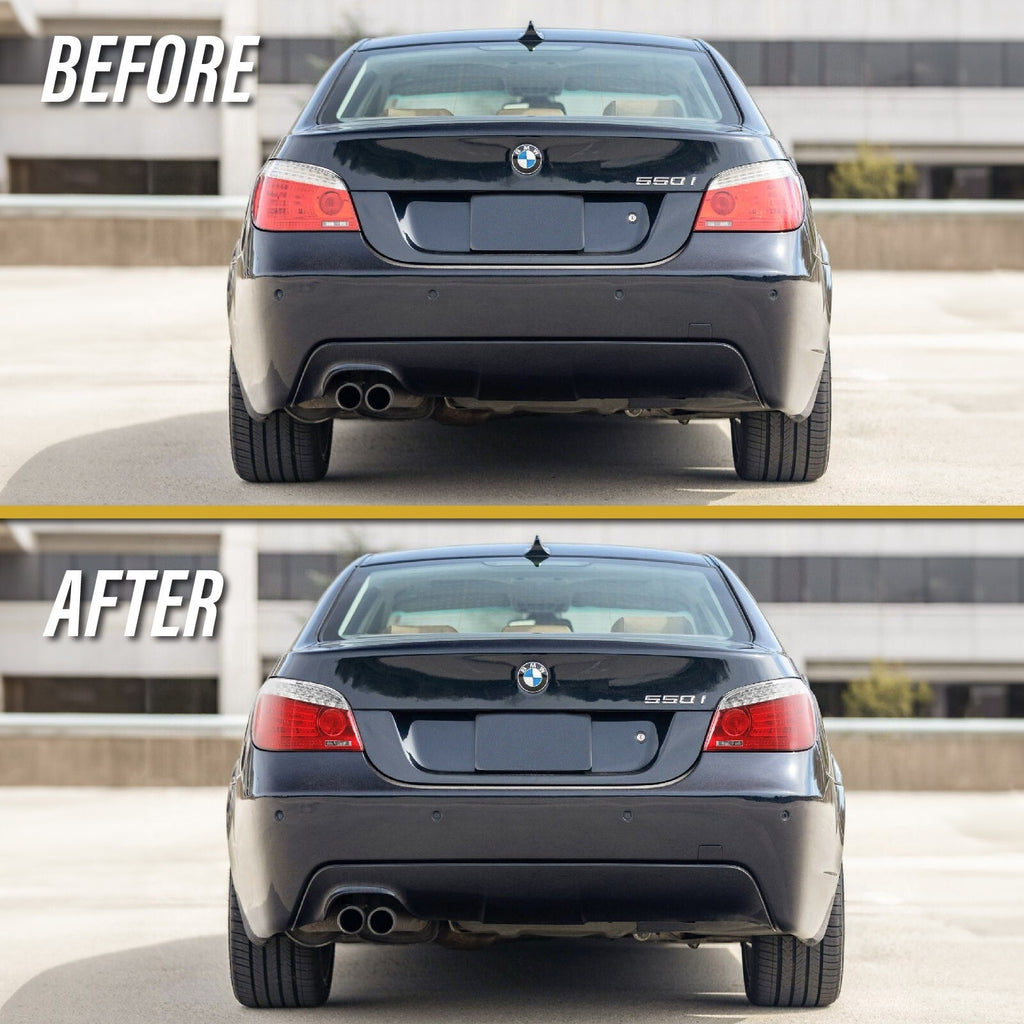

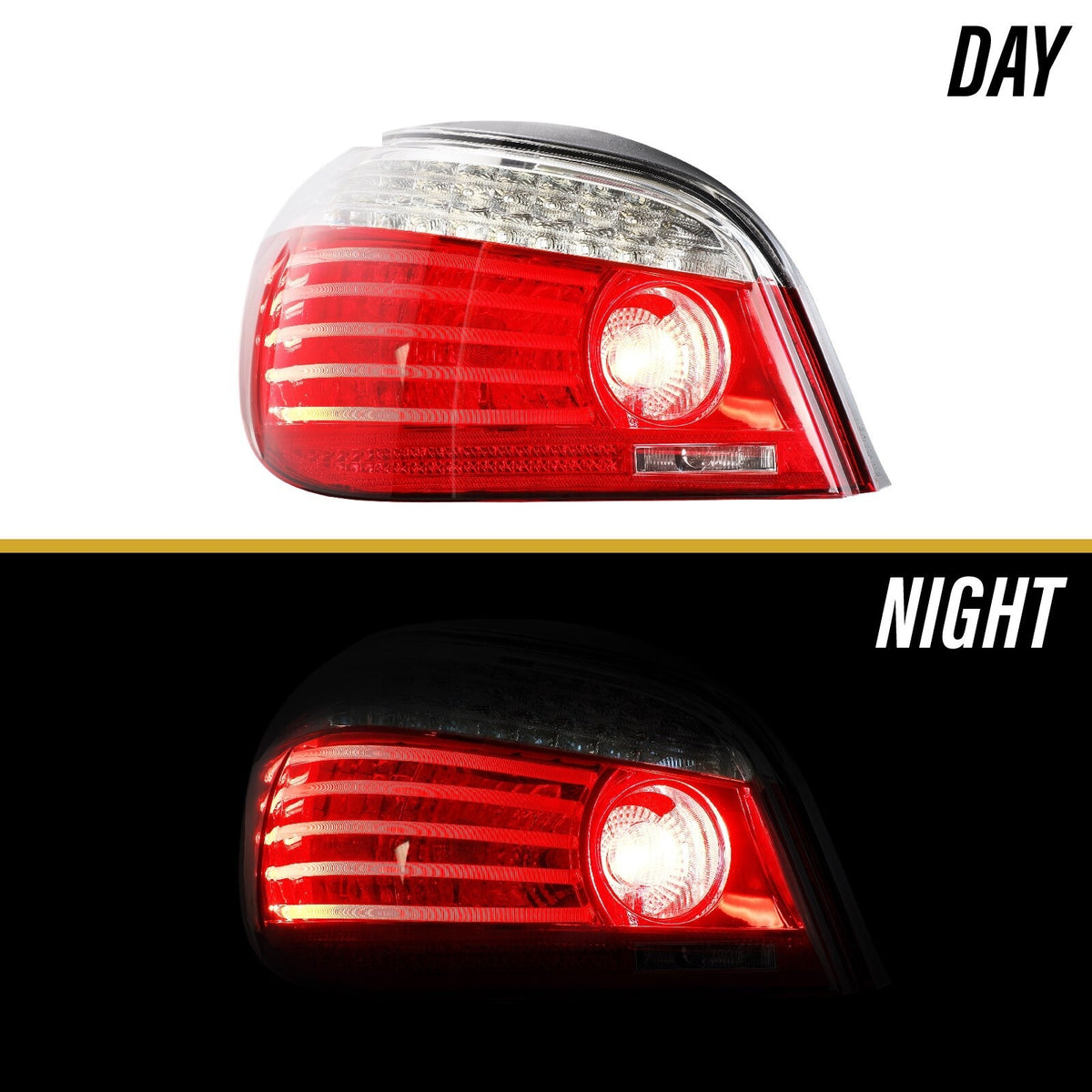

Give your 2004-2010 BMW 5 Series E60 sedan a cleaner, brighter facelift look. These tail lights pair a red/clear lens with an LED parking light bar and a built-in red LED turn signal, replacing the dated incandescent look of the factory lamps.
Fitment
| Vehicle | Years | US models |
|---|---|---|
| BMW 5 Series E60 Sedan | 2004-2007 (pre-LCI) | 525i, 530i (2004-2007); 545i (2004-2005); 550i (2006-2007); 525xi, 530xi (2006-2007) |
| BMW 5 Series E60 Sedan | 2008-2010 (LCI) | 528i, 535i, 550i, 528xi, 535xi |
| BMW M5 E60 Sedan | 2006-2010 | M5 |
Does not fit: E61 wagons (Sports Wagon) or the 2011+ F10 5 Series.
Common Reasons to Replace
- Modernize the look with LED light bars
- Faded, cracked or fogged factory lenses
- Failed factory LED sections on LCI lamps
Specs
- Lens: red/clear, UV-coated polycarbonate

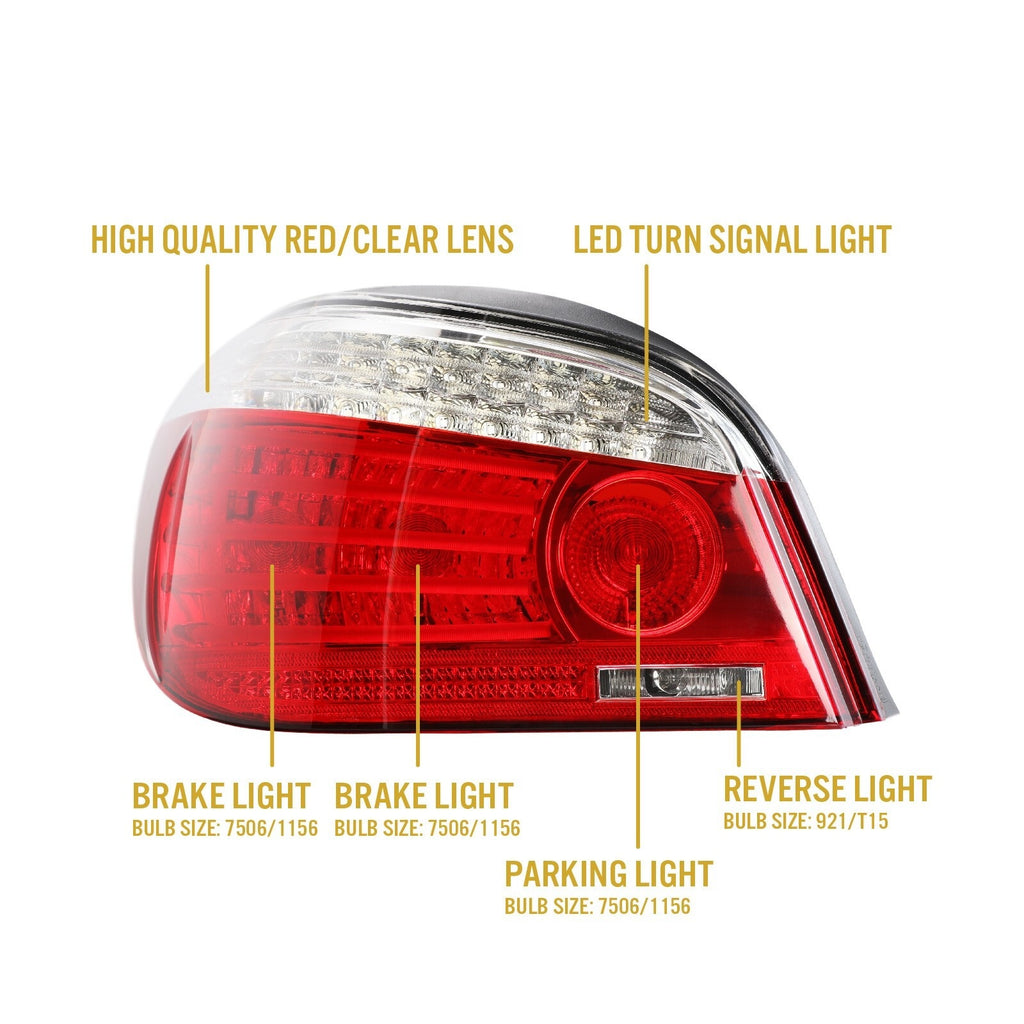

- Lighting: LED parking light bar, red LED turn signal, bulb brake and reverse
- Bulbs (included): 1156 brake, 921 reverse
- Load resistors included (required)
- ISO-certified manufacturer
- Brand: DEPO
- Warranty: 6 months
Interchange
Replaces OEM 63217361594, 63217180515 (left) and 63217180156 (right); BM2800128 / BM2801128.
What's Included
- 1 x left tail light
- 1 x right tail light

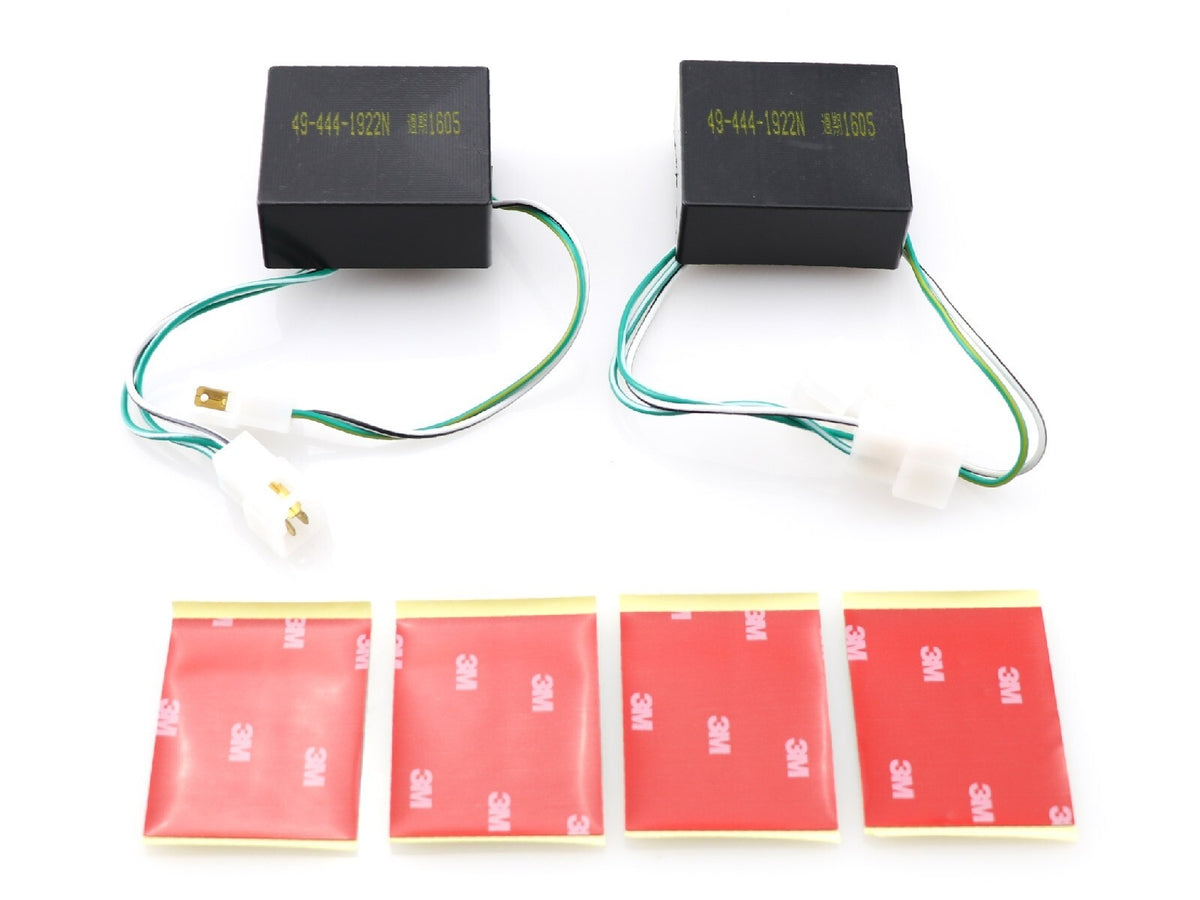

- Load resistors with mounting tape
- 1156 brake and 921 reverse bulbs
Installation (2004-2010 E60 Sedan)
- Open the trunk and remove the trunk side trim access panel behind each tail light.
- Unplug the factory connector, remove the plastic mounting nuts and ease the tail light out of the quarter panel.

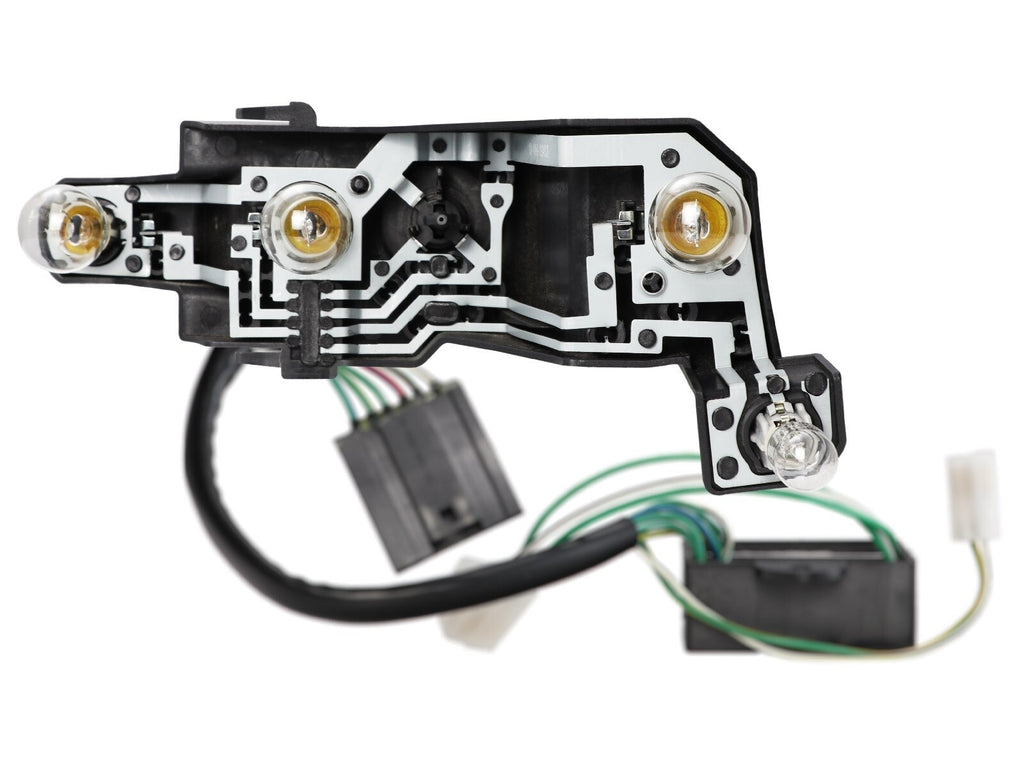

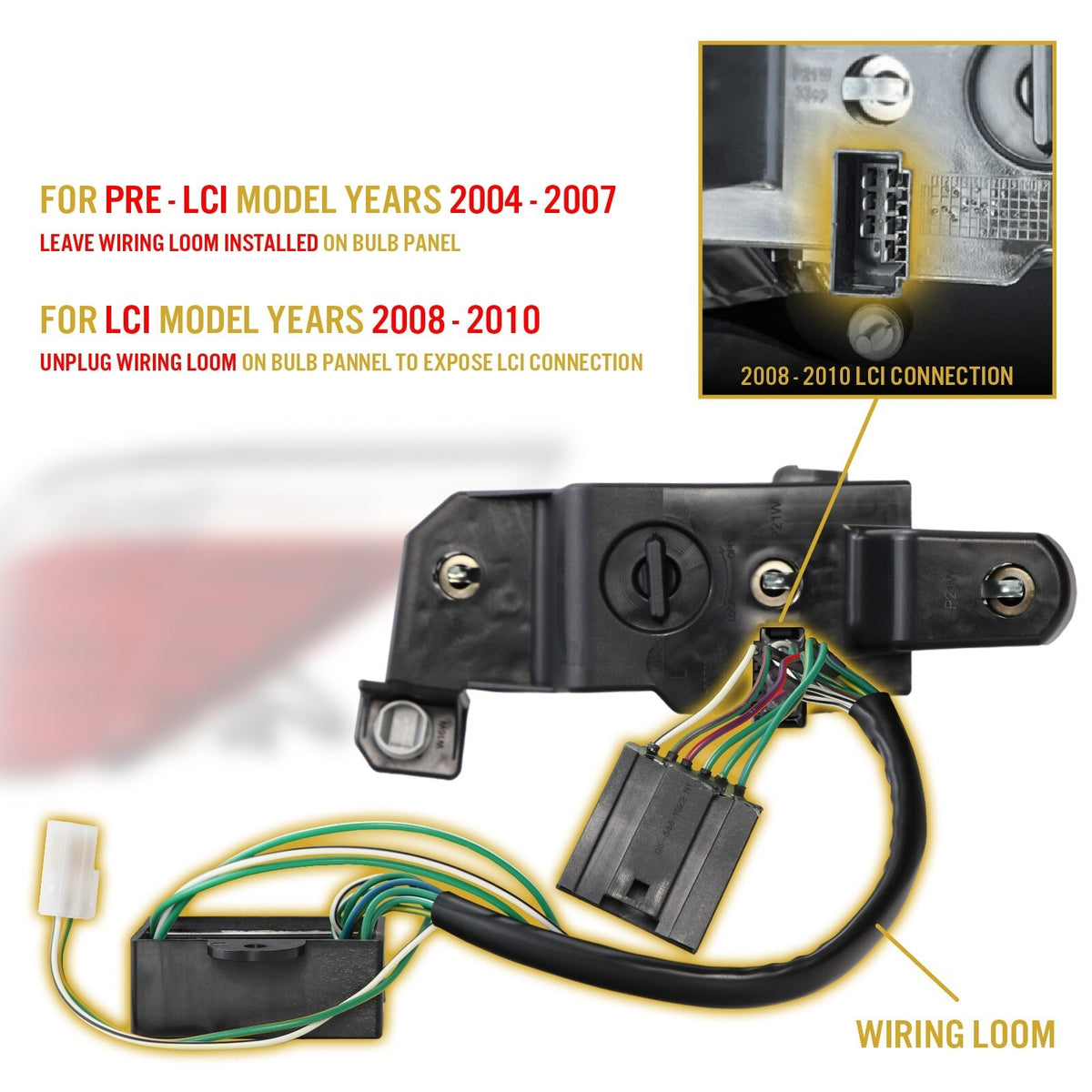

- 2004-2007 (pre-LCI) cars: leave the wiring loom installed on the bulb panel. 2008-2010 (LCI) cars: unplug the wiring loom on the bulb panel to expose the LCI connection.
- Connect the included load resistors and stick them to a clean, flat surface away from wiring with the supplied tape.

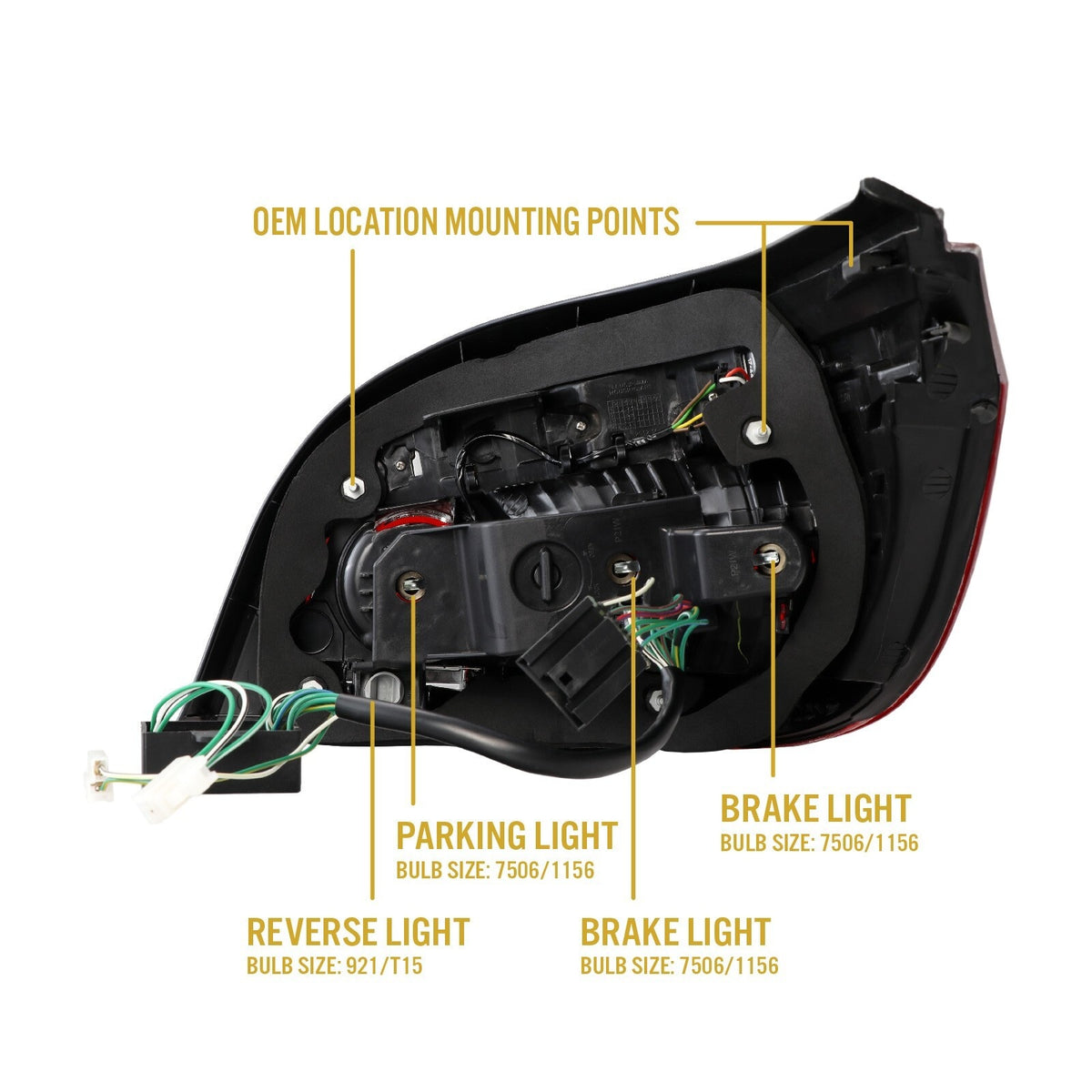

- Seat the new lamp on the factory mounting points, check the gasket sits flat and tighten the nuts evenly.
- Test parking, brake, turn signal and reverse before refitting the trim.
FAQ
Will these fit my E61 wagon?
No. These fit the E60 sedan only, including the M5.
Do they work on both early and LCI cars?
Yes. The bulb panel has a wiring loom that you leave in place on 2004-2007 cars and unplug on 2008-2010 cars.
Do I need the resistors?
Yes. The included load resistors are required to prevent bulb-out warnings and hyperflash.
Are bulbs included?
Yes: 1156 brake and 921 reverse bulbs come in the box.
